Telecentric lenses



Starting from your sensor, select the desired object field x*y [mm²].

Decide on a working distance and, if necessary, other special features of the desired lens.

In the list below the product filter you will find all the lenses that are suitable for your application.

Image scale (-β)
Object field for:
1/4" sensor
1/3" sensor
1/2" sensor
1/1.8" sensor
2/3" sensor
1" sensor
Sensor type 4/3
Sensor type DX
Sensor type 35 mm
Working distance
Camera distance
(length object-camera flange)
Aperture
Lens Mount
Special feature
Bestseller
195/195
Results
Product­view
Product information
to the wishlist (0)
TOB42/11.0-165-F16-WN
Title:
TOB42/11.0-165-F16-WN
Short description:
Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR
Order number:
2-05-604
EAN:
4251692621394
Downloads:
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object- and image-sided telecentric beam path
  • high resolution, low lateral chromatic aberration, low distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • fixed aperture
  • robust industrial design
Technical data
Image scale0.26
Spectral range465 nm - 950 nm
Working distance165.0 mm
Camera distance (object-camera flange)398.5 mm
Object field diagonal (max.)42 mm
Sensor format (opt.)2/3"
Image field diagonal (max.)11 mm
Suitable for camera resolution9.3 MPixel
Recommended pixel size2.5 µm
Aperturefixed (F16)
Lens mountC-Mount
Filter thread, object-sideM52 x 0.75
Filter thread, camera-sideM20.5 x 0.5
Weight438 g
Usable object field with:
• 2/3" sensor (8.8 x 6.6 mm²)33.8 mm x 25.4 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)27.3 mm x 20.8 mm
• 1/2" sensor (6.4 x 4.8 mm²)24.6 mm x 18.5 mm
• 1/3" sensor (4.8 x 3.6 mm²)18.5 mm x 13.8 mm
Notices
The lightings combination products shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings

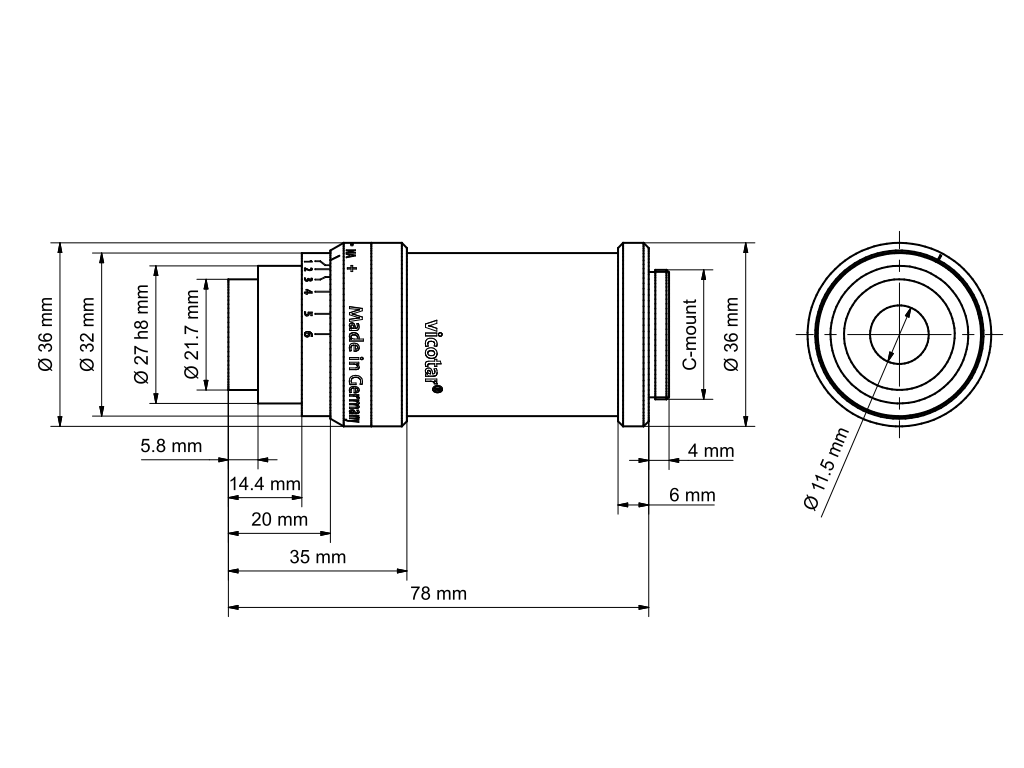

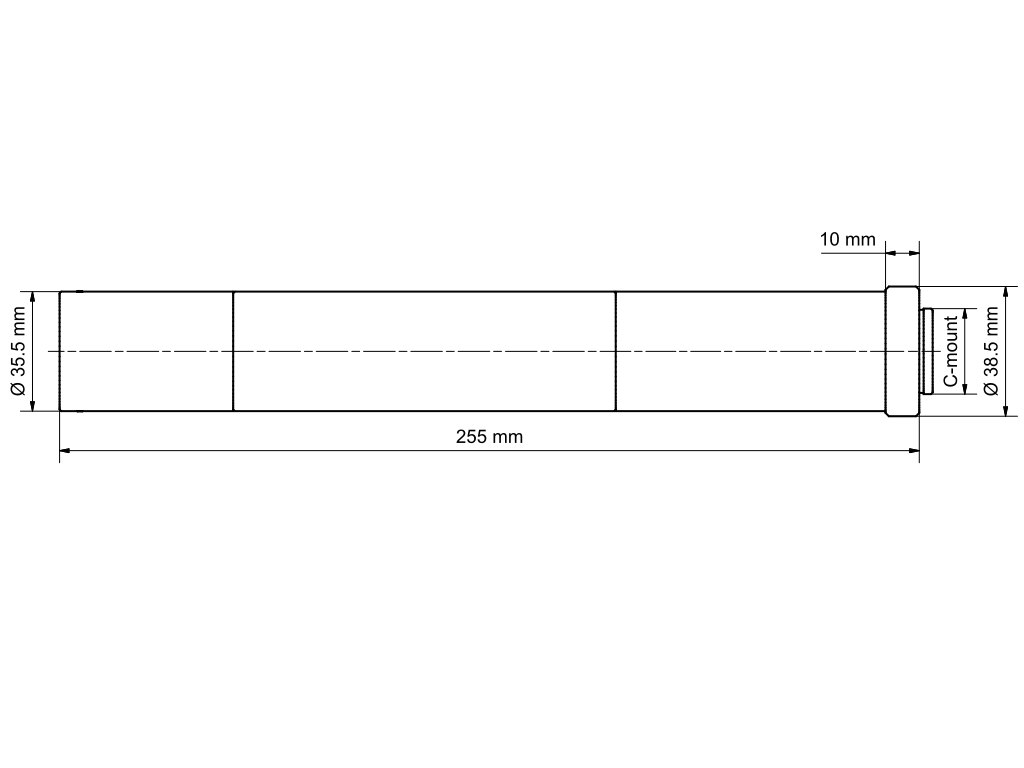

Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB51-UDC-a Serie
1-10-941 TZB51-B470/UDC/-a telecentric light, blue, lf diameter: 49 mm, flashable by flash controller
1-10-942 TZB51-W5K7/UDC/-a telecentric light, white, lf diameter: 49 mm, flashable by flash controller
1-10-943 TZB51-IR880/UDC/-a telecentric light, IR850, lf diameter: 49 mm, flashable by flash controller
1-10-940 TZB51-R625/UDC/-a telecentric light, red, lf diameter: 49 mm, flashable by flash controller
1-10-944 TZB51-G525/UDC/-a telecentric light, green, lf diameter: 49 mm, flashable by flash controller
TZB51 series
1-10-201 TZB51-B470-24V telecentric light, blue, lf diameter: 49 mm, static, cable open-ended
1-10-198 TZB51-W5K7-24V telecentric light, white, lf diameter: 49 mm, static, cable open-ended
1-10-202 TZB51-IR880-24V telecentric light, IR850, lf diameter: 49 mm, static, cable open-ended
1-10-200 TZB51-R625-24V telecentric light, red, lf diameter: 49 mm, static, cable open-ended
1-10-215 TZB51-G525-24V telecentric light, green, lf diameter: 49 mm, static, cable open-ended
R-CLR-69-SL series
1-33-007 R-CLR-69x41-B470-SL ring light, blue, coaxial, lf diameter: 41/69 mm, smart light technology
RK2036-24V series
1-29-602 RK2036-B470-24V/C ring light, blue, coaxial, lf diameter: 41/69 mm, controlled, pot.: 0-10V,
R-CLR-100-SL series
1-33-012 R-CLR-100x73-B470-SL ring light, blue, coaxial, lf diameter: 73/100 mm, smart light technology
RK3652-24V series
1-29-702 RK3652-B470-24V/C ring light, blue, coaxial, lf diameter: 73/100 mm, controlled, pot.: 0-10V,
R-CLR-132-SL series
1-33-017 R-CLR-132x104-B470-SL ring light, blue, coaxial, lf diameter: 104/132 mm, smart light technology
RK5268-24V series
1-29-802 RK5268-B470-24V/C ring light, blue, coaxial, lf diameter: 104/132 mm, controlled, pot.: 0-10V,
Accessories
Order number Title Description
Adjustment Aids
5-10-112 Adjustment aid 10 for easy adjustment to 10 mm depth of field, for image scale 0.5 - 0.2
Lens mount
2-90-122 Lens Holder d32 Holder for telecentric lenses and lightings with d = 32 mm
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
2-90-419 Extension ring 0.1 mm 25.5 x 29 x 0.1 reduces the minimum object distance (MOD)
2-90-420 Extension ring 0.2 mm 25.5 x 29 x 0.2 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-174 ND filter 3.0 M52x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M52x0.75
2-91-164 ND filter 1.2 M52x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M52x0.75
2-91-154 ND filter 0.6 M52x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M52x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-134 IR filter M52x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M52x0.75
Polarising filters
2-91-144 Pole filter M52x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75
Colour filter blue
2-91-290 Colour filter blue M52x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M52x0.75
UV Cut-Off Filter
2-91-124 UV blocking filter M52x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M52x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-262 Colour filter red M52x0.75 long-pass filter from 630 nm, red, filter thread M52x0.75
Colour filter green
2-91-303 Colour filter green M52x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M52x0.75
Colour filter yellow
2-91-277 Colour filter yellow M52x0.75 long-pass filter from 530 nm, yellow, filter thread M52x0.75
Deflection mirrow 90° series
2-25-115 Deflection mirror 90-56 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm
Adapters for attaching lights to lenses
1-29-676 Adapter ring d41 - M52x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M52x0.75
1-29-772 Adapter ring d73 - M52x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M52x0.75
1-29-870 Adapter ring d104 - M52x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M52x0.75
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-022 Adapter STE60x60 - TZO56 Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm
TOB42/11.0-165-F10-WN
Title:
TOB42/11.0-165-F10-WN
Short description:
Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR
Order number:
2-05-607
EAN:
4251692621424
Downloads:
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object- and image-sided telecentric beam path
  • high resolution, low lateral chromatic aberration, low distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • fixed aperture
  • robust industrial design
Technical data
Image scale0.26
Spectral range465 nm - 950 nm
Working distance165.0 mm
Camera distance (object-camera flange)398.5 mm
Object field diagonal (max.)42 mm
Sensor format (opt.)2/3"
Image field diagonal (max.)11 mm
Suitable for camera resolution9.3 MPixel
Recommended pixel size2.5 µm
Aperturefixed (F10)
Lens mountC-Mount
Filter thread, object-sideM52 x 0.75
Filter thread, camera-sideM20.5 x 0.5
Weight438 g
Usable object field with:
• 2/3" sensor (8.8 x 6.6 mm²)33.8 mm x 25.4 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)27.3 mm x 20.8 mm
• 1/2" sensor (6.4 x 4.8 mm²)24.6 mm x 18.5 mm
• 1/3" sensor (4.8 x 3.6 mm²)18.5 mm x 13.8 mm
Notices
The lightings combination products shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings

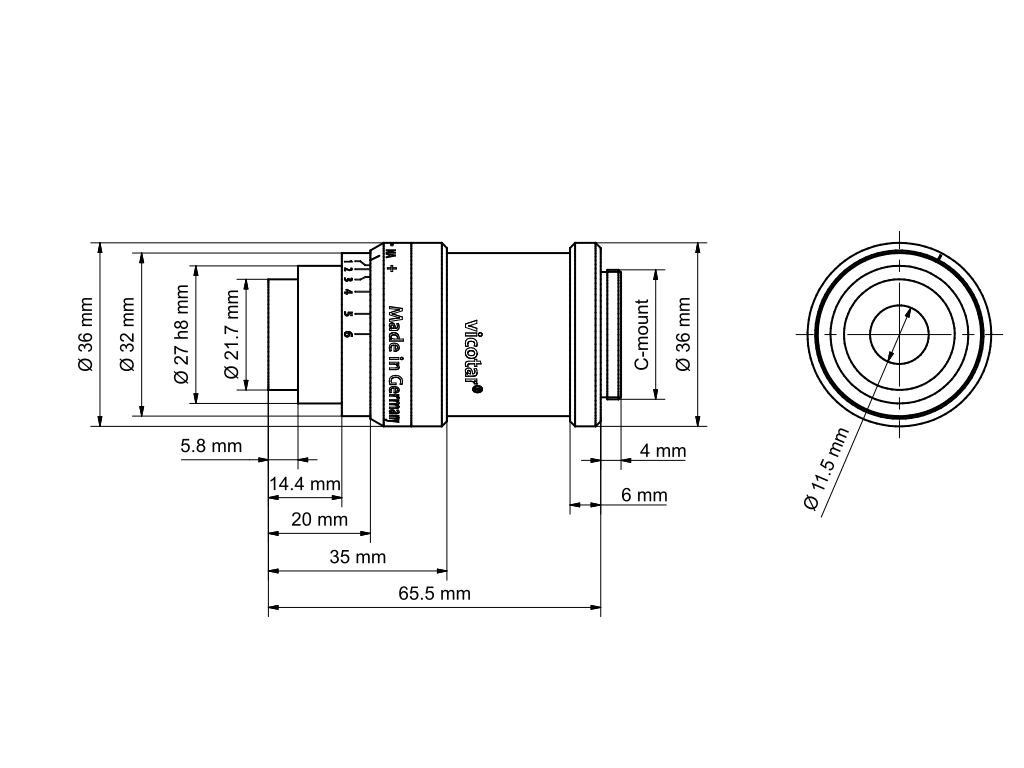

Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB51-UDC-a Serie
1-10-941 TZB51-B470/UDC/-a telecentric light, blue, lf diameter: 49 mm, flashable by flash controller
1-10-942 TZB51-W5K7/UDC/-a telecentric light, white, lf diameter: 49 mm, flashable by flash controller
1-10-943 TZB51-IR880/UDC/-a telecentric light, IR850, lf diameter: 49 mm, flashable by flash controller
1-10-940 TZB51-R625/UDC/-a telecentric light, red, lf diameter: 49 mm, flashable by flash controller
1-10-944 TZB51-G525/UDC/-a telecentric light, green, lf diameter: 49 mm, flashable by flash controller
TZB51 series
1-10-201 TZB51-B470-24V telecentric light, blue, lf diameter: 49 mm, static, cable open-ended
1-10-198 TZB51-W5K7-24V telecentric light, white, lf diameter: 49 mm, static, cable open-ended
1-10-202 TZB51-IR880-24V telecentric light, IR850, lf diameter: 49 mm, static, cable open-ended
1-10-200 TZB51-R625-24V telecentric light, red, lf diameter: 49 mm, static, cable open-ended
1-10-215 TZB51-G525-24V telecentric light, green, lf diameter: 49 mm, static, cable open-ended
R-CLR-69-SL series
1-33-007 R-CLR-69x41-B470-SL ring light, blue, coaxial, lf diameter: 41/69 mm, smart light technology
RK2036-24V series
1-29-602 RK2036-B470-24V/C ring light, blue, coaxial, lf diameter: 41/69 mm, controlled, pot.: 0-10V,
R-CLR-100-SL series
1-33-012 R-CLR-100x73-B470-SL ring light, blue, coaxial, lf diameter: 73/100 mm, smart light technology
RK3652-24V series
1-29-702 RK3652-B470-24V/C ring light, blue, coaxial, lf diameter: 73/100 mm, controlled, pot.: 0-10V,
R-CLR-132-SL series
1-33-017 R-CLR-132x104-B470-SL ring light, blue, coaxial, lf diameter: 104/132 mm, smart light technology
RK5268-24V series
1-29-802 RK5268-B470-24V/C ring light, blue, coaxial, lf diameter: 104/132 mm, controlled, pot.: 0-10V,
Accessories
Order number Title Description
Adjustment Aids
5-10-112 Adjustment aid 10 for easy adjustment to 10 mm depth of field, for image scale 0.5 - 0.2
Lens mount
2-90-122 Lens Holder d32 Holder for telecentric lenses and lightings with d = 32 mm
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
2-90-419 Extension ring 0.1 mm 25.5 x 29 x 0.1 reduces the minimum object distance (MOD)
2-90-420 Extension ring 0.2 mm 25.5 x 29 x 0.2 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-174 ND filter 3.0 M52x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M52x0.75
2-91-164 ND filter 1.2 M52x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M52x0.75
2-91-154 ND filter 0.6 M52x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M52x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-134 IR filter M52x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M52x0.75
Polarising filters
2-91-144 Pole filter M52x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75
Colour filter blue
2-91-290 Colour filter blue M52x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M52x0.75
UV Cut-Off Filter
2-91-124 UV blocking filter M52x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M52x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-262 Colour filter red M52x0.75 long-pass filter from 630 nm, red, filter thread M52x0.75
Colour filter green
2-91-303 Colour filter green M52x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M52x0.75
Colour filter yellow
2-91-277 Colour filter yellow M52x0.75 long-pass filter from 530 nm, yellow, filter thread M52x0.75
Deflection mirrow 90° series
2-25-115 Deflection mirror 90-56 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm
Adapters for attaching lights to lenses
1-29-676 Adapter ring d41 - M52x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M52x0.75
1-29-772 Adapter ring d73 - M52x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M52x0.75
1-29-870 Adapter ring d104 - M52x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M52x0.75
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-022 Adapter STE60x60 - TZO56 Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm
TOB42/11.0-185-V-WN
Title:
TOB42/11.0-185-V-WN
Short description:
Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR
Order number:
2-05-600
EAN:
4251692621356
Downloads:
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object- and image-sided telecentric beam path
  • high resolution, low lateral chromatic aberration, low distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • adjustable aperture with identification of the aperture numbers, arrestable
  • robust industrial design
Technical data
Image scale0.26
Spectral range465 nm - 950 nm
Working distance185.0 mm
WD adjust @ 850 nm+ 1.3 mm
WD adjust @ 940 nm+ 2.0 mm
WD adjust @ 1050 nm+ 3.1 mm
WD adjust @ 1500 nm+ 8.3 mm
Camera distance (object-camera flange)417 mm
Object field diagonal (max.)42 mm
Sensor format (opt.)2/3"
Image field diagonal (max.)11 mm
Suitable for camera resolution9.3 MPixel
Recommended pixel size2.5 µm
Aperturevariable (F6 - F22)
Lens mountC-Mount
Filter thread, object-sideM52 x 0.75
Filter thread, camera-sideM20.5 x 0.5
Weight437 g
Usable object field with:
• 2/3" sensor (8.8 x 6.6 mm²)33.8 mm x 25.4 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)27.3 mm x 20.8 mm
• 1/2" sensor (6.4 x 4.8 mm²)24.6 mm x 18.5 mm
• 1/3" sensor (4.8 x 3.6 mm²)18.5 mm x 13.8 mm
Notices
The lightings combination products shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB51-UDC-a Serie
1-10-941 TZB51-B470/UDC/-a telecentric light, blue, lf diameter: 49 mm, flashable by flash controller
1-10-942 TZB51-W5K7/UDC/-a telecentric light, white, lf diameter: 49 mm, flashable by flash controller
1-10-943 TZB51-IR880/UDC/-a telecentric light, IR850, lf diameter: 49 mm, flashable by flash controller
1-10-940 TZB51-R625/UDC/-a telecentric light, red, lf diameter: 49 mm, flashable by flash controller
1-10-944 TZB51-G525/UDC/-a telecentric light, green, lf diameter: 49 mm, flashable by flash controller
TZB51 series
1-10-201 TZB51-B470-24V telecentric light, blue, lf diameter: 49 mm, static, cable open-ended
1-10-198 TZB51-W5K7-24V telecentric light, white, lf diameter: 49 mm, static, cable open-ended
1-10-202 TZB51-IR880-24V telecentric light, IR850, lf diameter: 49 mm, static, cable open-ended
1-10-200 TZB51-R625-24V telecentric light, red, lf diameter: 49 mm, static, cable open-ended
1-10-215 TZB51-G525-24V telecentric light, green, lf diameter: 49 mm, static, cable open-ended
R-CLR-69-SL series
1-33-007 R-CLR-69x41-B470-SL ring light, blue, coaxial, lf diameter: 41/69 mm, smart light technology
RK2036-24V series
1-29-602 RK2036-B470-24V/C ring light, blue, coaxial, lf diameter: 41/69 mm, controlled, pot.: 0-10V,
R-CLR-100-SL series
1-33-012 R-CLR-100x73-B470-SL ring light, blue, coaxial, lf diameter: 73/100 mm, smart light technology
RK3652-24V series
1-29-702 RK3652-B470-24V/C ring light, blue, coaxial, lf diameter: 73/100 mm, controlled, pot.: 0-10V,
R-CLR-132-SL series
1-33-017 R-CLR-132x104-B470-SL ring light, blue, coaxial, lf diameter: 104/132 mm, smart light technology
RK5268-24V series
1-29-802 RK5268-B470-24V/C ring light, blue, coaxial, lf diameter: 104/132 mm, controlled, pot.: 0-10V,
Accessories
Order number Title Description
Adjustment Aids
5-10-112 Adjustment aid 10 for easy adjustment to 10 mm depth of field, for image scale 0.5 - 0.2
Lens mount
2-90-122 Lens Holder d32 Holder for telecentric lenses and lightings with d = 32 mm
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
2-90-419 Extension ring 0.1 mm 25.5 x 29 x 0.1 reduces the minimum object distance (MOD)
2-90-420 Extension ring 0.2 mm 25.5 x 29 x 0.2 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-174 ND filter 3.0 M52x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M52x0.75
2-91-164 ND filter 1.2 M52x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M52x0.75
2-91-154 ND filter 0.6 M52x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M52x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-134 IR filter M52x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M52x0.75
Polarising filters
2-91-144 Pole filter M52x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75
Colour filter blue
2-91-290 Colour filter blue M52x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M52x0.75
UV Cut-Off Filter
2-91-124 UV blocking filter M52x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M52x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-262 Colour filter red M52x0.75 long-pass filter from 630 nm, red, filter thread M52x0.75
Colour filter green
2-91-303 Colour filter green M52x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M52x0.75
Colour filter yellow
2-91-277 Colour filter yellow M52x0.75 long-pass filter from 530 nm, yellow, filter thread M52x0.75
Deflection mirrow 90° series
2-25-115 Deflection mirror 90-56 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm
Adapters for attaching lights to lenses
1-29-676 Adapter ring d41 - M52x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M52x0.75
1-29-772 Adapter ring d73 - M52x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M52x0.75
1-29-870 Adapter ring d104 - M52x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M52x0.75
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-022 Adapter STE60x60 - TZO56 Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm
TOB42/11.0-185-F16-WN
Title:
TOB42/11.0-185-F16-WN
Short description:
Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR
Order number:
2-05-603
EAN:
4251692621387
Downloads:
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object- and image-sided telecentric beam path
  • high resolution, low lateral chromatic aberration, low distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • fixed aperture
  • robust industrial design
Technical data
Image scale0.26
Spectral range465 nm - 950 nm
Working distance185.0 mm
Camera distance (object-camera flange)417 mm
Object field diagonal (max.)42 mm
Sensor format (opt.)2/3"
Image field diagonal (max.)11 mm
Suitable for camera resolution9.3 MPixel
Recommended pixel size2.5 µm
Aperturefixed (F16)
Lens mountC-Mount
Filter thread, object-sideM52 x 0.75
Filter thread, camera-sideM20.5 x 0.5
Weight433 g
Usable object field with:
• 2/3" sensor (8.8 x 6.6 mm²)33.8 mm x 25.4 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)27.3 mm x 20.8 mm
• 1/2" sensor (6.4 x 4.8 mm²)24.6 mm x 18.5 mm
• 1/3" sensor (4.8 x 3.6 mm²)18.5 mm x 13.8 mm
Notices
The lightings combination products shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB51-UDC-a Serie
1-10-941 TZB51-B470/UDC/-a telecentric light, blue, lf diameter: 49 mm, flashable by flash controller
1-10-942 TZB51-W5K7/UDC/-a telecentric light, white, lf diameter: 49 mm, flashable by flash controller
1-10-943 TZB51-IR880/UDC/-a telecentric light, IR850, lf diameter: 49 mm, flashable by flash controller
1-10-940 TZB51-R625/UDC/-a telecentric light, red, lf diameter: 49 mm, flashable by flash controller
1-10-944 TZB51-G525/UDC/-a telecentric light, green, lf diameter: 49 mm, flashable by flash controller
TZB51 series
1-10-201 TZB51-B470-24V telecentric light, blue, lf diameter: 49 mm, static, cable open-ended
1-10-198 TZB51-W5K7-24V telecentric light, white, lf diameter: 49 mm, static, cable open-ended
1-10-202 TZB51-IR880-24V telecentric light, IR850, lf diameter: 49 mm, static, cable open-ended
1-10-200 TZB51-R625-24V telecentric light, red, lf diameter: 49 mm, static, cable open-ended
1-10-215 TZB51-G525-24V telecentric light, green, lf diameter: 49 mm, static, cable open-ended
R-CLR-69-SL series
1-33-007 R-CLR-69x41-B470-SL ring light, blue, coaxial, lf diameter: 41/69 mm, smart light technology
RK2036-24V series
1-29-602 RK2036-B470-24V/C ring light, blue, coaxial, lf diameter: 41/69 mm, controlled, pot.: 0-10V,
R-CLR-100-SL series
1-33-012 R-CLR-100x73-B470-SL ring light, blue, coaxial, lf diameter: 73/100 mm, smart light technology
RK3652-24V series
1-29-702 RK3652-B470-24V/C ring light, blue, coaxial, lf diameter: 73/100 mm, controlled, pot.: 0-10V,
R-CLR-132-SL series
1-33-017 R-CLR-132x104-B470-SL ring light, blue, coaxial, lf diameter: 104/132 mm, smart light technology
RK5268-24V series
1-29-802 RK5268-B470-24V/C ring light, blue, coaxial, lf diameter: 104/132 mm, controlled, pot.: 0-10V,
Accessories
Order number Title Description
Adjustment Aids
5-10-112 Adjustment aid 10 for easy adjustment to 10 mm depth of field, for image scale 0.5 - 0.2
Lens mount
2-90-122 Lens Holder d32 Holder for telecentric lenses and lightings with d = 32 mm
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
2-90-419 Extension ring 0.1 mm 25.5 x 29 x 0.1 reduces the minimum object distance (MOD)
2-90-420 Extension ring 0.2 mm 25.5 x 29 x 0.2 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-174 ND filter 3.0 M52x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M52x0.75
2-91-164 ND filter 1.2 M52x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M52x0.75
2-91-154 ND filter 0.6 M52x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M52x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-134 IR filter M52x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M52x0.75
Polarising filters
2-91-144 Pole filter M52x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75
Colour filter blue
2-91-290 Colour filter blue M52x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M52x0.75
UV Cut-Off Filter
2-91-124 UV blocking filter M52x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M52x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-262 Colour filter red M52x0.75 long-pass filter from 630 nm, red, filter thread M52x0.75
Colour filter green
2-91-303 Colour filter green M52x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M52x0.75
Colour filter yellow
2-91-277 Colour filter yellow M52x0.75 long-pass filter from 530 nm, yellow, filter thread M52x0.75
Deflection mirrow 90° series
2-25-115 Deflection mirror 90-56 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm
Adapters for attaching lights to lenses
1-29-676 Adapter ring d41 - M52x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M52x0.75
1-29-772 Adapter ring d73 - M52x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M52x0.75
1-29-870 Adapter ring d104 - M52x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M52x0.75
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-022 Adapter STE60x60 - TZO56 Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm
TOB42/11.0-185-F10-WN
Title:
TOB42/11.0-185-F10-WN
Short description:
Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR
Order number:
2-05-606
EAN:
4251692621417
Downloads:
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object- and image-sided telecentric beam path
  • high resolution, low lateral chromatic aberration, low distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • fixed aperture
  • robust industrial design
Technical data
Image scale0.26
Spectral range465 nm - 950 nm
Working distance185.0 mm
Camera distance (object-camera flange)417 mm
Object field diagonal (max.)42 mm
Sensor format (opt.)2/3"
Image field diagonal (max.)11 mm
Suitable for camera resolution9.3 MPixel
Recommended pixel size2.5 µm
Aperturefixed (F10)
Lens mountC-Mount
Filter thread, object-sideM52 x 0.75
Filter thread, camera-sideM20.5 x 0.5
Weight433 g
Usable object field with:
• 2/3" sensor (8.8 x 6.6 mm²)33.8 mm x 25.4 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)27.3 mm x 20.8 mm
• 1/2" sensor (6.4 x 4.8 mm²)24.6 mm x 18.5 mm
• 1/3" sensor (4.8 x 3.6 mm²)18.5 mm x 13.8 mm
Notices
The lightings combination products shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB51-UDC-a Serie
1-10-941 TZB51-B470/UDC/-a telecentric light, blue, lf diameter: 49 mm, flashable by flash controller
1-10-942 TZB51-W5K7/UDC/-a telecentric light, white, lf diameter: 49 mm, flashable by flash controller
1-10-943 TZB51-IR880/UDC/-a telecentric light, IR850, lf diameter: 49 mm, flashable by flash controller
1-10-940 TZB51-R625/UDC/-a telecentric light, red, lf diameter: 49 mm, flashable by flash controller
1-10-944 TZB51-G525/UDC/-a telecentric light, green, lf diameter: 49 mm, flashable by flash controller
TZB51 series
1-10-201 TZB51-B470-24V telecentric light, blue, lf diameter: 49 mm, static, cable open-ended
1-10-198 TZB51-W5K7-24V telecentric light, white, lf diameter: 49 mm, static, cable open-ended
1-10-202 TZB51-IR880-24V telecentric light, IR850, lf diameter: 49 mm, static, cable open-ended
1-10-200 TZB51-R625-24V telecentric light, red, lf diameter: 49 mm, static, cable open-ended
1-10-215 TZB51-G525-24V telecentric light, green, lf diameter: 49 mm, static, cable open-ended
R-CLR-69-SL series
1-33-007 R-CLR-69x41-B470-SL ring light, blue, coaxial, lf diameter: 41/69 mm, smart light technology
RK2036-24V series
1-29-602 RK2036-B470-24V/C ring light, blue, coaxial, lf diameter: 41/69 mm, controlled, pot.: 0-10V,
R-CLR-100-SL series
1-33-012 R-CLR-100x73-B470-SL ring light, blue, coaxial, lf diameter: 73/100 mm, smart light technology
RK3652-24V series
1-29-702 RK3652-B470-24V/C ring light, blue, coaxial, lf diameter: 73/100 mm, controlled, pot.: 0-10V,
R-CLR-132-SL series
1-33-017 R-CLR-132x104-B470-SL ring light, blue, coaxial, lf diameter: 104/132 mm, smart light technology
RK5268-24V series
1-29-802 RK5268-B470-24V/C ring light, blue, coaxial, lf diameter: 104/132 mm, controlled, pot.: 0-10V,
Accessories
Order number Title Description
Adjustment Aids
5-10-112 Adjustment aid 10 for easy adjustment to 10 mm depth of field, for image scale 0.5 - 0.2
Lens mount
2-90-122 Lens Holder d32 Holder for telecentric lenses and lightings with d = 32 mm
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
2-90-419 Extension ring 0.1 mm 25.5 x 29 x 0.1 reduces the minimum object distance (MOD)
2-90-420 Extension ring 0.2 mm 25.5 x 29 x 0.2 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-174 ND filter 3.0 M52x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M52x0.75
2-91-164 ND filter 1.2 M52x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M52x0.75
2-91-154 ND filter 0.6 M52x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M52x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-134 IR filter M52x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M52x0.75
Polarising filters
2-91-144 Pole filter M52x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75
Colour filter blue
2-91-290 Colour filter blue M52x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M52x0.75
UV Cut-Off Filter
2-91-124 UV blocking filter M52x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M52x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-262 Colour filter red M52x0.75 long-pass filter from 630 nm, red, filter thread M52x0.75
Colour filter green
2-91-303 Colour filter green M52x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M52x0.75
Colour filter yellow
2-91-277 Colour filter yellow M52x0.75 long-pass filter from 530 nm, yellow, filter thread M52x0.75
Deflection mirrow 90° series
2-25-115 Deflection mirror 90-56 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm
Adapters for attaching lights to lenses
1-29-676 Adapter ring d41 - M52x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M52x0.75
1-29-772 Adapter ring d73 - M52x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M52x0.75
1-29-870 Adapter ring d104 - M52x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M52x0.75
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-022 Adapter STE60x60 - TZO56 Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm
T10/7.4L
Title:
T10/7.4L
Short description:
Telecentric Lens, C-mount, Sensor opt. 1.2", fixed aperture, W/NIR
Order number:
2-05-218
Downloads:
Overview product serie
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • long working distance
  • high resolution, low-distortion
  • color-optimized and bright
  • robust industrial design
  • fixed aperture
Technical data
Image scale7.41
Spectral range380 nm - 900 nm
Working distance48.5 mm
Camera distance (object-camera flange)258 mm
Object field diagonal (max.)2.8 mm
Sensor format (opt.)Type 4/3
Image field diagonal (max.)21.5 mm
Suitable for camera resolution18.9 MPixel
Recommended pixel size3.45 µm
Aperturefixed (F22)
Lens mountC-Mount
Weight243 g
Usable object field with:
• Sensor type 4/3 (17.3 x 13.0 mm²)2.3 mm x 1.8 mm
• 1" sensor (12.8 x 9.6 mm²)1.7 mm x 1.3 mm
• 2/3" sensor (8.8 x 6.6 mm²)1.2 mm x 0.9 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-024 Adapter STE30x30 - TZO35,5 Attachment of the STE30x30 to telecentric lenses and lightings with d = 35.5 mm
Accessories
Order number Title Description
Lens mount
2-90-124 Lens Holder d35,5 Holder for telecentric lenses and lightings with d = 35,5 mm
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Deflection mirrow 90° series
2-25-116 Deflection mirror 90-35.5 90° deflection, attachment for telecentric lenses and lightings with d = 35.5 mm
Adapters for attaching lights to lenses
1-29-156 Adapter ring d14 - d35.5 for RK613, for attachment to lenses with clamping diameter 35.5 mm
1-10-022 Adapter ring d27 - d35.5 for RK1220, for attachment to lenses with clamping diameter 35.5 mm
Beam splitter STE30x30
1-18-024 Adapter STE30x30 - TZO35,5 Attachment of the STE30x30 to telecentric lenses and lightings with d = 35.5 mm
T10/9.7L
Title:
T10/9.7L
Short description:
Telecentric Lens, C-mount, Sensor opt. 1.2", fixed aperture, W/NIR
Order number:
2-05-220
Downloads:
Overview product serie
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • long working distance
  • high resolution, low-distortion
  • color-optimized and bright
  • robust industrial design
  • fixed aperture
Technical data
Image scale9.7
Spectral range380 nm - 900 nm
Working distance48.0 mm
Camera distance (object-camera flange)303 mm
Object field diagonal (max.)2.2 mm
Sensor format (opt.)Type 4/3
Image field diagonal (max.)21.5 mm
Suitable for camera resolution18.9 MPixel
Recommended pixel size3.45 µm
Aperturefixed (F24)
Lens mountC-Mount
Weight500 g
Usable object field with:
• Sensor type 4/3 (17.3 x 13.0 mm²)1.8 mm x 1.3 mm
• 1" sensor (12.8 x 9.6 mm²)1.3 mm x 1 mm
• 2/3" sensor (8.8 x 6.6 mm²)0.9 mm x 0.7 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-024 Adapter STE30x30 - TZO35,5 Attachment of the STE30x30 to telecentric lenses and lightings with d = 35.5 mm
Accessories
Order number Title Description
Lens mount
2-90-124 Lens Holder d35,5 Holder for telecentric lenses and lightings with d = 35,5 mm
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Deflection mirrow 90° series
2-25-116 Deflection mirror 90-35.5 90° deflection, attachment for telecentric lenses and lightings with d = 35.5 mm
Adapters for attaching lights to lenses
1-29-156 Adapter ring d14 - d35.5 for RK613, for attachment to lenses with clamping diameter 35.5 mm
1-10-022 Adapter ring d27 - d35.5 for RK1220, for attachment to lenses with clamping diameter 35.5 mm
Beam splitter STE30x30
1-18-024 Adapter STE30x30 - TZO35,5 Attachment of the STE30x30 to telecentric lenses and lightings with d = 35.5 mm
T24/1.5a
Title:
T24/1.5a
Short description:
Telecentric Lens, C-mount, Sensor opt. 1/2", variable aperture, W/NIR
Order number:
2-05-236
EAN:
4251692620083
Downloads:
Overview product serie
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • high resolution, low-distortion, low telecentric error
  • available with image scale 1.5x, 2x, 2.5x and 3x
  • color-optimized and bright
  • adjustable aperture, arrestable
  • robust industrial design
  • direct attachment of the ring light RK1220 possible
Technical data
Image scale1.465
Spectral range380 nm - 900 nm
Working distance38.8 mm
Camera distance (object-camera flange)91.4 mm
Object field diagonal (max.)7.5 mm
Sensor format (opt.)2/3"
Image field diagonal (max.)11 mm
Suitable for camera resolution4.9 MPixel
Recommended pixel size3.45 µm
Aperturevariable (F11 - F32)
Lens mountC-Mount
Filter thread, camera-sideM20.5 x 0.5
Weight90 g
Usable object field with:
• 2/3" sensor (8.8 x 6.6 mm²)6 mm x 4.5 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)4.8 mm x 3.7 mm
• 1/2" sensor (6.4 x 4.8 mm²)4.4 mm x 3.3 mm
• 1/3" sensor (4.8 x 3.6 mm²)3.3 mm x 2.5 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
RK1220-24V-BA series
1-10-243 RK1220-B470-24V/BA ring light, blue, coaxial, lf diameter: 24/40 mm, static/switchable
1-10-244 RK1220-W5K7-24V/BA ring light, white, coaxial, lf diameter: 24/40 mm, static/switchable
1-10-245 RK1220-IR850-24V/BA ring light, IR850, coaxial, lf diameter: 24/40 mm, static/switchable
1-10-241 RK1220-R633-24V/BA ring light, red, coaxial, lf diameter: 24/40 mm, static/switchable
1-10-242 RK1220-G525-24V/BA ring light, green, coaxial, lf diameter: 24/40 mm, static/switchable
Accessories
Order number Title Description
Lens mount
2-90-122 Lens Holder d32 Holder for telecentric lenses and lightings with d = 32 mm
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
T24/2.0a
Title:
T24/2.0a
Short description:
Telecentric Lens, C-mount, Sensor opt. 2/3", variable aperture, W/NIR
Order number:
2-05-235
EAN:
4251692620076
Downloads:
Overview product serie
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • high resolution, low-distortion, low telecentric error
  • available with image scale 1.5x, 2x, 2.5x and 3x
  • color-optimized and bright
  • adjustable aperture, arrestable
  • robust industrial design
  • direct attachment of the ring light RK1220 possible
Technical data
Image scale1.97
Spectral range380 nm - 900 nm
Working distance34.3 mm
Camera distance (object-camera flange)99.8 mm
Object field diagonal (max.)5.5 mm
Sensor format (opt.)2/3"
Image field diagonal (max.)11 mm
Suitable for camera resolution5.2 MPixel
Recommended pixel size3.33 µm
Aperturevariable (F11 - F45)
Lens mountC-Mount
Filter thread, camera-sideM20.5 x 0.5
Weight110 g
Usable object field with:
• 2/3" sensor (8.8 x 6.6 mm²)4.5 mm x 3.4 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)3.6 mm x 2.7 mm
• 1/2" sensor (6.4 x 4.8 mm²)3.2 mm x 2.4 mm
• 1/3" sensor (4.8 x 3.6 mm²)2.4 mm x 1.8 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
RK1220-24V-BA series
1-10-243 RK1220-B470-24V/BA ring light, blue, coaxial, lf diameter: 24/40 mm, static/switchable
1-10-244 RK1220-W5K7-24V/BA ring light, white, coaxial, lf diameter: 24/40 mm, static/switchable
1-10-245 RK1220-IR850-24V/BA ring light, IR850, coaxial, lf diameter: 24/40 mm, static/switchable
1-10-241 RK1220-R633-24V/BA ring light, red, coaxial, lf diameter: 24/40 mm, static/switchable
1-10-242 RK1220-G525-24V/BA ring light, green, coaxial, lf diameter: 24/40 mm, static/switchable
Accessories
Order number Title Description
Lens mount
2-90-122 Lens Holder d32 Holder for telecentric lenses and lightings with d = 32 mm
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
T24/2.5a
Title:
T24/2.5a
Short description:
Telecentric Lens, C-mount, Sensor opt. 2/3", variable aperture, W/NIR
Order number:
2-05-234
EAN:
4251692620069
Downloads:
Overview product serie
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • high resolution, low-distortion, low telecentric error
  • available with image scale 1.5x, 2x, 2.5x and 3x
  • color-optimized and bright
  • adjustable aperture, arrestable
  • robust industrial design
  • direct attachment of the ring light RK1220 possible
Technical data
Image scale2.47
Spectral range380 nm - 900 nm
Working distance31.7 mm
Camera distance (object-camera flange)109.7 mm
Object field diagonal (max.)4.4 mm
Sensor format (opt.)2/3"
Image field diagonal (max.)11 mm
Suitable for camera resolution4.9 MPixel
Recommended pixel size3.45 µm
Aperturevariable (F11 - F64)
Lens mountC-Mount
Filter thread, camera-sideM20.5 x 0.5
Weight125 g
Usable object field with:
• 2/3" sensor (8.8 x 6.6 mm²)3.6 mm x 2.7 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)2.9 mm x 2.2 mm
• 1/2" sensor (6.4 x 4.8 mm²)2.6 mm x 1.9 mm
• 1/3" sensor (4.8 x 3.6 mm²)1.9 mm x 1.5 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
RK1220-24V-BA series
1-10-243 RK1220-B470-24V/BA ring light, blue, coaxial, lf diameter: 24/40 mm, static/switchable
1-10-244 RK1220-W5K7-24V/BA ring light, white, coaxial, lf diameter: 24/40 mm, static/switchable
1-10-245 RK1220-IR850-24V/BA ring light, IR850, coaxial, lf diameter: 24/40 mm, static/switchable
1-10-241 RK1220-R633-24V/BA ring light, red, coaxial, lf diameter: 24/40 mm, static/switchable
1-10-242 RK1220-G525-24V/BA ring light, green, coaxial, lf diameter: 24/40 mm, static/switchable
Accessories
Order number Title Description
Lens mount
2-90-122 Lens Holder d32 Holder for telecentric lenses and lightings with d = 32 mm
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
T24/3.0a
Title:
T24/3.0a
Short description:
Telecentric Lens, C-mount, Sensor opt. 2/3", variable aperture, W/NIR
Order number:
2-05-233
EAN:
4251692620052
Downloads:
Overview product serie
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • high resolution, low-distortion, low telecentric error
  • available with image scale 1.5x, 2x, 2.5x and 3x
  • color-optimized and bright
  • adjustable aperture, arrestable
  • robust industrial design
  • direct attachment of the ring light RK1220 possible
Technical data
Image scale2.98
Spectral range380 nm - 900 nm
Working distance29.9 mm
Camera distance (object-camera flange)119.9 mm
Object field diagonal (max.)3.6 mm
Sensor format (opt.)2/3"
Image field diagonal (max.)11 mm
Suitable for camera resolution4.9 MPixel
Recommended pixel size3.45 µm
Aperturevariable (F11 - F64)
Lens mountC-Mount
Filter thread, camera-sideM20.5 x 0.5
Weight150 g
Usable object field with:
• 2/3" sensor (8.8 x 6.6 mm²)3 mm x 2.2 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)2.4 mm x 1.8 mm
• 1/2" sensor (6.4 x 4.8 mm²)2.1 mm x 1.6 mm
• 1/3" sensor (4.8 x 3.6 mm²)1.6 mm x 1.2 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
RK1220-24V-BA series
1-10-243 RK1220-B470-24V/BA ring light, blue, coaxial, lf diameter: 24/40 mm, static/switchable
1-10-244 RK1220-W5K7-24V/BA ring light, white, coaxial, lf diameter: 24/40 mm, static/switchable
1-10-245 RK1220-IR850-24V/BA ring light, IR850, coaxial, lf diameter: 24/40 mm, static/switchable
1-10-241 RK1220-R633-24V/BA ring light, red, coaxial, lf diameter: 24/40 mm, static/switchable
1-10-242 RK1220-G525-24V/BA ring light, green, coaxial, lf diameter: 24/40 mm, static/switchable
Accessories
Order number Title Description
Lens mount
2-90-122 Lens Holder d32 Holder for telecentric lenses and lightings with d = 32 mm
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
T43/1.4
Title:
T43/1.4
Short description:
Telecentric Lens, C-mount, Sensor opt. 1.2", fixed aperture, W/NIR
Order number:
2-05-239
Downloads:
Overview product serie
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • high resolution, low-distortion
  • color-optimized and bright
  • robust industrial design
  • fixed aperture
Technical data
Image scale1.4
Spectral range380 nm - 900 nm
Working distance102.0 mm
Camera distance (object-camera flange)231.5 mm
Object field diagonal (max.)15.2 mm
Sensor format (opt.)Type 4/3
Image field diagonal (max.)21.5 mm
Suitable for camera resolution18.9 MPixel
Recommended pixel size3.45 µm
Aperturefixed (F8)
Lens mountC-Mount
Weight240 g
Usable object field with:
• Sensor type 4/3 (17.3 x 13.0 mm²)12.4 mm x 9.3 mm
• 1" sensor (12.8 x 9.6 mm²)9.1 mm x 6.9 mm
• 2/3" sensor (8.8 x 6.6 mm²)6.3 mm x 4.7 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
Accessories
Order number Title Description
Lens mount
2-90-123 Lens Holder d34 Holder for telecentric lenses and lightings with d = 34 mm
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Deflection mirrow 90° series
2-25-110 Deflection mirror 90-34 90° deflection, attachment for telecentric lenses and lightings with d = 34 mm
Adapters for attaching lights to lenses
1-29-158 Adapter ring d35.5 - d34 for RK613, for attachment to lenses with clamping diameter 34 mm
1-29-681 Adapter ring d41 - d34 for R-CLR-69x41 and RK2036, for attachment to lenses with clamping diameter 34 mm
Beam splitter STE30x30
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
T45/2.0L
Title:
T45/2.0L
Short description:
Telecentric Lens, C-mount, Sensor opt. 1.2", fixed aperture, W/NIR
Order number:
2-05-250
Downloads:
Overview product serie
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • long working distance
  • color-optimized and bright
  • robust industrial design
  • fixed aperture
Technical data
Image scale2
Spectral range380 nm - 900 nm
Working distance77.0 mm
Camera distance (object-camera flange)195 mm
Object field diagonal (max.)10.6 mm
Sensor format (opt.)1.2"
Image field diagonal (max.)21.5 mm
Suitable for camera resolution18.9 MPixel
Recommended pixel size3.45 µm
Aperturefixed (F10)
Depth of focus80 µm
Lens mountC-Mount
Weight240 g
Usable object field with:
• Sensor type 4/3 (17.3 x 13.0 mm²)8.7 mm x 6.5 mm
• 1" sensor (12.8 x 9.6 mm²)6.4 mm x 4.8 mm
• 2/3" sensor (8.8 x 6.6 mm²)4.4 mm x 3.3 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
Accessories
Order number Title Description
Lens mount
2-90-123 Lens Holder d34 Holder for telecentric lenses and lightings with d = 34 mm
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Deflection mirrow 90° series
2-25-110 Deflection mirror 90-34 90° deflection, attachment for telecentric lenses and lightings with d = 34 mm
Adapters for attaching lights to lenses
1-29-158 Adapter ring d35.5 - d34 for RK613, for attachment to lenses with clamping diameter 34 mm
1-29-681 Adapter ring d41 - d34 for R-CLR-69x41 and RK2036, for attachment to lenses with clamping diameter 34 mm
Beam splitter STE30x30
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
T45/4.0L
Title:
T45/4.0L
Short description:
Telecentric Lens, C-mount, Sensor opt. 1.2", fixed aperture, W/NIR
Order number:
2-05-252
Downloads:
Overview product serie
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • long working distance
  • color-optimized and bright
  • robust industrial design
  • fixed aperture
Technical data
Image scale3.77
Spectral range380 nm - 900 nm
Working distance66.5 mm
Camera distance (object-camera flange)254.5 mm
Object field diagonal (max.)5.6 mm
Sensor format (opt.)1.2"
Image field diagonal (max.)21.5 mm
Suitable for camera resolution18.9 MPixel
Recommended pixel size3.45 µm
Aperturefixed (F16)
Depth of focus30 µm
Lens mountC-Mount
Weight330 g
Usable object field with:
• Sensor type 4/3 (17.3 x 13.0 mm²)4.6 mm x 3.4 mm
• 1" sensor (12.8 x 9.6 mm²)3.4 mm x 2.5 mm
• 2/3" sensor (8.8 x 6.6 mm²)2.3 mm x 1.8 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
Accessories
Order number Title Description
Lens mount
2-90-123 Lens Holder d34 Holder for telecentric lenses and lightings with d = 34 mm
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Deflection mirrow 90° series
2-25-110 Deflection mirror 90-34 90° deflection, attachment for telecentric lenses and lightings with d = 34 mm
Adapters for attaching lights to lenses
1-29-158 Adapter ring d35.5 - d34 for RK613, for attachment to lenses with clamping diameter 34 mm
1-29-681 Adapter ring d41 - d34 for R-CLR-69x41 and RK2036, for attachment to lenses with clamping diameter 34 mm
Beam splitter STE30x30
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
T45/5.0L
Title:
T45/5.0L
Short description:
Telecentric Lens, C-mount, Sensor opt. 1.2", fixed aperture, W/NIR
Order number:
2-05-251
Downloads:
Overview product serie
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • long working distance
  • color-optimized and bright
  • robust industrial design
  • fixed aperture
Technical data
Image scale5
Spectral range380 nm - 900 nm
Working distance64.0 mm
Camera distance (object-camera flange)300 mm
Object field diagonal (max.)4.2 mm
Sensor format (opt.)1.2"
Image field diagonal (max.)21.5 mm
Suitable for camera resolution18.9 MPixel
Recommended pixel size3.45 µm
Aperturefixed (F19)
Depth of focus20 µm
Lens mountC-Mount
Weight440 g
Usable object field with:
• Sensor type 4/3 (17.3 x 13.0 mm²)3.5 mm x 2.6 mm
• 1" sensor (12.8 x 9.6 mm²)2.6 mm x 1.9 mm
• 2/3" sensor (8.8 x 6.6 mm²)1.8 mm x 1.3 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
Accessories
Order number Title Description
Lens mount
2-90-123 Lens Holder d34 Holder for telecentric lenses and lightings with d = 34 mm
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Deflection mirrow 90° series
2-25-110 Deflection mirror 90-34 90° deflection, attachment for telecentric lenses and lightings with d = 34 mm
Adapters for attaching lights to lenses
1-29-158 Adapter ring d35.5 - d34 for RK613, for attachment to lenses with clamping diameter 34 mm
1-29-681 Adapter ring d41 - d34 for R-CLR-69x41 and RK2036, for attachment to lenses with clamping diameter 34 mm
Beam splitter STE30x30
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
Load more products..
