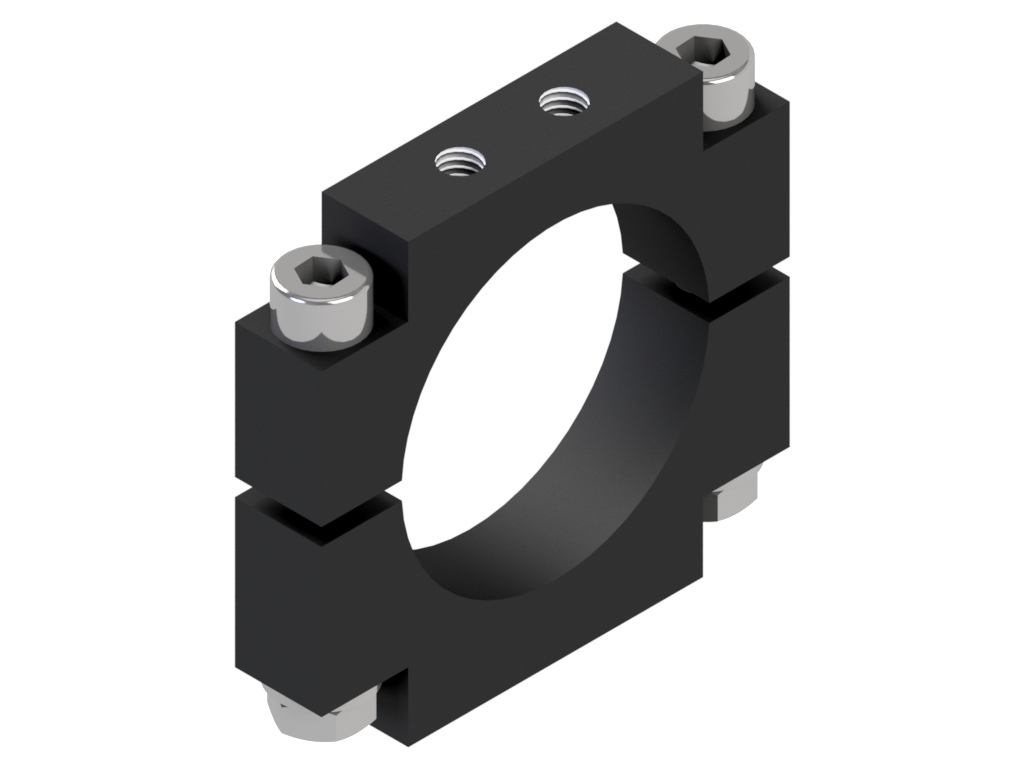

Lens Holder - Lens Holder d35,5

Lens Holder d35,5
Short description:

Holder for telecentric lenses and lightings with d = 35,5 mm

Order number:
2-90-124
Downloads:
Characteristics

  • Holder for lenses and telecentric lights
  • Robust mount for high mechanical loads
  • Support long lenses for vibration-free attachment
  • Fixation of the optical adjustment under extreme mechanical loads
  • Adaptable to various attachment situations such as direct attachment to the machine frame, attachment to a separate rail with attachment features or combination of rail and machine

Technical data
MaterialAluminium, black anodised
Weight49 g
Clamping diameter35.5 mm
Clamping length 10 mm
Can be combined with:
Telecentric lightTZB10-P series
TZB28 series
Telecentric opticT10 series
Drawings
Dimensional drawing in mm
