Beam Splitter Unit - STE30x30-VIS
Characteristics
- Beam splitter unit for setting up a coaxial light
- modular design - type and position of lens and lighting are freely selectable
- in combination with the DL30x30 lighting results in a very homogeneous light source
- various adapters for lighting and lenses allow individual scenarios
- suitable for industry thanks to robust, anodized aluminium housing with high dimensional stability
Technical data
| Housing material | Aluminium, black anodised |
| Optical material | Splitter: glass Cover plates: PMMA |
| Spectral range | 450 nm - 700 nm |
| Reflection/Transmission Ratio | 50% R / 50% T ± 5% |
| Displacement of the optical axis | 0.334 |
| Free field of view | 30 mm x 30 mm |
| Dimensions | 46 mm x 44 mm x 43 mm |
| Weight | 100 g |
| Degree of protection | IP50 |
Drawings

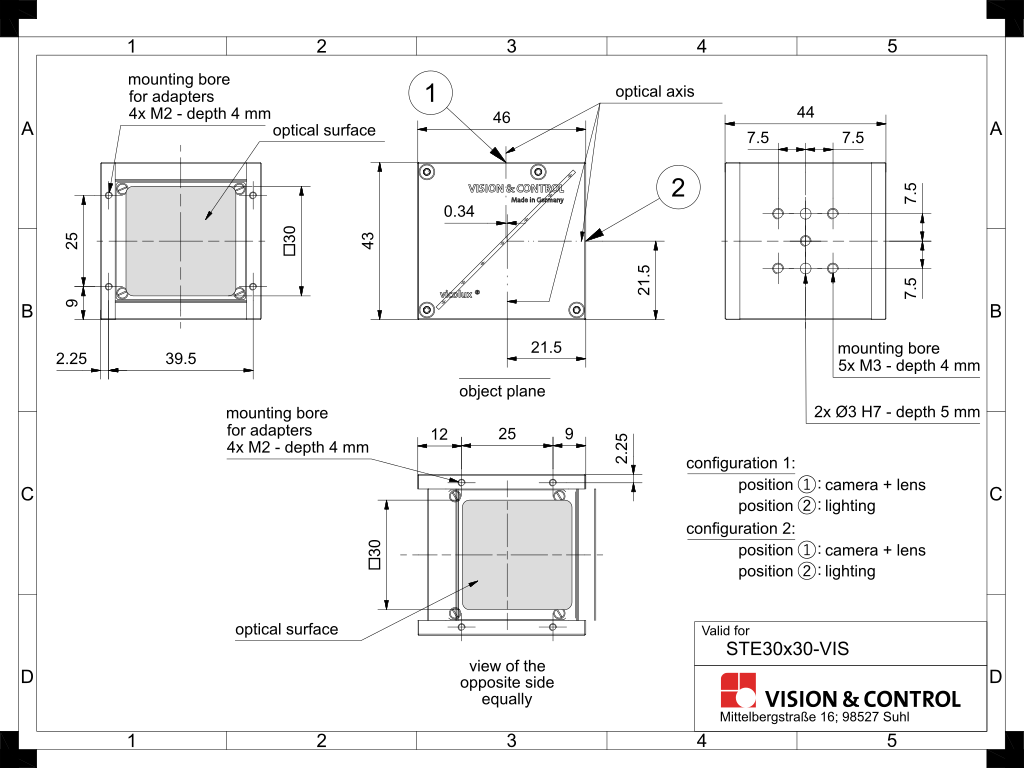

Dimensional drawing in mm
Accessories for Lighting - STE30x30-VIS
| Order number | Title | Description |
|---|---|---|
| Beam splitter STE30x30 | ||
| 1-18-041 | Adapter STE30x30 - RK1220 | Attachment of the STE30x30 to the RK1220 |
| 1-32-250 | Adapter STE30x30 - SFD, D-CRL | Attachment of the STE30x30 to SFD30/9 and D-CRL-60x18 and also SFD42/12 and D-CRL-84x24 |
| 1-18-031 | Adapter STE30x30 - DL30x30 | Attachment of the STE30x30 to the DL30x30 |
| 1-18-021 | Adapter STE30x30 - TZO25 | Attachment of the STE30x30 to telecentric lenses and lightings with d = 25 mm |
| 1-18-026 | Adapter STE30x30 - TZO28 | Attachment of the STE30x30 to telecentric lenses and lightings with d = 28 mm |
| 1-18-022 | Adapter STE30x30 - TZO32 | Attachment of the STE30x30 to telecentric lenses and lightings with d = 32 mm |
| 1-18-023 | Adapter STE30x30 - TZO34 | Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm |
| 1-18-024 | Adapter STE30x30 - TZO35,5 | Attachment of the STE30x30 to telecentric lenses and lightings with d = 35.5 mm |
| 1-18-027 | Adapter STE30x30 - TZO38 | Attachment of the STE30x30 to telecentric lenses and lightings with d = 38 mm |
| 1-18-025 | Adapter STE30x30 - TZO42 | Attachment of the STE30x30 to telecentric lenses and lightings with d = 42 mm |
