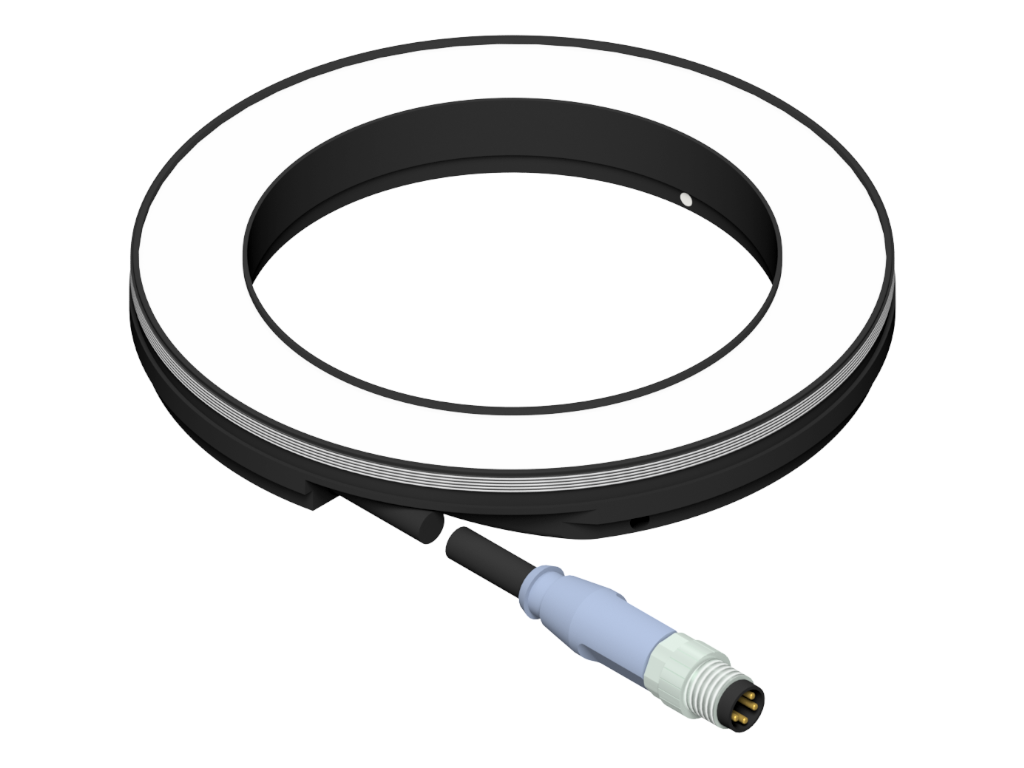

vicolux® Ring Light - R-CLR-100x73-B470-SL - Diameter of luminous field 70/100 mm
Characteristics
- flashable Power-LED ring light with direct illumination
- combinable with further lights of the R-CLR series to a round area light
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- overheat protection due to integrated digital temperature sensor
- connection: cable with M8 connector
- robust metal casing, protection class IP67
- extensive optics and mounting accessories available
Technical data
| Light-emitting surface | Inner diameter: 73 mmOuter diameter: 100 mm |
| Light colour | Blue, 470 nm |
| Beam angle | 30 ° |
| Power supply | For current source only! |
| Special feature | Blitzbar mit Blitzcontroller |
| Continuous operation | |
| • Power consumption | 10.0 W |
| • Irradiance | 60 W/m² |
| Flash mode | |
| • Power consumption | 10.0 W |
| • Irradiance | 360 W/m² |
| Housing material | Aluminium, black anodised |
| Optical material | LED, moulded |
| Weight | 120 g |
| Degree of protection | IP67 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | 1 |
| Ambient temperature | -10 °C ... +55 °C |
Notices
Die Beleuchtung kann nur in Verbindung mit einem Beleuchtungscontroller oder einer geeigneten Stromquelle betrieben werden.
vicolux® smart light Beleuchtungscontroller begrenzen automatisch die elektrischen Parameter und überwachen die Gerätetemperatur.
vicolux® smart light Beleuchtungscontroller begrenzen automatisch die elektrischen Parameter und überwachen die Gerätetemperatur.
Drawings

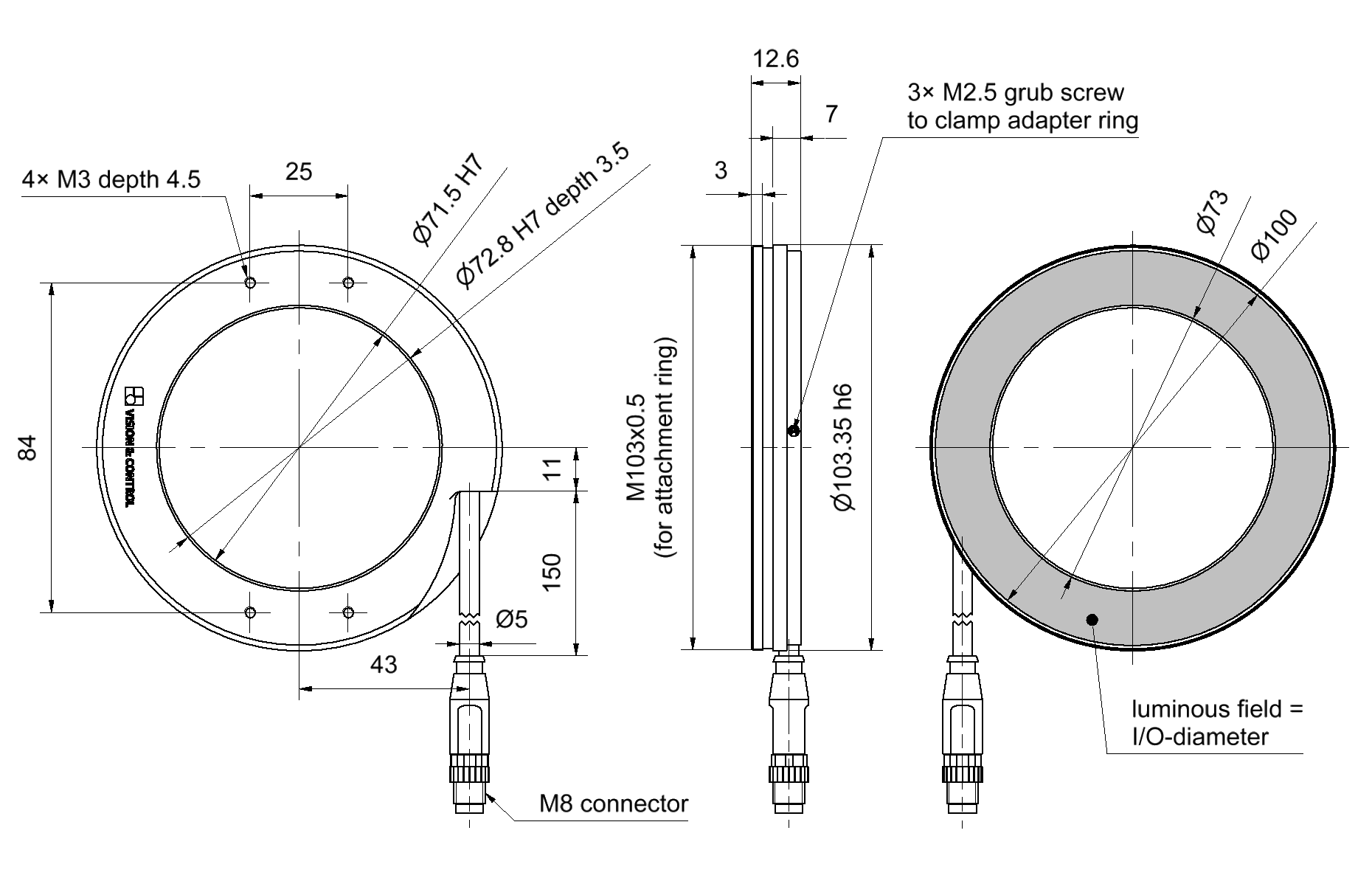

Dimensional drawing in mm
Pin assignments, M8 connector
Can be combined with
Accessories for Lighting - R-CLR-100x73-B470-SL
| Order number | Title | Description |
|---|---|---|
| Attachment ring | ||
| 1-29-750 | Attachment ring M103x0.5 | for R-CLR-100x73 and RK3652, for attachment of beam shaping optics |
| Adapter for cameras | ||
| 1-29-777 | Camera adapter In-Sight | for R-CLR-100x73 and RK3652, for attachment to InSight 5K or Simatic MV440 |
| Diffusers | ||
| 1-29-756 | Diffuser 15% d100 | for R-CLR-100x73 and RK3652, usable with attachment ring M103x0.5 (Order No.: 1-29-750) |
| 1-29-757 | Diffuser 40% d100 | for R-CLR-100x73 and RK3652, usable with attachment ring M103x0.5 (Order No.: 1-29-750) |
| Polarisers for Ring Lights | ||
| 5-00-020 | Polariser linear d124/d41 | Polarisation filter for combined ring lights, Di = 41, Da = 134 |
| 1-29-755 | Polariser linear d100 | for R-CLR-100x73 and RK3652, usable with attachment ring M103x0.5 (Order No.: 1-29-750) |
| Focusing and Fresnel lens | ||
| 1-29-760 | Fresnel lens F100 d100 | for R-CLR-100x73 and RK3652, usable with attachment ring M103x0.5 (Order No.: 1-29-750) |
| 1-29-761 | Fresnel lens F150 d100 | for R-CLR-100x73 and RK3652, usable with attachment ring M103x0.5 (Order No.: 1-29-750) |
| 1-29-762 | Fresnel lens F200 d100 | for R-CLR-100x73 and RK3652, usable with attachment ring M103x0.5 (Order No.: 1-29-750) |
| Protective covering | ||
| 5-00-021 | Clear cover d124/d41 | Cover plate for combined Ring lights, PMMA, Di = 41, Da = 134 |
| 1-29-758 | Clear cover d100 | for R-CLR-100x73 and RK3652, usable with attachment ring M103x0.5 (Order No.: 1-29-750) |
| Adapters for attaching lights to lenses | ||
| 1-29-771 | Adapter ring d73 - M39x0.5 | for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M39x0.5 |
| 1-29-772 | Adapter ring d73 - M52x0.75 | for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M52x0.75 |
| 1-29-773 | Adapter ring d73 - M67x0.75 | for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M67x0.75 |
| 1-29-774 | Adapter ring d73 - M100x1 | for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M100x1 |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
