vicolux® Ring Light - RK1220-B470-24V/BA - Diameter of luminous field 24/40 mm
Characteristics
- LED ring light with direct illumination for direct mounting on lenses
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length adjustable, brightness pre-set
- connection: cable with open ends
- robust metal casing, protection class IP67
- extensive optics and mounting accessories available
Technical data
| Light-emitting surface | Inner diameter: 24 mmOuter diameter: 40 mm |
| Light colour | Blau, 470 nm |
| Power supply | 24 VDC (18 -30 V) |
| Continuous operation | |
| • Power consumption | 2.1 W (@ 24 VDC) |
| • Irradiance | 73 W/m² (@ 50 mm)57 W/m² (@ 100 mm) |
| Housing material | Aluminium, black anodised |
| Optical material | LED, moulded |
| Weight | 38 g |
| Degree of protection | IP67 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Risk group 1 |
| Ambient temperature | 0 °C ... +45 °C |
Drawings
Dimensional drawing in mm

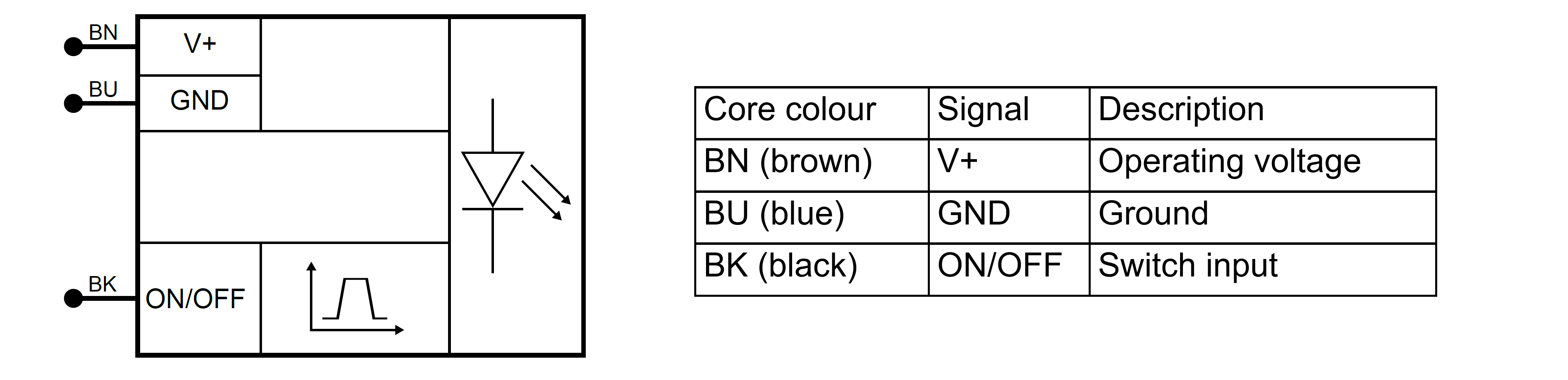

Pin assignments: free cable end, 3-wire
Accessories for Lighting - RK1220-B470-24V/BA
| Order number | Title | Description |
|---|---|---|
| Attachment ring | ||
| 1-10-011 | Attachment ring M42x0.5 | for RK1220, for attachment of beam shaping optics |
| Set of Accessories | ||
| 1-10-012 | Accessory kit RK1220 | Attachment ring M42x0.5, diffuser 15% d40, fresnel lens F50 d40, Fresnel lens F100 d40 |
| Diffusers | ||
| 1-10-010 | Diffuser 15% d40 | for RK1220, usable with attachment ring M42x0.5 (Order No.: 1-10-011) |
| 1-10-005 | Diffuser 40% d40 | for RK1220, usable with attachment ring M42x0.5 (Order No.: 1-10-011) |
| Polarisers for Ring Lights | ||
| 1-10-004 | Polariser linear d41/d22 | Polarisation filter for ring lights, Di = 22, Da = 41 |
| Focusing and Fresnel lens | ||
| 1-10-008 | Fresnel lens F50 d40 | for RK1220, usable with attachment ring M42x0.5 (Order No.: 1-10-011) |
| 1-10-009 | Fresnel lens F100 d40 | for RK1220, usable with attachment ring M42x0.5 (Order No.: 1-10-011) |
| Dark field attachment | ||
| 1-10-003 | Reflector ring 1105 | for RK1220, useable with Attachment ring M42x0.5 and Diffuser 40% d40 |
| Adapters for attaching lights to lenses | ||
| 1-10-002 | Adapter ring d27 - M25.5x0.5 | for RK1220, for attachment to lenses with filter thread M25.5x0.5 |
| 1-10-007 | Adapter ring d27 - M26x0.5 | for RK1220, for attachment to lenses with filter thread M26x0.5 |
| 1-10-006 | Adapter ring d27 - M27x0.5 | for RK1220, for attachment to lenses with filter thread M27x0.5 |
| 1-10-022 | Adapter ring d27 - d35.5 | for RK1220, for attachment to lenses with clamping diameter 35.5 mm |
| Beam splitter STE30x30 | ||
| 1-18-041 | Adapter STE30x30 - RK1220 | Attachment of the STE30x30 to the RK1220 |
