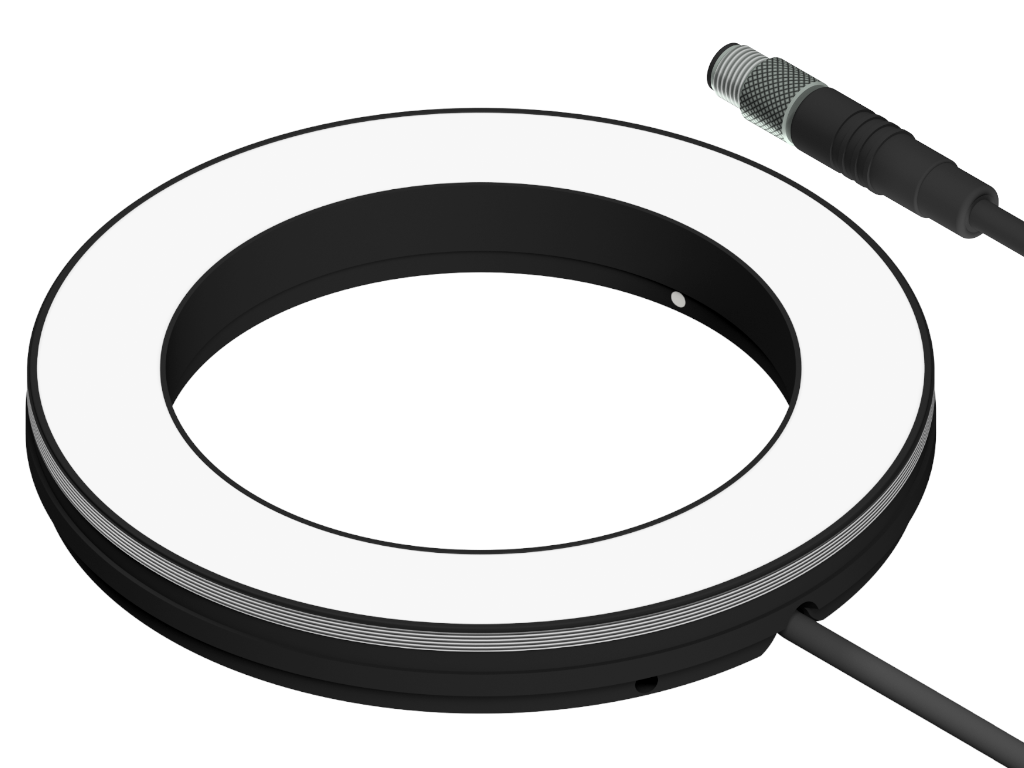

vicolux® Ring Light - RK3652-B470-24V/C - Diameter of luminous field 73/100 mm
Characteristics
- LED ring light with direct illumination
- combinable with RK2036 and RK5268 to a round area light
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with M5 connector
- robust metal casing, protection class IP67
- extensive optics and mounting accessories available
Technical data
| Light-emitting surface | Inner diameter: 73 mmOuter diameter: 100 mm |
| Light colour | Blau, 470 nm |
| Power supply | 24 VDC (18 -30 V) |
| Housing material | Aluminium, black anodised |
| Optical material | LED, moulded |
| Weight | 98 g |
| Degree of protection | IP67 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | 0 °C ... +45 °C |
Drawings
Dimensional drawing in mm
Pin assignments, M5 connector
Accessories for Lighting - RK3652-B470-24V/C
| Order number | Title | Description |
|---|---|---|
| Attachment ring | ||
| 1-29-750 | Attachment ring M103x0.5 | for R-CLR-100x73 and RK3652, for attachment of beam shaping optics |
| Adapter for cameras | ||
| 1-29-777 | Camera adapter In-Sight | for R-CLR-100x73 and RK3652, for attachment to InSight 5K or Simatic MV440 |
| Diffusers | ||
| 1-29-756 | Diffuser 15% d100 | for R-CLR-100x73 and RK3652, usable with attachment ring M103x0.5 (Order No.: 1-29-750) |
| 1-29-757 | Diffuser 40% d100 | for R-CLR-100x73 and RK3652, usable with attachment ring M103x0.5 (Order No.: 1-29-750) |
| Polarisers for Ring Lights | ||
| 5-00-020 | Polariser linear d124/d41 | Polarisation filter for combined ring lights, Di = 41, Da = 134 |
| 1-29-755 | Polariser linear d100 | for R-CLR-100x73 and RK3652, usable with attachment ring M103x0.5 (Order No.: 1-29-750) |
| Focusing and Fresnel lens | ||
| 1-29-760 | Fresnel lens F100 d100 | for R-CLR-100x73 and RK3652, usable with attachment ring M103x0.5 (Order No.: 1-29-750) |
| 1-29-761 | Fresnel lens F150 d100 | for R-CLR-100x73 and RK3652, usable with attachment ring M103x0.5 (Order No.: 1-29-750) |
| 1-29-762 | Fresnel lens F200 d100 | for R-CLR-100x73 and RK3652, usable with attachment ring M103x0.5 (Order No.: 1-29-750) |
| Protective covering | ||
| 5-00-021 | Clear cover d124/d41 | Cover plate for combined Ring lights, PMMA, Di = 41, Da = 134 |
| 1-29-758 | Clear cover d100 | for R-CLR-100x73 and RK3652, usable with attachment ring M103x0.5 (Order No.: 1-29-750) |
| Adapters for attaching lights to lenses | ||
| 1-29-771 | Adapter ring d73 - M39x0.5 | for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M39x0.5 |
| 1-29-772 | Adapter ring d73 - M52x0.75 | for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M52x0.75 |
| 1-29-773 | Adapter ring d73 - M67x0.75 | for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M67x0.75 |
| 1-29-774 | Adapter ring d73 - M100x1 | for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M100x1 |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
