Telecentric lenses



Starting from your sensor, select the desired object field x*y [mm²].


Decide on a working distance and, if necessary, other special features of the desired lens.

In the list below the product filter you will find all the lenses that are suitable for your application.



Overview telecentric lenses          New developments | Product replacement

Image scale (-β)
Object field for:
1/4" sensor
1/3" sensor
1/2" sensor
1/1.8" sensor
2/3" sensor
1" sensor
Sensor type 4/3
Sensor type DX
Sensor type 35 mm
Working distance
Camera distance
(length object-camera flange)
Aperture
Lens Mount
Special feature
Bestseller
195/195
Results
Product­view
Product information
to the wishlist (0)
TO44/8.1-302-V-WN-LD
Title:
TO44/8.1-302-V-WN-LD
Short description:
Telecentric measuring lens, c-mount, sensor opt. 1/2", variable aperture, VIS/NIR, LD
Order number:
2-05-425
Downloads:
Overview product serie
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • long working distance
  • usable for the visible spectral range and near infrared
  • Optimum results with monochromatic applications
  • adjustable aperture, arrestable
  • robust industrial design
Technical data
Image scale0.185
Spectral range380 nm - 900 nm
Working distance302 mm
Camera distance (object-camera flange)488.5 mm
Object field diagonal (max.)44 mm
Sensor format (opt.)1/2"
Image field diagonal (max.)8.1 mm
Suitable for camera resolution3.1 MPixel
Recommended pixel size3.13 µm
Aperturevariable
Depth of focus29 mm (F11, 470 nm, MTF = 20 % @ 20 LP/mm)
Lens mountC-Mount
Filter thread, object-sideM52 x 0.75
Filter thread, camera-sideM20.5 x 0.5
Weight347 g
Usable object field with:
• 1/1.8" sensor (7.1 x 5.4 mm²)34.9 mm x 26.6 mm
• 1/2" sensor (6.4 x 4.8 mm²)34.6 mm x 25.9 mm
• 1/3" sensor (4.8 x 3.6 mm²)25.9 mm x 19.5 mm
• 1/4" sensor (3.4 x 2.2 mm²)18.4 mm x 11.9 mm
Notices
The illumination combinations shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings

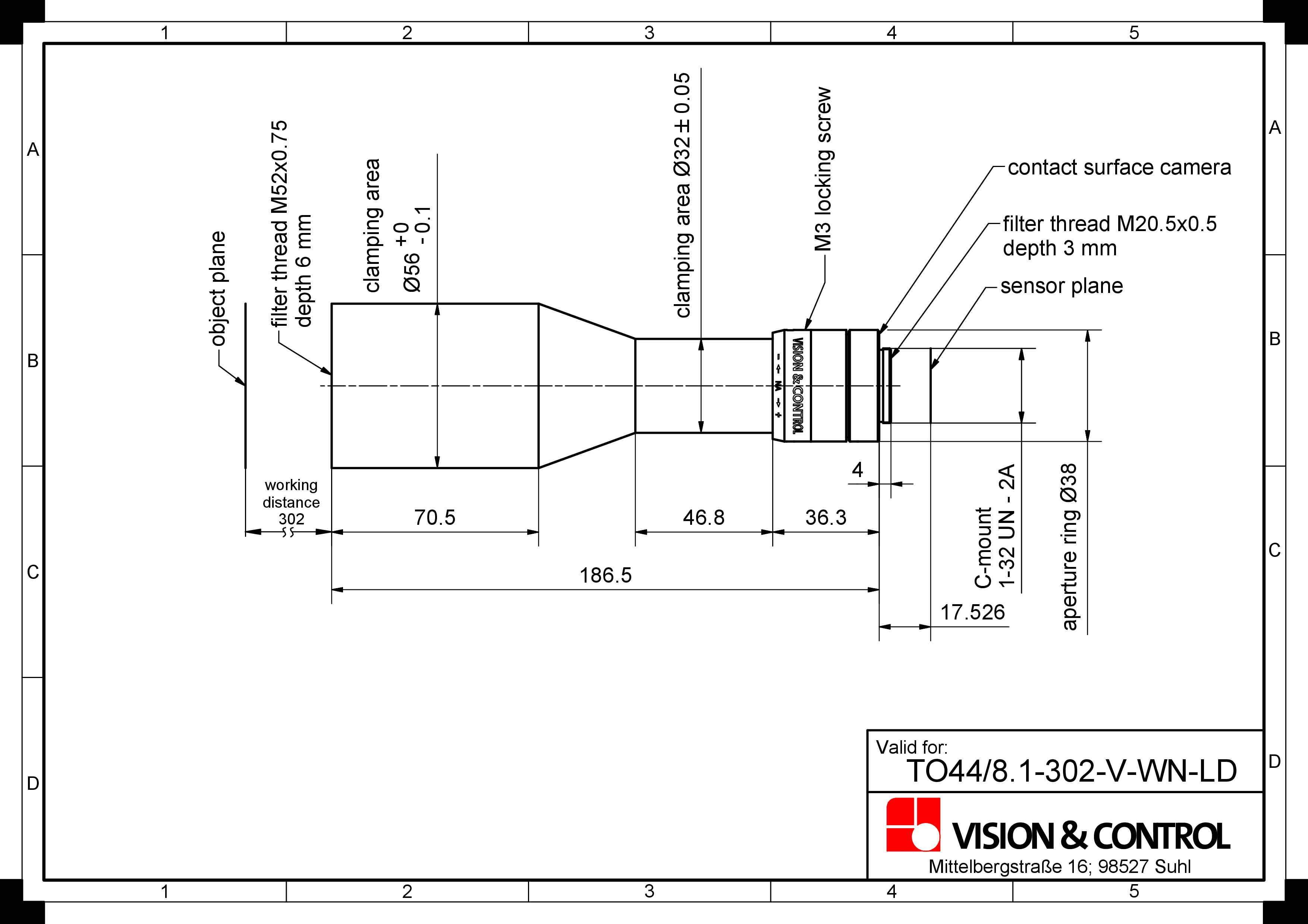

Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB51-UDC-a Serie
1-10-941 TZB51-B470/UDC/-a telecentric light, blue, lf diameter: 49 mm, flashable by flash controller
1-10-942 TZB51-W5K7/UDC/-a telecentric light, white, lf diameter: 49 mm, flashable by flash controller
1-10-943 TZB51-IR880/UDC/-a telecentric light, IR850, lf diameter: 49 mm, flashable by flash controller
1-10-940 TZB51-R625/UDC/-a telecentric light, red, lf diameter: 49 mm, flashable by flash controller
1-10-944 TZB51-G525/UDC/-a telecentric light, green, lf diameter: 49 mm, flashable by flash controller
TZB51 series
1-10-201 TZB51-B470-24V telecentric light, blue, lf diameter: 49 mm, static, cable open-ended
1-10-198 TZB51-W5K7-24V telecentric light, white, lf diameter: 49 mm, static, cable open-ended
1-10-202 TZB51-IR880-24V telecentric light, IR850, lf diameter: 49 mm, static, cable open-ended
1-10-200 TZB51-R625-24V telecentric light, red, lf diameter: 49 mm, static, cable open-ended
1-10-215 TZB51-G525-24V telecentric light, green, lf diameter: 49 mm, static, cable open-ended
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-022 Adapter STE60x60 - TZO56 Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm
Accessories
Order number Title Description
Lens mount
2-90-125 Lens Holder d32-30 Holder for telecentric lenses and lightings with d = 32 mm, with 30 mm extn.
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-174 ND filter 3.0 M52x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M52x0.75
2-91-164 ND filter 1.2 M52x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M52x0.75
2-91-154 ND filter 0.6 M52x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M52x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-134 IR filter M52x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M52x0.75
Polarising filters
2-91-144 Pole filter M52x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75
Colour filter blue
2-91-290 Colour filter blue M52x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M52x0.75
UV Cut-Off Filter
2-91-124 UV blocking filter M52x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M52x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-262 Colour filter red M52x0.75 long-pass filter from 630 nm, red, filter thread M52x0.75
Colour filter green
2-91-303 Colour filter green M52x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M52x0.75
Colour filter yellow
2-91-277 Colour filter yellow M52x0.75 long-pass filter from 530 nm, yellow, filter thread M52x0.75
Deflection mirrow 90° series
2-25-115 Deflection mirror 90-56 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm
Adapters for attaching lights to lenses
1-29-676 Adapter ring d41 - M52x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M52x0.75
1-29-772 Adapter ring d73 - M52x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M52x0.75
1-29-870 Adapter ring d104 - M52x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M52x0.75
Beam splitter STE60x60
1-20-022 Adapter STE60x60 - TZO56 Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm
TO60/11.5-287-V-WN-LD
Title:
TO60/11.5-287-V-WN-LD
Short description:
Telecentric measuring lens, c-mount, sensor opt. 2/3", variable aperture, VIS/NIR, LD
Order number:
2-05-394
Downloads:
Overview product serie
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • long working distance
  • usable for the visible spectral range and near infrared
  • Optimum results with monochromatic applications
  • adjustable aperture, arrestable
  • robust industrial design
Technical data
Image scale0.192
Spectral range380 nm - 900 nm
Working distance287 mm
Camera distance (object-camera flange)534.9 mm
Object field diagonal (max.)46.8 mm
Sensor format (opt.)2/3"
Image field diagonal (max.)11.5 mm
Suitable for camera resolution4.9 MPixel
Recommended pixel size3.45 µm
Aperturevariable
Depth of focus24 mm (F10, 470 nm, MTF = 20 % @ 20 LP/mm)
Lens mountC-Mount
Filter thread, object-sideM67 x 0.75
Filter thread, camera-sideM20.5 x 0.5
Weight1040 g
Usable object field with:
• 1" sensor (12.8 x 9.6 mm²)48.0 mm x 36.0 mm
• 2/3" sensor (8.8 x 6.6 mm²)45.8 mm x 34.4 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)37.0 mm x 28.1 mm
• 1/2" sensor (6.4 x 4.8 mm²)33.3 mm x 25.0 mm
• 1/3" sensor (4.8 x 3.6 mm²)25.0 mm x 18.8 mm
Notices
The illumination combinations shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings

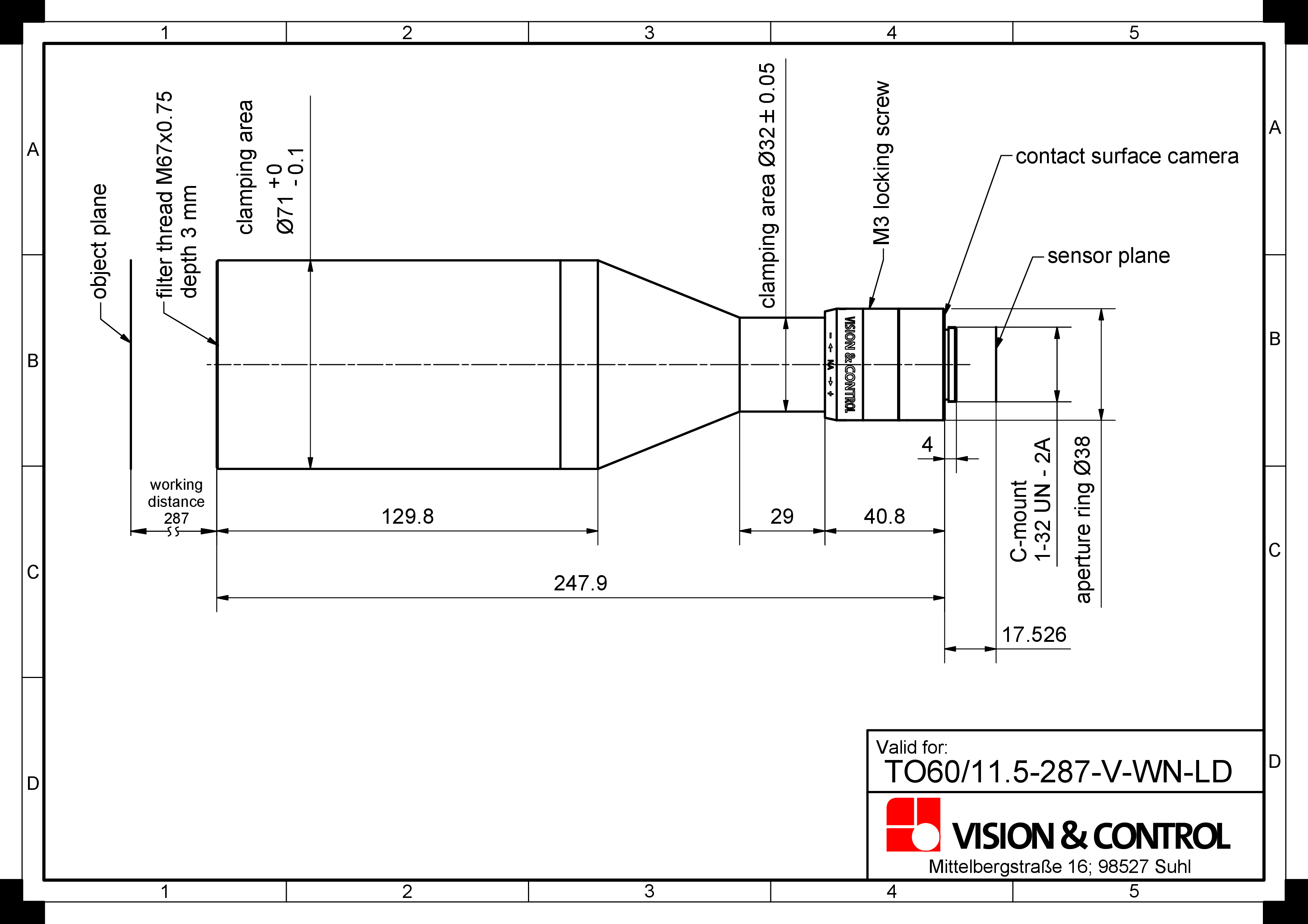

Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB60-UDC-a Serie
1-10-946 TZB60-B470/UDC/-a telecentric light, blue, lf diameter: 60 mm, flashable by flash controller
1-10-947 TZB60-W5K7/UDC/-a telecentric light, white, lf diameter: 60 mm, flashable by flash controller
1-10-948 TZB60-IR880/UDC/-a telecentric light, IR850, lf diameter: 60 mm, flashable by flash controller
1-10-945 TZB60-R625/UDC/-a telecentric light, red, lf diameter: 60 mm, flashable by flash controller
1-10-949 TZB60-G525/UDC/-a telecentric light, green, lf diameter: 60 mm, flashable by flash controller
TZB60 series
1-10-174 TZB60-B470-24V telecentric light, blue, lf diameter: 60 mm, static, cable open-ended
1-10-176 TZB60-W5K7-24V telecentric light, white, lf diameter: 60 mm, static, cable open-ended
1-10-178 TZB60-IR880-24V telecentric light, IR850, lf diameter: 60 mm, static, cable open-ended
1-10-170 TZB60-R625-24V telecentric light, red, lf diameter: 60 mm, static, cable open-ended
1-10-172 TZB60-G525-24V telecentric light, green, lf diameter: 60 mm, static, cable open-ended
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
Accessories
Order number Title Description
Lens mount
2-90-125 Lens Holder d32-30 Holder for telecentric lenses and lightings with d = 32 mm, with 30 mm extn.
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-175 ND filter 3.0 M67x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M67x0.75
2-91-165 ND filter 1.2 M67x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M67x0.75
2-91-155 ND filter 0.6 M67x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M67x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-135 IR filter M67x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M67x0.75
Polarising filters
2-91-145 Pole filter M67x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M67x0.75
Colour filter blue
2-91-291 Colour filter blue M67x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M67x0.75
UV Cut-Off Filter
2-91-125 UV blocking filter M67x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M67x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-263 Colour filter red M67x0.75 long-pass filter from 630 nm, red, filter thread M67x0.75
Colour filter green
2-91-304 Colour filter green M67x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M67x0.75
Colour filter yellow
2-91-278 Colour filter yellow M67x0.75 long-pass filter from 530 nm, yellow, filter thread M67x0.75
Deflection mirrow 90° series
2-25-124 Deflection mirror 90-71 90° deflection, attachment for telecentric lenses and lightings with d = 71 mm
Adapters for attaching lights to lenses
1-29-677 Adapter ring d41 - M67x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M67x0.75
1-29-773 Adapter ring d73 - M67x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M67x0.75
1-29-871 Adapter ring d104 - M67x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M67x0.75
Beam splitter STE60x60
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
TO60/8.0-280-V-WN-LD
Title:
TO60/8.0-280-V-WN-LD
Short description:
Telecentric measuring lens, c-mount, sensor opt. 1/2", variable aperture, VIS/NIR, LD
Order number:
2-05-393
Downloads:
Overview product serie
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • long working distance
  • usable for the visible spectral range and near infrared
  • Optimum results with monochromatic applications
  • adjustable aperture, arrestable
  • robust industrial design
Technical data
Image scale0.136
Spectral range380 nm - 900 nm
Working distance280 mm
Camera distance (object-camera flange)519.3 mm
Object field diagonal (max.)44.1 mm
Sensor format (opt.)1/2"
Image field diagonal (max.)8 mm
Suitable for camera resolution18.2 MPixel
Recommended pixel size1.3 µm
Aperturevariable
Depth of focus56 mm (F10, 470 nm, MTF = 20 % @ 20 LP/mm)
Lens mountC-Mount
Filter thread, object-sideM67 x 0.75
Filter thread, camera-sideM20.5 x 0.5
Weight1040 g
Usable object field with:
• 1/2" sensor (6.4 x 4.8 mm²)47.1 mm x 35.3 mm
• 1/3" sensor (4.8 x 3.6 mm²)35.3 mm x 26.5 mm
• 1/4" sensor (3.4 x 2.2 mm²)25.0 mm x 16.2 mm
Notices
The illumination combinations shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB60-UDC-a Serie
1-10-946 TZB60-B470/UDC/-a telecentric light, blue, lf diameter: 60 mm, flashable by flash controller
1-10-947 TZB60-W5K7/UDC/-a telecentric light, white, lf diameter: 60 mm, flashable by flash controller
1-10-948 TZB60-IR880/UDC/-a telecentric light, IR850, lf diameter: 60 mm, flashable by flash controller
1-10-945 TZB60-R625/UDC/-a telecentric light, red, lf diameter: 60 mm, flashable by flash controller
1-10-949 TZB60-G525/UDC/-a telecentric light, green, lf diameter: 60 mm, flashable by flash controller
TZB60 series
1-10-174 TZB60-B470-24V telecentric light, blue, lf diameter: 60 mm, static, cable open-ended
1-10-176 TZB60-W5K7-24V telecentric light, white, lf diameter: 60 mm, static, cable open-ended
1-10-178 TZB60-IR880-24V telecentric light, IR850, lf diameter: 60 mm, static, cable open-ended
1-10-170 TZB60-R625-24V telecentric light, red, lf diameter: 60 mm, static, cable open-ended
1-10-172 TZB60-G525-24V telecentric light, green, lf diameter: 60 mm, static, cable open-ended
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
Accessories
Order number Title Description
Lens mount
2-90-125 Lens Holder d32-30 Holder for telecentric lenses and lightings with d = 32 mm, with 30 mm extn.
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-175 ND filter 3.0 M67x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M67x0.75
2-91-165 ND filter 1.2 M67x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M67x0.75
2-91-155 ND filter 0.6 M67x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M67x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-135 IR filter M67x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M67x0.75
Polarising filters
2-91-145 Pole filter M67x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M67x0.75
Colour filter blue
2-91-291 Colour filter blue M67x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M67x0.75
UV Cut-Off Filter
2-91-125 UV blocking filter M67x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M67x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-263 Colour filter red M67x0.75 long-pass filter from 630 nm, red, filter thread M67x0.75
Colour filter green
2-91-304 Colour filter green M67x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M67x0.75
Colour filter yellow
2-91-278 Colour filter yellow M67x0.75 long-pass filter from 530 nm, yellow, filter thread M67x0.75
Deflection mirrow 90° series
2-25-124 Deflection mirror 90-71 90° deflection, attachment for telecentric lenses and lightings with d = 71 mm
Adapters for attaching lights to lenses
1-29-677 Adapter ring d41 - M67x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M67x0.75
1-29-773 Adapter ring d73 - M67x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M67x0.75
1-29-871 Adapter ring d104 - M67x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M67x0.75
Beam splitter STE60x60
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
TO112/21.3-500-V-eLD
Title:
TO112/21.3-500-V-eLD
Short description:
Telecentric measuring lens, C-mount, sensor opt. type 4/3, aperture F8-F22, extremely LD
Order number:
2-05-634
Downloads:
Overview product serie
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • extremely long working distance
  • Designed for monochromatic applications
  • very well suited for blue LEDs including "Deep Blue" LEDs
  • high resolution, low telecentric error
  • adjustable aperture with identification of the aperture numbers, arrestable
  • robust industrial design
Technical data
Image scale0.188
Spectral range400 nm - 950 nm
Working distance500 mm
Camera distance (object-camera flange)901.5 mm
Object field diagonal (max.)112 mm
Sensor format (opt.)Type 4/3
Image field diagonal (max.)21.3 mm
Suitable for camera resolution25 MPixel
Recommended pixel size3 µm
Apertureverstellbar (F8 – F22)
Depth of focus31 mm (F11, 525 nm, MTF = 20 % @ 20 LP/mm)
Lens mountC-Mount
Filter thread, object-sideM144 x 0.75
Filter thread, camera-sideM20.5 x 0.5
Weight4500 g
Usable object field with:
• Sensor type 4/3 (17.3 x 13.0 mm²)90.7 mm x 68.1 mm
• 1" sensor (12.8 x 9.6 mm²)68.1 mm x 51.1 mm
• 2/3" sensor (8.8 x 6.6 mm²)46.8 mm x 35.1 mm
Notices
The illumination combinations shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB130 series
1-10-187 TZB130-B470-24V telecentric light, blue, lf diameter: 130 mm, static, cable open-ended
1-10-195 TZB130-W5K7-24V telecentric light, white, lf diameter: 130 mm, static, cable open-ended
1-10-189 TZB130-IR880-24V telecentric light, IR850, lf diameter: 130 mm, static, cable open-ended
1-10-185 TZB130-R625-24V telecentric light, red, lf diameter: 130 mm, static, cable open-ended
1-10-077 TZB130-G525-24V telecentric light, green, lf diameter: 130 mm, static, cable open-ended
TZB130-UDC-a Serie
1-10-956 TZB130-B470/UDC/-a telecentric light, blue, lf diameter: 130 mm, flashable by flash controller
1-10-957 TZB130-W5K7/UDC/-a telecentric light, white, lf diameter: 130 mm, flashable by flash controller
1-10-958 TZB130-IR880/UDC/-a telecentric light, IR850, lf diameter: 130 mm, flashable by flash controller
1-10-955 TZB130-R625/UDC/-a telecentric light, red, lf diameter: 130 mm, flashable by flash controller
1-10-959 TZB130-G525/UDC/-a telecentric light, green, lf diameter: 130 mm, flashable by flash controller
Accessories
Order number Title Description
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
Adapters for attaching lights to lenses
1-29-873 Adapter ring d104 - M144x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M144x0.75
TO44/7.5-287-V-LD
Title:
TO44/7.5-287-V-LD
Short description:
Telecentric lens, c-mount, sensor opt. 1/2", variable aperture, VIS/NIR, LD
Order number:
2-05-391
Downloads:
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • long working distance
  • usable for the visible spectral range and near infrared
  • Optimum results with monochromatic applications
  • adjustable aperture, arrestable
  • robust industrial design
Technical data
Image scale0.17
Spectral range400 nm - 950 nm
Working distance287 mm
Camera distance (object-camera flange)464 mm
Object field diagonal (max.)44 mm
Sensor format (opt.)1/2"
Image field diagonal (max.)7.5 mm
Suitable for camera resolution4.9 MPixel
Recommended pixel size2.5 µm
Apertureverstellbar (F6 - F16)
Depth of focus7 mm
(F10, 470 nm, MTF = 20 % @ 50 LP/mm)
Lens mountC-Mount
Filter thread, object-sideM52 x 0.75
Filter thread, camera-sideM20.5 x 0.5
Weight326 g
Usable object field with:
• 1/2" sensor (6.4 x 4.8 mm²)33.8 mm x 25.4 mm
• 1/3" sensor (4.8 x 3.6 mm²)28.2 mm x 21.2 mm
• 1/4" sensor (3.4 x 2.2 mm²)20 mm x 12.9 mm
Notices
The lightings combination products shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB51-UDC-a Serie
1-10-941 TZB51-B470/UDC/-a telecentric light, blue, lf diameter: 49 mm, flashable by flash controller
1-10-942 TZB51-W5K7/UDC/-a telecentric light, white, lf diameter: 49 mm, flashable by flash controller
1-10-943 TZB51-IR880/UDC/-a telecentric light, IR850, lf diameter: 49 mm, flashable by flash controller
1-10-940 TZB51-R625/UDC/-a telecentric light, red, lf diameter: 49 mm, flashable by flash controller
1-10-944 TZB51-G525/UDC/-a telecentric light, green, lf diameter: 49 mm, flashable by flash controller
TZB51 series
1-10-201 TZB51-B470-24V telecentric light, blue, lf diameter: 49 mm, static, cable open-ended
1-10-198 TZB51-W5K7-24V telecentric light, white, lf diameter: 49 mm, static, cable open-ended
1-10-202 TZB51-IR880-24V telecentric light, IR850, lf diameter: 49 mm, static, cable open-ended
1-10-200 TZB51-R625-24V telecentric light, red, lf diameter: 49 mm, static, cable open-ended
1-10-215 TZB51-G525-24V telecentric light, green, lf diameter: 49 mm, static, cable open-ended
R-CLR-69-SL series
1-33-007 R-CLR-69x41-B470-SL ring light, blue, coaxial, lf diameter: 41/69 mm, smart light technology
RK2036-24V series
1-29-602 RK2036-B470-24V/C ring light, blue, coaxial, lf diameter: 41/69 mm, controlled, pot.: 0-10V,
R-CLR-100-SL series
1-33-012 R-CLR-100x73-B470-SL ring light, blue, coaxial, lf diameter: 73/100 mm, smart light technology
RK3652-24V series
1-29-702 RK3652-B470-24V/C ring light, blue, coaxial, lf diameter: 73/100 mm, controlled, pot.: 0-10V,
R-CLR-132-SL series
1-33-017 R-CLR-132x104-B470-SL ring light, blue, coaxial, lf diameter: 104/132 mm, smart light technology
RK5268-24V series
1-29-802 RK5268-B470-24V/C ring light, blue, coaxial, lf diameter: 104/132 mm, controlled, pot.: 0-10V,
Accessories
Order number Title Description
Adjustment Aids
5-10-112 Adjustment aid 10 for easy adjustment to 10 mm depth of field, for image scale 0.5 - 0.2
Lens mount
2-90-122 Lens Holder d32 Holder for telecentric lenses and lightings with d = 32 mm
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
2-90-419 Extension ring 0.1 mm 25.5 x 29 x 0.1 reduces the minimum object distance (MOD)
2-90-420 Extension ring 0.2 mm 25.5 x 29 x 0.2 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-174 ND filter 3.0 M52x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M52x0.75
2-91-164 ND filter 1.2 M52x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M52x0.75
2-91-154 ND filter 0.6 M52x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M52x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-134 IR filter M52x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M52x0.75
Polarising filters
2-91-144 Pole filter M52x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75
Colour filter blue
2-91-290 Colour filter blue M52x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M52x0.75
UV Cut-Off Filter
2-91-124 UV blocking filter M52x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M52x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-262 Colour filter red M52x0.75 long-pass filter from 630 nm, red, filter thread M52x0.75
Colour filter green
2-91-303 Colour filter green M52x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M52x0.75
Colour filter yellow
2-91-277 Colour filter yellow M52x0.75 long-pass filter from 530 nm, yellow, filter thread M52x0.75
Deflection mirrow 90° series
2-25-115 Deflection mirror 90-56 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm
Adapters for attaching lights to lenses
1-29-676 Adapter ring d41 - M52x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M52x0.75
1-29-772 Adapter ring d73 - M52x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M52x0.75
1-29-870 Adapter ring d104 - M52x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M52x0.75
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-022 Adapter STE60x60 - TZO56 Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm
TO112/15.4-600-V-eLD
Title:
TO112/15.4-600-V-eLD
Short description:
Telecentric measuring lens, C-mount, sensor opt. 1", aperture F8-F22, extremely LD
Order number:
2-05-633
Downloads:
Overview product serie
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • extremely long working distance
  • Designed for monochromatic applications
  • very well suited for blue LEDs including "Deep Blue" LEDs
  • high resolution, low telecentric error
  • adjustable aperture with identification of the aperture numbers, arrestable
  • robust industrial design
Technical data
Image scale0.135
Spectral range400 nm - 950 nm
Working distance600 mm
Camera distance (object-camera flange)980 mm
Object field diagonal (max.)112 mm
Sensor format (opt.)1"
Image field diagonal (max.)15.4 mm
Suitable for camera resolution13.7 MPixel
Recommended pixel size3 µm
Apertureverstellbar (F8 – F22)
Depth of focus60 mm (F11, 525 nm, MTF = 20 % @ 20 LP/mm)
Lens mountC-Mount
Filter thread, object-sideM144 x 0.75
Filter thread, camera-sideM20.5 x 0.5
Weight4500 g
Usable object field with:
• 1" sensor (12.8 x 9.6 mm²)91.3 mm x 68.5 mm
• 2/3" sensor (8.8 x 6.6 mm²)65.2 mm x 48.9 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)52.6 mm x 40.0 mm
• 1/2" sensor (6.4 x 4.8 mm²)47.4 mm x 35.6 mm
Notices
The illumination combinations shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB130 series
1-10-187 TZB130-B470-24V telecentric light, blue, lf diameter: 130 mm, static, cable open-ended
1-10-195 TZB130-W5K7-24V telecentric light, white, lf diameter: 130 mm, static, cable open-ended
1-10-189 TZB130-IR880-24V telecentric light, IR850, lf diameter: 130 mm, static, cable open-ended
1-10-185 TZB130-R625-24V telecentric light, red, lf diameter: 130 mm, static, cable open-ended
1-10-077 TZB130-G525-24V telecentric light, green, lf diameter: 130 mm, static, cable open-ended
TZB130-UDC-a Serie
1-10-956 TZB130-B470/UDC/-a telecentric light, blue, lf diameter: 130 mm, flashable by flash controller
1-10-957 TZB130-W5K7/UDC/-a telecentric light, white, lf diameter: 130 mm, flashable by flash controller
1-10-958 TZB130-IR880/UDC/-a telecentric light, IR850, lf diameter: 130 mm, flashable by flash controller
1-10-955 TZB130-R625/UDC/-a telecentric light, red, lf diameter: 130 mm, flashable by flash controller
1-10-959 TZB130-G525/UDC/-a telecentric light, green, lf diameter: 130 mm, flashable by flash controller
Accessories
Order number Title Description
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
Adapters for attaching lights to lenses
1-29-873 Adapter ring d104 - M144x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M144x0.75
TL230/15.6-250-V-N-LW
Title:
TL230/15.6-250-V-N-LW
Short description:
Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for near IR
Order number:
2-06-222
Notice:
Also available for other colors on request.
Downloads:
Instructions
STP-File download
Characteristics
  • telecentric lens with extremely large object field for C-mount cameras
  • low-distortion, low telecentric error
  • lightweight thanks to Fresnel technology
  • Designed for monochromatic applications
  • adjustable aperture, arrestable
  • working distance adjustable to customer requirements
  • especially suited for component inspection
  • internal filter for false light suppression installed by the manufacturer
  • protective glass available as an accessory
  • robust industrial design
Technical data
Image scale0.068
Spectral range830 nm - 950 nm,
(monochromatic)
Working distance250 mm
Camera distance (object-camera flange)514 mm
Object field diagonal (max.)230 mm
Sensor format (opt.)1"
Image field diagonal (max.)15.6 mm
Suitable for camera resolution10.3 MPixel
Recommended pixel size3.45 µm
Aperturevariable
Depth of focus188 mm @ F16
Lens mountC-Mount
Weight4280 g
Usable object field with:
• 1" sensor (12.8 x 9.6 mm²)188.2 mm x 141.2 mm
• 2/3" sensor (8.8 x 6.6 mm²)129.4 mm x 97.1 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)104.4 mm x 79.4 mm
• 1/2" sensor (6.4 x 4.8 mm²)94.1 mm x 70.6 mm
Notices
The lightings combination products shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
SLE-150-P-SL series
1-33-302 SLE-150-IR850-P-SL compact spot light, IR850, P-LED, variable work distance, condenser lens, smart light
SLE-150-P-24V series
1-33-312 SLE-150-IR850-P-24V compact spot light, IR850, P-LED, variable work distance, condenser l., 24V, switchable
Accessories
Order number Title Description
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
2-90-419 Extension ring 0.1 mm 25.5 x 29 x 0.1 reduces the minimum object distance (MOD)
2-90-420 Extension ring 0.2 mm 25.5 x 29 x 0.2 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
TL230/15.6-250-V-R-LW
Title:
TL230/15.6-250-V-R-LW
Short description:
Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for red
Order number:
2-06-221
Notice:
Also available for other colors on request.
Downloads:
Instructions
STP-File download
Characteristics
  • telecentric lens with extremely large object field for C-mount cameras
  • low-distortion, low telecentric error
  • lightweight thanks to Fresnel technology
  • Designed for monochromatic applications
  • adjustable aperture, arrestable
  • working distance adjustable to customer requirements
  • especially suited for component inspection
  • internal filter for false light suppression installed by the manufacturer
  • protective glass available as an accessory
  • robust industrial design
Technical data
Image scale0.068
Spectral range630 nm - 670 nm,
(monochromatic)
Working distance250 mm
Camera distance (object-camera flange)514 mm
Object field diagonal (max.)230 mm
Sensor format (opt.)1"
Image field diagonal (max.)15.6 mm
Suitable for camera resolution10.3 MPixel
Recommended pixel size3.45 µm
Aperturevariable
Depth of focus144 mm @ F16
Lens mountC-Mount
Weight4280 g
Usable object field with:
• 1" sensor (12.8 x 9.6 mm²)188.2 mm x 141.2 mm
• 2/3" sensor (8.8 x 6.6 mm²)129.4 mm x 97.1 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)104.4 mm x 79.4 mm
• 1/2" sensor (6.4 x 4.8 mm²)94.1 mm x 70.6 mm
Notices
The lightings combination products shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
SLE-150-P-SL series
1-33-303 SLE-150-R625-P-SL compact spot light, red, P-LED, variable work distance, condenser lens, smart light
SLE-150-P-24V series
1-33-313 SLE-150-R625-P-24V compact spot light, red, P-LED, variable work distance, condenser l., 24V, switchable
Accessories
Order number Title Description
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
2-90-419 Extension ring 0.1 mm 25.5 x 29 x 0.1 reduces the minimum object distance (MOD)
2-90-420 Extension ring 0.2 mm 25.5 x 29 x 0.2 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
TL230/15.6-250-V-B-LW
Title:
TL230/15.6-250-V-B-LW
Short description:
Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for blue
Order number:
2-06-220
Notice:
Also available for other colors on request.
Downloads:
Instructions
STP-File download
Characteristics
  • telecentric lens with extremely large object field for C-mount cameras
  • low-distortion, low telecentric error
  • lightweight thanks to Fresnel technology
  • Designed for monochromatic applications
  • adjustable aperture, arrestable
  • working distance adjustable to customer requirements
  • especially suited for component inspection
  • internal filter for false light suppression installed by the manufacturer
  • protective glass available as an accessory
  • robust industrial design
Technical data
Image scale0.068
Spectral range450 nm - 490 nm,
(monochromatic)
Working distance250 mm
Camera distance (object-camera flange)514 mm
Object field diagonal (max.)230 mm
Sensor format (opt.)1"
Image field diagonal (max.)15.6 mm
Suitable for camera resolution10.3 MPixel
Recommended pixel size3.45 µm
Aperturevariable
Depth of focus104 mm @ F16
Lens mountC-Mount
Weight4280 g
Usable object field with:
• 1" sensor (12.8 x 9.6 mm²)188.2 mm x 141.2 mm
• 2/3" sensor (8.8 x 6.6 mm²)129.4 mm x 97.1 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)104.4 mm x 79.4 mm
• 1/2" sensor (6.4 x 4.8 mm²)94.1 mm x 70.6 mm
Notices
The lightings combination products shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
SLE-150-P-SL series
1-33-300 SLE-150-B460-P-SL compact spot light, blue, P-LED, variable work distance, condenser lens, smart light
SLE-150-P-24V series
1-33-310 SLE-150-B450-P-24V compact spot light, blue, P-LED, variable work distance, condenser l., 24V, switchable
Accessories
Order number Title Description
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
2-90-419 Extension ring 0.1 mm 25.5 x 29 x 0.1 reduces the minimum object distance (MOD)
2-90-420 Extension ring 0.2 mm 25.5 x 29 x 0.2 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
TLL400/28-400-V-WN-LW
Title:
TLL400/28-400-V-WN-LW
Short description:
Telecentric line lens, with Fresnel technology, for 28 mm line, M42 mount
Order number:
2-06-231
Downloads:
STP-File download
Characteristics
  • telecentric lens for line scan camera applications with extremely large object field
  • low-distortion, low telecentric error
  • lightweight thanks to Fresnel technology
  • usable for the visible spectral range and near infrared
  • Designed for monochromatic applications
  • adjustable aperture, arrestable
  • internal filter for false light suppression installed by the manufacturer
  • protective glass available as an accessory
  • robust industrial design
Notices
There are a wide range of options for customer-specific adaptation in terms of camera mount and object field.
TLL520/28-400-V-WN-LW
Title:
TLL520/28-400-V-WN-LW
Short description:
Telecentric line lens, with Fresnel technology, for 28 mm line, M42 mount
Order number:
2-06-232
Downloads:
STP-File download
Characteristics
  • telecentric lens for line scan camera applications with extremely large object field
  • low-distortion, low telecentric error
  • lightweight thanks to Fresnel technology
  • usable for the visible spectral range and near infrared
  • Designed for monochromatic applications
  • adjustable aperture, arrestable
  • internal filter for false light suppression installed by the manufacturer
  • protective glass available as an accessory
  • robust industrial design
Notices
There are a wide range of options for customer-specific adaptation in terms of camera mount and object field.
TL380/15.2-400-V-N-LW
Title:
TL380/15.2-400-V-N-LW
Short description:
Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for near IR
Order number:
2-05-379
Notice:
This lens is also available for red and blue.
We currently realize customer-specific fields of view of up to 600 mm as well as camera connections for larger sensor formats, such as M42 and M72. Other colors incl. SWIR are also possible.
Downloads:
Instructions
STP-File download
Characteristics
  • telecentric lens with extremely large object field for C-mount cameras
  • low-distortion, low telecentric error
  • lightweight thanks to Fresnel technology
  • Designed for monochromatic applications
  • adjustable aperture, arrestable
  • working distance adjustable to customer requirements
  • especially suited for component inspection
  • internal filter for false light suppression installed by the manufacturer
  • protective glass available as an accessory
  • robust industrial design
Technical data
Image scale0.04
Spectral range830 nm - 950 nm,
(monochromatic)
Working distance100-400 mm,
highest resolution at 100-150 mm
Camera distance (object-camera flange)829 mm
Object field diagonal (max.)380 mm
Sensor format (opt.)1"
Image field diagonal (max.)15.2 mm
Suitable for camera resolution10.3 MPixel
Recommended pixel size3.45 µm
Aperturevariable
Depth of focus544 mm (@ F16)
Lens mountC-Mount
Weight9000 g
Usable object field with:
• 1" sensor (12.8 x 9.6 mm²)320 mm x 240 mm
• 2/3" sensor (8.8 x 6.6 mm²)220 mm x 165 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)177.5 mm x 135 mm
• 1/2" sensor (6.4 x 4.8 mm²)160 mm x 120 mm
Notices
The lightings combination products shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
SLE-150-P-SL series
1-33-302 SLE-150-IR850-P-SL compact spot light, IR850, P-LED, variable work distance, condenser lens, smart light
SLE-150-P-24V series
1-33-312 SLE-150-IR850-P-24V compact spot light, IR850, P-LED, variable work distance, condenser l., 24V, switchable
Accessories
Order number Title Description
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
2-90-419 Extension ring 0.1 mm 25.5 x 29 x 0.1 reduces the minimum object distance (MOD)
2-90-420 Extension ring 0.2 mm 25.5 x 29 x 0.2 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Filter adapter
2-91-119 PG 390 protective glass, for TL 370/371/380 series, incl. installation material
TL380/15.2-400-V-R-LW
Title:
TL380/15.2-400-V-R-LW
Short description:
Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for red
Order number:
2-05-378
Notice:
This lens is also available for blue and IR.
We currently realize customer-specific fields of view of up to 600 mm as well as camera connections for larger sensor formats, such as M42 and M72. Other colors incl. SWIR are also possible.
Downloads:
Instructions
STP-File download
Characteristics
  • telecentric lens with extremely large object field for C-mount cameras
  • low-distortion, low telecentric error
  • lightweight thanks to Fresnel technology
  • Designed for monochromatic applications
  • adjustable aperture, arrestable
  • working distance adjustable to customer requirements
  • especially suited for component inspection
  • internal filter for false light suppression installed by the manufacturer
  • protective glass available as an accessory
  • robust industrial design
Technical data
Image scale0.04
Spectral range630 nm - 670 nm,
(monochromatic)
Working distance100-400 mm,
highest resolution at 100-150 mm
Camera distance (object-camera flange)829 mm
Object field diagonal (max.)380 mm
Sensor format (opt.)1"
Image field diagonal (max.)15.2 mm
Suitable for camera resolution10.3 MPixel
Recommended pixel size3.45 µm
Aperturevariable
Depth of focus416 mm (@ F16)
Lens mountC-Mount
Weight9000 g
Usable object field with:
• 1" sensor (12.8 x 9.6 mm²)320 mm x 240 mm
• 2/3" sensor (8.8 x 6.6 mm²)220 mm x 165 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)177.5 mm x 135 mm
• 1/2" sensor (6.4 x 4.8 mm²)160 mm x 120 mm
Notices
The lightings combination products shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
SLE-150-P-SL series
1-33-303 SLE-150-R625-P-SL compact spot light, red, P-LED, variable work distance, condenser lens, smart light
SLE-150-P-24V series
1-33-313 SLE-150-R625-P-24V compact spot light, red, P-LED, variable work distance, condenser l., 24V, switchable
Accessories
Order number Title Description
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
2-90-419 Extension ring 0.1 mm 25.5 x 29 x 0.1 reduces the minimum object distance (MOD)
2-90-420 Extension ring 0.2 mm 25.5 x 29 x 0.2 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Filter adapter
2-91-119 PG 390 protective glass, for TL 370/371/380 series, incl. installation material
TL380/15.2-400-V-B-LW
Title:
TL380/15.2-400-V-B-LW
Short description:
Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for blue
Order number:
2-05-377
Notice:
This lens is also available for red and IR.
We currently realize customer-specific fields of view of up to 600 mm as well as camera connections for larger sensor formats, such as M42 and M72. Other colors incl. SWIR are also possible.
Downloads:
Instructions
STP-File download
Characteristics
  • telecentric lens with extremely large object field for C-mount cameras
  • low-distortion, low telecentric error
  • lightweight thanks to Fresnel technology
  • Designed for monochromatic applications
  • adjustable aperture, arrestable
  • working distance adjustable to customer requirements
  • especially suited for component inspection
  • internal filter for false light suppression installed by the manufacturer
  • protective glass available as an accessory
  • robust industrial design
Technical data
Image scale0.04
Spectral range450 nm - 490 nm,
(monochromatic)
Working distance100-400 mm,
highest resolution at 100-150 mm
Camera distance (object-camera flange)829 mm
Object field diagonal (max.)380 mm
Sensor format (opt.)1"
Image field diagonal (max.)15.2 mm
Suitable for camera resolution10.3 MPixel
Recommended pixel size3.45 µm
Aperturevariable
Depth of focus300 mm (@ F16)
Lens mountC-Mount
Weight9000 g
Usable object field with:
• 1" sensor (12.8 x 9.6 mm²)320 mm x 240 mm
• 2/3" sensor (8.8 x 6.6 mm²)220 mm x 165 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)177.5 mm x 135 mm
• 1/2" sensor (6.4 x 4.8 mm²)160 mm x 120 mm
Notices
The lightings combination products shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
SLE-150-P-SL series
1-33-300 SLE-150-B460-P-SL compact spot light, blue, P-LED, variable work distance, condenser lens, smart light
SLE-150-P-24V series
1-33-310 SLE-150-B450-P-24V compact spot light, blue, P-LED, variable work distance, condenser l., 24V, switchable
Accessories
Order number Title Description
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
2-90-419 Extension ring 0.1 mm 25.5 x 29 x 0.1 reduces the minimum object distance (MOD)
2-90-420 Extension ring 0.2 mm 25.5 x 29 x 0.2 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Filter adapter
2-91-119 PG 390 protective glass, for TL 370/371/380 series, incl. installation material
TL380/25.6-400-V-WN-LW
Title:
TL380/25.6-400-V-WN-LW
Short description:
Telecentric large field lens, M42x1, sensor opt. type DX, aperture F8-F22, VIS/NIR
Order number:
2-06-233
Downloads:
Overview product serie
STP-File download
Characteristics
  • telecentric lens with extremely large object field for M42 cameras
  • low-distortion, low telecentric error
  • lightweight thanks to Fresnel technology
  • usable for the visible spectral range and near infrared
  • Designed for monochromatic applications
  • adjustable aperture, arrestable
  • protective glass available as an accessory
  • robust industrial design
Technical data
Image scale0.069
Spectral range400 nm – 950 nm
Working distance100 mm – 400 mm (einstellbar)
Camera distance (object-camera flange)1100 mm
Object field diagonal (max.)380 mm
Sensor format (opt.)Type DX
Image field diagonal (max.)25.6 mm
Suitable for camera resolution92.4 MPixel
Recommended pixel size2.00 µm
Apertureverstellbar (F8 – F22)
Depth of focus235 mm (F11, 470 nm, MTF = 20% @ 20 LP/mm)
Lens mountM42 x 1 (Auflagemaß 45.46 mm)
Weight5000 g
Usable object field with:
• Sensor type DX (23.7 x 15.6 mm²)309.5 mm x 203.7 mm
• Sensor type 4/3 (17.3 x 13.0 mm²)250.7 mm x 188.4 mm
• 1" sensor (12.8 x 9.6 mm²)185.5 mm x 139.1 mm
Notices
The illumination combinations shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
SLE-150-P-SL series
1-33-300 SLE-150-B460-P-SL compact spot light, blue, P-LED, variable work distance, condenser lens, smart light
SLE-150-P-24V series
1-33-310 SLE-150-B450-P-24V compact spot light, blue, P-LED, variable work distance, condenser l., 24V, switchable
Accessories
Order number Title Description
Thread adapter M42
5-00-010 Thread adapter M42-C-mount Adapter for mounting of lenses with M42x1 mount on cameras with C-mount
5-00-012 Thread adapter M42x1-M40x0.75 Adapter for mounting of lenses with M42x1 mount on cameras with M40x0.75 mount
5-00-013 Thread adapter M42x1-M42x1-L33 Adapter for mounting of lenses with M42x1 mount on cameras with M42x1 BFL 12 mm
5-00-014 Thread adapter M42x1-M42x1-L29 Adapter for mounting of lenses with M42x1 mount on cameras with M42x1 BFL 16 mm
Load more products..
