Product information
to the wishlist (0)
T151/0.39
Title:
T151/0.39
Short description:
Telecentric Lens, C-mount, Sensor opt. 1", variable aperture, W/NIR
Order number:
2-05-326
This product is being replaced!
EAN:
4251692620410
Actual Notice:
Termination to 31.12.2022.
Please check the use of: TO42/16.0-120-V-BW (2-05-624)
Downloads:
Overview product serie
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • high-quality imaging
  • color-optimized and bright
  • adjustable aperture, arrestable
  • robust industrial design
Technical data
Image scale0.393
Spectral range380 nm - 900 nm
Working distance223.0 mm
Object field diagonal (max.)40.7 mm
Sensor format (opt.)1"
ApertureVariable aperture
Lens mountC-Mount
Filter thread, object-sideM52 x 0.75 (depth 4.3 mm)
Weight404 g
Usable object field with:
• 1" sensor (12.8 x 9.6 mm²)32.5 mm x 24.4 mm
• 2/3" sensor (8.8 x 6.6 mm²)22.3 mm x 16.7 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)18.3 mm x 13.7 mm
• 1/2" sensor (6.4 x 4.8 mm²)16.2 mm x 12.2 mm
• 1/3" sensor (4.8 x 3.6 mm²)12.2 mm x 9.1 mm
• 1/4" sensor (3.4 x 2.2 mm²)8.6 mm x 5.5 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB51-UDC-a Serie
1-10-941 TZB51-B470/UDC/-a telecentric light, blue, lf diameter: 49 mm, flashable by flash controller
1-10-942 TZB51-W5K7/UDC/-a telecentric light, white, lf diameter: 49 mm, flashable by flash controller
1-10-943 TZB51-IR880/UDC/-a telecentric light, IR850, lf diameter: 49 mm, flashable by flash controller
1-10-940 TZB51-R625/UDC/-a telecentric light, red, lf diameter: 49 mm, flashable by flash controller
1-10-944 TZB51-G525/UDC/-a telecentric light, green, lf diameter: 49 mm, flashable by flash controller
TZB51 series
1-10-201 TZB51-B470-24V telecentric light, blue, lf diameter: 49 mm, static, cable open-ended
1-10-198 TZB51-W5K7-24V telecentric light, white, lf diameter: 49 mm, static, cable open-ended
1-10-202 TZB51-IR880-24V telecentric light, IR850, lf diameter: 49 mm, static, cable open-ended
1-10-200 TZB51-R625-24V telecentric light, red, lf diameter: 49 mm, static, cable open-ended
1-10-215 TZB51-G525-24V telecentric light, green, lf diameter: 49 mm, static, cable open-ended
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-022 Adapter STE60x60 - TZO56 Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm
Accessories
Order number Title Description
Lens mount
2-90-125 Lens Holder d32-30 Holder for telecentric lenses and lightings with d = 32 mm, with 30 mm extn.
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-174 ND filter 3.0 M52x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M52x0.75
2-91-164 ND filter 1.2 M52x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M52x0.75
2-91-154 ND filter 0.6 M52x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M52x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-134 IR filter M52x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M52x0.75
Polarising filters
2-91-144 Pole filter M52x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75
Colour filter blue
2-91-290 Colour filter blue M52x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M52x0.75
UV Cut-Off Filter
2-91-124 UV blocking filter M52x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M52x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-262 Colour filter red M52x0.75 long-pass filter from 630 nm, red, filter thread M52x0.75
Colour filter green
2-91-303 Colour filter green M52x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M52x0.75
Colour filter yellow
2-91-277 Colour filter yellow M52x0.75 long-pass filter from 530 nm, yellow, filter thread M52x0.75
Deflection mirrow 90° series
2-25-115 Deflection mirror 90-56 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm
Adapters for attaching lights to lenses
1-29-676 Adapter ring d41 - M52x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M52x0.75
1-29-772 Adapter ring d73 - M52x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M52x0.75
1-29-870 Adapter ring d104 - M52x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M52x0.75
Beam splitter STE60x60
1-20-022 Adapter STE60x60 - TZO56 Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm
T151/0.44
Title:
T151/0.44
Short description:
Telecentric Lens, C-mount, Sensor opt. 1.2", variable aperture, W/NIR
Order number:
2-05-327
This product is being replaced!
EAN:
4251692620427
Actual Notice:
Termination to 31.12.2022.
Please check the use of: TO42/21.4-120-V-BWW (2-05-626)
Downloads:
Overview product serie
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • high-quality imaging
  • color-optimized and bright
  • adjustable aperture, arrestable
  • robust industrial design
Technical data
Image scale0.436
Spectral range380 nm - 900 nm
Working distance200.0 mm
Object field diagonal (max.)48.9 mm
Sensor format (opt.)1.2"
ApertureVariable aperture
Lens mountC-Mount
Filter thread, object-sideM52 x 0.75 (depth 4.3 mm)
Weight407 g
Usable object field with:
• Sensor type 4/3 (17.3 x 13.0 mm²)39.2 mm x 29.3 mm
• 1" sensor (12.8 x 9.6 mm²)29.3 mm x 22.0 mm
• 2/3" sensor (8.8 x 6.6 mm²)20.1 mm x 15.1 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)16.5 mm x 12.3 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB51-UDC-a Serie
1-10-941 TZB51-B470/UDC/-a telecentric light, blue, lf diameter: 49 mm, flashable by flash controller
1-10-942 TZB51-W5K7/UDC/-a telecentric light, white, lf diameter: 49 mm, flashable by flash controller
1-10-943 TZB51-IR880/UDC/-a telecentric light, IR850, lf diameter: 49 mm, flashable by flash controller
1-10-940 TZB51-R625/UDC/-a telecentric light, red, lf diameter: 49 mm, flashable by flash controller
1-10-944 TZB51-G525/UDC/-a telecentric light, green, lf diameter: 49 mm, flashable by flash controller
TZB51 series
1-10-201 TZB51-B470-24V telecentric light, blue, lf diameter: 49 mm, static, cable open-ended
1-10-198 TZB51-W5K7-24V telecentric light, white, lf diameter: 49 mm, static, cable open-ended
1-10-202 TZB51-IR880-24V telecentric light, IR850, lf diameter: 49 mm, static, cable open-ended
1-10-200 TZB51-R625-24V telecentric light, red, lf diameter: 49 mm, static, cable open-ended
1-10-215 TZB51-G525-24V telecentric light, green, lf diameter: 49 mm, static, cable open-ended
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-022 Adapter STE60x60 - TZO56 Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm
Accessories
Order number Title Description
Lens mount
2-90-125 Lens Holder d32-30 Holder for telecentric lenses and lightings with d = 32 mm, with 30 mm extn.
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-174 ND filter 3.0 M52x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M52x0.75
2-91-164 ND filter 1.2 M52x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M52x0.75
2-91-154 ND filter 0.6 M52x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M52x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-134 IR filter M52x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M52x0.75
Polarising filters
2-91-144 Pole filter M52x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75
Colour filter blue
2-91-290 Colour filter blue M52x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M52x0.75
UV Cut-Off Filter
2-91-124 UV blocking filter M52x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M52x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-262 Colour filter red M52x0.75 long-pass filter from 630 nm, red, filter thread M52x0.75
Colour filter green
2-91-303 Colour filter green M52x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M52x0.75
Colour filter yellow
2-91-277 Colour filter yellow M52x0.75 long-pass filter from 530 nm, yellow, filter thread M52x0.75
Deflection mirrow 90° series
2-25-115 Deflection mirror 90-56 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm
Adapters for attaching lights to lenses
1-29-676 Adapter ring d41 - M52x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M52x0.75
1-29-772 Adapter ring d73 - M52x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M52x0.75
1-29-870 Adapter ring d104 - M52x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M52x0.75
Beam splitter STE60x60
1-20-022 Adapter STE60x60 - TZO56 Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm
T151/0.26L
Title:
T151/0.26L
Short description:
Telecentric Lens, C-mount, Sensor opt. 1/1.8", variable aperture, W/NIR
Order number:
2-05-328
This product is being replaced!
EAN:
4251692620434
Actual Notice:
Termination to 30.06.2023.
Please check the use of: TO44/11.0-110-V-BW (2-05-623)
Downloads:
Overview product serie
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • high-quality imaging
  • color-optimized and bright
  • adjustable aperture, arrestable
  • robust industrial design
Technical data
Image scale0.258
Spectral range380 nm - 900 nm
Working distance277.0 mm
Camera distance (object-camera flange)471 mm
Object field diagonal (max.)34.8 mm
Sensor format (opt.)1/1.8"
Image field diagonal (max.)9 mm
Suitable for camera resolution7.4 MPixel
Recommended pixel size2.27 µm
Aperturevariable
Lens mountC-Mount
Filter thread, object-sideM52 x 0.75 (depth 4.3 mm)
Weight356 g
Usable object field with:
• 1/1.8" sensor (7.1 x 5.4 mm²)27.5 mm x 20.9 mm
• 1/2" sensor (6.4 x 4.8 mm²)24.8 mm x 18.6 mm
• 1/3" sensor (4.8 x 3.6 mm²)18.6 mm x 14 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB51-UDC-a Serie
1-10-941 TZB51-B470/UDC/-a telecentric light, blue, lf diameter: 49 mm, flashable by flash controller
1-10-942 TZB51-W5K7/UDC/-a telecentric light, white, lf diameter: 49 mm, flashable by flash controller
1-10-943 TZB51-IR880/UDC/-a telecentric light, IR850, lf diameter: 49 mm, flashable by flash controller
1-10-940 TZB51-R625/UDC/-a telecentric light, red, lf diameter: 49 mm, flashable by flash controller
1-10-944 TZB51-G525/UDC/-a telecentric light, green, lf diameter: 49 mm, flashable by flash controller
TZB51 series
1-10-201 TZB51-B470-24V telecentric light, blue, lf diameter: 49 mm, static, cable open-ended
1-10-198 TZB51-W5K7-24V telecentric light, white, lf diameter: 49 mm, static, cable open-ended
1-10-202 TZB51-IR880-24V telecentric light, IR850, lf diameter: 49 mm, static, cable open-ended
1-10-200 TZB51-R625-24V telecentric light, red, lf diameter: 49 mm, static, cable open-ended
1-10-215 TZB51-G525-24V telecentric light, green, lf diameter: 49 mm, static, cable open-ended
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-022 Adapter STE60x60 - TZO56 Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm
Accessories
Order number Title Description
Lens mount
2-90-125 Lens Holder d32-30 Holder for telecentric lenses and lightings with d = 32 mm, with 30 mm extn.
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-174 ND filter 3.0 M52x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M52x0.75
2-91-164 ND filter 1.2 M52x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M52x0.75
2-91-154 ND filter 0.6 M52x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M52x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-134 IR filter M52x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M52x0.75
Polarising filters
2-91-144 Pole filter M52x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75
Colour filter blue
2-91-290 Colour filter blue M52x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M52x0.75
UV Cut-Off Filter
2-91-124 UV blocking filter M52x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M52x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-262 Colour filter red M52x0.75 long-pass filter from 630 nm, red, filter thread M52x0.75
Colour filter green
2-91-303 Colour filter green M52x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M52x0.75
Colour filter yellow
2-91-277 Colour filter yellow M52x0.75 long-pass filter from 530 nm, yellow, filter thread M52x0.75
Deflection mirrow 90° series
2-25-115 Deflection mirror 90-56 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm
Adapters for attaching lights to lenses
1-29-676 Adapter ring d41 - M52x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M52x0.75
1-29-772 Adapter ring d73 - M52x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M52x0.75
1-29-870 Adapter ring d104 - M52x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M52x0.75
Beam splitter STE60x60
1-20-022 Adapter STE60x60 - TZO56 Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm
T152/0.36
Title:
T152/0.36
Short description:
Telecentric Lens, C-mount, Sensor opt. 1", variable aperture, W/NIR
Order number:
2-05-329
This product is being replaced!
EAN:
4251692620441
Actual Notice:
Termination to 31.12.2022.
Please check the use of: TO42/16.0-120-V-BW (2-05-624)
Downloads:
Overview product serie
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • high-quality imaging
  • color-optimized and bright
  • adjustable aperture, arrestable
  • robust industrial design
Technical data
Image scale0.359
Spectral range380 nm - 900 nm
Working distance110.0 mm
Object field diagonal (max.)44.5 mm
Sensor format (opt.)1"
Suitable for camera resolution5 MPixel
ApertureVariable aperture
Lens mountC-Mount
Filter thread, object-sideM52 x 0.75 (depth 4.3 mm)
Weight390 g
Usable object field with:
• 1" sensor (12.8 x 9.6 mm²)35.6 mm x 26.7 mm
• 2/3" sensor (8.8 x 6.6 mm²)24.5 mm x 18.3 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)20.0 mm x 15.0 mm
• 1/2" sensor (6.4 x 4.8 mm²)17.8 mm x 13.3 mm
• 1/3" sensor (4.8 x 3.6 mm²)13.3 mm x 10.0 mm
• 1/4" sensor (3.4 x 2.2 mm²)9.4 mm x 6.1 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB51-UDC-a Serie
1-10-941 TZB51-B470/UDC/-a telecentric light, blue, lf diameter: 49 mm, flashable by flash controller
1-10-942 TZB51-W5K7/UDC/-a telecentric light, white, lf diameter: 49 mm, flashable by flash controller
1-10-943 TZB51-IR880/UDC/-a telecentric light, IR850, lf diameter: 49 mm, flashable by flash controller
1-10-940 TZB51-R625/UDC/-a telecentric light, red, lf diameter: 49 mm, flashable by flash controller
1-10-944 TZB51-G525/UDC/-a telecentric light, green, lf diameter: 49 mm, flashable by flash controller
TZB51 series
1-10-201 TZB51-B470-24V telecentric light, blue, lf diameter: 49 mm, static, cable open-ended
1-10-198 TZB51-W5K7-24V telecentric light, white, lf diameter: 49 mm, static, cable open-ended
1-10-202 TZB51-IR880-24V telecentric light, IR850, lf diameter: 49 mm, static, cable open-ended
1-10-200 TZB51-R625-24V telecentric light, red, lf diameter: 49 mm, static, cable open-ended
1-10-215 TZB51-G525-24V telecentric light, green, lf diameter: 49 mm, static, cable open-ended
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-022 Adapter STE60x60 - TZO56 Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm
Accessories
Order number Title Description
Lens mount
2-90-125 Lens Holder d32-30 Holder for telecentric lenses and lightings with d = 32 mm, with 30 mm extn.
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-174 ND filter 3.0 M52x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M52x0.75
2-91-164 ND filter 1.2 M52x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M52x0.75
2-91-154 ND filter 0.6 M52x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M52x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-134 IR filter M52x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M52x0.75
Polarising filters
2-91-144 Pole filter M52x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75
Colour filter blue
2-91-290 Colour filter blue M52x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M52x0.75
UV Cut-Off Filter
2-91-124 UV blocking filter M52x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M52x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-262 Colour filter red M52x0.75 long-pass filter from 630 nm, red, filter thread M52x0.75
Colour filter green
2-91-303 Colour filter green M52x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M52x0.75
Colour filter yellow
2-91-277 Colour filter yellow M52x0.75 long-pass filter from 530 nm, yellow, filter thread M52x0.75
Deflection mirrow 90° series
2-25-115 Deflection mirror 90-56 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm
Adapters for attaching lights to lenses
1-29-676 Adapter ring d41 - M52x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M52x0.75
1-29-772 Adapter ring d73 - M52x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M52x0.75
1-29-870 Adapter ring d104 - M52x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M52x0.75
Beam splitter STE60x60
1-20-022 Adapter STE60x60 - TZO56 Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm
T151/0.30
Title:
T151/0.30
Short description:
Telecentric Lens, C-mount, Sensor opt. 2/3", variable aperture, W/NIR
Order number:
2-05-325
This product is being replaced!
EAN:
4251692620403
Actual Notice:
Termination to 31.12.2022.
Please check the use of: TO44/11.0-110-V-BW (2-05-623)
Downloads:
Overview product serie
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • high-quality imaging
  • color-optimized and bright
  • adjustable aperture, arrestable
  • robust industrial design
Technical data
Image scale0.306
Spectral range380 nm - 900 nm
Working distance185.0 mm
Object field diagonal (max.)35.9 mm
Sensor format (opt.)2/3"
Suitable for camera resolution5 MPixel
ApertureVariable aperture
Lens mountC-Mount
Filter thread, object-sideM52 x 0.75 (depth 4.3 mm)
Weight372 g
Usable object field with:
• 2/3" sensor (8.8 x 6.6 mm²)28.7 mm x 21.5 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)23.5 mm x 17.6 mm
• 1/2" sensor (6.4 x 4.8 mm²)20.9 mm x 15.6 mm
• 1/3" sensor (4.8 x 3.6 mm²)15.6 mm x 11.7 mm
• 1/4" sensor (3.4 x 2.2 mm²)11.1 mm x 7.1 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB51-UDC-a Serie
1-10-941 TZB51-B470/UDC/-a telecentric light, blue, lf diameter: 49 mm, flashable by flash controller
1-10-942 TZB51-W5K7/UDC/-a telecentric light, white, lf diameter: 49 mm, flashable by flash controller
1-10-943 TZB51-IR880/UDC/-a telecentric light, IR850, lf diameter: 49 mm, flashable by flash controller
1-10-940 TZB51-R625/UDC/-a telecentric light, red, lf diameter: 49 mm, flashable by flash controller
1-10-944 TZB51-G525/UDC/-a telecentric light, green, lf diameter: 49 mm, flashable by flash controller
TZB51 series
1-10-201 TZB51-B470-24V telecentric light, blue, lf diameter: 49 mm, static, cable open-ended
1-10-198 TZB51-W5K7-24V telecentric light, white, lf diameter: 49 mm, static, cable open-ended
1-10-202 TZB51-IR880-24V telecentric light, IR850, lf diameter: 49 mm, static, cable open-ended
1-10-200 TZB51-R625-24V telecentric light, red, lf diameter: 49 mm, static, cable open-ended
1-10-215 TZB51-G525-24V telecentric light, green, lf diameter: 49 mm, static, cable open-ended
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-022 Adapter STE60x60 - TZO56 Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm
Accessories
Order number Title Description
Lens mount
2-90-125 Lens Holder d32-30 Holder for telecentric lenses and lightings with d = 32 mm, with 30 mm extn.
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-174 ND filter 3.0 M52x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M52x0.75
2-91-164 ND filter 1.2 M52x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M52x0.75
2-91-154 ND filter 0.6 M52x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M52x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-134 IR filter M52x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M52x0.75
Polarising filters
2-91-144 Pole filter M52x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75
Colour filter blue
2-91-290 Colour filter blue M52x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M52x0.75
UV Cut-Off Filter
2-91-124 UV blocking filter M52x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M52x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-262 Colour filter red M52x0.75 long-pass filter from 630 nm, red, filter thread M52x0.75
Colour filter green
2-91-303 Colour filter green M52x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M52x0.75
Colour filter yellow
2-91-277 Colour filter yellow M52x0.75 long-pass filter from 530 nm, yellow, filter thread M52x0.75
Deflection mirrow 90° series
2-25-115 Deflection mirror 90-56 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm
Adapters for attaching lights to lenses
1-29-676 Adapter ring d41 - M52x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M52x0.75
1-29-772 Adapter ring d73 - M52x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M52x0.75
1-29-870 Adapter ring d104 - M52x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M52x0.75
Beam splitter STE60x60
1-20-022 Adapter STE60x60 - TZO56 Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm
T201/0.12
Title:
T201/0.12
Short description:
Telecentric Lens, C-mount, Sensor opt. 1/3", variable aperture, W/NIR
Order number:
2-05-339
This product is being replaced!
EAN:
4251692620526
Actual Notice:
Termination to 30.06.2023.
Please check the use of: TO66/6.0-240-V-BW (2-05-682)
Downloads:
Overview product serie
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • low-distortion, low telecentric error
  • color-optimized and bright
  • adjustable aperture, arrestable
  • robust industrial design
Technical data
Image scale0.118
Spectral range380 nm - 900 nm
Working distance135.0 mm
Camera distance (object-camera flange)374.3 mm
Object field diagonal (max.)50.8 mm
Sensor format (opt.)1/3"
Image field diagonal (max.)6 mm
Suitable for camera resolution10.2 MPixel
Recommended pixel size1.3 µm
Aperturevariable
Lens mountC-Mount
Filter thread, object-sideM67 x 0.75 (depth 6.5 mm)
Weight1040 g
Usable object field with:
• 1/3" sensor (4.8 x 3.6 mm²)40.7 mm x 30.5 mm
• 1/4" sensor (3.4 x 2.2 mm²)28.8 mm x 18.6 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB60-UDC-a Serie
1-10-946 TZB60-B470/UDC/-a telecentric light, blue, lf diameter: 60 mm, flashable by flash controller
1-10-947 TZB60-W5K7/UDC/-a telecentric light, white, lf diameter: 60 mm, flashable by flash controller
1-10-948 TZB60-IR880/UDC/-a telecentric light, IR850, lf diameter: 60 mm, flashable by flash controller
1-10-945 TZB60-R625/UDC/-a telecentric light, red, lf diameter: 60 mm, flashable by flash controller
1-10-949 TZB60-G525/UDC/-a telecentric light, green, lf diameter: 60 mm, flashable by flash controller
TZB60 series
1-10-174 TZB60-B470-24V telecentric light, blue, lf diameter: 60 mm, static, cable open-ended
1-10-176 TZB60-W5K7-24V telecentric light, white, lf diameter: 60 mm, static, cable open-ended
1-10-178 TZB60-IR880-24V telecentric light, IR850, lf diameter: 60 mm, static, cable open-ended
1-10-170 TZB60-R625-24V telecentric light, red, lf diameter: 60 mm, static, cable open-ended
1-10-172 TZB60-G525-24V telecentric light, green, lf diameter: 60 mm, static, cable open-ended
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
Accessories
Order number Title Description
Lens mount
2-90-125 Lens Holder d32-30 Holder for telecentric lenses and lightings with d = 32 mm, with 30 mm extn.
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-175 ND filter 3.0 M67x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M67x0.75
2-91-165 ND filter 1.2 M67x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M67x0.75
2-91-155 ND filter 0.6 M67x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M67x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-135 IR filter M67x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M67x0.75
Polarising filters
2-91-145 Pole filter M67x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M67x0.75
Colour filter blue
2-91-291 Colour filter blue M67x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M67x0.75
UV Cut-Off Filter
2-91-125 UV blocking filter M67x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M67x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-263 Colour filter red M67x0.75 long-pass filter from 630 nm, red, filter thread M67x0.75
Colour filter green
2-91-304 Colour filter green M67x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M67x0.75
Colour filter yellow
2-91-278 Colour filter yellow M67x0.75 long-pass filter from 530 nm, yellow, filter thread M67x0.75
Deflection mirrow 90° series
2-25-124 Deflection mirror 90-71 90° deflection, attachment for telecentric lenses and lightings with d = 71 mm
Adapters for attaching lights to lenses
1-29-677 Adapter ring d41 - M67x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M67x0.75
1-29-773 Adapter ring d73 - M67x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M67x0.75
1-29-871 Adapter ring d104 - M67x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M67x0.75
Beam splitter STE60x60
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
T201/0.26
Title:
T201/0.26
Short description:
Telecentric Lens, C-mount, Sensor opt. 2/3", variable aperture, W/NIR
Order number:
2-05-337
This product is being replaced!
EAN:
4251692620502
Actual Notice:
Termination to 31.12.2022.
Please check the use of: TO66/16.0-160-V-BW (2-05-685)
Downloads:
Overview product serie
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • low-distortion, low telecentric error
  • color-optimized and bright
  • adjustable aperture, arrestable
  • robust industrial design
Technical data
Image scale0.263
Spectral range380 nm - 900 nm
Working distance130.0 mm
Object field diagonal (max.)41.8 mm
Sensor format (opt.)2/3"
Suitable for camera resolution5 MPixel
ApertureVariable aperture
Lens mountC-Mount
Filter thread, object-sideM67 x 0.75 (depth 6.5 mm)
Weight1,090 g
Usable object field with:
• 2/3" sensor (8.8 x 6.6 mm²)33.4 mm x 25.0 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)27.3 mm x 20.5 mm
• 1/2" sensor (6.4 x 4.8 mm²)24.3 mm x 18.2 mm
• 1/3" sensor (4.8 x 3.6 mm²)18.2 mm x 13.6 mm
• 1/4" sensor (3.4 x 2.2 mm²)12.9 mm x 8.3 mm
Drawings

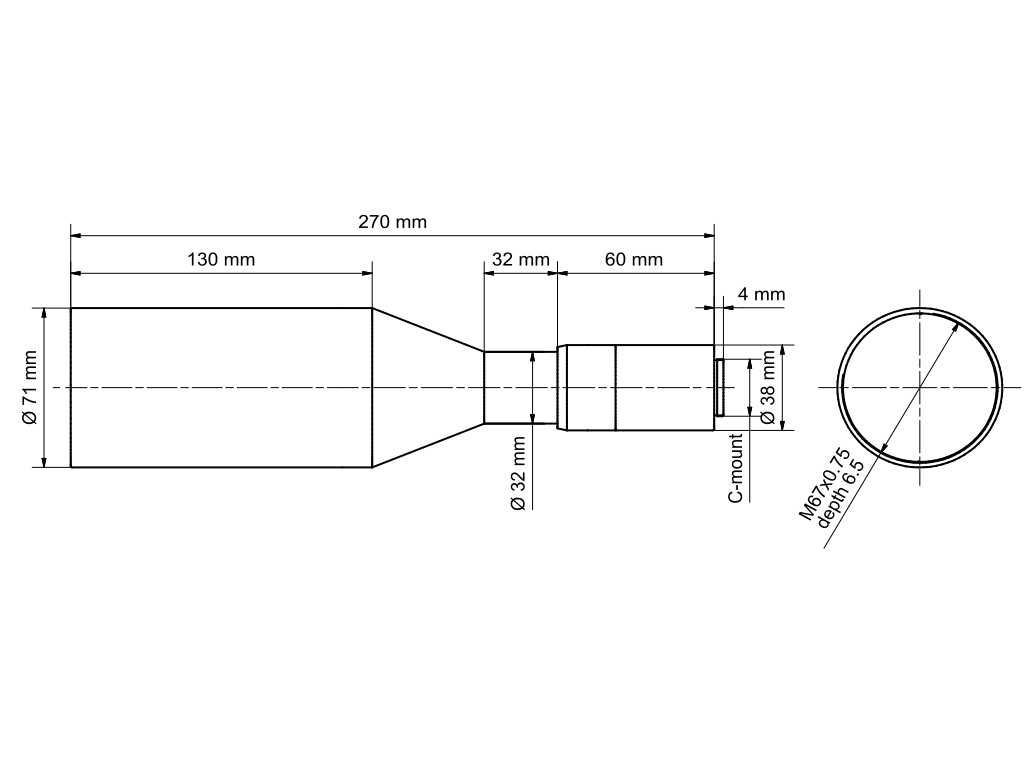

Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB60-UDC-a Serie
1-10-946 TZB60-B470/UDC/-a telecentric light, blue, lf diameter: 60 mm, flashable by flash controller
1-10-947 TZB60-W5K7/UDC/-a telecentric light, white, lf diameter: 60 mm, flashable by flash controller
1-10-948 TZB60-IR880/UDC/-a telecentric light, IR850, lf diameter: 60 mm, flashable by flash controller
1-10-945 TZB60-R625/UDC/-a telecentric light, red, lf diameter: 60 mm, flashable by flash controller
1-10-949 TZB60-G525/UDC/-a telecentric light, green, lf diameter: 60 mm, flashable by flash controller
TZB60 series
1-10-174 TZB60-B470-24V telecentric light, blue, lf diameter: 60 mm, static, cable open-ended
1-10-176 TZB60-W5K7-24V telecentric light, white, lf diameter: 60 mm, static, cable open-ended
1-10-178 TZB60-IR880-24V telecentric light, IR850, lf diameter: 60 mm, static, cable open-ended
1-10-170 TZB60-R625-24V telecentric light, red, lf diameter: 60 mm, static, cable open-ended
1-10-172 TZB60-G525-24V telecentric light, green, lf diameter: 60 mm, static, cable open-ended
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
Accessories
Order number Title Description
Lens mount
2-90-125 Lens Holder d32-30 Holder for telecentric lenses and lightings with d = 32 mm, with 30 mm extn.
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-175 ND filter 3.0 M67x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M67x0.75
2-91-165 ND filter 1.2 M67x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M67x0.75
2-91-155 ND filter 0.6 M67x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M67x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-135 IR filter M67x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M67x0.75
Polarising filters
2-91-145 Pole filter M67x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M67x0.75
Colour filter blue
2-91-291 Colour filter blue M67x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M67x0.75
UV Cut-Off Filter
2-91-125 UV blocking filter M67x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M67x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-263 Colour filter red M67x0.75 long-pass filter from 630 nm, red, filter thread M67x0.75
Colour filter green
2-91-304 Colour filter green M67x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M67x0.75
Colour filter yellow
2-91-278 Colour filter yellow M67x0.75 long-pass filter from 530 nm, yellow, filter thread M67x0.75
Deflection mirrow 90° series
2-25-124 Deflection mirror 90-71 90° deflection, attachment for telecentric lenses and lightings with d = 71 mm
Adapters for attaching lights to lenses
1-29-677 Adapter ring d41 - M67x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M67x0.75
1-29-773 Adapter ring d73 - M67x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M67x0.75
1-29-871 Adapter ring d104 - M67x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M67x0.75
Beam splitter STE60x60
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
T201/0.19
Title:
T201/0.19
Short description:
Telecentric Lens, C-mount, Sensor opt. 2/3", variable aperture, W/NIR
Order number:
2-05-334
This product is being replaced!
EAN:
4251692620472
Actual Notice:
Termination to 30.06.2023.
Please check the use of: TO66/11.0-200-V-BW (2-05-684)
Downloads:
Overview product serie
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • low-distortion, low telecentric error
  • color-optimized and bright
  • adjustable aperture, arrestable
  • robust industrial design
Technical data
Image scale0.194
Spectral range380 nm - 900 nm
Working distance143.0 mm
Camera distance (object-camera flange)394.9 mm
Object field diagonal (max.)56.7 mm
Sensor format (opt.)2/3"
Image field diagonal (max.)11 mm
Suitable for camera resolution9.3 MPixel
Recommended pixel size2.5 µm
Aperturevariable
Lens mountC-Mount
Filter thread, object-sideM67 x 0.75 (depth 6.5 mm)
Weight1047 g
Usable object field with:
• 2/3" sensor (8.8 x 6.6 mm²)45.4 mm x 34 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)36.6 mm x 27.8 mm
• 1/2" sensor (6.4 x 4.8 mm²)33 mm x 24.7 mm
• 1/3" sensor (4.8 x 3.6 mm²)24.7 mm x 18.6 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB60-UDC-a Serie
1-10-946 TZB60-B470/UDC/-a telecentric light, blue, lf diameter: 60 mm, flashable by flash controller
1-10-947 TZB60-W5K7/UDC/-a telecentric light, white, lf diameter: 60 mm, flashable by flash controller
1-10-948 TZB60-IR880/UDC/-a telecentric light, IR850, lf diameter: 60 mm, flashable by flash controller
1-10-945 TZB60-R625/UDC/-a telecentric light, red, lf diameter: 60 mm, flashable by flash controller
1-10-949 TZB60-G525/UDC/-a telecentric light, green, lf diameter: 60 mm, flashable by flash controller
TZB60 series
1-10-174 TZB60-B470-24V telecentric light, blue, lf diameter: 60 mm, static, cable open-ended
1-10-176 TZB60-W5K7-24V telecentric light, white, lf diameter: 60 mm, static, cable open-ended
1-10-178 TZB60-IR880-24V telecentric light, IR850, lf diameter: 60 mm, static, cable open-ended
1-10-170 TZB60-R625-24V telecentric light, red, lf diameter: 60 mm, static, cable open-ended
1-10-172 TZB60-G525-24V telecentric light, green, lf diameter: 60 mm, static, cable open-ended
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
Accessories
Order number Title Description
Lens mount
2-90-125 Lens Holder d32-30 Holder for telecentric lenses and lightings with d = 32 mm, with 30 mm extn.
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-175 ND filter 3.0 M67x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M67x0.75
2-91-165 ND filter 1.2 M67x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M67x0.75
2-91-155 ND filter 0.6 M67x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M67x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-135 IR filter M67x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M67x0.75
Polarising filters
2-91-145 Pole filter M67x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M67x0.75
Colour filter blue
2-91-291 Colour filter blue M67x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M67x0.75
UV Cut-Off Filter
2-91-125 UV blocking filter M67x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M67x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-263 Colour filter red M67x0.75 long-pass filter from 630 nm, red, filter thread M67x0.75
Colour filter green
2-91-304 Colour filter green M67x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M67x0.75
Colour filter yellow
2-91-278 Colour filter yellow M67x0.75 long-pass filter from 530 nm, yellow, filter thread M67x0.75
Deflection mirrow 90° series
2-25-124 Deflection mirror 90-71 90° deflection, attachment for telecentric lenses and lightings with d = 71 mm
Adapters for attaching lights to lenses
1-29-677 Adapter ring d41 - M67x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M67x0.75
1-29-773 Adapter ring d73 - M67x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M67x0.75
1-29-871 Adapter ring d104 - M67x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M67x0.75
Beam splitter STE60x60
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
T201/0.19L
Title:
T201/0.19L
Short description:
Telecentric Lens, C-mount, Sensor opt. 1/1.8", variable aperture, W/NIR
Order number:
2-05-333
This product is being replaced!
EAN:
4251692620465
Actual Notice:
Termination to 30.06.2023.
Please check the use of: TO66/9.0-210-V-BW (2-05-683)
and TO60/11.5-287-V-WN-LD (2-05-394)
Downloads:
Overview product serie
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • low-distortion, low telecentric error
  • color-optimized and bright
  • adjustable aperture, arrestable
  • robust industrial design
Technical data
Image scale0.192
Spectral range380 nm - 900 nm
Working distance284.0 mm
Camera distance (object-camera flange)531.9 mm
Object field diagonal (max.)46.8 mm
Sensor format (opt.)1/1.8"
Image field diagonal (max.)9 mm
Suitable for camera resolution3.2 MPixel
Recommended pixel size3.45 µm
Aperturevariable
Lens mountC-Mount
Filter thread, object-sideM67 x 0.75 (depth 3.5 mm)
Weight1040 g
Usable object field with:
• 1/1.8" sensor (7.1 x 5.4 mm²)37 mm x 28.1 mm
• 1/2" sensor (6.4 x 4.8 mm²)33.3 mm x 25 mm
• 1/3" sensor (4.8 x 3.6 mm²)25 mm x 18.8 mm
Notices
The lightings combination products shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings

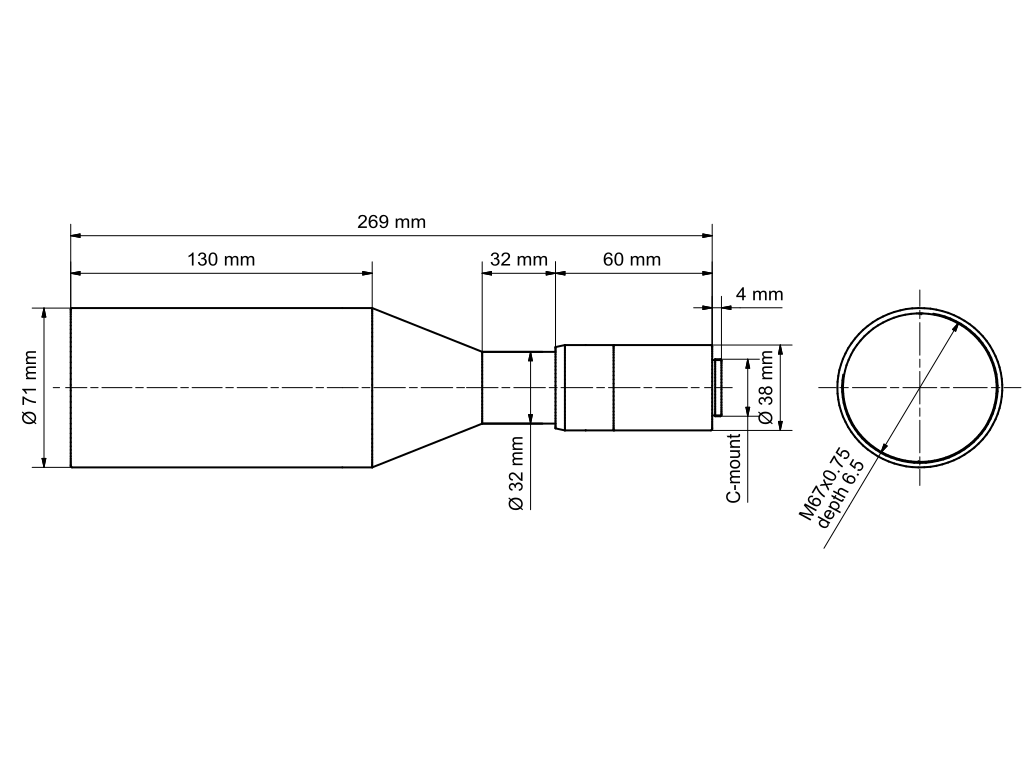

Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB60-UDC-a Serie
1-10-946 TZB60-B470/UDC/-a telecentric light, blue, lf diameter: 60 mm, flashable by flash controller
1-10-947 TZB60-W5K7/UDC/-a telecentric light, white, lf diameter: 60 mm, flashable by flash controller
1-10-948 TZB60-IR880/UDC/-a telecentric light, IR850, lf diameter: 60 mm, flashable by flash controller
1-10-945 TZB60-R625/UDC/-a telecentric light, red, lf diameter: 60 mm, flashable by flash controller
1-10-949 TZB60-G525/UDC/-a telecentric light, green, lf diameter: 60 mm, flashable by flash controller
TZB60 series
1-10-174 TZB60-B470-24V telecentric light, blue, lf diameter: 60 mm, static, cable open-ended
1-10-176 TZB60-W5K7-24V telecentric light, white, lf diameter: 60 mm, static, cable open-ended
1-10-178 TZB60-IR880-24V telecentric light, IR850, lf diameter: 60 mm, static, cable open-ended
1-10-170 TZB60-R625-24V telecentric light, red, lf diameter: 60 mm, static, cable open-ended
1-10-172 TZB60-G525-24V telecentric light, green, lf diameter: 60 mm, static, cable open-ended
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
Accessories
Order number Title Description
Lens mount
2-90-125 Lens Holder d32-30 Holder for telecentric lenses and lightings with d = 32 mm, with 30 mm extn.
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-175 ND filter 3.0 M67x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M67x0.75
2-91-165 ND filter 1.2 M67x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M67x0.75
2-91-155 ND filter 0.6 M67x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M67x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-135 IR filter M67x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M67x0.75
Polarising filters
2-91-145 Pole filter M67x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M67x0.75
Colour filter blue
2-91-291 Colour filter blue M67x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M67x0.75
UV Cut-Off Filter
2-91-125 UV blocking filter M67x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M67x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-263 Colour filter red M67x0.75 long-pass filter from 630 nm, red, filter thread M67x0.75
Colour filter green
2-91-304 Colour filter green M67x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M67x0.75
Colour filter yellow
2-91-278 Colour filter yellow M67x0.75 long-pass filter from 530 nm, yellow, filter thread M67x0.75
Deflection mirrow 90° series
2-25-124 Deflection mirror 90-71 90° deflection, attachment for telecentric lenses and lightings with d = 71 mm
Adapters for attaching lights to lenses
1-29-677 Adapter ring d41 - M67x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M67x0.75
1-29-773 Adapter ring d73 - M67x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M67x0.75
1-29-871 Adapter ring d104 - M67x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M67x0.75
Beam splitter STE60x60
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
T201/0.13L
Title:
T201/0.13L
Short description:
Telecentric Lens, C-mount, Sensor opt. 1/3", variable aperture, W/NIR
Order number:
2-05-332
This product is being replaced!
EAN:
4251692620458
Actual Notice:
Termination to 30.06.2023.
Please check the use of: TO66/9.0-210-V-BW (2-05-683)
and TO60/8.0-280-V-WN-LD (2-05-393)
Downloads:
Overview product serie
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • low-distortion, low telecentric error
  • color-optimized and bright
  • adjustable aperture, arrestable
  • robust industrial design
Technical data
Image scale0.136
Spectral range380 nm - 900 nm
Working distance273.0 mm
Camera distance (object-camera flange)512.3 mm
Object field diagonal (max.)44.1 mm
Sensor format (opt.)1/3"
Image field diagonal (max.)6 mm
Suitable for camera resolution10.2 MPixel
Recommended pixel size1.3 µm
Aperturevariable
Lens mountC-Mount
Filter thread, object-sideM67 x 0.75 (depth 3.5 mm)
Weight1040 g
Usable object field with:
• 1/3" sensor (4.8 x 3.6 mm²)35.3 mm x 26.5 mm
• 1/4" sensor (3.4 x 2.2 mm²)25 mm x 16.2 mm
Notices
The lightings combination products shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings

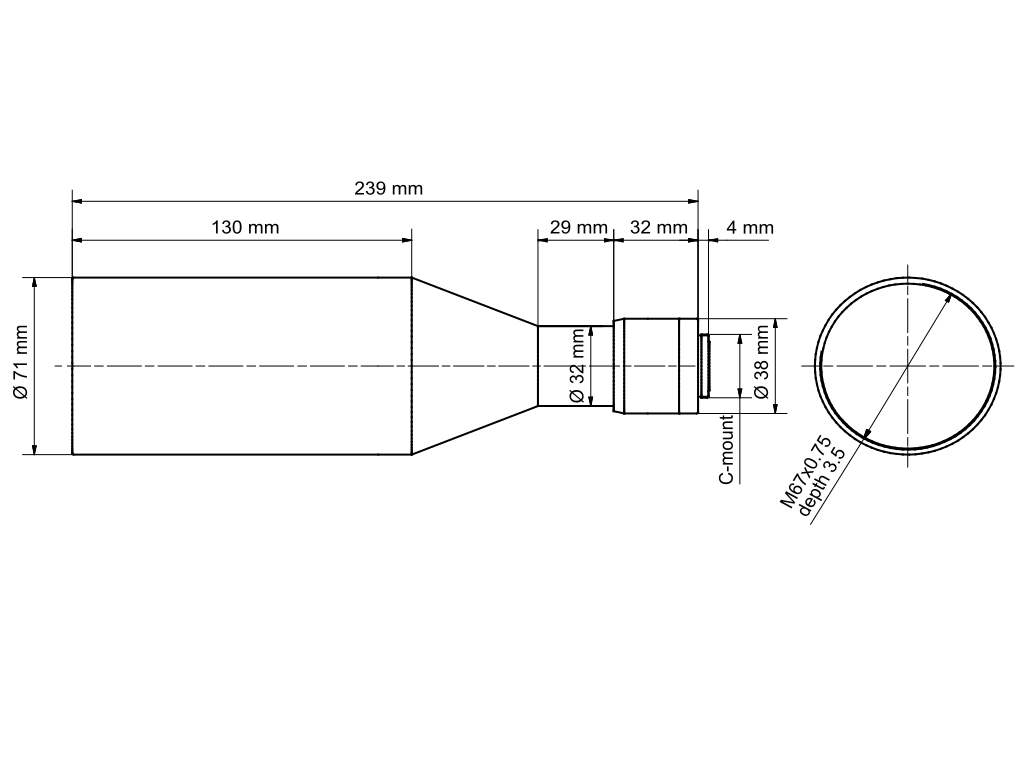

Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB60-UDC-a Serie
1-10-946 TZB60-B470/UDC/-a telecentric light, blue, lf diameter: 60 mm, flashable by flash controller
1-10-947 TZB60-W5K7/UDC/-a telecentric light, white, lf diameter: 60 mm, flashable by flash controller
1-10-948 TZB60-IR880/UDC/-a telecentric light, IR850, lf diameter: 60 mm, flashable by flash controller
1-10-945 TZB60-R625/UDC/-a telecentric light, red, lf diameter: 60 mm, flashable by flash controller
1-10-949 TZB60-G525/UDC/-a telecentric light, green, lf diameter: 60 mm, flashable by flash controller
TZB60 series
1-10-174 TZB60-B470-24V telecentric light, blue, lf diameter: 60 mm, static, cable open-ended
1-10-176 TZB60-W5K7-24V telecentric light, white, lf diameter: 60 mm, static, cable open-ended
1-10-178 TZB60-IR880-24V telecentric light, IR850, lf diameter: 60 mm, static, cable open-ended
1-10-170 TZB60-R625-24V telecentric light, red, lf diameter: 60 mm, static, cable open-ended
1-10-172 TZB60-G525-24V telecentric light, green, lf diameter: 60 mm, static, cable open-ended
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
Accessories
Order number Title Description
Lens mount
2-90-125 Lens Holder d32-30 Holder for telecentric lenses and lightings with d = 32 mm, with 30 mm extn.
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-175 ND filter 3.0 M67x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M67x0.75
2-91-165 ND filter 1.2 M67x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M67x0.75
2-91-155 ND filter 0.6 M67x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M67x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-135 IR filter M67x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M67x0.75
Polarising filters
2-91-145 Pole filter M67x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M67x0.75
Colour filter blue
2-91-291 Colour filter blue M67x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M67x0.75
UV Cut-Off Filter
2-91-125 UV blocking filter M67x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M67x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-263 Colour filter red M67x0.75 long-pass filter from 630 nm, red, filter thread M67x0.75
Colour filter green
2-91-304 Colour filter green M67x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M67x0.75
Colour filter yellow
2-91-278 Colour filter yellow M67x0.75 long-pass filter from 530 nm, yellow, filter thread M67x0.75
Deflection mirrow 90° series
2-25-124 Deflection mirror 90-71 90° deflection, attachment for telecentric lenses and lightings with d = 71 mm
Adapters for attaching lights to lenses
1-29-677 Adapter ring d41 - M67x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M67x0.75
1-29-773 Adapter ring d73 - M67x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M67x0.75
1-29-871 Adapter ring d104 - M67x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M67x0.75
Beam splitter STE60x60
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
T201/0.42
Title:
T201/0.42
Short description:
Telecentric Lens, C-mount, Sensor opt. 1.2", variable aperture, W/NIR
Order number:
2-05-345
This product is being replaced!
EAN:
4251692620533
Actual Notice:
Termination to 30.06.2023.
Please check the use of: TO66/21.3-130-V-BW (2-05-686)
Downloads:
Overview product serie
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • low-distortion, low telecentric error
  • color-optimized and bright
  • adjustable aperture, arrestable
  • robust industrial design
Technical data
Image scale0.418
Spectral range380 nm - 900 nm
Working distance210.0 mm
Camera distance (object-camera flange)501.8 mm
Object field diagonal (max.)51.1 mm
Sensor format (opt.)1.2"
Image field diagonal (max.)21.5 mm
Suitable for camera resolution23.4 MPixel
Recommended pixel size3.1 µm
Aperturevariable
Lens mountC-Mount
Filter thread, object-sideM67 x 0.75 (depth 6.5 mm)
Weight1150 g
Usable object field with:
• Sensor type 4/3 (17.3 x 13.0 mm²)41.4 mm x 31.1 mm
• 1" sensor (12.8 x 9.6 mm²)30.6 mm x 23 mm
• 2/3" sensor (8.8 x 6.6 mm²)21.1 mm x 15.8 mm
Drawings

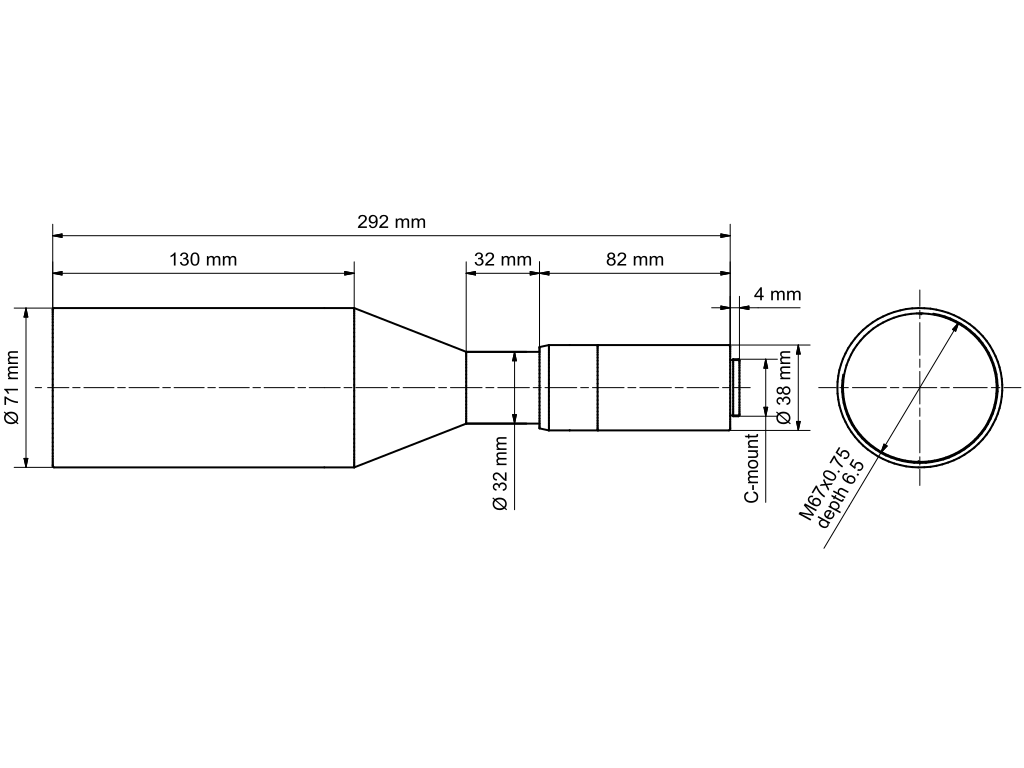

Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB60-UDC-a Serie
1-10-946 TZB60-B470/UDC/-a telecentric light, blue, lf diameter: 60 mm, flashable by flash controller
1-10-947 TZB60-W5K7/UDC/-a telecentric light, white, lf diameter: 60 mm, flashable by flash controller
1-10-948 TZB60-IR880/UDC/-a telecentric light, IR850, lf diameter: 60 mm, flashable by flash controller
1-10-945 TZB60-R625/UDC/-a telecentric light, red, lf diameter: 60 mm, flashable by flash controller
1-10-949 TZB60-G525/UDC/-a telecentric light, green, lf diameter: 60 mm, flashable by flash controller
TZB60 series
1-10-174 TZB60-B470-24V telecentric light, blue, lf diameter: 60 mm, static, cable open-ended
1-10-176 TZB60-W5K7-24V telecentric light, white, lf diameter: 60 mm, static, cable open-ended
1-10-178 TZB60-IR880-24V telecentric light, IR850, lf diameter: 60 mm, static, cable open-ended
1-10-170 TZB60-R625-24V telecentric light, red, lf diameter: 60 mm, static, cable open-ended
1-10-172 TZB60-G525-24V telecentric light, green, lf diameter: 60 mm, static, cable open-ended
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
Accessories
Order number Title Description
Lens mount
2-90-125 Lens Holder d32-30 Holder for telecentric lenses and lightings with d = 32 mm, with 30 mm extn.
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-175 ND filter 3.0 M67x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M67x0.75
2-91-165 ND filter 1.2 M67x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M67x0.75
2-91-155 ND filter 0.6 M67x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M67x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-135 IR filter M67x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M67x0.75
Polarising filters
2-91-145 Pole filter M67x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M67x0.75
Colour filter blue
2-91-291 Colour filter blue M67x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M67x0.75
UV Cut-Off Filter
2-91-125 UV blocking filter M67x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M67x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-263 Colour filter red M67x0.75 long-pass filter from 630 nm, red, filter thread M67x0.75
Colour filter green
2-91-304 Colour filter green M67x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M67x0.75
Colour filter yellow
2-91-278 Colour filter yellow M67x0.75 long-pass filter from 530 nm, yellow, filter thread M67x0.75
Deflection mirrow 90° series
2-25-124 Deflection mirror 90-71 90° deflection, attachment for telecentric lenses and lightings with d = 71 mm
Adapters for attaching lights to lenses
1-29-677 Adapter ring d41 - M67x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M67x0.75
1-29-773 Adapter ring d73 - M67x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M67x0.75
1-29-871 Adapter ring d104 - M67x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M67x0.75
Beam splitter STE60x60
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
T201/0.15
Title:
T201/0.15
Short description:
Telecentric Lens, C-mount, Sensor opt. 1/1.8", variable aperture, W/NIR
Order number:
2-05-338
This product is being replaced!
EAN:
4251692620519
Actual Notice:
Termination to 30.06.2023.
Please check the use of: TO66/9.0-210-V-BW (2-05-683)
Downloads:
Overview product serie
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • low-distortion, low telecentric error
  • color-optimized and bright
  • adjustable aperture, arrestable
  • robust industrial design
Technical data
Image scale0.149
Spectral range380 nm - 900 nm
Working distance136.0 mm
Camera distance (object-camera flange)378 mm
Object field diagonal (max.)60.4 mm
Sensor format (opt.)1/1.8"
Image field diagonal (max.)9 mm
Suitable for camera resolution22.7 MPixel
Recommended pixel size1.3 µm
Aperturevariable
Lens mountC-Mount
Filter thread, object-sideM67 x 0.75 (depth 6.5 mm)
Weight1040 g
Usable object field with:
• 1/1.8" sensor (7.1 x 5.4 mm²)47.7 mm x 36.2 mm
• 1/2" sensor (6.4 x 4.8 mm²)43 mm x 32.2 mm
• 1/3" sensor (4.8 x 3.6 mm²)32.2 mm x 24.2 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB60-UDC-a Serie
1-10-946 TZB60-B470/UDC/-a telecentric light, blue, lf diameter: 60 mm, flashable by flash controller
1-10-947 TZB60-W5K7/UDC/-a telecentric light, white, lf diameter: 60 mm, flashable by flash controller
1-10-948 TZB60-IR880/UDC/-a telecentric light, IR850, lf diameter: 60 mm, flashable by flash controller
1-10-945 TZB60-R625/UDC/-a telecentric light, red, lf diameter: 60 mm, flashable by flash controller
1-10-949 TZB60-G525/UDC/-a telecentric light, green, lf diameter: 60 mm, flashable by flash controller
TZB60 series
1-10-174 TZB60-B470-24V telecentric light, blue, lf diameter: 60 mm, static, cable open-ended
1-10-176 TZB60-W5K7-24V telecentric light, white, lf diameter: 60 mm, static, cable open-ended
1-10-178 TZB60-IR880-24V telecentric light, IR850, lf diameter: 60 mm, static, cable open-ended
1-10-170 TZB60-R625-24V telecentric light, red, lf diameter: 60 mm, static, cable open-ended
1-10-172 TZB60-G525-24V telecentric light, green, lf diameter: 60 mm, static, cable open-ended
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
Accessories
Order number Title Description
Lens mount
2-90-125 Lens Holder d32-30 Holder for telecentric lenses and lightings with d = 32 mm, with 30 mm extn.
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-175 ND filter 3.0 M67x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M67x0.75
2-91-165 ND filter 1.2 M67x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M67x0.75
2-91-155 ND filter 0.6 M67x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M67x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-135 IR filter M67x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M67x0.75
Polarising filters
2-91-145 Pole filter M67x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M67x0.75
Colour filter blue
2-91-291 Colour filter blue M67x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M67x0.75
UV Cut-Off Filter
2-91-125 UV blocking filter M67x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M67x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-263 Colour filter red M67x0.75 long-pass filter from 630 nm, red, filter thread M67x0.75
Colour filter green
2-91-304 Colour filter green M67x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M67x0.75
Colour filter yellow
2-91-278 Colour filter yellow M67x0.75 long-pass filter from 530 nm, yellow, filter thread M67x0.75
Deflection mirrow 90° series
2-25-124 Deflection mirror 90-71 90° deflection, attachment for telecentric lenses and lightings with d = 71 mm
Adapters for attaching lights to lenses
1-29-677 Adapter ring d41 - M67x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M67x0.75
1-29-773 Adapter ring d73 - M67x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M67x0.75
1-29-871 Adapter ring d104 - M67x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M67x0.75
Beam splitter STE60x60
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
T201/0.30
Title:
T201/0.30
Short description:
Telecentric Lens, C-mount, Sensor opt. 1", variable aperture, W/NIR
Order number:
2-05-336
This product is being replaced!
EAN:
4251692620496
Actual Notice:
Termination to 31.12.2022.
Please check the use of: TO66/16.0-160-V-BW (2-05-685)
Downloads:
Overview product serie
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • low-distortion, low telecentric error
  • color-optimized and bright
  • adjustable aperture, arrestable
  • robust industrial design
Technical data
Image scale0.309
Spectral range380 nm - 900 nm
Working distance157.0 mm
Object field diagonal (max.)51.7 mm
Sensor format (opt.)1"
Suitable for camera resolution5 MPixel
ApertureVariable aperture
Lens mountC-Mount
Filter thread, object-sideM67 x 0.75 (depth 6.5 mm)
Weight1,110 g
Usable object field with:
• 1" sensor (12.8 x 9.6 mm²)41.4 mm x 31.0 mm
• 2/3" sensor (8.8 x 6.6 mm²)28.4 mm x 21.3 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)23.3 mm x 17.4 mm
• 1/2" sensor (6.4 x 4.8 mm²)20.7 mm x 15.5 mm
• 1/3" sensor (4.8 x 3.6 mm²)15.5 mm x 11.6 mm
• 1/4" sensor (3.4 x 2.2 mm²)11.0 mm x 7.1 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB60-UDC-a Serie
1-10-946 TZB60-B470/UDC/-a telecentric light, blue, lf diameter: 60 mm, flashable by flash controller
1-10-947 TZB60-W5K7/UDC/-a telecentric light, white, lf diameter: 60 mm, flashable by flash controller
1-10-948 TZB60-IR880/UDC/-a telecentric light, IR850, lf diameter: 60 mm, flashable by flash controller
1-10-945 TZB60-R625/UDC/-a telecentric light, red, lf diameter: 60 mm, flashable by flash controller
1-10-949 TZB60-G525/UDC/-a telecentric light, green, lf diameter: 60 mm, flashable by flash controller
TZB60 series
1-10-174 TZB60-B470-24V telecentric light, blue, lf diameter: 60 mm, static, cable open-ended
1-10-176 TZB60-W5K7-24V telecentric light, white, lf diameter: 60 mm, static, cable open-ended
1-10-178 TZB60-IR880-24V telecentric light, IR850, lf diameter: 60 mm, static, cable open-ended
1-10-170 TZB60-R625-24V telecentric light, red, lf diameter: 60 mm, static, cable open-ended
1-10-172 TZB60-G525-24V telecentric light, green, lf diameter: 60 mm, static, cable open-ended
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
Accessories
Order number Title Description
Lens mount
2-90-125 Lens Holder d32-30 Holder for telecentric lenses and lightings with d = 32 mm, with 30 mm extn.
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-175 ND filter 3.0 M67x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M67x0.75
2-91-165 ND filter 1.2 M67x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M67x0.75
2-91-155 ND filter 0.6 M67x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M67x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-135 IR filter M67x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M67x0.75
Polarising filters
2-91-145 Pole filter M67x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M67x0.75
Colour filter blue
2-91-291 Colour filter blue M67x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M67x0.75
UV Cut-Off Filter
2-91-125 UV blocking filter M67x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M67x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-263 Colour filter red M67x0.75 long-pass filter from 630 nm, red, filter thread M67x0.75
Colour filter green
2-91-304 Colour filter green M67x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M67x0.75
Colour filter yellow
2-91-278 Colour filter yellow M67x0.75 long-pass filter from 530 nm, yellow, filter thread M67x0.75
Deflection mirrow 90° series
2-25-124 Deflection mirror 90-71 90° deflection, attachment for telecentric lenses and lightings with d = 71 mm
Adapters for attaching lights to lenses
1-29-677 Adapter ring d41 - M67x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M67x0.75
1-29-773 Adapter ring d73 - M67x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M67x0.75
1-29-871 Adapter ring d104 - M67x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M67x0.75
Beam splitter STE60x60
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
T201/0.28L
Title:
T201/0.28L
Short description:
Telecentric Lens, C-mount, Sensor opt. 2/3", variable aperture, W/NIR
Order number:
2-05-335
This product is being replaced!
EAN:
4251692620489
Actual Notice:
Termination to 30.06.2023.
Please check the use of: TO66/11.0-200-V-BW (2-05-684)
Downloads:
Overview product serie
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • low-distortion, low telecentric error
  • color-optimized and bright
  • adjustable aperture, arrestable
  • robust industrial design
Technical data
Image scale0.285
Spectral range380 nm - 900 nm
Working distance278.0 mm
Camera distance (object-camera flange)547.4 mm
Object field diagonal (max.)38.5 mm
Sensor format (opt.)2/3"
Image field diagonal (max.)11 mm
Suitable for camera resolution13.2 MPixel
Recommended pixel size2.1 µm
Aperturevariable
Lens mountC-Mount
Filter thread, object-sideM67 x 0.75 (depth 6.5 mm)
Weight1110 g
Usable object field with:
• 2/3" sensor (8.8 x 6.6 mm²)30.9 mm x 23.2 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)24.9 mm x 18.9 mm
• 1/2" sensor (6.4 x 4.8 mm²)22.5 mm x 16.8 mm
• 1/3" sensor (4.8 x 3.6 mm²)16.8 mm x 12.6 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB60-UDC-a Serie
1-10-946 TZB60-B470/UDC/-a telecentric light, blue, lf diameter: 60 mm, flashable by flash controller
1-10-947 TZB60-W5K7/UDC/-a telecentric light, white, lf diameter: 60 mm, flashable by flash controller
1-10-948 TZB60-IR880/UDC/-a telecentric light, IR850, lf diameter: 60 mm, flashable by flash controller
1-10-945 TZB60-R625/UDC/-a telecentric light, red, lf diameter: 60 mm, flashable by flash controller
1-10-949 TZB60-G525/UDC/-a telecentric light, green, lf diameter: 60 mm, flashable by flash controller
TZB60 series
1-10-174 TZB60-B470-24V telecentric light, blue, lf diameter: 60 mm, static, cable open-ended
1-10-176 TZB60-W5K7-24V telecentric light, white, lf diameter: 60 mm, static, cable open-ended
1-10-178 TZB60-IR880-24V telecentric light, IR850, lf diameter: 60 mm, static, cable open-ended
1-10-170 TZB60-R625-24V telecentric light, red, lf diameter: 60 mm, static, cable open-ended
1-10-172 TZB60-G525-24V telecentric light, green, lf diameter: 60 mm, static, cable open-ended
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
Accessories
Order number Title Description
Lens mount
2-90-125 Lens Holder d32-30 Holder for telecentric lenses and lightings with d = 32 mm, with 30 mm extn.
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-175 ND filter 3.0 M67x0.75 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M67x0.75
2-91-165 ND filter 1.2 M67x0.75 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M67x0.75
2-91-155 ND filter 0.6 M67x0.75 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M67x0.75
Daylight blocking filter
2-91-131 IR filter M20.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5
2-91-135 IR filter M67x0.75 long-pass filter from 830 nm, daylight absorbing filter, filter thread M67x0.75
Polarising filters
2-91-145 Pole filter M67x0.75 linear polarizing filter, range 420 nm - 780 nm, filter thread M67x0.75
Colour filter blue
2-91-291 Colour filter blue M67x0.75 band-pass filter, range 350 nm - 600 nm, filter thread M67x0.75
UV Cut-Off Filter
2-91-125 UV blocking filter M67x0.75 long-pass filter from 350 nm, usable as protective glass, filter thread M67x0.75
Colour filter red
2-91-259 Colour filter red M20.5x0.5 long-pass filter from 630 nm, red, filter thread M20.5x0.5
2-91-263 Colour filter red M67x0.75 long-pass filter from 630 nm, red, filter thread M67x0.75
Colour filter green
2-91-304 Colour filter green M67x0.75 band-pass filter, range 430 nm - 620 nm, filter thread M67x0.75
Colour filter yellow
2-91-278 Colour filter yellow M67x0.75 long-pass filter from 530 nm, yellow, filter thread M67x0.75
Deflection mirrow 90° series
2-25-124 Deflection mirror 90-71 90° deflection, attachment for telecentric lenses and lightings with d = 71 mm
Adapters for attaching lights to lenses
1-29-677 Adapter ring d41 - M67x0.75 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M67x0.75
1-29-773 Adapter ring d73 - M67x0.75 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M67x0.75
1-29-871 Adapter ring d104 - M67x0.75 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M67x0.75
Beam splitter STE60x60
1-20-021 Adapter STE60x60 - TZO71 Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm
T240/0.08a
Title:
T240/0.08a
Short description:
Telecentric Lens, C-mount, Sensor opt. 1/3", variable aperture, W/NIR
Order number:
2-05-224
This product is being replaced!
EAN:
4251692620014
Actual Notice:
Termination to 30.06.2023.
Please check the use of: TO88/6.0-290-V-BW (2-05-810)
Downloads:
Overview product serie
Instructions
STP-File download
Characteristics
  • telecentric measurement objective with object-sided telecentric beam path
  • low telecentric error
  • color-optimized and bright
  • adjustable aperture, arrestable
  • robust industrial design
Technical data
Image scale0.089
Spectral range380 nm - 900 nm
Working distance190.0 mm
Camera distance (object-camera flange)447 mm
Object field diagonal (max.)67.4 mm
Sensor format (opt.)1/3"
Image field diagonal (max.)6 mm
Suitable for camera resolution5 MPixel
Recommended pixel size1.85 µm
Aperturevariable
Weight1649 g
Usable object field with:
• 1/3" sensor (4.8 x 3.6 mm²)53.9 mm x 40.4 mm
• 1/4" sensor (3.4 x 2.2 mm²)38.2 mm x 24.7 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB95-UDC-a Serie
1-10-951 TZB95-B470/UDC/-a telecentric light, blue, lf diameter: 95 mm, flashable by flash controller
1-10-952 TZB95-W5K7/UDC/-a telecentric light, white, lf diameter: 95 mm, flashable by flash controller
1-10-953 TZB95-IR880/UDC/-a telecentric light, IR850, lf diameter: 95 mm, flashable by flash controller
1-10-950 TZB95-R625/UDC/-a telecentric light, red, lf diameter: 95 mm, flashable by flash controller
1-10-954 TZB95-G525/UDC/-a telecentric light, green, lf diameter: 95 mm, flashable by flash controller
TZB95 series
1-10-383 TZB95-B470-24V telecentric light, blue, lf diameter: 95 mm, static, cable open-ended
1-10-382 TZB95-W5K7-24V telecentric light, white, lf diameter: 95 mm, static, cable open-ended
1-10-381 TZB95-IR880-24V telecentric light, IR850, lf diameter: 95 mm, static, cable open-ended
1-10-380 TZB95-R625-24V telecentric light, red, lf diameter: 95 mm, static, cable open-ended
1-10-384 TZB95-G525-24V telecentric light, green, lf diameter: 95 mm, static, cable open-ended
Beam splitter STE60x60
1-20-050 STE60x60-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-20-023 Adapter STE60x60 - TZO106 Attachment of the STE60x60 to telecentric lenses and lightings with d = 106mm
Accessories
Order number Title Description
Lens mount
2-90-129 Lens Holder d32-60 Holder for telecentric lenses and lightings with d = 32 mm, with 60 mm extn.
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Daylight blocking filter
2-91-136 IR filter M100x1 long-pass filter from 830 nm, daylight absorbing filter, filter thread M100x1
Colour filter blue
2-91-292 Colour filter blue M100x1 band-pass filter, range 350 nm - 600 nm, filter thread M100x1
UV Cut-Off Filter
2-91-209 UV blocking filter M100x1 long-pass filter from 350 nm, usable as protective glass, filter thread M100x1
Colour filter red
2-91-264 Colour filter red M100x1 long-pass filter from 630 nm, red, filter thread M100x1
Colour filter green
2-91-305 Colour filter green M100x1 band-pass filter, range 430 nm - 620 nm, filter thread M100x1
Adapters for attaching lights to lenses
1-29-774 Adapter ring d73 - M100x1 for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M100x1
1-29-872 Adapter ring d104 - M100x1 for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M100x1
Beam splitter STE60x60
1-20-023 Adapter STE60x60 - TZO106 Attachment of the STE60x60 to telecentric lenses and lightings with d = 106mm
Load more products..
