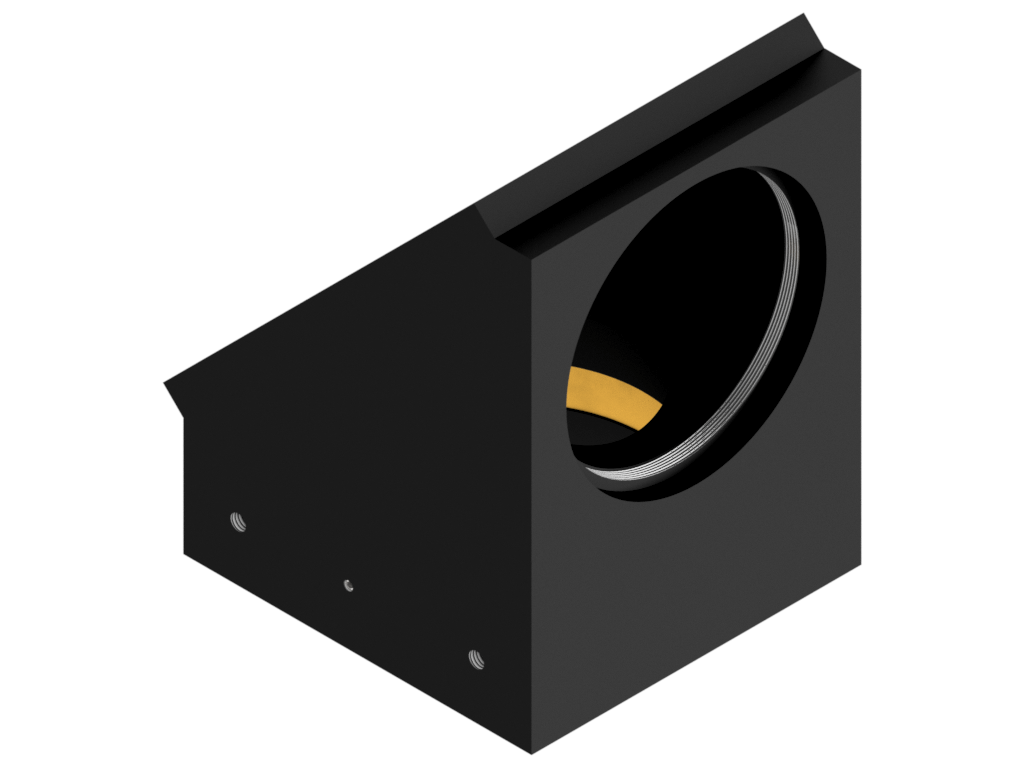

Accessory 90° Deflection - Deflection mirror 90-71
Characteristics
- deflection of the beam path by 90 degrees
- for easy installation in narrow installation conditions
- attachable with locking
- rotary and fixable version
- robust housing, dustproof, ideal for industrial applications
Technical data
| Deflecting element | Plane surface mirror |
| Put on diameter | 71 mm |
| Free visual field | Diameter: 65 mm |
| Shortening of the working distance | 91.3 mm |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Dimensions | 123 mm x 95 mm x 90 mm |
| Mounting options | 6 x M5 mounting holes |
| Attachment to the lens | 4 Grub screws arranged at 90° angles |
| Weight | 1,010 g |
| Degree of protection | IP 50 |
| Ambient temperature | - 10°C ... 55°C |
| Can be combined with: | |
| Telecentric light | TZB60 series |
| Telecentric optic | T201 series |
Drawings

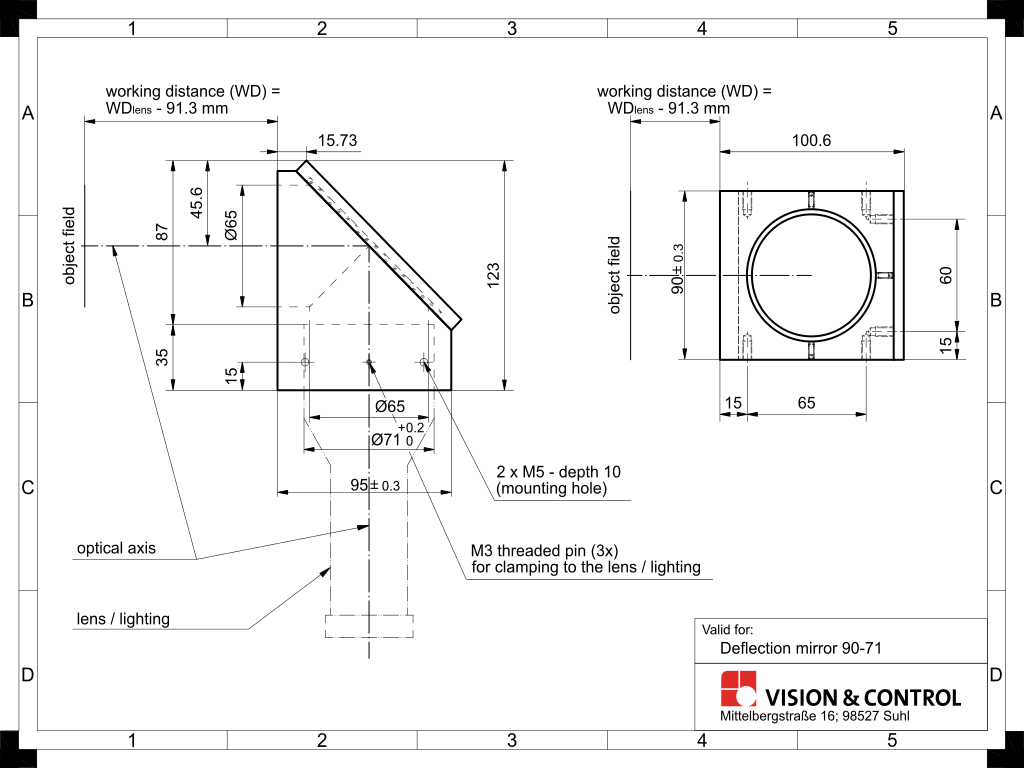

Dimensional drawing in mm
