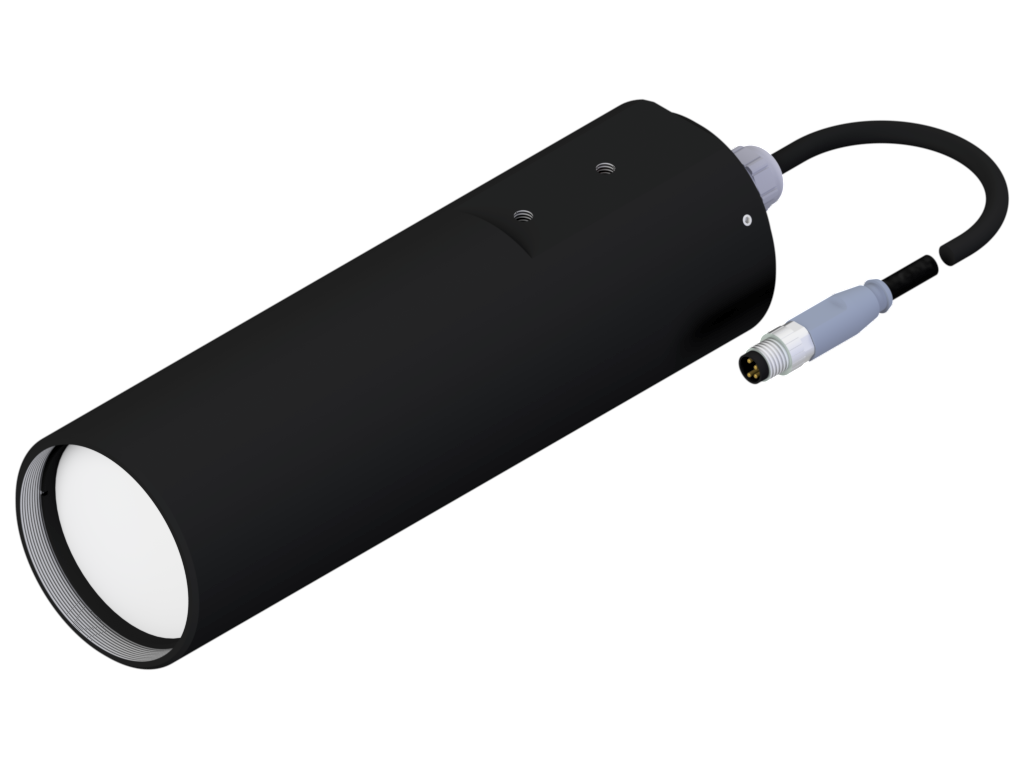

vicolux® Telecentric Light - TZB51-W5K7/UDC/-a
Characteristics
- flashable telecentric LED lighting - parallel (collimated) beam path
- ideal as backlight in combination with telecentric lenses
- for the targeted highlighting of edges and surface structures as well as for the detection of inclusions and defects in transparent materials
- connection: cable with M8 connector
- diverse attachment options and extensive accessories
Technical data
| Light-emitting surface | Diameter: 49 mm |
| Light design | Telecentric |
| Light colour (typ.) | Weiss, 5700 K |
| Special feature | Flashable max. 0,5 ms und 15% on-time |
| Continuous current (ILED) | max. 30 mA |
| Pulse mode | 2 x ILED |
| Flash mode | 5x ILED |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Filter thread | M52 x 0.75 - depth 6 mm |
| Weight | 530 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | 0 °C ... 45 °C |
Notices
The lighting can only be operated in conjunction with a suitable Current source.
Drawings
Dimensional drawing in mm
Pin assignment: M8 connector
Accessories for Lighting - TZB51-W5K7/UDC/-a
| Order number | Title | Description |
|---|---|---|
| Polarising filters | ||
| 2-91-144 | Pole filter M52x0.75 | linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75 |
| Deflection mirrow 90° series | ||
| 2-25-115 | Deflection mirror 90-56 | 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
