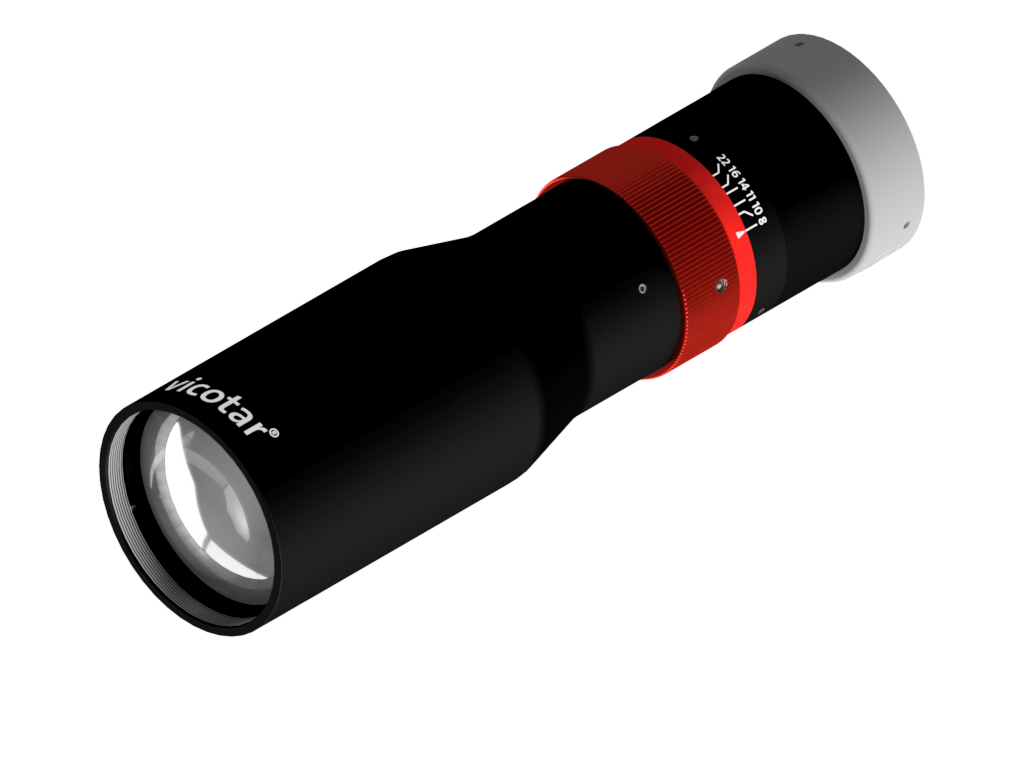

vicotar® Telecentric Lens - TOB24/16.6-200-V-LD
Characteristics
- telecentric measurement objective with object- and image-sided telecentric beam path
- long working distance
- Designed for monochromatic applications
- very well suited for blue LEDs including "Deep Blue" LEDs
- high resolution, low lateral chromatic aberration, low distortion, low telecentric error
- adjustable aperture with identification of the aperture numbers, arrestable
- robust industrial design
Technical data
| Image scale | 0.69 |
| Spectral range | 400 nm - 950 nm, (monochromatic) |
| Working distance | 200 mm |
| Camera distance (object-camera flange) | 348.7 mm |
| Object field diagonal (max.) | 24 mm |
| Sensor format (opt.) | 1" |
| Image field diagonal (max.) | 16.6 mm |
| Suitable for camera resolution | 30.7 MPixel |
| Recommended pixel size | 2 µm |
| Aperture | variable (F8 - F22) |
| Depth of focus | 2.4 mm (F11, 525 nm, MTF = 20 % @ 20 LP/mm) |
| Lens mount | C-Mount |
| Filter thread, object-side | M39 x 0.5 |
| Filter thread, camera-side | none |
| Weight | 306 g |
| Usable object field with: | |
| • 1" sensor (12.8 x 9.6 mm²) | 19.3 mm x 14.4 mm |
| • 2/3" sensor (8.8 x 6.6 mm²) | 12.8 mm x 9.6 mm |
| • 1/1.8" sensor (7.1 x 5.4 mm²) | 10.3 mm x 7.8 mm |
| • 1/2" sensor (6.4 x 4.8 mm²) | 9.3 mm x 7 mm |
Notices
The illumination combinations shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TZB38-P-SL series | ||
| 1-33-232 | TZB38-B450-P-SL | telecentric light, blue, lf diameter: 38 mm, smart light |
| 1-33-233 | TZB38-IR850-P-SL | telecentric light, IR850, lf diameter: 38 mm, smart light |
| TZB38-P-24V series | ||
| 1-33-242 | TZB38-B450-P-24V | telecentric light, blue, lf diameter: 38 mm, 24V, switchable |
| 1-33-286 | TZB38-B450-HP-24V | telecentric light, blue, lf diameter: 38 mm, 24V, switchable, high power |
| 1-33-243 | TZB38-IR850-P-24V | telecentric light, IR850, lf diameter: 38 mm, 24V, switchable |
| 1-33-287 | TZB38-IR850-HP-24V | telecentric light, IR850, lf diameter: 38 mm, 24V, switchable, high power |
| R-CLR-69-SL series | ||
| 1-33-007 | R-CLR-69x41-B470-SL | ring light, blue, coaxial, lf diameter: 41/69 mm, smart light technology |
| RK2036-24V series | ||
| 1-29-602 | RK2036-B470-24V/C | ring light, blue, coaxial, lf diameter: 41/69 mm, controlled, pot.: 0-10V, |
| R-CLR-100-SL series | ||
| 1-33-012 | R-CLR-100x73-B470-SL | ring light, blue, coaxial, lf diameter: 73/100 mm, smart light technology |
| RK3652-24V series | ||
| 1-29-702 | RK3652-B470-24V/C | ring light, blue, coaxial, lf diameter: 73/100 mm, controlled, pot.: 0-10V, |
Accessories for Lighting - TOB24/16.6-200-V-LD
| Order number | Title | Description |
|---|---|---|
| Adjustment Aids | ||
| 5-10-111 | Adjustment aid 5 | for easy adjustment to 5 mm depth of field, for image scale 0.7 - 0.5 |
| Lens mount | ||
| 2-90-122 | Lens Holder d32 | Holder for telecentric lenses and lightings with d = 32 mm |
| Extension tubes | ||
| 2-90-415 | Extension ring 0.5 mm | 26 x 31 x 0.5 reduces the minimum object distance (MOD) |
| 2-90-416 | Extension ring 1.0 mm | 26 x 31 x 1.0 reduces the minimum object distance (MOD) |
| 2-90-419 | Extension ring 0.1 mm | 25.5 x 29 x 0.1 reduces the minimum object distance (MOD) |
| 2-90-420 | Extension ring 0.2 mm | 25.5 x 29 x 0.2 reduces the minimum object distance (MOD) |
| Thread adapter c-mount | ||
| 5-00-011 | Thread adapter C-Mount-M42 | Adapter for mounting of lenses with C-mount on cameras with M42x1 mount |
| 2-90-414 | CS to C-mount adapter 5.0 mm | for connecting C-mount lenses with CS-mount cameras, length: 5 mm |
| Neutral density filter | ||
| 2-91-160 | ND filter 1.2 M39x0.5 | optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M39x0.5 |
| 2-91-150 | ND filter 0.6 M39x0.5 | optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M39x0.5 |
| Daylight blocking filter | ||
| 2-91-130 | IR filter M39x0.5 | long-pass filter from 830 nm, daylight absorbing filter, filter thread M39x0.5 |
| Polarising filters | ||
| 2-91-140 | Pole filter M39x0.5 | linear polarizing filter, range 420 nm - 780 nm, filter thread M39x0.5 |
| Colour filter blue | ||
| 2-91-287 | Colour filter blue M39x0.5 | band-pass filter, range 350 nm - 600 nm, filter thread M39x0.5 |
| UV Cut-Off Filter | ||
| 2-91-120 | UV blocking filter M39x0.5 | long-pass filter from 350 nm, usable as protective glass, filter thread M39x0.5 |
| Colour filter red | ||
| 2-91-261 | Colour filter red M39x0.5 | long-pass filter from 630 nm, red, filter thread M39x0.5 |
| Colour filter green | ||
| 2-91-300 | Colour filter green M39x0.5 | band-pass filter, range 430 nm - 620 nm, filter thread M39x0.5 |
| Colour filter yellow | ||
| 2-91-274 | Colour filter yellow M39x0.5 | long-pass filter from 530 nm, yellow, filter thread M39x0.5 |
| Deflection mirrow 90° series | ||
| 2-25-114 | Deflection mirror 90-42 | 90° deflection, attachment for telecentric lenses and lightings with d = 42 mm |
| Adapters for attaching lights to lenses | ||
| 1-29-674 | Adapter ring d41 - M39x0.5 | for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M39x0.5 |
| 1-29-771 | Adapter ring d73 - M39x0.5 | for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M39x0.5 |
| Beam splitter STE30x30 | ||
| 1-18-050 | STE30x30-VIS | Beam splitter unit for coaxial light system, optimized for 450-700 nm |
| 1-18-025 | Adapter STE30x30 - TZO42 | Attachment of the STE30x30 to telecentric lenses and lightings with d = 42 mm |
