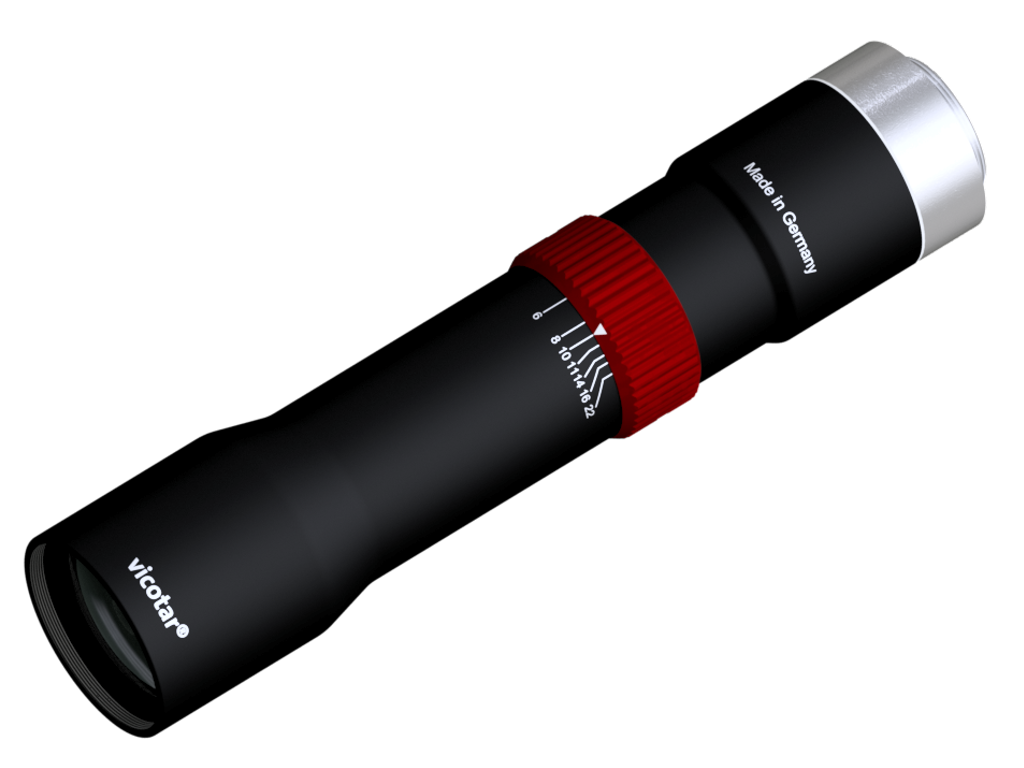

vicotar® Telecentric Lens - TOB22/11.0-50-V-WN
Characteristics
- telecentric measurement objective with object- and image-sided telecentric beam path
- high resolution, low lateral chromatic aberration, low distortion, low telecentric error
- color corrected for the visible spectral range and near infrared
- adjustable aperture with identification of the aperture numbers, arrestable
- robust industrial design
Technical data
| Image scale | 0.5 |
| Spectral range | 465 nm - 950 nm |
| Working distance | 50.0 mm |
| WD adjust @ 850 nm | + 1.1 mm |
| WD adjust @ 940 nm | + 1.6 mm |
| WD adjust @ 1050 nm | + 2.3 mm |
| WD adjust @ 1500 nm | + 5.9 mm |
| Camera distance (object-camera flange) | 220.5 mm |
| Object field diagonal (max) | 22 mm |
| Sensor format (max) | 2/3" |
| Image field diagonal (max) | 11 mm |
| Suitable for camera resolution | 9.3 MPixel |
| Recommended pixel size | 2.5 µm |
| Aperture | variable (F6 - F22) |
| Lens mount | C-Mount |
| Filter thread, object-side | M35.5 x 0.5 |
| Filter thread, camera-side | M20.5 x 0.5 |
| Weight | 282 g |
| Usable object field with: | |
| • 2/3" sensor (8.8 x 6.6 mm²) | 17.6 mm x 13.2 mm |
| • 1/1.8" sensor (7.1 x 5.4 mm²) | 14.2 mm x 10.8 mm |
| • 1/2" sensor (6.4 x 4.8 mm²) | 12.8 mm x 9.6 mm |
| • 1/3" sensor (4.8 x 3.6 mm²) | 9.6 mm x 7.2 mm |
Notices
The lightings combination products shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TZB28-P-SL series | ||
| 1-33-230 | TZB28-B450-P-SL | telecentric light, blue, lf diameter: 28 mm, smart light |
| 1-33-231 | TZB28-IR850-P-SL | telecentric light, IR850, lf diameter: 28 mm, smart light |
| TZB28-P-24V series | ||
| 1-33-240 | TZB28-B450-P-24V | telecentric light, blue, lf diameter: 28 mm, 24V, switchable |
| 1-33-284 | TZB28-B450-HP-24V | telecentric light, blue, lf diameter: 28 mm, 24V, switchable, high power |
| 1-33-241 | TZB28-IR850-P-24V | telecentric light, IR850, lf diameter: 28 mm, 24V, switchable |
| 1-33-285 | TZB28-IR850-HP-24V | telecentric light, IR850, lf diameter: 28 mm, 24V, switchable, high power |
| R-CLR-69-SL series | ||
| 1-33-007 | R-CLR-69x41-B470-SL | ring light, blue, coaxial, lf diameter: 41/69 mm, smart light technology |
| RK2036-24V series | ||
| 1-29-602 | RK2036-B470-24V/C | ring light, blue, coaxial, lf diameter: 41/69 mm, controlled, pot.: 0-10V, |
Accessories for Lighting - TOB22/11.0-50-V-WN
| Order number | Title | Description |
|---|---|---|
| Adjustment Aids | ||
| 5-10-110 | Adjustment aid 2.7 | for easy adjustment to 2.7 mm depth of field, for image scale 1.2 - 0.7 |
| 5-10-111 | Adjustment aid 5 | for easy adjustment to 5 mm depth of field, for image scale 0.7 - 0.5 |
| 5-10-112 | Adjustment aid 10 | for easy adjustment to 10 mm depth of field, for image scale 0.5 - 0.2 |
| Lens mount | ||
| 2-90-122 | Lens Holder d32 | Holder for telecentric lenses and lightings with d = 32 mm |
| Extension tubes | ||
| 2-90-415 | Extension ring 0.5 mm | 26 x 31 x 0.5 reduces the minimum object distance (MOD) |
| 2-90-416 | Extension ring 1.0 mm | 26 x 31 x 1.0 reduces the minimum object distance (MOD) |
| 2-90-419 | Extension ring 0.1 mm | 25.5 x 29 x 0.1 reduces the minimum object distance (MOD) |
| 2-90-420 | Extension ring 0.2 mm | 25.5 x 29 x 0.2 reduces the minimum object distance (MOD) |
| Lens adapter c-mount | ||
| 2-90-414 | CS to C-mount adapter 5.0 mm | for connecting C-mount lenses with CS-mount cameras, length: 5 mm |
| Neutral density filter | ||
| 2-91-252 | ND filter 3.0 M35.5x0.5 | optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M35.5x0.5 |
| 2-91-242 | ND filter 1.2 M35.5x0.5 | optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M35.5x0.5 |
| 2-91-232 | ND filter 0.6 M35.5x0.5 | optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M35.5x0.5 |
| Daylight blocking filter | ||
| 2-91-131 | IR filter M20.5x0.5 | long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5 |
| 2-91-212 | IR filter M35.5x0.5 | long-pass filter from 830 nm, daylight absorbing filter, filter thread M35.5x0.5 |
| Polarising filters | ||
| 2-91-222 | Pole filter M35.5x0.5 | linear polarizing filter, range 420 nm - 780 nm, filter thread M35.5x0.5 |
| Colour filter blue | ||
| 2-91-286 | Colour filter blue M35.5x0.5 | band-pass filter, range 350 nm - 600 nm, filter thread M35.5x0.5 |
| UV Cut-Off Filter | ||
| 2-91-202 | UV blocking filter M35.5x0.5 | long-pass filter from 350 nm, usable as protective glass, filter thread M35.5x0.5 |
| Colour filter red | ||
| 2-91-182 | Colour filter red M35.5x0.5 | long-pass filter from 630 nm, red, filter thread M35.5x0.5 |
| 2-91-259 | Colour filter red M20.5x0.5 | long-pass filter from 630 nm, red, filter thread M20.5x0.5 |
| Colour filter green | ||
| 2-91-299 | Colour filter green M35.5x0.5 | band-pass filter, range 430 nm - 620 nm, filter thread M35.5x0.5 |
| Colour filter yellow | ||
| 2-91-273 | Colour filter yellow M35.5x0.5 | long-pass filter from 530 nm, yellow, filter thread M35.5x0.5 |
| Deflection mirrow 90° series | ||
| 2-25-127 | Deflection mirror 90-38 | 90° deflection, attachment for telecentric lenses and lightings with d = 38 mm |
| Adapters for attaching lights to lenses | ||
| 1-29-684 | Adapter d38 d41 | für R-CLR-69x41 und RK2036, zur Befestigung an Objektiven mit Durchmesser 38 mm |
| Beam splitter STE30x30 | ||
| 1-18-050 | STE30x30-VIS | Beam splitter unit for coaxial light system, optimized for 450-700 nm |
| 1-18-027 | Adapter STE30x30 - TZO38 | Attachment of the STE30x30 to telecentric lenses and lightings with d = 38 mm |
