Adjustment Aids - Adjustment aid 2.7

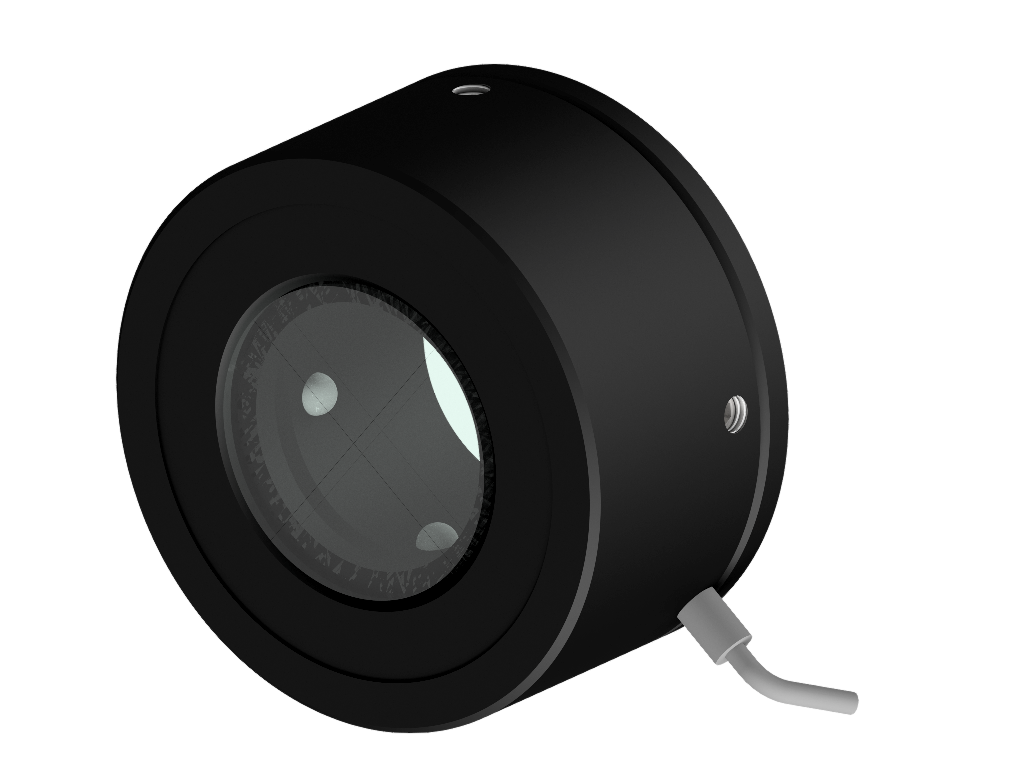

Adjustment aid 2.7
Short description:

for easy adjustment to 2.7 mm depth of field, for image scale 1.2 - 0.7

Order number:
5-10-110
Downloads:
STP-File download
Characteristics

  • Adjustment for positioning camera perpendicular to test objects
  • Fast and exact adjustment
  • Adjustment is carried out by aligning two sets of crosshairs

Technical data
Housing materialAluminium
Optical materialGlass
Diameter39 mm
Height21 mm
Distance between the crosshairs2.7
Suitable for lenses with image scale1.2 - 0.7
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
