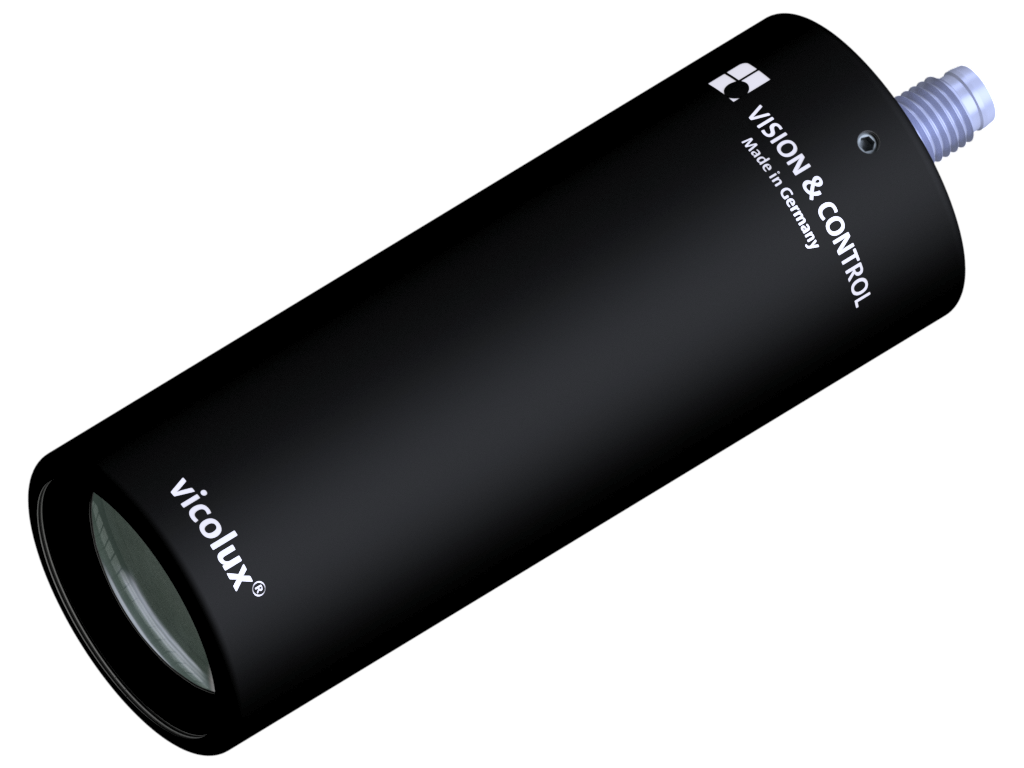

vicolux® Telecentric Light - TZB28-IR850-P-SL
Characteristics
- flashable telecentric LED lighting - parallel (collimated) beam path
- for flashing during inspection of moving objects
- for optical measurement technology for the targeted highlighting of edges and surface structures in transmitted and incident light;
for the detection of inclusions and defects in transparent materials such as gemstones - ideal as backlight in combination with telecentric lenses
- low divergence, high light output
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: M8 plug on the casing
- diverse attachment options and extensive accessories
for the detection of inclusions and defects in transparent materials such as gemstones
Technical data
| Light-emitting surface | Diameter: 28 mm |
| Light design | Telecentric |
| Light colour (typ.) | Infrared, 850 nm |
| Special feature | Blitzbar mit Blitzcontroller |
| Continuous operation | |
| • Power consumption | max. 2.4 W |
| • Irradiance 1 | 35 W/m² |
| • Illuminance 1 | - |
| • Radiance 2 | 95.8 kW/m²sr |
| • luminance 2 | - |
| Flash mode | |
| • Power consumption | max. 16.8 W |
| • Irradiance 1 | 141 W/m² |
| • Illuminance 1 | - |
| • Radiance 3 | 287 kW/m²sr |
| • luminance 3 | - |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Filter thread | - |
| Weight | 170 g |
| Degree of protection | IP 50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Continuous operation: Risk group 0 (exempt group) Flash mode: Risk group 0 (exempt group) |
| Ambient temperature | 0 °C … 45 °C |
| 1 | bei 200 mm Arbeitsabstand |
| 2 | bei 11 mrad |
| 3 | bei 1.7 mrad |
Notices
Die Beleuchtung kann nur in Verbindung mit einem Beleuchtungscontroller oder einer geeigneten Stromquelle betrieben werden.
vicolux® smart light Beleuchtungscontroller begrenzen automatisch die elektrischen Parameter und überwachen die Gerätetemperatur.
vicolux® smart light Beleuchtungscontroller begrenzen automatisch die elektrischen Parameter und überwachen die Gerätetemperatur.
Drawings

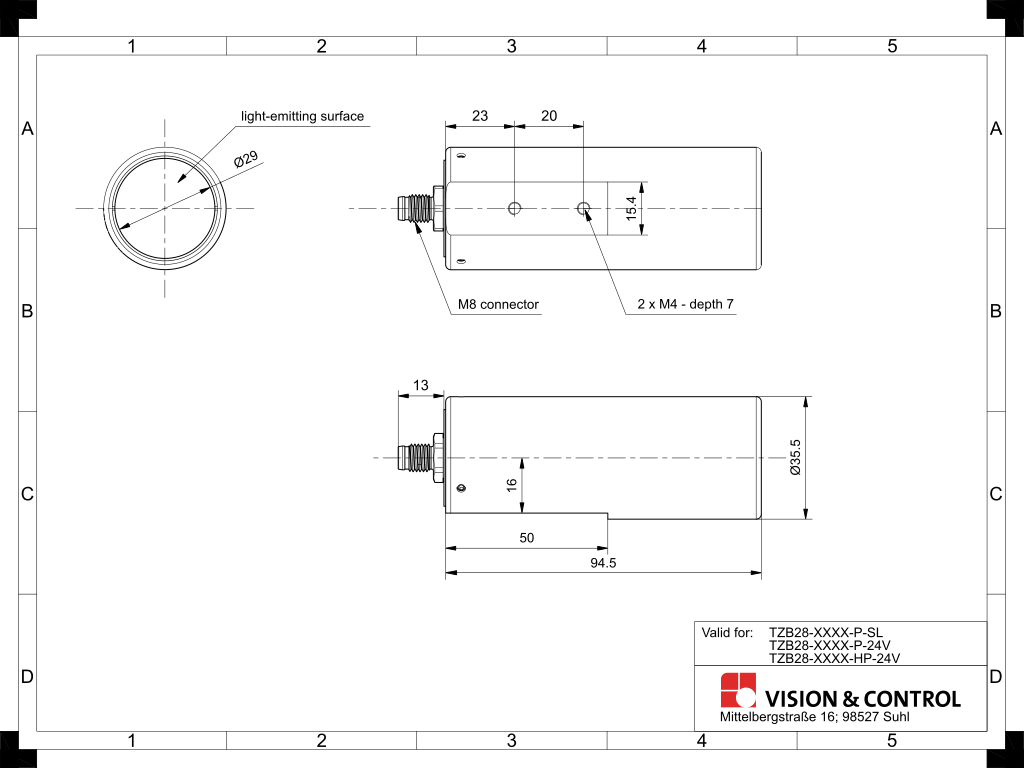

Dimensional drawing in mm
Pin assignment: M8 connector
Can be combined with
Accessories for Lighting - TZB28-IR850-P-SL
| Order number | Title | Description |
|---|---|---|
| Lens mount | ||
| 2-90-124 | Lens Holder d35,5 | Holder for telecentric lenses and lightings with d = 35,5 mm |
| Polarising filters | ||
| 2-91-227 | Pole filter M30.5x0.5 | linear polarizing filter, range 420 nm - 780 nm, filter thread M30.5x0.5 |
| Filter adapter | ||
| 2-91-188 | Filter adapter d35.5-M30.5 | slip-on adapter for use of a M30.5x0.5 filter on lenses with 35.5 mm clamping diameter |
| Deflection mirrow 90° series | ||
| 2-25-116 | Deflection mirror 90-35.5 | 90° deflection, attachment for telecentric lenses and lightings with d = 35.5 mm |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
