TOM7.2/21.6-74-F16-WN
Title:
TOM7.2/21.6-74-F16-WN
Short description:
Telecentric microscope lens 3x C-Mount, Sensor max. Ø21.6 mm, fixed aperture, W/NIR
Order number:
2-06-002
Replaces:
Tube MK190 (2-05-120) + microscope lens 3x (2-05-112)
Downloads:
STP-File download
Characteristics
  • telecentric microscope lens with object-sided telecentric beam path
  • for precise measurement of small objects
  • high resolution, low-distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • robust industrial design
  • fixed aperture
  • C-mount threaded connection
Technical data
Image scale3
Spectral range450 nm - 900 nm
Working distance74 mm
Camera distance (object-camera flange)315.5 mm
Object field diagonal (max)7.2 mm
Sensor format (max)Type 4/3
Image field diagonal (max)21.6 mm
Suitable for camera resolution18.9 MPixel
Recommended pixel size3.45 µm
Aperturefixed (F16)
Depth of focus49µm
Lens mountC-Mount
Filter thread, object-sideM30.5x0.5 (filter adapter)
Weight453 g
Usable object field with:
• Sensor type 4/3 (17.3 x 13.0 mm²)5.8 mm x 4.3 mm
• 1" sensor (12.8 x 9.6 mm²)4.3 mm x 3.2 mm
• 2/3" sensor (8.8 x 6.6 mm²)2.9 mm x 2.2 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB10-P-SL series
1-33-238 TZB10-B450-P-SL telecentric light, blue, lf diameter: 10 mm, smart light
1-33-239 TZB10-IR850-P-SL telecentric light, IR850, lf diameter: 10 mm, smart light
TZB10-P-24V series
1-33-248 TZB10-B450-P-24V telecentric light, blue, lf diameter: 10 mm, 24V, switchable
1-33-282 TZB10-B450-HP-24V telecentric light, blue, lf diameter: 10 mm, 24V, switchable, high power
1-33-249 TZB10-IR850-P-24V telecentric light, IR850, lf diameter: 10 mm, 24V, switchable
1-33-283 TZB10-IR850-HP-24V telecentric light, IR850, lf diameter: 10 mm, 24V, switchable, high power
R-CLR-69-SL series
1-33-007 R-CLR-69x41-B470-SL ring light, blue, coaxial, lf diameter: 41/69 mm, smart light technology
RK2036-24V series
1-29-602 RK2036-B470-24V/C ring light, blue, coaxial, lf diameter: 41/69 mm, controlled, pot.: 0-10V,
Accessories
Order number Title Description
Adjustment Aids
5-10-110 Adjustment aid 2.7 for easy adjustment to 2.7 mm depth of field, for image scale 1.2 - 0.7
Lens mount
2-90-123 Lens Holder d34 Holder for telecentric lenses and lightings with d = 34 mm
Lens adapter c-mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-257 ND filter 3.0 M30.5x0.5 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M30.5x0.5
2-91-247 ND filter 1.2 M30.5x0.5 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M30.5x0.5
2-91-237 ND filter 0.6 M30.5x0.5 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M30.5x0.5
Daylight blocking filter
2-91-217 IR filter M30.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M30.5x0.5
Polarising filters
2-91-227 Pole filter M30.5x0.5 linear polarizing filter, range 420 nm - 780 nm, filter thread M30.5x0.5
Colour filter blue
2-91-284 Colour filter blue M30.5x0.5 band-pass filter, range 350 nm - 600 nm, filter thread M30.5x0.5
UV Cut-Off Filter
2-91-207 UV blocking filter M30.5x0.5 long-pass filter from 350 nm, usable as protective glass, filter thread M30.5x0.5
Colour filter red
2-91-267 Colour filter red M30.5x0.5 long-pass filter from 630 nm, red, filter thread M30.5x0.5
Colour filter green
2-91-297 Colour filter green M30.5x0.5 band-pass filter, range 430 nm - 620 nm, filter thread M30.5x0.5
Colour filter yellow
2-91-271 Colour filter yellow M30.5x0.5 long-pass filter from 530 nm, yellow, filter thread M30.5x0.5
Filter adapter
2-91-187 Filter adapter d34-M30.5 slip-on adapter for use of a M30.5x0.5 filter on lenses with 34 mm clamping diameter
Deflection mirrow 90° series
2-25-110 Deflection mirror 90-34 90° deflection, attachment for telecentric lenses and lightings with d = 34 mm
Adapters for attaching lights to lenses
1-29-671 Adapter ring d41 - M30.5x0.5 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M30.5x0.5
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
TOM7.2/21.6-74-F16-X-B-SL
Title:
TOM7.2/21.6-74-F16-X-B-SL
Short description:
Telecentric microscope lens 3x C-Mount, Sensor max. Ø21.6 mm, blue coax. smart light illum.
Order number:
2-06-010
Replaces:
MK190-EBL-B (2-05-143) + microscope lens 3x (2-05-112)
Downloads:
STP-File download
Characteristics
  • telecentric microscope lens with object-sided telecentric beam path
  • for precise measurement of small objects
  • high resolution, low-distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • robust industrial design
  • fixed aperture
  • C-mount threaded connection
Technical data
Image scale3
Spectral range450 nm - 900 nm
Working distance74 mm
Camera distance (object-camera flange)315.5 mm
Object field diagonal (max)7.2 mm
Sensor format (max)Type 4/3
Image field diagonal (max)21.6 mm
Suitable for camera resolution18.9 MPixel
Recommended pixel size3.45 µm
Aperturefixed (F16)
Depth of focus49µm
Lens mountC-Mount
Filter thread, object-sideM30.5x0.5 (filter adapter)
Weight1068 g
Usable object field with:
• Sensor type 4/3 (17.3 x 13.0 mm²)5.8 mm x 4.3 mm
• 1" sensor (12.8 x 9.6 mm²)4.3 mm x 3.2 mm
• 2/3" sensor (8.8 x 6.6 mm²)2.9 mm x 2.2 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB10-P-SL series
1-33-238 TZB10-B450-P-SL telecentric light, blue, lf diameter: 10 mm, smart light
1-33-239 TZB10-IR850-P-SL telecentric light, IR850, lf diameter: 10 mm, smart light
TZB10-P-24V series
1-33-248 TZB10-B450-P-24V telecentric light, blue, lf diameter: 10 mm, 24V, switchable
1-33-282 TZB10-B450-HP-24V telecentric light, blue, lf diameter: 10 mm, 24V, switchable, high power
1-33-249 TZB10-IR850-P-24V telecentric light, IR850, lf diameter: 10 mm, 24V, switchable
1-33-283 TZB10-IR850-HP-24V telecentric light, IR850, lf diameter: 10 mm, 24V, switchable, high power
R-CLR-69-SL series
1-33-007 R-CLR-69x41-B470-SL ring light, blue, coaxial, lf diameter: 41/69 mm, smart light technology
RK2036-24V series
1-29-602 RK2036-B470-24V/C ring light, blue, coaxial, lf diameter: 41/69 mm, controlled, pot.: 0-10V,
Accessories
Order number Title Description
Adjustment Aids
5-10-110 Adjustment aid 2.7 for easy adjustment to 2.7 mm depth of field, for image scale 1.2 - 0.7
Lens mount
2-90-123 Lens Holder d34 Holder for telecentric lenses and lightings with d = 34 mm
Lens adapter c-mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-257 ND filter 3.0 M30.5x0.5 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M30.5x0.5
2-91-247 ND filter 1.2 M30.5x0.5 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M30.5x0.5
2-91-237 ND filter 0.6 M30.5x0.5 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M30.5x0.5
Polarising filters
2-91-227 Pole filter M30.5x0.5 linear polarizing filter, range 420 nm - 780 nm, filter thread M30.5x0.5
Colour filter blue
2-91-284 Colour filter blue M30.5x0.5 band-pass filter, range 350 nm - 600 nm, filter thread M30.5x0.5
UV Cut-Off Filter
2-91-207 UV blocking filter M30.5x0.5 long-pass filter from 350 nm, usable as protective glass, filter thread M30.5x0.5
Filter adapter
2-91-187 Filter adapter d34-M30.5 slip-on adapter for use of a M30.5x0.5 filter on lenses with 34 mm clamping diameter
Deflection mirrow 90° series
2-25-110 Deflection mirror 90-34 90° deflection, attachment for telecentric lenses and lightings with d = 34 mm
Adapters for attaching lights to lenses
1-29-671 Adapter ring d41 - M30.5x0.5 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M30.5x0.5
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
TOM7.2/21.6-74-F16-X-N-SL
Title:
TOM7.2/21.6-74-F16-X-N-SL
Short description:
Telecentric microscope lens 3x C-Mount, Sensor max. Ø21.6 mm, coax. NIR smart light illum.
Order number:
2-06-034
Replaces:
MK190-EBL-IR (2-05-133) + microscope lens 3x (2-05-112)
Downloads:
STP-File download
Characteristics
  • telecentric microscope lens with object-sided telecentric beam path
  • for precise measurement of small objects
  • high resolution, low-distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • robust industrial design
  • fixed aperture
  • C-mount threaded connection
Technical data
Image scale3
Spectral range450 nm - 900 nm
Working distance74 mm
Camera distance (object-camera flange)315.5 mm
Object field diagonal (max)7.2 mm
Sensor format (max)Type 4/3
Image field diagonal (max)21.6 mm
Suitable for camera resolution18.9 MPixel
Recommended pixel size3.45 µm
Aperturefixed (F16)
Depth of focus49µm
Lens mountC-Mount
Filter thread, object-sideM30.5x0.5 (filter adapter)
Weight1068 g
Usable object field with:
• Sensor type 4/3 (17.3 x 13.0 mm²)5.8 mm x 4.3 mm
• 1" sensor (12.8 x 9.6 mm²)4.3 mm x 3.2 mm
• 2/3" sensor (8.8 x 6.6 mm²)2.9 mm x 2.2 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB10-P-SL series
1-33-238 TZB10-B450-P-SL telecentric light, blue, lf diameter: 10 mm, smart light
1-33-239 TZB10-IR850-P-SL telecentric light, IR850, lf diameter: 10 mm, smart light
TZB10-P-24V series
1-33-248 TZB10-B450-P-24V telecentric light, blue, lf diameter: 10 mm, 24V, switchable
1-33-282 TZB10-B450-HP-24V telecentric light, blue, lf diameter: 10 mm, 24V, switchable, high power
1-33-249 TZB10-IR850-P-24V telecentric light, IR850, lf diameter: 10 mm, 24V, switchable
1-33-283 TZB10-IR850-HP-24V telecentric light, IR850, lf diameter: 10 mm, 24V, switchable, high power
R-CLR-69-SL series
1-33-007 R-CLR-69x41-B470-SL ring light, blue, coaxial, lf diameter: 41/69 mm, smart light technology
RK2036-24V series
1-29-602 RK2036-B470-24V/C ring light, blue, coaxial, lf diameter: 41/69 mm, controlled, pot.: 0-10V,
Accessories
Order number Title Description
Adjustment Aids
5-10-110 Adjustment aid 2.7 for easy adjustment to 2.7 mm depth of field, for image scale 1.2 - 0.7
Lens mount
2-90-123 Lens Holder d34 Holder for telecentric lenses and lightings with d = 34 mm
Lens adapter c-mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-257 ND filter 3.0 M30.5x0.5 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M30.5x0.5
2-91-247 ND filter 1.2 M30.5x0.5 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M30.5x0.5
2-91-237 ND filter 0.6 M30.5x0.5 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M30.5x0.5
Daylight blocking filter
2-91-217 IR filter M30.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M30.5x0.5
Polarising filters
2-91-227 Pole filter M30.5x0.5 linear polarizing filter, range 420 nm - 780 nm, filter thread M30.5x0.5
UV Cut-Off Filter
2-91-207 UV blocking filter M30.5x0.5 long-pass filter from 350 nm, usable as protective glass, filter thread M30.5x0.5
Filter adapter
2-91-187 Filter adapter d34-M30.5 slip-on adapter for use of a M30.5x0.5 filter on lenses with 34 mm clamping diameter
Deflection mirrow 90° series
2-25-110 Deflection mirror 90-34 90° deflection, attachment for telecentric lenses and lightings with d = 34 mm
Adapters for attaching lights to lenses
1-29-671 Adapter ring d41 - M30.5x0.5 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M30.5x0.5
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
TOM7.2/21.6-74-F16-X-B-24V
Title:
TOM7.2/21.6-74-F16-X-B-24V
Short description:
Telecentric microscope lens 3x C-Mount, Sensor max. Ø21.6 mm, blue coax. illumination, 24V
Order number:
2-06-006
Replaces:
MK190-EBL-B (2-05-143) + microscope lens 3x (2-05-112)
Downloads:
STP-File download
Characteristics
  • telecentric microscope lens with object-sided telecentric beam path
  • for precise measurement of small objects
  • high resolution, low-distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • robust industrial design
  • fixed aperture
  • C-mount threaded connection
Technical data
Image scale3
Spectral range450 nm - 900 nm
Working distance74 mm
Camera distance (object-camera flange)315.5 mm
Object field diagonal (max)7.2 mm
Sensor format (max)Type 4/3
Image field diagonal (max)21.6 mm
Suitable for camera resolution18.9 MPixel
Recommended pixel size3.45 µm
Aperturefixed (F16)
Depth of focus49µm
Lens mountC-Mount
Filter thread, object-sideM30.5x0.5 (filter adapter)
Weight1068 g
Usable object field with:
• Sensor type 4/3 (17.3 x 13.0 mm²)5.8 mm x 4.3 mm
• 1" sensor (12.8 x 9.6 mm²)4.3 mm x 3.2 mm
• 2/3" sensor (8.8 x 6.6 mm²)2.9 mm x 2.2 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB10-P-SL series
1-33-238 TZB10-B450-P-SL telecentric light, blue, lf diameter: 10 mm, smart light
1-33-239 TZB10-IR850-P-SL telecentric light, IR850, lf diameter: 10 mm, smart light
TZB10-P-24V series
1-33-248 TZB10-B450-P-24V telecentric light, blue, lf diameter: 10 mm, 24V, switchable
1-33-282 TZB10-B450-HP-24V telecentric light, blue, lf diameter: 10 mm, 24V, switchable, high power
1-33-249 TZB10-IR850-P-24V telecentric light, IR850, lf diameter: 10 mm, 24V, switchable
1-33-283 TZB10-IR850-HP-24V telecentric light, IR850, lf diameter: 10 mm, 24V, switchable, high power
R-CLR-69-SL series
1-33-007 R-CLR-69x41-B470-SL ring light, blue, coaxial, lf diameter: 41/69 mm, smart light technology
RK2036-24V series
1-29-602 RK2036-B470-24V/C ring light, blue, coaxial, lf diameter: 41/69 mm, controlled, pot.: 0-10V,
Accessories
Order number Title Description
Adjustment Aids
5-10-110 Adjustment aid 2.7 for easy adjustment to 2.7 mm depth of field, for image scale 1.2 - 0.7
Lens mount
2-90-123 Lens Holder d34 Holder for telecentric lenses and lightings with d = 34 mm
Lens adapter c-mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-257 ND filter 3.0 M30.5x0.5 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M30.5x0.5
2-91-247 ND filter 1.2 M30.5x0.5 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M30.5x0.5
2-91-237 ND filter 0.6 M30.5x0.5 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M30.5x0.5
Polarising filters
2-91-227 Pole filter M30.5x0.5 linear polarizing filter, range 420 nm - 780 nm, filter thread M30.5x0.5
Colour filter blue
2-91-284 Colour filter blue M30.5x0.5 band-pass filter, range 350 nm - 600 nm, filter thread M30.5x0.5
UV Cut-Off Filter
2-91-207 UV blocking filter M30.5x0.5 long-pass filter from 350 nm, usable as protective glass, filter thread M30.5x0.5
Filter adapter
2-91-187 Filter adapter d34-M30.5 slip-on adapter for use of a M30.5x0.5 filter on lenses with 34 mm clamping diameter
Deflection mirrow 90° series
2-25-110 Deflection mirror 90-34 90° deflection, attachment for telecentric lenses and lightings with d = 34 mm
Adapters for attaching lights to lenses
1-29-671 Adapter ring d41 - M30.5x0.5 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M30.5x0.5
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
TOM7.2/21.6-74-F16-X-N-24V
Title:
TOM7.2/21.6-74-F16-X-N-24V
Short description:
Telecentric microscope lens 3x C-Mount, Sensor max. Ø21.6 mm, coax. NIR illumination, 24V
Order number:
2-06-030
Replaces:
MK190-EBL-IR (2-05-133) + microscope lens 3x (2-05-112)
Downloads:
STP-File download
Characteristics
  • telecentric microscope lens with object-sided telecentric beam path
  • for precise measurement of small objects
  • high resolution, low-distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • robust industrial design
  • fixed aperture
  • C-mount threaded connection
Technical data
Image scale3
Spectral range450 nm - 900 nm
Working distance74 mm
Camera distance (object-camera flange)315.5 mm
Object field diagonal (max)7.2 mm
Sensor format (max)Type 4/3
Image field diagonal (max)21.6 mm
Suitable for camera resolution18.9 MPixel
Recommended pixel size3.45 µm
Aperturefixed (F16)
Depth of focus49µm
Lens mountC-Mount
Filter thread, object-sideM30.5x0.5 (filter adapter)
Weight1068 g
Usable object field with:
• Sensor type 4/3 (17.3 x 13.0 mm²)5.8 mm x 4.3 mm
• 1" sensor (12.8 x 9.6 mm²)4.3 mm x 3.2 mm
• 2/3" sensor (8.8 x 6.6 mm²)2.9 mm x 2.2 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB10-P-SL series
1-33-238 TZB10-B450-P-SL telecentric light, blue, lf diameter: 10 mm, smart light
1-33-239 TZB10-IR850-P-SL telecentric light, IR850, lf diameter: 10 mm, smart light
TZB10-P-24V series
1-33-248 TZB10-B450-P-24V telecentric light, blue, lf diameter: 10 mm, 24V, switchable
1-33-282 TZB10-B450-HP-24V telecentric light, blue, lf diameter: 10 mm, 24V, switchable, high power
1-33-249 TZB10-IR850-P-24V telecentric light, IR850, lf diameter: 10 mm, 24V, switchable
1-33-283 TZB10-IR850-HP-24V telecentric light, IR850, lf diameter: 10 mm, 24V, switchable, high power
R-CLR-69-SL series
1-33-007 R-CLR-69x41-B470-SL ring light, blue, coaxial, lf diameter: 41/69 mm, smart light technology
RK2036-24V series
1-29-602 RK2036-B470-24V/C ring light, blue, coaxial, lf diameter: 41/69 mm, controlled, pot.: 0-10V,
Accessories
Order number Title Description
Adjustment Aids
5-10-110 Adjustment aid 2.7 for easy adjustment to 2.7 mm depth of field, for image scale 1.2 - 0.7
Lens mount
2-90-123 Lens Holder d34 Holder for telecentric lenses and lightings with d = 34 mm
Lens adapter c-mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-257 ND filter 3.0 M30.5x0.5 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M30.5x0.5
2-91-247 ND filter 1.2 M30.5x0.5 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M30.5x0.5
2-91-237 ND filter 0.6 M30.5x0.5 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M30.5x0.5
Daylight blocking filter
2-91-217 IR filter M30.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M30.5x0.5
Polarising filters
2-91-227 Pole filter M30.5x0.5 linear polarizing filter, range 420 nm - 780 nm, filter thread M30.5x0.5
UV Cut-Off Filter
2-91-207 UV blocking filter M30.5x0.5 long-pass filter from 350 nm, usable as protective glass, filter thread M30.5x0.5
Filter adapter
2-91-187 Filter adapter d34-M30.5 slip-on adapter for use of a M30.5x0.5 filter on lenses with 34 mm clamping diameter
Deflection mirrow 90° series
2-25-110 Deflection mirror 90-34 90° deflection, attachment for telecentric lenses and lightings with d = 34 mm
Adapters for attaching lights to lenses
1-29-671 Adapter ring d41 - M30.5x0.5 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M30.5x0.5
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
TOM21.6/21.6-70-F16-WN
Title:
TOM21.6/21.6-70-F16-WN
Short description:
Telecentric microscope lens 1x C-Mount, Sensor max. Ø21.6 mm, fixed aperture, W/NIR
Order number:
2-06-001
Replaces:
Tube MK190 (2-05-120) + microscope lens 1x (2-05-113)
Downloads:
STP-File download
Characteristics
  • telecentric microscope lens with object-sided telecentric beam path
  • for precise measurement of small objects
  • high resolution, low-distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • robust industrial design
  • fixed aperture
  • C-mount threaded connection
Technical data
Image scale1
Spectral range450 nm - 900 nm
Working distance70 mm
Camera distance (object-camera flange)311.5 mm
Object field diagonal (max)21.6 mm
Sensor format (max)Type 4/3
Image field diagonal (max)21.6 mm
Suitable for camera resolution18.9 MPixel
Recommended pixel size3.45 µm
Aperturefixed (F16)
Depth of focus670 µm
Lens mountC-Mount
Filter thread, object-sideM30.5x0.5 (filter adapter)
Weight440 g
Usable object field with:
• Sensor type 4/3 (17.3 x 13.0 mm²)17.3 mm x 13 mm
• 1" sensor (12.8 x 9.6 mm²)12.8 mm x 9.6 mm
• 2/3" sensor (8.8 x 6.6 mm²)8.8 mm x 6.6 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB28-P-SL series
1-33-230 TZB28-B450-P-SL telecentric light, blue, lf diameter: 28 mm, smart light
1-33-231 TZB28-IR850-P-SL telecentric light, IR850, lf diameter: 28 mm, smart light
TZB28-P-24V series
1-33-240 TZB28-B450-P-24V telecentric light, blue, lf diameter: 28 mm, 24V, switchable
1-33-284 TZB28-B450-HP-24V telecentric light, blue, lf diameter: 28 mm, 24V, switchable, high power
1-33-241 TZB28-IR850-P-24V telecentric light, IR850, lf diameter: 28 mm, 24V, switchable
1-33-285 TZB28-IR850-HP-24V telecentric light, IR850, lf diameter: 28 mm, 24V, switchable, high power
R-CLR-69-SL series
1-33-007 R-CLR-69x41-B470-SL ring light, blue, coaxial, lf diameter: 41/69 mm, smart light technology
RK2036-24V series
1-29-602 RK2036-B470-24V/C ring light, blue, coaxial, lf diameter: 41/69 mm, controlled, pot.: 0-10V,
Accessories
Order number Title Description
Adjustment Aids
5-10-110 Adjustment aid 2.7 for easy adjustment to 2.7 mm depth of field, for image scale 1.2 - 0.7
Lens mount
2-90-123 Lens Holder d34 Holder for telecentric lenses and lightings with d = 34 mm
Lens adapter c-mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-257 ND filter 3.0 M30.5x0.5 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M30.5x0.5
2-91-247 ND filter 1.2 M30.5x0.5 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M30.5x0.5
2-91-237 ND filter 0.6 M30.5x0.5 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M30.5x0.5
Daylight blocking filter
2-91-217 IR filter M30.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M30.5x0.5
Polarising filters
2-91-227 Pole filter M30.5x0.5 linear polarizing filter, range 420 nm - 780 nm, filter thread M30.5x0.5
Colour filter blue
2-91-284 Colour filter blue M30.5x0.5 band-pass filter, range 350 nm - 600 nm, filter thread M30.5x0.5
UV Cut-Off Filter
2-91-207 UV blocking filter M30.5x0.5 long-pass filter from 350 nm, usable as protective glass, filter thread M30.5x0.5
Colour filter red
2-91-267 Colour filter red M30.5x0.5 long-pass filter from 630 nm, red, filter thread M30.5x0.5
Colour filter green
2-91-297 Colour filter green M30.5x0.5 band-pass filter, range 430 nm - 620 nm, filter thread M30.5x0.5
Colour filter yellow
2-91-271 Colour filter yellow M30.5x0.5 long-pass filter from 530 nm, yellow, filter thread M30.5x0.5
Filter adapter
2-91-187 Filter adapter d34-M30.5 slip-on adapter for use of a M30.5x0.5 filter on lenses with 34 mm clamping diameter
Deflection mirrow 90° series
2-25-110 Deflection mirror 90-34 90° deflection, attachment for telecentric lenses and lightings with d = 34 mm
Adapters for attaching lights to lenses
1-29-671 Adapter ring d41 - M30.5x0.5 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M30.5x0.5
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
TOM21.6/21.6-70-F16-X-B-SL
Title:
TOM21.6/21.6-70-F16-X-B-SL
Short description:
Telecentric microscope lens 1x C-Mount, Sensor max. Ø21.6 mm, blue coax. smart light illum.
Order number:
2-06-009
Replaces:
MK190-EBL-B (2-05-143) + microscope lens 1x (2-05-113)
Downloads:
STP-File download
Characteristics
  • telecentric microscope lens with object-sided telecentric beam path
  • for precise measurement of small objects
  • high resolution, low-distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • robust industrial design
  • fixed aperture
  • C-mount threaded connection
Technical data
Image scale1
Spectral range450 nm - 900 nm
Working distance70 mm
Camera distance (object-camera flange)311.5 mm
Object field diagonal (max)21.6 mm
Sensor format (max)Type 4/3
Image field diagonal (max)21.6 mm
Suitable for camera resolution18.9 MPixel
Recommended pixel size3.45 µm
Aperturefixed (F16)
Depth of focus670 µm
Lens mountC-Mount
Filter thread, object-sideM30.5x0.5 (filter adapter)
Weight1055 g
Usable object field with:
• Sensor type 4/3 (17.3 x 13.0 mm²)17.3 mm x 13 mm
• 1" sensor (12.8 x 9.6 mm²)12.8 mm x 9.6 mm
• 2/3" sensor (8.8 x 6.6 mm²)8.8 mm x 6.6 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB28-P-SL series
1-33-230 TZB28-B450-P-SL telecentric light, blue, lf diameter: 28 mm, smart light
1-33-231 TZB28-IR850-P-SL telecentric light, IR850, lf diameter: 28 mm, smart light
TZB28-P-24V series
1-33-240 TZB28-B450-P-24V telecentric light, blue, lf diameter: 28 mm, 24V, switchable
1-33-284 TZB28-B450-HP-24V telecentric light, blue, lf diameter: 28 mm, 24V, switchable, high power
1-33-241 TZB28-IR850-P-24V telecentric light, IR850, lf diameter: 28 mm, 24V, switchable
1-33-285 TZB28-IR850-HP-24V telecentric light, IR850, lf diameter: 28 mm, 24V, switchable, high power
R-CLR-69-SL series
1-33-007 R-CLR-69x41-B470-SL ring light, blue, coaxial, lf diameter: 41/69 mm, smart light technology
RK2036-24V series
1-29-602 RK2036-B470-24V/C ring light, blue, coaxial, lf diameter: 41/69 mm, controlled, pot.: 0-10V,
Accessories
Order number Title Description
Adjustment Aids
5-10-110 Adjustment aid 2.7 for easy adjustment to 2.7 mm depth of field, for image scale 1.2 - 0.7
Lens mount
2-90-123 Lens Holder d34 Holder for telecentric lenses and lightings with d = 34 mm
Lens adapter c-mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-257 ND filter 3.0 M30.5x0.5 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M30.5x0.5
2-91-247 ND filter 1.2 M30.5x0.5 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M30.5x0.5
2-91-237 ND filter 0.6 M30.5x0.5 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M30.5x0.5
Polarising filters
2-91-227 Pole filter M30.5x0.5 linear polarizing filter, range 420 nm - 780 nm, filter thread M30.5x0.5
Colour filter blue
2-91-284 Colour filter blue M30.5x0.5 band-pass filter, range 350 nm - 600 nm, filter thread M30.5x0.5
UV Cut-Off Filter
2-91-207 UV blocking filter M30.5x0.5 long-pass filter from 350 nm, usable as protective glass, filter thread M30.5x0.5
Filter adapter
2-91-187 Filter adapter d34-M30.5 slip-on adapter for use of a M30.5x0.5 filter on lenses with 34 mm clamping diameter
Deflection mirrow 90° series
2-25-110 Deflection mirror 90-34 90° deflection, attachment for telecentric lenses and lightings with d = 34 mm
Adapters for attaching lights to lenses
1-29-671 Adapter ring d41 - M30.5x0.5 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M30.5x0.5
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
TOM21.6/21.6-70-F16-X-N-SL
Title:
TOM21.6/21.6-70-F16-X-N-SL
Short description:
Telecentric microscope lens 1x C-Mount, Sensor max. Ø21.6 mm, coax. NIR smart light illum.
Order number:
2-06-033
Replaces:
MK190-EBL-IR (2-05-133) + microscope lens 1x (2-05-113)
Downloads:
STP-File download
Characteristics
  • telecentric microscope lens with object-sided telecentric beam path
  • for precise measurement of small objects
  • high resolution, low-distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • robust industrial design
  • fixed aperture
  • C-mount threaded connection
Technical data
Image scale1
Spectral range450 nm - 900 nm
Working distance70 mm
Camera distance (object-camera flange)311.5 mm
Object field diagonal (max)21.6 mm
Sensor format (max)Type 4/3
Image field diagonal (max)21.6 mm
Suitable for camera resolution18.9 MPixel
Recommended pixel size3.45 µm
Aperturefixed (F16)
Depth of focus670 µm
Lens mountC-Mount
Filter thread, object-sideM30.5x0.5 (filter adapter)
Weight1055 g
Usable object field with:
• Sensor type 4/3 (17.3 x 13.0 mm²)17.3 mm x 13 mm
• 1" sensor (12.8 x 9.6 mm²)12.8 mm x 9.6 mm
• 2/3" sensor (8.8 x 6.6 mm²)8.8 mm x 6.6 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB28-P-SL series
1-33-230 TZB28-B450-P-SL telecentric light, blue, lf diameter: 28 mm, smart light
1-33-231 TZB28-IR850-P-SL telecentric light, IR850, lf diameter: 28 mm, smart light
TZB28-P-24V series
1-33-240 TZB28-B450-P-24V telecentric light, blue, lf diameter: 28 mm, 24V, switchable
1-33-284 TZB28-B450-HP-24V telecentric light, blue, lf diameter: 28 mm, 24V, switchable, high power
1-33-241 TZB28-IR850-P-24V telecentric light, IR850, lf diameter: 28 mm, 24V, switchable
1-33-285 TZB28-IR850-HP-24V telecentric light, IR850, lf diameter: 28 mm, 24V, switchable, high power
R-CLR-69-SL series
1-33-007 R-CLR-69x41-B470-SL ring light, blue, coaxial, lf diameter: 41/69 mm, smart light technology
RK2036-24V series
1-29-602 RK2036-B470-24V/C ring light, blue, coaxial, lf diameter: 41/69 mm, controlled, pot.: 0-10V,
Accessories
Order number Title Description
Adjustment Aids
5-10-110 Adjustment aid 2.7 for easy adjustment to 2.7 mm depth of field, for image scale 1.2 - 0.7
Lens mount
2-90-123 Lens Holder d34 Holder for telecentric lenses and lightings with d = 34 mm
Lens adapter c-mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-257 ND filter 3.0 M30.5x0.5 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M30.5x0.5
2-91-247 ND filter 1.2 M30.5x0.5 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M30.5x0.5
2-91-237 ND filter 0.6 M30.5x0.5 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M30.5x0.5
Daylight blocking filter
2-91-217 IR filter M30.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M30.5x0.5
Polarising filters
2-91-227 Pole filter M30.5x0.5 linear polarizing filter, range 420 nm - 780 nm, filter thread M30.5x0.5
UV Cut-Off Filter
2-91-207 UV blocking filter M30.5x0.5 long-pass filter from 350 nm, usable as protective glass, filter thread M30.5x0.5
Filter adapter
2-91-187 Filter adapter d34-M30.5 slip-on adapter for use of a M30.5x0.5 filter on lenses with 34 mm clamping diameter
Deflection mirrow 90° series
2-25-110 Deflection mirror 90-34 90° deflection, attachment for telecentric lenses and lightings with d = 34 mm
Adapters for attaching lights to lenses
1-29-671 Adapter ring d41 - M30.5x0.5 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M30.5x0.5
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
TOM21.6/21.6-70-F16-X-B-24V
Title:
TOM21.6/21.6-70-F16-X-B-24V
Short description:
Telecentric microscope lens 1x C-Mount, Sensor max. Ø21.6 mm, blue coax. illumination, 24V
Order number:
2-06-005
Replaces:
MK190-EBL-B (2-05-143) + microscope lens 1x (2-05-113)
Downloads:
STP-File download
Characteristics
  • telecentric microscope lens with object-sided telecentric beam path
  • for precise measurement of small objects
  • high resolution, low-distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • robust industrial design
  • fixed aperture
  • C-mount threaded connection
Technical data
Image scale1
Spectral range450 nm - 900 nm
Working distance70 mm
Camera distance (object-camera flange)311.5 mm
Object field diagonal (max)21.6 mm
Sensor format (max)Type 4/3
Image field diagonal (max)21.6 mm
Suitable for camera resolution18.9 MPixel
Recommended pixel size3.45 µm
Aperturefixed (F16)
Depth of focus670 µm
Lens mountC-Mount
Filter thread, object-sideM30.5x0.5 (filter adapter)
Weight1055 g
Usable object field with:
• Sensor type 4/3 (17.3 x 13.0 mm²)17.3 mm x 13 mm
• 1" sensor (12.8 x 9.6 mm²)12.8 mm x 9.6 mm
• 2/3" sensor (8.8 x 6.6 mm²)8.8 mm x 6.6 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB28-P-SL series
1-33-230 TZB28-B450-P-SL telecentric light, blue, lf diameter: 28 mm, smart light
1-33-231 TZB28-IR850-P-SL telecentric light, IR850, lf diameter: 28 mm, smart light
TZB28-P-24V series
1-33-240 TZB28-B450-P-24V telecentric light, blue, lf diameter: 28 mm, 24V, switchable
1-33-284 TZB28-B450-HP-24V telecentric light, blue, lf diameter: 28 mm, 24V, switchable, high power
1-33-241 TZB28-IR850-P-24V telecentric light, IR850, lf diameter: 28 mm, 24V, switchable
1-33-285 TZB28-IR850-HP-24V telecentric light, IR850, lf diameter: 28 mm, 24V, switchable, high power
R-CLR-69-SL series
1-33-007 R-CLR-69x41-B470-SL ring light, blue, coaxial, lf diameter: 41/69 mm, smart light technology
RK2036-24V series
1-29-602 RK2036-B470-24V/C ring light, blue, coaxial, lf diameter: 41/69 mm, controlled, pot.: 0-10V,
Accessories
Order number Title Description
Adjustment Aids
5-10-110 Adjustment aid 2.7 for easy adjustment to 2.7 mm depth of field, for image scale 1.2 - 0.7
Lens mount
2-90-123 Lens Holder d34 Holder for telecentric lenses and lightings with d = 34 mm
Lens adapter c-mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-257 ND filter 3.0 M30.5x0.5 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M30.5x0.5
2-91-247 ND filter 1.2 M30.5x0.5 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M30.5x0.5
2-91-237 ND filter 0.6 M30.5x0.5 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M30.5x0.5
Polarising filters
2-91-227 Pole filter M30.5x0.5 linear polarizing filter, range 420 nm - 780 nm, filter thread M30.5x0.5
Colour filter blue
2-91-284 Colour filter blue M30.5x0.5 band-pass filter, range 350 nm - 600 nm, filter thread M30.5x0.5
UV Cut-Off Filter
2-91-207 UV blocking filter M30.5x0.5 long-pass filter from 350 nm, usable as protective glass, filter thread M30.5x0.5
Filter adapter
2-91-187 Filter adapter d34-M30.5 slip-on adapter for use of a M30.5x0.5 filter on lenses with 34 mm clamping diameter
Deflection mirrow 90° series
2-25-110 Deflection mirror 90-34 90° deflection, attachment for telecentric lenses and lightings with d = 34 mm
Adapters for attaching lights to lenses
1-29-671 Adapter ring d41 - M30.5x0.5 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M30.5x0.5
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
TOM21.6/21.6-70-F16-X-N-24V
Title:
TOM21.6/21.6-70-F16-X-N-24V
Short description:
Telecentric microscope lens 1x C-Mount, Sensor max. Ø21.6 mm, coax. NIR illumination, 24V
Order number:
2-06-029
Replaces:
MK190-EBL-IR (2-05-133) + microscope lens 1x (2-05-113)
Downloads:
STP-File download
Characteristics
  • telecentric microscope lens with object-sided telecentric beam path
  • for precise measurement of small objects
  • high resolution, low-distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • robust industrial design
  • fixed aperture
  • C-mount threaded connection
Technical data
Image scale1
Spectral range450 nm - 900 nm
Working distance70 mm
Camera distance (object-camera flange)311.5 mm
Object field diagonal (max)21.6 mm
Sensor format (max)Type 4/3
Image field diagonal (max)21.6 mm
Suitable for camera resolution18.9 MPixel
Recommended pixel size3.45 µm
Aperturefixed (F16)
Depth of focus670 µm
Lens mountC-Mount
Filter thread, object-sideM30.5x0.5 (filter adapter)
Weight1055 g
Usable object field with:
• Sensor type 4/3 (17.3 x 13.0 mm²)17.3 mm x 13 mm
• 1" sensor (12.8 x 9.6 mm²)12.8 mm x 9.6 mm
• 2/3" sensor (8.8 x 6.6 mm²)8.8 mm x 6.6 mm
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
TZB28-P-SL series
1-33-230 TZB28-B450-P-SL telecentric light, blue, lf diameter: 28 mm, smart light
1-33-231 TZB28-IR850-P-SL telecentric light, IR850, lf diameter: 28 mm, smart light
TZB28-P-24V series
1-33-240 TZB28-B450-P-24V telecentric light, blue, lf diameter: 28 mm, 24V, switchable
1-33-284 TZB28-B450-HP-24V telecentric light, blue, lf diameter: 28 mm, 24V, switchable, high power
1-33-241 TZB28-IR850-P-24V telecentric light, IR850, lf diameter: 28 mm, 24V, switchable
1-33-285 TZB28-IR850-HP-24V telecentric light, IR850, lf diameter: 28 mm, 24V, switchable, high power
R-CLR-69-SL series
1-33-007 R-CLR-69x41-B470-SL ring light, blue, coaxial, lf diameter: 41/69 mm, smart light technology
RK2036-24V series
1-29-602 RK2036-B470-24V/C ring light, blue, coaxial, lf diameter: 41/69 mm, controlled, pot.: 0-10V,
Accessories
Order number Title Description
Adjustment Aids
5-10-110 Adjustment aid 2.7 for easy adjustment to 2.7 mm depth of field, for image scale 1.2 - 0.7
Lens mount
2-90-123 Lens Holder d34 Holder for telecentric lenses and lightings with d = 34 mm
Lens adapter c-mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
Neutral density filter
2-91-257 ND filter 3.0 M30.5x0.5 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M30.5x0.5
2-91-247 ND filter 1.2 M30.5x0.5 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M30.5x0.5
2-91-237 ND filter 0.6 M30.5x0.5 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M30.5x0.5
Daylight blocking filter
2-91-217 IR filter M30.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M30.5x0.5
Polarising filters
2-91-227 Pole filter M30.5x0.5 linear polarizing filter, range 420 nm - 780 nm, filter thread M30.5x0.5
UV Cut-Off Filter
2-91-207 UV blocking filter M30.5x0.5 long-pass filter from 350 nm, usable as protective glass, filter thread M30.5x0.5
Filter adapter
2-91-187 Filter adapter d34-M30.5 slip-on adapter for use of a M30.5x0.5 filter on lenses with 34 mm clamping diameter
Deflection mirrow 90° series
2-25-110 Deflection mirror 90-34 90° deflection, attachment for telecentric lenses and lightings with d = 34 mm
Adapters for attaching lights to lenses
1-29-671 Adapter ring d41 - M30.5x0.5 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M30.5x0.5
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
TOM4.5/43.3-48-F24-WN
Title:
TOM4.5/43.3-48-F24-WN
Short description:
Telec. Microsope Lens 9.6x, M42, sensor max. "Type 35 mm", fixed aperture, W/NIR
Order number:
2-05-615
EAN:
4251692621486
Downloads:
Instructions
STP-File download
Characteristics
  • telecentric microscope lens with object-sided telecentric beam path
  • for precise measurement of small objects
  • high resolution, low-distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • robust industrial design
  • fixed aperture
  • M42 threaded connection
Technical data
Image scale9.65
Spectral range400 nm - 950 nm
Working distance48 mm
Camera distance (object-camera flange)276 mm
Object field diagonal (max)4.5 mm
Sensor format (max)Type 35 mm
Image field diagonal (max)43.3 mm
Suitable for camera resolution72.6 MPixel
Recommended pixel size3.45 µm
Aperturefixed (F24)
Depth of focus0.04 mm (470 nm, MTF = 20% @ 20LP/mm)
Lens mountM42 (Auflagemaß 45.46 mm)
Filter thread, object-sideM30.5 x 0.5 (Filteradapter)
Weight500 g
Usable object field with:
• Sensor type 35 mm (36.0 x 24 mm²)3.7 mm x 2.5 mm
• Sensor type DX (23.7 x 15.6 mm²)2.5 mm x 1.6 mm
• Sensor type 4/3 (17.3 x 13.0 mm²)1.8 mm x 1.3 mm
Notices
The illumination combinations shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings

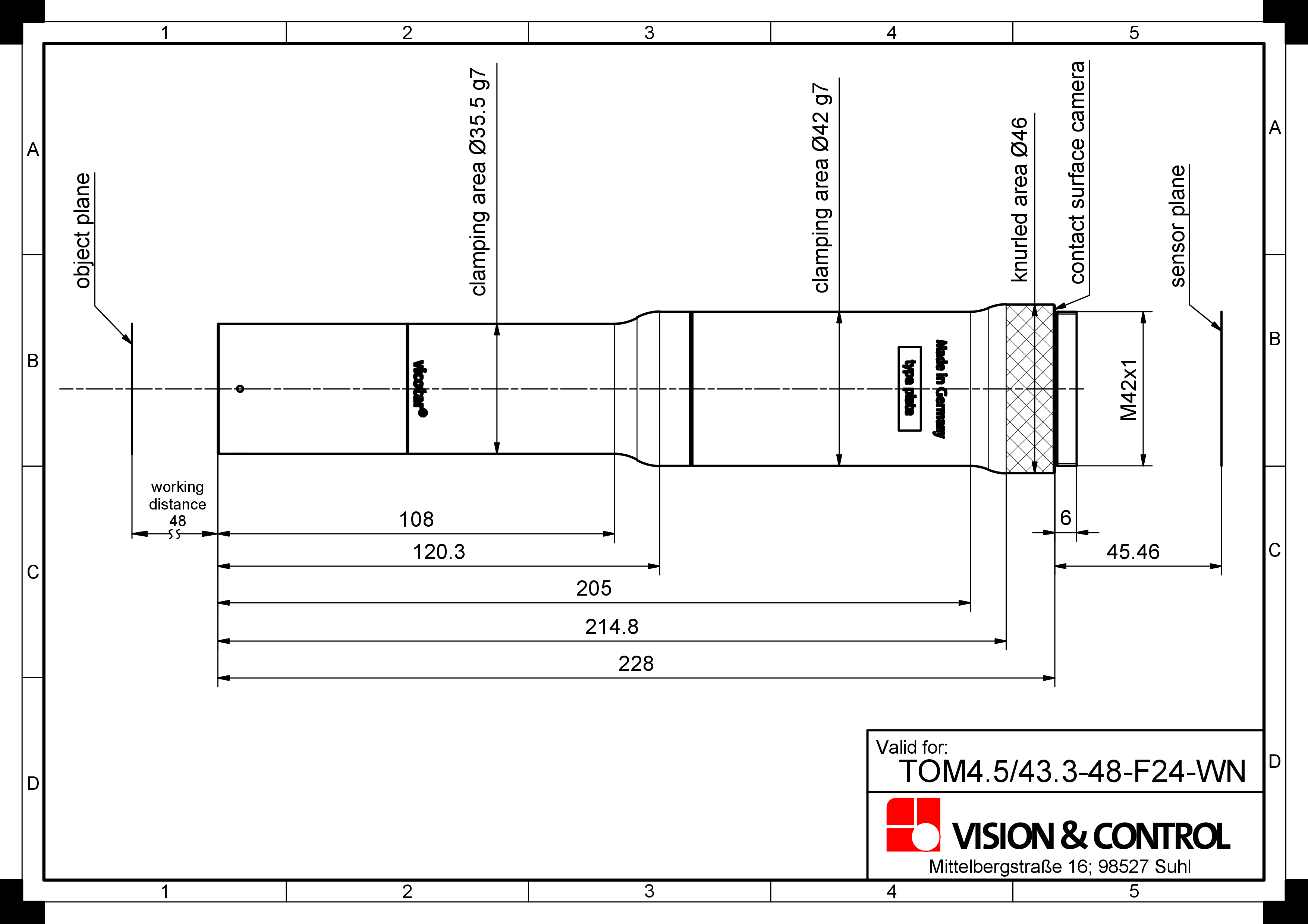

Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-024 Adapter STE30x30 - TZO35,5 Attachment of the STE30x30 to telecentric lenses and lightings with d = 35.5 mm
Accessories
Order number Title Description
Lens mount
2-90-124 Lens Holder d35,5 Holder for telecentric lenses and lightings with d = 35,5 mm
Neutral density filter
2-91-257 ND filter 3.0 M30.5x0.5 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M30.5x0.5
2-91-247 ND filter 1.2 M30.5x0.5 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M30.5x0.5
2-91-237 ND filter 0.6 M30.5x0.5 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M30.5x0.5
Daylight blocking filter
2-91-217 IR filter M30.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M30.5x0.5
Colour filter blue
2-91-284 Colour filter blue M30.5x0.5 band-pass filter, range 350 nm - 600 nm, filter thread M30.5x0.5
UV Cut-Off Filter
2-91-207 UV blocking filter M30.5x0.5 long-pass filter from 350 nm, usable as protective glass, filter thread M30.5x0.5
Colour filter red
2-91-267 Colour filter red M30.5x0.5 long-pass filter from 630 nm, red, filter thread M30.5x0.5
Colour filter green
2-91-297 Colour filter green M30.5x0.5 band-pass filter, range 430 nm - 620 nm, filter thread M30.5x0.5
Colour filter yellow
2-91-271 Colour filter yellow M30.5x0.5 long-pass filter from 530 nm, yellow, filter thread M30.5x0.5
Filter adapter
2-91-188 Filter adapter d35.5-M30.5 slip-on adapter for use of a M30.5x0.5 filter on lenses with 35.5 mm clamping diameter
Deflection mirrow 90° series
2-25-116 Deflection mirror 90-35.5 90° deflection, attachment for telecentric lenses and lightings with d = 35.5 mm
Adapters for attaching lights to lenses
1-29-671 Adapter ring d41 - M30.5x0.5 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M30.5x0.5
Beam splitter STE30x30
1-18-024 Adapter STE30x30 - TZO35,5 Attachment of the STE30x30 to telecentric lenses and lightings with d = 35.5 mm
TOM5.9/43.3-48-F22-WN
Title:
TOM5.9/43.3-48-F22-WN
Short description:
Telec. Microsope Lens 7.4x, M42, sensor max. "Type 35 mm", fixed aperture, W/NIR
Order number:
2-05-614
EAN:
4251692621479
Downloads:
Instructions
STP-File download
Characteristics
  • telecentric microscope lens with object-sided telecentric beam path
  • for precise measurement of small objects
  • high resolution, low-distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • robust industrial design
  • fixed aperture
  • M42 threaded connection
Technical data
Image scale7.35
Spectral range400 nm - 950 nm
Working distance48 mm
Camera distance (object-camera flange)226 mm
Object field diagonal (max)5.9 mm
Sensor format (max)Type 35 mm
Image field diagonal (max)43.3 mm
Suitable for camera resolution72.6 MPixel
Recommended pixel size3.45 µm
Aperturefixed (F22)
Depth of focus0.05 mm (470 nm, MTF = 20% @ 20LP/mm)
Lens mountM42 (Auflagemaß 45.46 mm)
Filter thread, object-sideM30.5 x 0.5 (Filteradapter)
Weight243 g
Usable object field with:
• Sensor type 35 mm (36.0 x 24 mm²)4.9 mm x 3.3 mm
• Sensor type DX (23.7 x 15.6 mm²)3.2 mm x 2.1 mm
• Sensor type 4/3 (17.3 x 13.0 mm²)2.4 mm x 1.8 mm
Notices
The illumination combinations shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings

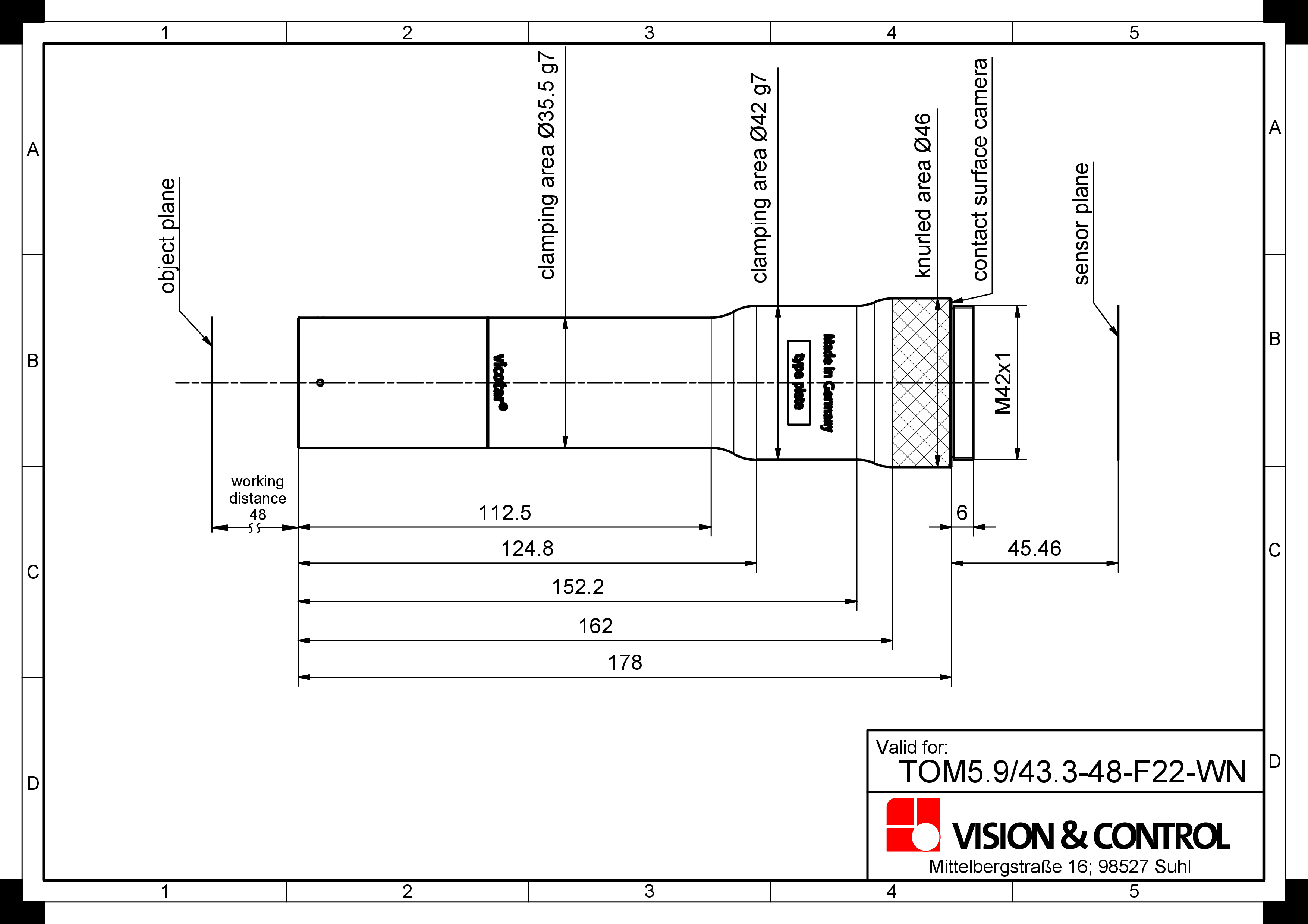

Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-024 Adapter STE30x30 - TZO35,5 Attachment of the STE30x30 to telecentric lenses and lightings with d = 35.5 mm
Accessories
Order number Title Description
Lens mount
2-90-124 Lens Holder d35,5 Holder for telecentric lenses and lightings with d = 35,5 mm
Neutral density filter
2-91-257 ND filter 3.0 M30.5x0.5 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M30.5x0.5
2-91-247 ND filter 1.2 M30.5x0.5 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M30.5x0.5
2-91-237 ND filter 0.6 M30.5x0.5 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M30.5x0.5
Daylight blocking filter
2-91-217 IR filter M30.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M30.5x0.5
Colour filter blue
2-91-284 Colour filter blue M30.5x0.5 band-pass filter, range 350 nm - 600 nm, filter thread M30.5x0.5
UV Cut-Off Filter
2-91-207 UV blocking filter M30.5x0.5 long-pass filter from 350 nm, usable as protective glass, filter thread M30.5x0.5
Colour filter red
2-91-267 Colour filter red M30.5x0.5 long-pass filter from 630 nm, red, filter thread M30.5x0.5
Colour filter green
2-91-297 Colour filter green M30.5x0.5 band-pass filter, range 430 nm - 620 nm, filter thread M30.5x0.5
Colour filter yellow
2-91-271 Colour filter yellow M30.5x0.5 long-pass filter from 530 nm, yellow, filter thread M30.5x0.5
Filter adapter
2-91-188 Filter adapter d35.5-M30.5 slip-on adapter for use of a M30.5x0.5 filter on lenses with 35.5 mm clamping diameter
Deflection mirrow 90° series
2-25-116 Deflection mirror 90-35.5 90° deflection, attachment for telecentric lenses and lightings with d = 35.5 mm
Adapters for attaching lights to lenses
1-29-671 Adapter ring d41 - M30.5x0.5 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M30.5x0.5
Beam splitter STE30x30
1-18-024 Adapter STE30x30 - TZO35,5 Attachment of the STE30x30 to telecentric lenses and lightings with d = 35.5 mm
TOM8.7/43.3-64-F20-WN
Title:
TOM8.7/43.3-64-F20-WN
Short description:
Telecentric Microsope Lens 5x, M42, sensor max. "Type 35 mm", fixed aperture, W/NIR
Order number:
2-05-613
EAN:
4251692621462
Downloads:
Instructions
STP-File download
Characteristics
  • telecentric microscope lens with object-sided telecentric beam path
  • for precise measurement of small objects
  • high resolution, low-distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • robust industrial design
  • fixed aperture
  • M42 threaded connection
Technical data
Image scale5
Spectral range400 nm - 950 nm
Working distance64 mm
Camera distance (object-camera flange)281 mm
Object field diagonal (max)8.7 mm
Sensor format (max)Type 35 mm
Image field diagonal (max)43.3 mm
Suitable for camera resolution72.6 MPixel
Recommended pixel size3.45 µm
Aperturefest (F20)
Depth of focus0.1 mm (470 nm, MTF = 20% @ 20LP/mm)
Lens mountM42 (Auflagemaß 45.46 mm)
Filter thread, object-sideM30.5 x 0.5 (Filteradapter)
Weight440 g
Usable object field with:
• Sensor type 35 mm (36.0 x 24 mm²)7.2 mm x 4.8 mm
• Sensor type DX (23.7 x 15.6 mm²)4.7 mm x 3.1 mm
• Sensor type 4/3 (17.3 x 13.0 mm²)3.5 mm x 2.6 mm
Notices
The illumination combinations shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings

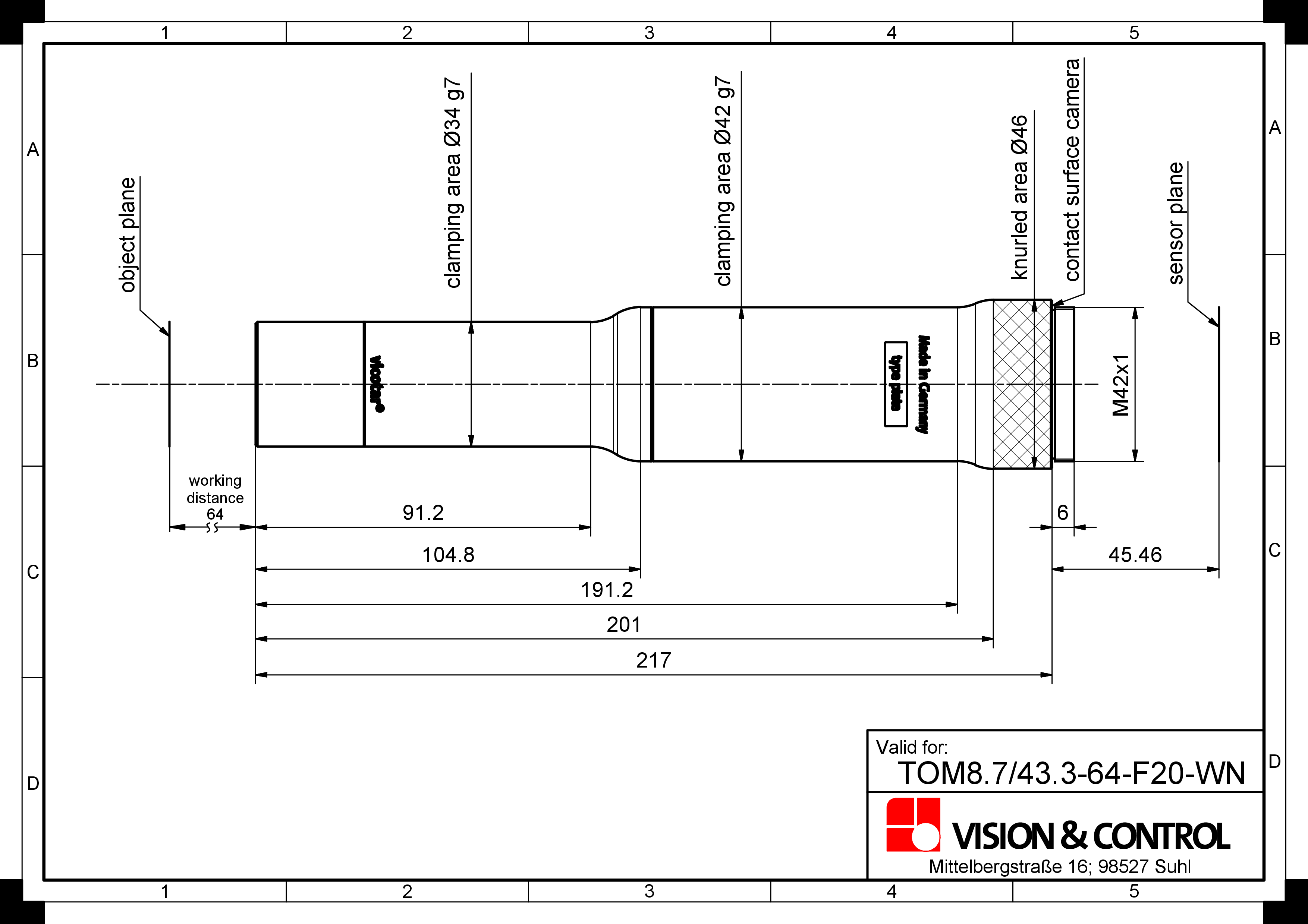

Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
Accessories
Order number Title Description
Lens mount
2-90-123 Lens Holder d34 Holder for telecentric lenses and lightings with d = 34 mm
Neutral density filter
2-91-257 ND filter 3.0 M30.5x0.5 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M30.5x0.5
2-91-247 ND filter 1.2 M30.5x0.5 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M30.5x0.5
2-91-237 ND filter 0.6 M30.5x0.5 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M30.5x0.5
Daylight blocking filter
2-91-217 IR filter M30.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M30.5x0.5
Colour filter blue
2-91-284 Colour filter blue M30.5x0.5 band-pass filter, range 350 nm - 600 nm, filter thread M30.5x0.5
UV Cut-Off Filter
2-91-207 UV blocking filter M30.5x0.5 long-pass filter from 350 nm, usable as protective glass, filter thread M30.5x0.5
Colour filter red
2-91-267 Colour filter red M30.5x0.5 long-pass filter from 630 nm, red, filter thread M30.5x0.5
Colour filter green
2-91-297 Colour filter green M30.5x0.5 band-pass filter, range 430 nm - 620 nm, filter thread M30.5x0.5
Colour filter yellow
2-91-271 Colour filter yellow M30.5x0.5 long-pass filter from 530 nm, yellow, filter thread M30.5x0.5
Filter adapter
2-91-187 Filter adapter d34-M30.5 slip-on adapter for use of a M30.5x0.5 filter on lenses with 34 mm clamping diameter
Deflection mirrow 90° series
2-25-110 Deflection mirror 90-34 90° deflection, attachment for telecentric lenses and lightings with d = 34 mm
Adapters for attaching lights to lenses
1-29-671 Adapter ring d41 - M30.5x0.5 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M30.5x0.5
Beam splitter STE30x30
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
TOM10.8/43.3-66-F19-WN
Title:
TOM10.8/43.3-66-F19-WN
Short description:
Telecentric Microsope Lens 4x, M42, sensor max. "Type 35 mm", fixed aperture, W/NIR
Order number:
2-05-612
EAN:
4251692621455
Downloads:
Instructions
STP-File download
Characteristics
  • telecentric microscope lens with object-sided telecentric beam path
  • for precise measurement of small objects
  • high resolution, low-distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • robust industrial design
  • fixed aperture
  • M42 threaded connection
Technical data
Image scale4
Spectral range400 nm - 950 nm
Working distance66 mm
Camera distance (object-camera flange)240 mm
Object field diagonal (max)10.8 mm
Sensor format (max)Type 35 mm
Image field diagonal (max)43.3 mm
Suitable for camera resolution72.6 MPixel
Recommended pixel size3.45 µm
Aperturefixed (F19)
Depth of focus0.14 mm (470 nm, MTF = 20% @ 20LP/mm)
Lens mountM42 (Auflagemaß 45.46 mm)
Filter thread, object-sideM30.5 x 0.5 (Filteradapter)
Weight330 g
Usable object field with:
• Sensor type 35 mm (36.0 x 24 mm²)9 mm x 6 mm
• Sensor type DX (23.7 x 15.6 mm²)5.9 mm x 3.9 mm
• Sensor type 4/3 (17.3 x 13.0 mm²)4.3 mm x 3.3 mm
Notices
The illumination combinations shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings

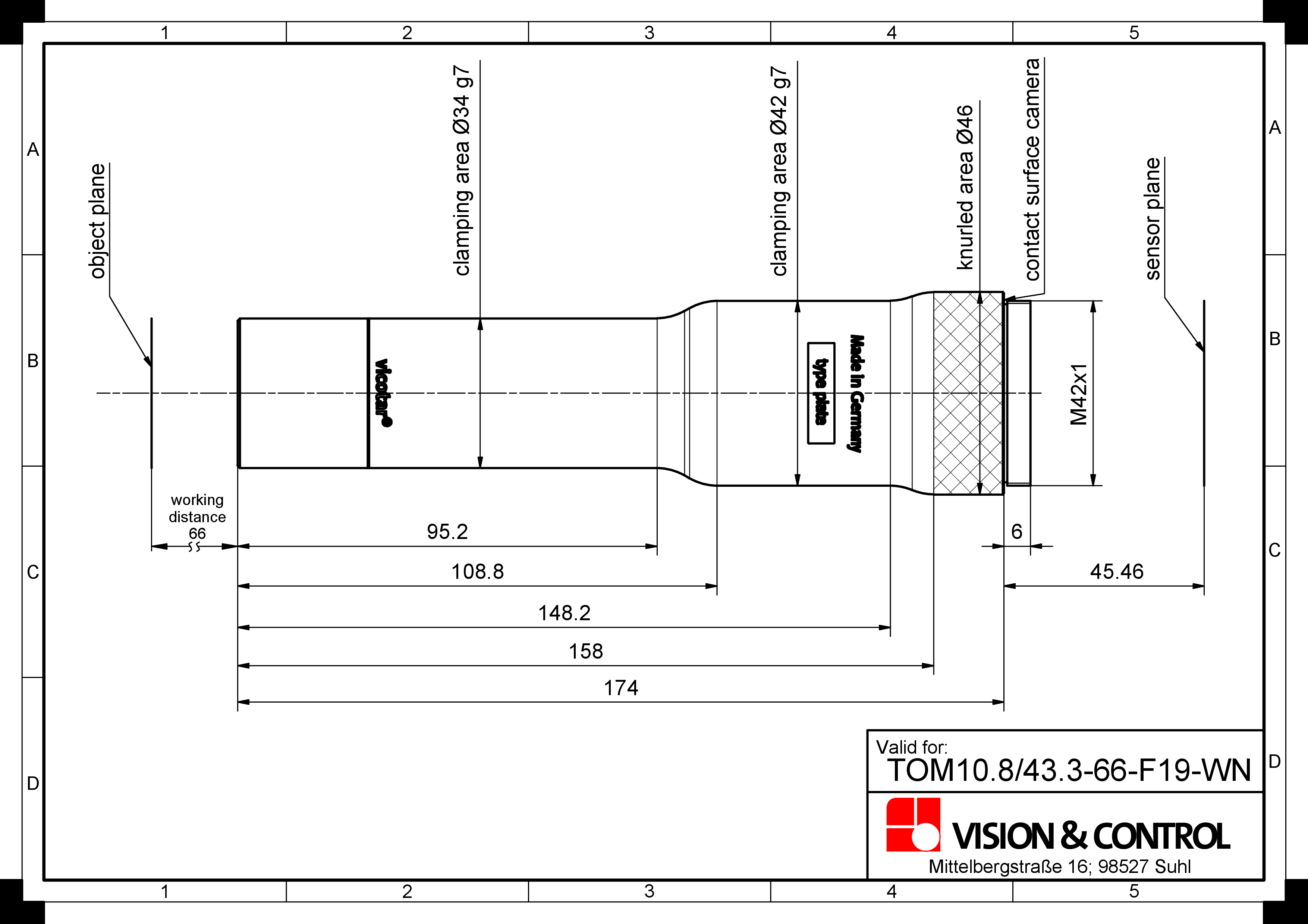

Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
Accessories
Order number Title Description
Lens mount
2-90-123 Lens Holder d34 Holder for telecentric lenses and lightings with d = 34 mm
Neutral density filter
2-91-257 ND filter 3.0 M30.5x0.5 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M30.5x0.5
2-91-247 ND filter 1.2 M30.5x0.5 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M30.5x0.5
2-91-237 ND filter 0.6 M30.5x0.5 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M30.5x0.5
Daylight blocking filter
2-91-217 IR filter M30.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M30.5x0.5
Colour filter blue
2-91-284 Colour filter blue M30.5x0.5 band-pass filter, range 350 nm - 600 nm, filter thread M30.5x0.5
UV Cut-Off Filter
2-91-207 UV blocking filter M30.5x0.5 long-pass filter from 350 nm, usable as protective glass, filter thread M30.5x0.5
Colour filter red
2-91-267 Colour filter red M30.5x0.5 long-pass filter from 630 nm, red, filter thread M30.5x0.5
Colour filter green
2-91-297 Colour filter green M30.5x0.5 band-pass filter, range 430 nm - 620 nm, filter thread M30.5x0.5
Colour filter yellow
2-91-271 Colour filter yellow M30.5x0.5 long-pass filter from 530 nm, yellow, filter thread M30.5x0.5
Filter adapter
2-91-187 Filter adapter d34-M30.5 slip-on adapter for use of a M30.5x0.5 filter on lenses with 34 mm clamping diameter
Deflection mirrow 90° series
2-25-110 Deflection mirror 90-34 90° deflection, attachment for telecentric lenses and lightings with d = 34 mm
Adapters for attaching lights to lenses
1-29-671 Adapter ring d41 - M30.5x0.5 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M30.5x0.5
Beam splitter STE30x30
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
TOM14.2/28.4-86-F12-WN
Title:
TOM14.2/28.4-86-F12-WN
Short description:
Telecentric Microsope Lens 2x, M42, sensor max. "Type DX", fixed aperture, W/NIR
Order number:
2-05-611
EAN:
4251692621448
Downloads:
Instructions
STP-File download
Characteristics
  • telecentric microscope lens with object-sided telecentric beam path
  • for precise measurement of small objects
  • high resolution, low-distortion, low telecentric error
  • color corrected for the visible spectral range and near infrared
  • robust industrial design
  • fixed aperture
  • M42 threaded connection
Technical data
Image scale2
Spectral range400 nm - 950 nm
Working distance86 mm
Camera distance (object-camera flange)223.1 mm
Object field diagonal (max)14.2 mm
Sensor format (max)Type DX
Image field diagonal (max)28.4 mm
Suitable for camera resolution31.1 MPixel
Recommended pixel size3.45 µm
Aperturefest (F12)
Depth of focus0.33 mm (470 nm, MTF = 20% @ 20LP/mm)
Lens mountM42 (Auflagemaß 45.46 mm)
Filter thread, object-sideM30.5 x 0.5 (Filteradapter)
Weight225 g
Usable object field with:
• Sensor type DX (23.7 x 15.6 mm²)11.9 mm x 7.8 mm
• Sensor type 4/3 (17.3 x 13.0 mm²)8.7 mm x 6.5 mm
• 1" sensor (12.8 x 9.6 mm²)6.4 mm x 4.8 mm
Notices
The illumination combinations shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings

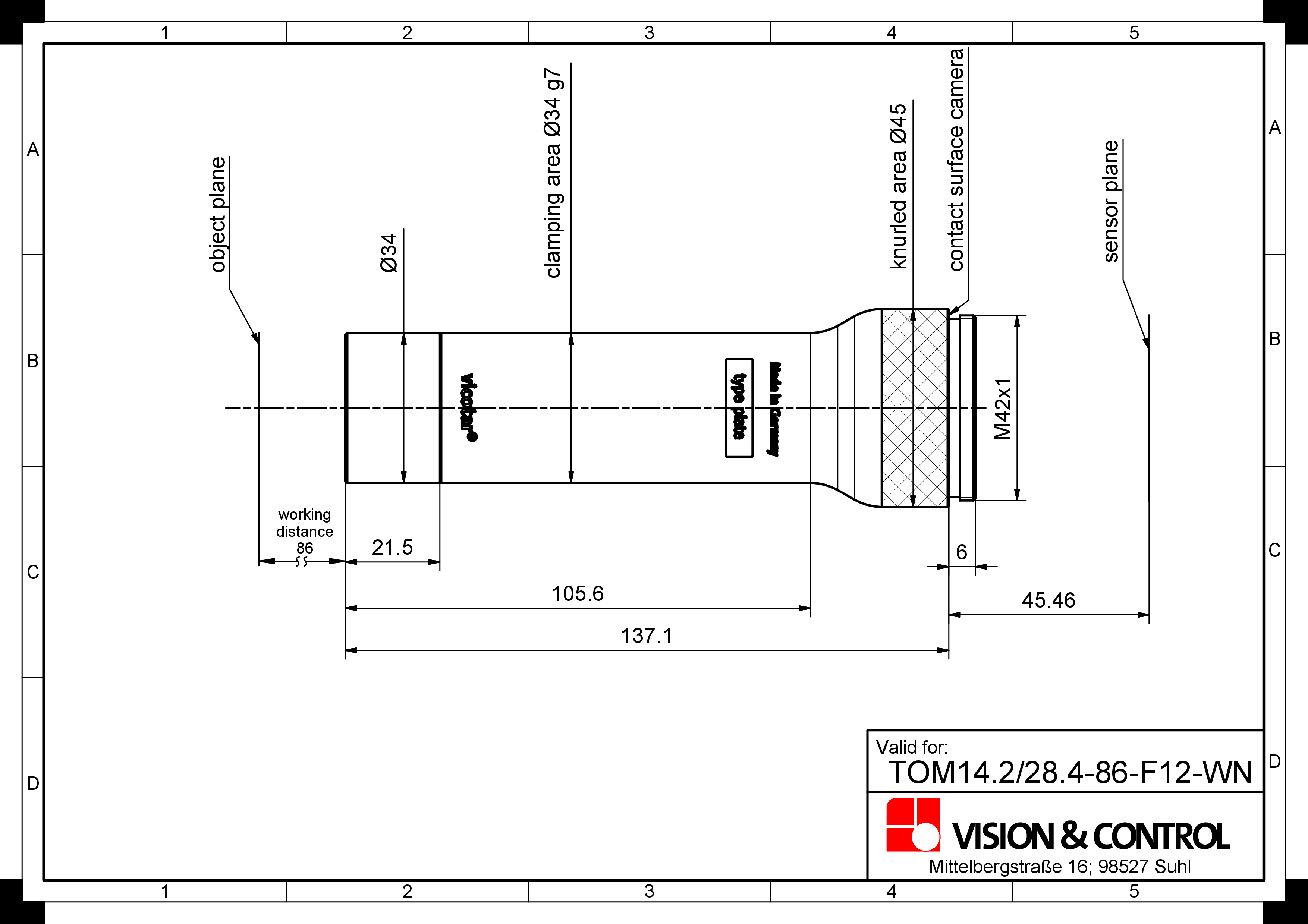

Dimensional drawing in mm
Dimensional drawing in mm
Can be combined with
Order number Title Description
Beam splitter STE30x30
1-18-050 STE30x30-VIS Beam splitter unit for coaxial light system, optimized for 450-700 nm
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
Accessories
Order number Title Description
Lens mount
2-90-123 Lens Holder d34 Holder for telecentric lenses and lightings with d = 34 mm
Neutral density filter
2-91-257 ND filter 3.0 M30.5x0.5 optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M30.5x0.5
2-91-247 ND filter 1.2 M30.5x0.5 optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M30.5x0.5
2-91-237 ND filter 0.6 M30.5x0.5 optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M30.5x0.5
Daylight blocking filter
2-91-217 IR filter M30.5x0.5 long-pass filter from 830 nm, daylight absorbing filter, filter thread M30.5x0.5
Colour filter blue
2-91-284 Colour filter blue M30.5x0.5 band-pass filter, range 350 nm - 600 nm, filter thread M30.5x0.5
UV Cut-Off Filter
2-91-207 UV blocking filter M30.5x0.5 long-pass filter from 350 nm, usable as protective glass, filter thread M30.5x0.5
Colour filter red
2-91-267 Colour filter red M30.5x0.5 long-pass filter from 630 nm, red, filter thread M30.5x0.5
Colour filter green
2-91-297 Colour filter green M30.5x0.5 band-pass filter, range 430 nm - 620 nm, filter thread M30.5x0.5
Colour filter yellow
2-91-271 Colour filter yellow M30.5x0.5 long-pass filter from 530 nm, yellow, filter thread M30.5x0.5
Filter adapter
2-91-187 Filter adapter d34-M30.5 slip-on adapter for use of a M30.5x0.5 filter on lenses with 34 mm clamping diameter
Deflection mirrow 90° series
2-25-110 Deflection mirror 90-34 90° deflection, attachment for telecentric lenses and lightings with d = 34 mm
Adapters for attaching lights to lenses
1-29-671 Adapter ring d41 - M30.5x0.5 for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M30.5x0.5
Beam splitter STE30x30
1-18-023 Adapter STE30x30 - TZO34 Attachment of the STE30x30 to telecentric lenses and lightings with d = 34 mm
Load more products..
