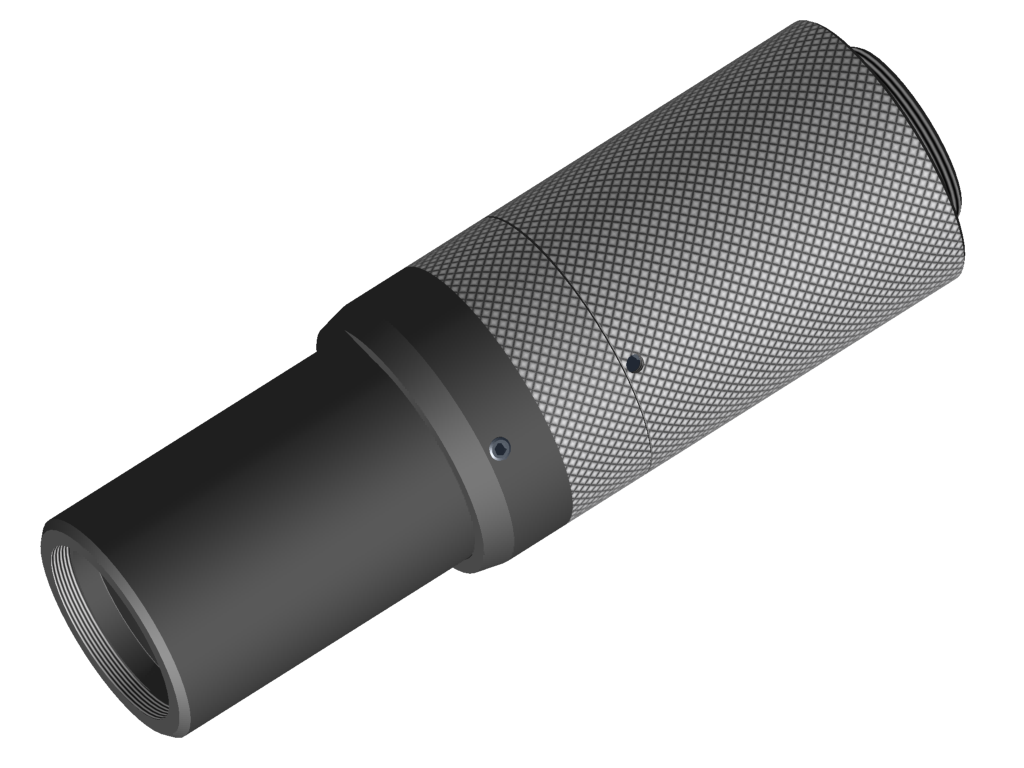

vicotar® Telecentric Lens - T51/1.7
Characteristics
- telecentric measurement objective with object-sided telecentric beam path
- high-quality imaging
- color-optimized and bright
- adjustable aperture, arrestable
- robust industrial design
Technical data
| Image scale | 1.728 |
| Spectral range | 380 nm - 900 nm |
| Working distance | 49.3 mm |
| Camera distance (object-camera flange) | 163.3 mm |
| Object field diagonal (max) | 12.3 mm |
| Sensor format (max) | 1.2" |
| Image field diagonal (max) | 21.5 mm |
| Suitable for camera resolution | 29.1 MPixel |
| Recommended pixel size | 2.78 µm |
| Aperture | variable |
| Lens mount | C-Mount |
| Filter thread, object-side | M26 x 0.5 (depth 2.7 mm) |
| Weight | 230 g |
| Usable object field with: | |
| • Sensor type 4/3 (17.3 x 13.0 mm²) | 10 mm x 7.5 mm |
| • 1" sensor (12.8 x 9.6 mm²) | 7.4 mm x 5.6 mm |
| • 2/3" sensor (8.8 x 6.6 mm²) | 5.1 mm x 3.8 mm |
Drawings
Dimensional drawing in mm
Can be combined with
Accessories for Lighting - T51/1.7
| Order number | Title | Description |
|---|---|---|
| Lens mount | ||
| 2-90-122 | Lens Holder d32 | Holder for telecentric lenses and lightings with d = 32 mm |
| Extension tubes | ||
| 2-90-415 | Extension ring 0.5 mm | 26 x 31 x 0.5 reduces the minimum object distance (MOD) |
| 2-90-416 | Extension ring 1.0 mm | 26 x 31 x 1.0 reduces the minimum object distance (MOD) |
| Lens adapter c-mount | ||
| 2-90-414 | CS to C-mount adapter 5.0 mm | for connecting C-mount lenses with CS-mount cameras, length: 5 mm |
| Daylight blocking filter | ||
| 2-91-133 | IR filter M26x0.5 | long-pass filter from 830 nm, daylight absorbing filter, filter thread M26x0.5 |
| UV Cut-Off Filter | ||
| 2-91-123 | UV blocking filter M26x0.5 | long-pass filter from 350 nm, usable as protective glass, filter thread M26x0.5 |
| Deflection mirrow 90° series | ||
| 2-25-113 | Deflection mirror 90-32 | 90° deflection, attachment for telecentric lenses and lightings with d = 32 mm |
| Adapters for attaching lights to lenses | ||
| 1-29-152 | Adapter ring d14 - M26x0.5 | for RK613, for attachment to lenses with filter thread M26x0.5 |
| 1-33-026 | Adapter ring d20.4 - M26x0.5 | for R-CLR-38x20, for attachment to lenses with filter thread M26x0.5 |
| 1-10-007 | Adapter ring d27 - M26x0.5 | for RK1220, for attachment to lenses with filter thread M26x0.5 |
| 1-29-673 | Adapter ring d41 - M26x0.5 | for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M26x0.5 |
| Beam splitter STE30x30 | ||
| 1-18-022 | Adapter STE30x30 - TZO32 | Attachment of the STE30x30 to telecentric lenses and lightings with d = 32 mm |
