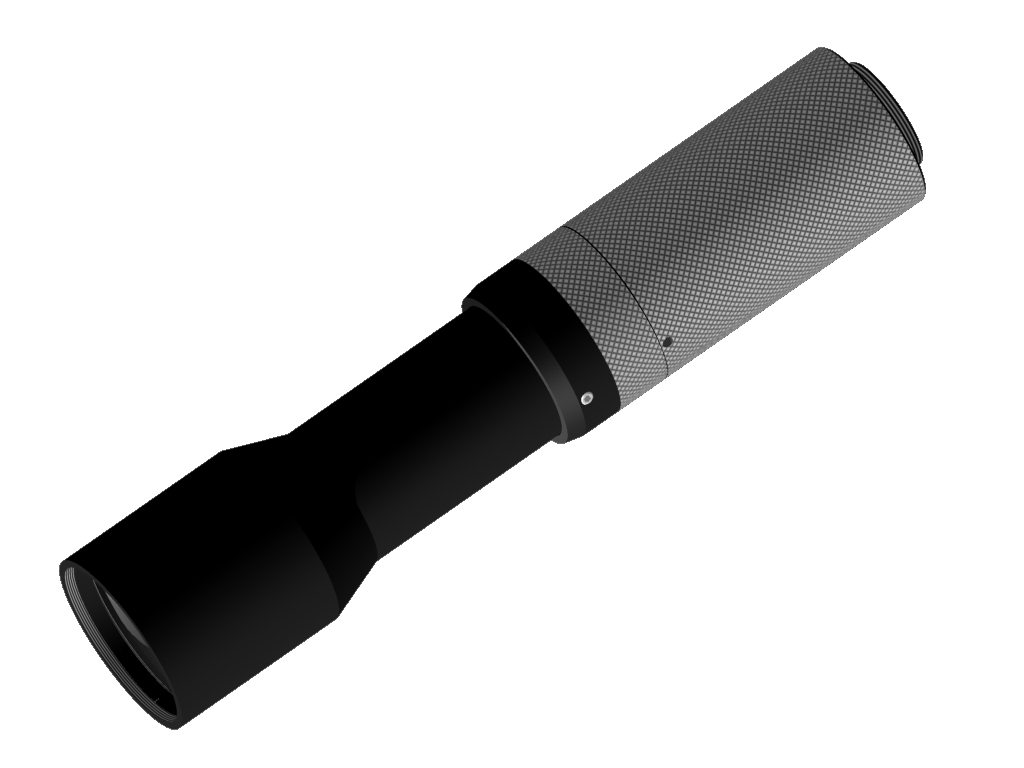

vicotar® Telecentric Lens - T107/0.83
Characteristics
- telecentric measurement objective with object-sided telecentric beam path
- high-quality imaging
- color-optimized and bright
- adjustable aperture, arrestable
- robust industrial design
Technical data
| Image scale | 0.832 |
| Spectral range | 380 nm - 900 nm |
| Working distance | 100.0 mm |
| Camera distance (object-camera flange) | 293.8 mm |
| Object field diagonal (max) | 25.6 mm |
| Sensor format (max) | 1.2" |
| Image field diagonal (max) | 21.5 mm |
| Suitable for camera resolution | 18.9 MPixel |
| Recommended pixel size | 3.45 µm |
| Aperture | variable |
| Lens mount | C-Mount |
| Filter thread, object-side | M39 x 0.5 (depth 2.1 mm) |
| Weight | 332 g |
| Usable object field with: | |
| • Sensor type 4/3 (17.3 x 13.0 mm²) | 20.8 mm x 15.6 mm |
| • 1" sensor (12.8 x 9.6 mm²) | 15.4 mm x 11.5 mm |
| • 2/3" sensor (8.8 x 6.6 mm²) | 10.6 mm x 7.9 mm |
Drawings
Dimensional drawing in mm
