vicolux® Telecentric Light - TZB38-IR850-P-SL
Characteristics
- flashable telecentric LED lighting - parallel (collimated) beam path
- for flashing during inspection of moving objects
- for optical measurement technology for the targeted highlighting of edges and surface structures in transmitted and incident light;
for the detection of inclusions and defects in transparent materials such as gemstones - ideal as backlight in combination with telecentric lenses
- low divergence, high light output
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: M8 plug on the casing
- diverse attachment options and extensive accessories
for the detection of inclusions and defects in transparent materials such as gemstones
Technical data
| Light-emitting surface | Diameter: 38 mm |
| Light design | Telecentric |
| Light colour (typ.) | Infrared, 850 nm |
| Special feature | Flashable with flash controller |
| Continuous operation | |
| • Power consumption | max. 2.4 W |
| • Irradiance 1 | 31 W/m² |
| • Illuminance 1 | - |
| • Radiance 2 | 76.1 kW/m²sr |
| • luminance 2 | - |
| Flash mode | |
| • Power consumption | max. 16.8 W |
| • Irradiance 1 | 125 W/m² |
| • Illuminance 1 | - |
| • Radiance 3 | 308.7 kW/m²sr |
| • luminance 3 | - |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Filter thread | - |
| Weight | 280 g |
| Degree of protection | IP 50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Continuous operation: Risk group 0 (exempt group) Flash mode: Risk group 0 (exempt group) |
| Ambient temperature | 0 °C … 45 °C |
| 1 | bei 200 mm Arbeitsabstand |
| 2 | bei 11 mrad |
| 3 | bei 1.7 mrad |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings

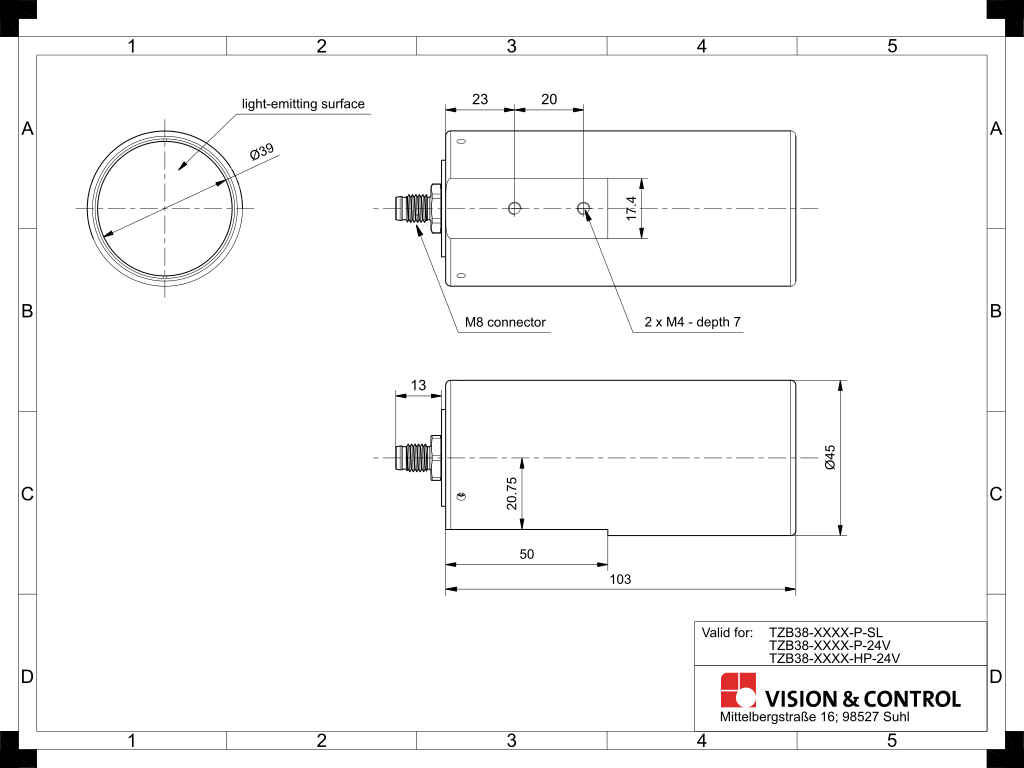

Dimensional drawing in mm
Pin assignment: M8 connector
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TO30 blue vision series | ||
| 2-05-547 | TO30/4.3-100-V-BW | Telecentric Lens, C-mount, sensor opt. 1/4", aperture F8 - F22, blue |
| 2-05-551 | TO30/4.3-100-F8-BW-RF | Telecentric Lens, C-mount, sensor opt. 1/4", aperture F8, vibration-proof, blue |
| 2-05-555 | TO30/4.3-100-F14-BW-RF | Telecentric Lens, C-mount, sensor opt. 1/4", aperture F14, vibration-proof, blue |
| 2-05-548 | TO30/6.0-100-V-BW | Telecentric Lens, C-mount, sensor opt. 1/3", aperture F8 - F22, blue |
| 2-05-552 | TO30/6.0-100-F10-BW-RF | Telecentric Lens, C-mount, sensor opt. 1/3", aperture F8, vibration-proof, blue |
| 2-05-556 | TO30/6.0-100-F14-BW-RF | Telecentric Lens, C-mount, sensor opt. 1/3", aperture F14, vibration-proof, blue |
| 2-05-549 | TO30/9.1-85-V-BW | Telecentric Lens, C-mount, sensor opt. 1/1.8", aperture F10 - F22, blue |
| 2-05-553 | TO30/9.1-85-F10-BW-RF | Telecentric Lens, C-mount, sensor opt. 1/1.8", aperture F10, vibration-proof, blue |
| 2-05-557 | TO30/9.1-85-F14-BW-RF | Telecentric Lens, C-mount, sensor opt. 1/1.8", aperture F14, vibration-proof, blue |
| 2-05-550 | TO30/11.1-80-V-BW | Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10 - F22, blue |
| 2-05-554 | TO30/11.1-80-F10-BW-RF | Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, vibration-proof, blue |
| 2-05-558 | TO30/11.1-80-F14-BW-RF | Telecentric Lens, C-mount, sensor opt. 2/3", aperture F14, vibration-proof, blue |
| LED Controller DLC3005 | ||
| 1-30-202 | DLC3005 | LED lighting controller, digital, cont./flash current: 4.8A/18A, wall mounting |
| 1-30-209 | DLC3005-R | LED lighting controller, digital, cont./flash current: 4.8A/18A, DIN rail mounting |
Accessories for Lighting - TZB38-IR850-P-SL
| Order number | Title | Description |
|---|---|---|
| Lens mount | ||
| 2-91-331 | Mounting angle | Holder for telecentric lenses and lightings with with threaded hole M5 |
| 2-91-332 | Mounting angle SH | Holder for telecentric lenses and lightings with with slotted hole for M4-M6 |
| 2-90-139 | Lens Holder d45 | Holder for telecentric lenses and lightings with d = 45 mm |
| 2-91-330 | Lens Holder d45 wide | Holder for telecentric lenses and lightings with d = 45 mm, width = 32 mm |
| Polarising filters | ||
| 2-91-220 | Pole filter M40.5x0.5 | linear polarizing filter, range 420 nm - 780 nm, filter thread M40.5x0.5 |
| Filter adapter | ||
| 2-91-189 | Filter adapter d45-M40.5 | slip-on adapter for use of a M40.5x0.5 filter on lenses with 45 mm clamping diameter |
| Deflection mirrow 90° series | ||
| 2-25-128 | Deflection mirror 90-45 | 90° deflection, attachment for telecentric lenses and lightings with d = 45 mm |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
