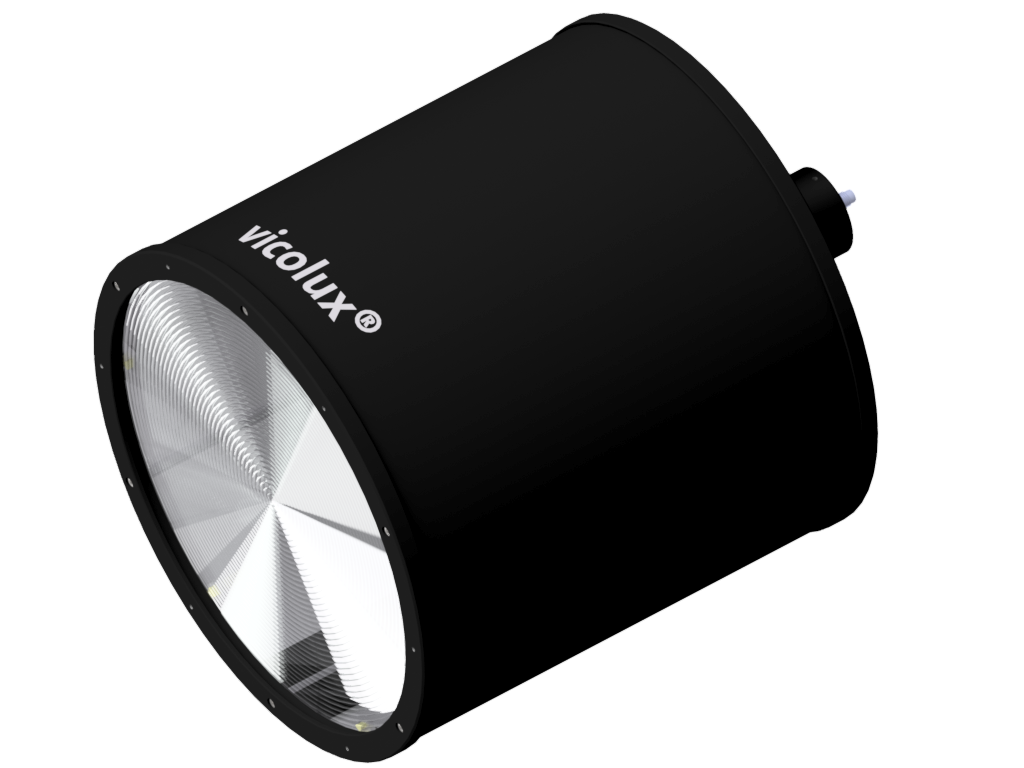

vicolux® Telecentric Light - TZB235-F300-IR850-P-SL
Characteristics
- flashable telecentric LED lighting - parallel (collimated) beam path
- for flashing during inspection of moving objects
- for optical measurement technology for the targeted highlighting of edges and surface structures in transmitted and incident light;
for the detection of inclusions and defects in transparent materials such as gemstones - ideal as backlight in combination with telecentric lenses
- low divergence, high light output
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: M8 plug on the casing
- diverse attachment options and extensive accessories
for the detection of inclusions and defects in transparent materials such as gemstones
Technical data
| Light-emitting surface | Diameter: 235 mm |
| Light design | Telecentric |
| Light colour (typ.) | Infrarot, IR850 |
| Special feature | Flashable with flash controller |
| Housing material | Aluminium, black anodised |
| Optical material | Plastic (Fresnel lens) and glass |
| Weight | 4289 g |
| Degree of protection | IP 50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | 0 °C … 45 °C |
| 1 | at a working distance of 200 mm |
| 2 | at 11 mrad |
| 3 | bei 1.7 mrad |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment: M8 connector
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TL250 series | ||
| 2-06-220 | TL230/15.6-250-V-B-LW | Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for blue |
| 2-06-221 | TL230/15.6-250-V-R-LW | Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for red |
| 2-06-222 | TL230/15.6-250-V-N-LW | Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for near IR |
| LED Controller DLC3005 | ||
| 1-30-202 | DLC3005 | LED lighting controller, digital, cont./flash current: 4.8A/18A, wall mounting |
| 1-30-209 | DLC3005-R | LED lighting controller, digital, cont./flash current: 4.8A/18A, DIN rail mounting |
Accessories for Lighting - TZB235-F300-IR850-P-SL
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
