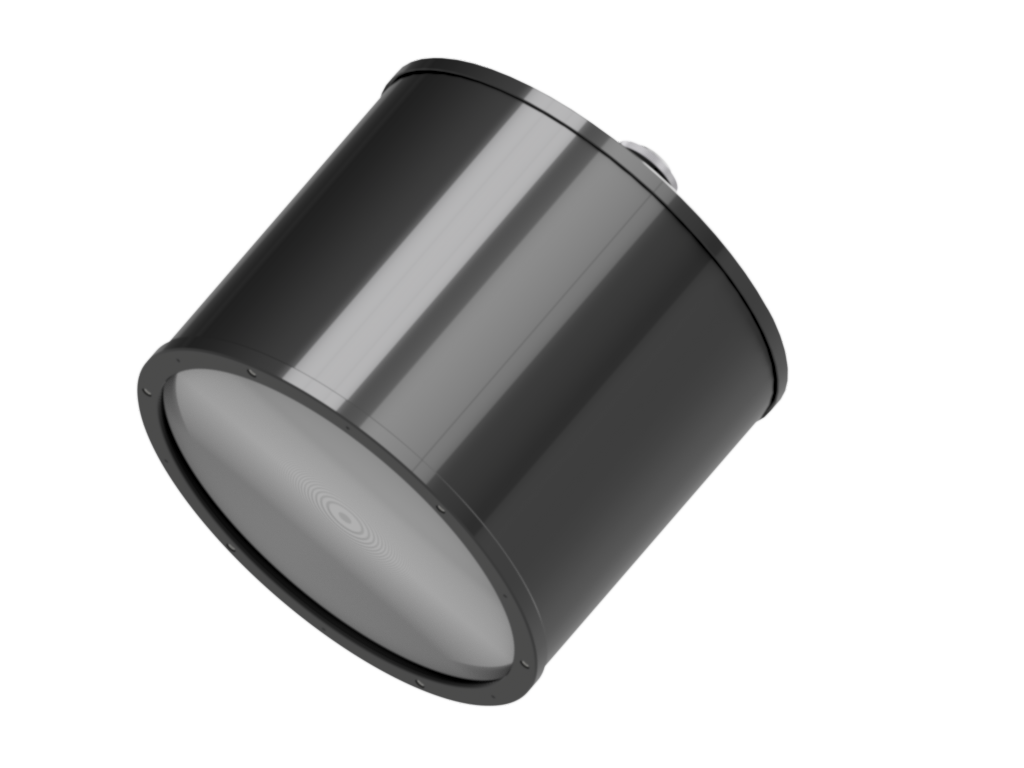

vicotar® Telecentric Lens - TL230/15.6-250-V-B-LW

TL230/15.6-250-V-B-LW
Short description:

Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for blue

Order number:
2-06-220
Notice:
Also available for other colors on request.
Downloads:
Instructions
STP-File download
Characteristics

  • telecentric lens with extremely large object field for C-mount cameras
  • low-distortion, low telecentric error
  • lightweight thanks to Fresnel technology
  • Designed for monochromatic applications
  • adjustable aperture, arrestable
  • working distance adjustable to customer requirements
  • especially suited for component inspection
  • internal filter for false light suppression installed by the manufacturer
  • protective glass available as an accessory
  • robust industrial design

Technical data
Image scale0.068
Spectral range450 nm - 490 nm,
(monochromatic)
Working distance250 mm
Camera distance (object-camera flange)514 mm
Object field diagonal (max.)230 mm
Sensor format (opt.)1"
Image field diagonal (max.)15.6 mm
Suitable for camera resolution10.3 MPixel
Recommended pixel size3.45 µm
Aperturevariable
Depth of focus104 mm @ F16
Lens mountC-Mount
Weight4280 g
Usable object field with:
• 1" sensor (12.8 x 9.6 mm²)188.2 mm x 141.2 mm
• 2/3" sensor (8.8 x 6.6 mm²)129.4 mm x 97.1 mm
• 1/1.8" sensor (7.1 x 5.4 mm²)104.4 mm x 79.4 mm
• 1/2" sensor (6.4 x 4.8 mm²)94.1 mm x 70.6 mm
Notices
The lightings combination products shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Dimensional drawing in mm

Can be combined with

Order number Title Description
SLE-150-P-SL series
1-33-300 SLE-150-B460-P-SL compact spot light, blue, P-LED, variable work distance, condenser lens, smart light
SLE-150-P-24V series
1-33-310 SLE-150-B450-P-24V compact spot light, blue, P-LED, variable work distance, condenser l., 24V, switchable

Accessories for Lighting - TL230/15.6-250-V-B-LW

Order number Title Description
Extension tubes
2-90-415 Extension ring 0.5 mm 26 x 31 x 0.5 reduces the minimum object distance (MOD)
2-90-416 Extension ring 1.0 mm 26 x 31 x 1.0 reduces the minimum object distance (MOD)
2-90-419 Extension ring 0.1 mm 25.5 x 29 x 0.1 reduces the minimum object distance (MOD)
2-90-420 Extension ring 0.2 mm 25.5 x 29 x 0.2 reduces the minimum object distance (MOD)
Thread adapter c-mount
5-00-011 Thread adapter C-Mount-M42 Adapter for mounting of lenses with C-mount on cameras with M42x1 mount
2-90-414 CS to C-mount adapter 5.0 mm for connecting C-mount lenses with CS-mount cameras, length: 5 mm
