vicotar® Telecentric Lens - T201/0.19
Characteristics
- telecentric measurement objective with object-sided telecentric beam path
- low-distortion, low telecentric error
- color-optimized and bright
- adjustable aperture, arrestable
- robust industrial design
Technical data
| Image scale | 0.194 |
| Spectral range | 380 nm - 900 nm |
| Working distance | 143.0 mm |
| Camera distance (object-camera flange) | 394.9 mm |
| Object field diagonal (max) | 56.7 mm |
| Sensor format (max) | 2/3" |
| Image field diagonal (max) | 11 mm |
| Suitable for camera resolution | 9.3 MPixel |
| Recommended pixel size | 2.5 µm |
| Aperture | variable |
| Lens mount | C-Mount |
| Filter thread, object-side | M67 x 0.75 (depth 6.5 mm) |
| Weight | 1047 g |
| Usable object field with: | |
| • 2/3" sensor (8.8 x 6.6 mm²) | 45.4 mm x 34 mm |
| • 1/1.8" sensor (7.1 x 5.4 mm²) | 36.6 mm x 27.8 mm |
| • 1/2" sensor (6.4 x 4.8 mm²) | 33 mm x 24.7 mm |
| • 1/3" sensor (4.8 x 3.6 mm²) | 24.7 mm x 18.6 mm |
Drawings

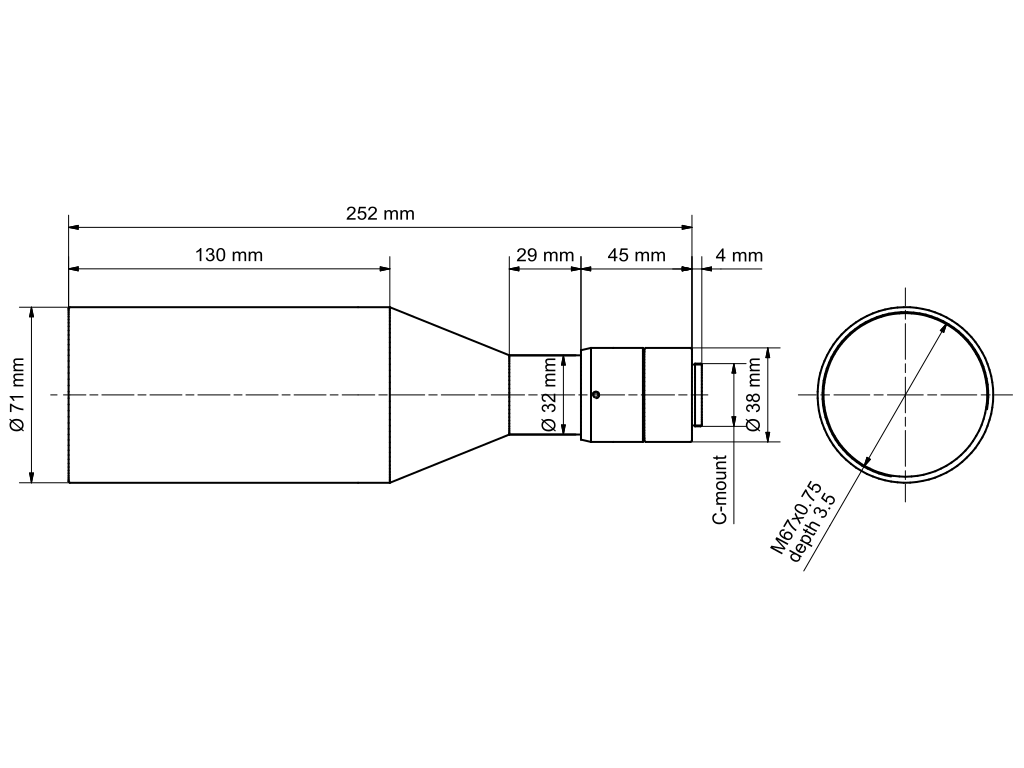

Dimensional drawing in mm
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TZB60-UDC-a Serie | ||
| 1-10-946 | TZB60-B470/UDC/-a | telecentric light, blue, lf diameter: 60 mm, flashable by flash controller |
| 1-10-947 | TZB60-W5K7/UDC/-a | telecentric light, white, lf diameter: 60 mm, flashable by flash controller |
| 1-10-948 | TZB60-IR880/UDC/-a | telecentric light, IR850, lf diameter: 60 mm, flashable by flash controller |
| 1-10-945 | TZB60-R625/UDC/-a | telecentric light, red, lf diameter: 60 mm, flashable by flash controller |
| 1-10-949 | TZB60-G525/UDC/-a | telecentric light, green, lf diameter: 60 mm, flashable by flash controller |
| TZB60 series | ||
| 1-10-174 | TZB60-B470-24V | telecentric light, blue, lf diameter: 60 mm, static, cable open-ended |
| 1-10-176 | TZB60-W5K7-24V | telecentric light, white, lf diameter: 60 mm, static, cable open-ended |
| 1-10-178 | TZB60-IR880-24V | telecentric light, IR850, lf diameter: 60 mm, static, cable open-ended |
| 1-10-170 | TZB60-R625-24V | telecentric light, red, lf diameter: 60 mm, static, cable open-ended |
| 1-10-172 | TZB60-G525-24V | telecentric light, green, lf diameter: 60 mm, static, cable open-ended |
| Beam splitter STE60x60 | ||
| 1-20-050 | STE60x60-VIS | Beam splitter unit for coaxial light system, optimized for 450-700 nm |
| 1-20-021 | Adapter STE60x60 - TZO71 | Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm |
Accessories for Lighting - T201/0.19
| Order number | Title | Description |
|---|---|---|
| Lens mount | ||
| 2-90-125 | Lens Holder d32-30 | Holder for telecentric lenses and lightings with d = 32 mm, with 30 mm extn. |
| Extension tubes | ||
| 2-90-415 | Extension ring 0.5 mm | 26 x 31 x 0.5 reduces the minimum object distance (MOD) |
| 2-90-416 | Extension ring 1.0 mm | 26 x 31 x 1.0 reduces the minimum object distance (MOD) |
| Lens adapter c-mount | ||
| 2-90-414 | CS to C-mount adapter 5.0 mm | for connecting C-mount lenses with CS-mount cameras, length: 5 mm |
| Neutral density filter | ||
| 2-91-175 | ND filter 3.0 M67x0.75 | optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M67x0.75 |
| 2-91-165 | ND filter 1.2 M67x0.75 | optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M67x0.75 |
| 2-91-155 | ND filter 0.6 M67x0.75 | optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M67x0.75 |
| Daylight blocking filter | ||
| 2-91-131 | IR filter M20.5x0.5 | long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5 |
| 2-91-135 | IR filter M67x0.75 | long-pass filter from 830 nm, daylight absorbing filter, filter thread M67x0.75 |
| Polarising filters | ||
| 2-91-145 | Pole filter M67x0.75 | linear polarizing filter, range 420 nm - 780 nm, filter thread M67x0.75 |
| Colour filter blue | ||
| 2-91-291 | Colour filter blue M67x0.75 | band-pass filter, range 350 nm - 600 nm, filter thread M67x0.75 |
| UV Cut-Off Filter | ||
| 2-91-125 | UV blocking filter M67x0.75 | long-pass filter from 350 nm, usable as protective glass, filter thread M67x0.75 |
| Colour filter red | ||
| 2-91-259 | Colour filter red M20.5x0.5 | long-pass filter from 630 nm, red, filter thread M20.5x0.5 |
| 2-91-263 | Colour filter red M67x0.75 | long-pass filter from 630 nm, red, filter thread M67x0.75 |
| Colour filter green | ||
| 2-91-304 | Colour filter green M67x0.75 | band-pass filter, range 430 nm - 620 nm, filter thread M67x0.75 |
| Colour filter yellow | ||
| 2-91-278 | Colour filter yellow M67x0.75 | long-pass filter from 530 nm, yellow, filter thread M67x0.75 |
| Deflection mirrow 90° series | ||
| 2-25-124 | Deflection mirror 90-71 | 90° deflection, attachment for telecentric lenses and lightings with d = 71 mm |
| Adapters for attaching lights to lenses | ||
| 1-29-677 | Adapter ring d41 - M67x0.75 | for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M67x0.75 |
| 1-29-773 | Adapter ring d73 - M67x0.75 | for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M67x0.75 |
| 1-29-871 | Adapter ring d104 - M67x0.75 | for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M67x0.75 |
| Beam splitter STE60x60 | ||
| 1-20-021 | Adapter STE60x60 - TZO71 | Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm |
