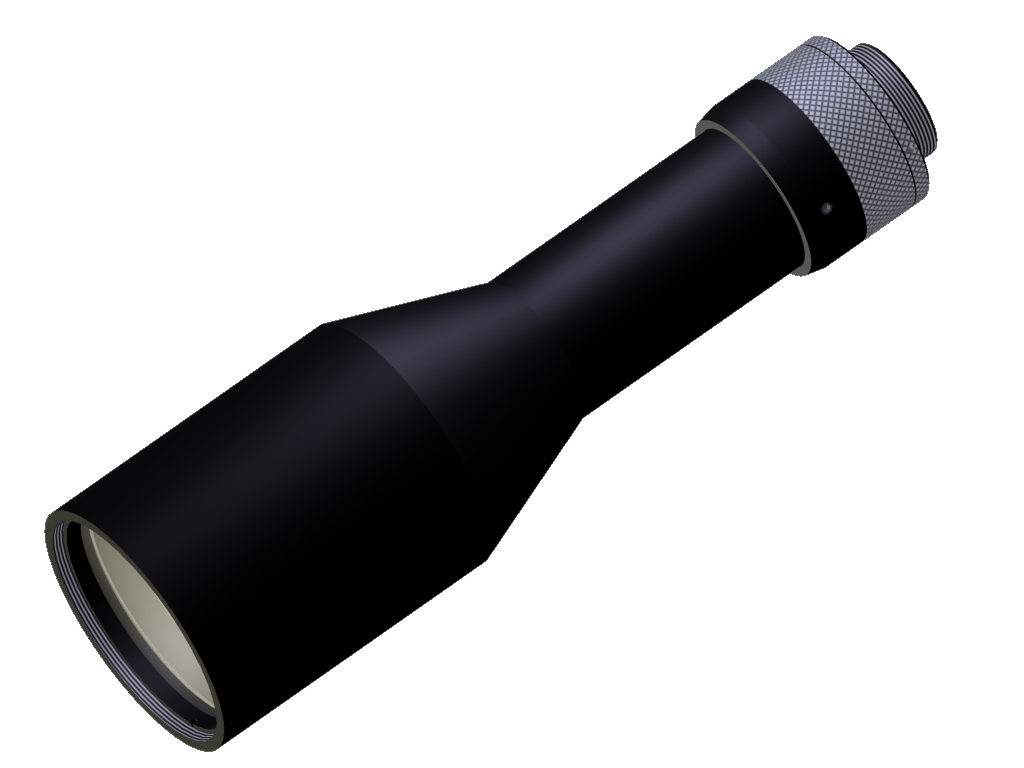

vicotar® Telecentric Lens - T150/0.14
Characteristics
- telecentric measurement objective with object-sided telecentric beam path
- high-quality imaging
- color-optimized and bright
- adjustable aperture, arrestable
- robust industrial design
Technical data
| Image scale | 0.14 |
| Spectral range | 380 nm - 900 nm |
| Working distance | 71.0 mm |
| Camera distance (object-camera flange) | 253.5 mm |
| Object field diagonal (max) | 42.8 mm |
| Sensor format (max) | 1/3" |
| Image field diagonal (max) | 6 mm |
| Suitable for camera resolution | 5 MPixel |
| Recommended pixel size | 1.85 µm |
| Aperture | variable |
| Lens mount | C-Mount |
| Filter thread, object-side | M52 x 0.75 (Tiefe 2.6 mm) |
| Weight | 370 g |
| Usable object field with: | |
| • 1/3" sensor (4.8 x 3.6 mm²) | 34.3 mm x 25.7 mm |
| • 1/4" sensor (3.4 x 2.2 mm²) | 24.3 mm x 15.7 mm |
Drawings
Dimensional drawing in mm
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TZB51-UDC-a Serie | ||
| 1-10-941 | TZB51-B470/UDC/-a | telecentric light, blue, lf diameter: 49 mm, flashable by flash controller |
| 1-10-942 | TZB51-W5K7/UDC/-a | telecentric light, white, lf diameter: 49 mm, flashable by flash controller |
| 1-10-943 | TZB51-IR880/UDC/-a | telecentric light, IR850, lf diameter: 49 mm, flashable by flash controller |
| 1-10-940 | TZB51-R625/UDC/-a | telecentric light, red, lf diameter: 49 mm, flashable by flash controller |
| 1-10-944 | TZB51-G525/UDC/-a | telecentric light, green, lf diameter: 49 mm, flashable by flash controller |
| TZB51 series | ||
| 1-10-201 | TZB51-B470-24V | telecentric light, blue, lf diameter: 49 mm, static, cable open-ended |
| 1-10-198 | TZB51-W5K7-24V | telecentric light, white, lf diameter: 49 mm, static, cable open-ended |
| 1-10-202 | TZB51-IR880-24V | telecentric light, IR850, lf diameter: 49 mm, static, cable open-ended |
| 1-10-200 | TZB51-R625-24V | telecentric light, red, lf diameter: 49 mm, static, cable open-ended |
| 1-10-215 | TZB51-G525-24V | telecentric light, green, lf diameter: 49 mm, static, cable open-ended |
| Beam splitter STE60x60 | ||
| 1-20-050 | STE60x60-VIS | Beam splitter unit for coaxial light system, optimized for 450-700 nm |
| 1-20-022 | Adapter STE60x60 - TZO56 | Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm |
Accessories for Lighting - T150/0.14
| Order number | Title | Description |
|---|---|---|
| Lens mount | ||
| 2-90-125 | Lens Holder d32-30 | Holder for telecentric lenses and lightings with d = 32 mm, with 30 mm extn. |
| Extension tubes | ||
| 2-90-415 | Extension ring 0.5 mm | 26 x 31 x 0.5 reduces the minimum object distance (MOD) |
| 2-90-416 | Extension ring 1.0 mm | 26 x 31 x 1.0 reduces the minimum object distance (MOD) |
| Lens adapter c-mount | ||
| 2-90-414 | CS to C-mount adapter 5.0 mm | for connecting C-mount lenses with CS-mount cameras, length: 5 mm |
| Neutral density filter | ||
| 2-91-174 | ND filter 3.0 M52x0.75 | optical density 3.0 - 0.1% transmission, f-stop reduction 10, filter thread M52x0.75 |
| 2-91-164 | ND filter 1.2 M52x0.75 | optical density 1.2 - 6.3% transmission, f-stop reduction 4, filter thread M52x0.75 |
| 2-91-154 | ND filter 0.6 M52x0.75 | optical density 0.6 - 25% transmission, f-stop reduction 2, filter thread M52x0.75 |
| Daylight blocking filter | ||
| 2-91-131 | IR filter M20.5x0.5 | long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5 |
| 2-91-134 | IR filter M52x0.75 | long-pass filter from 830 nm, daylight absorbing filter, filter thread M52x0.75 |
| Polarising filters | ||
| 2-91-144 | Pole filter M52x0.75 | linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75 |
| Colour filter blue | ||
| 2-91-290 | Colour filter blue M52x0.75 | band-pass filter, range 350 nm - 600 nm, filter thread M52x0.75 |
| UV Cut-Off Filter | ||
| 2-91-124 | UV blocking filter M52x0.75 | long-pass filter from 350 nm, usable as protective glass, filter thread M52x0.75 |
| Colour filter red | ||
| 2-91-259 | Colour filter red M20.5x0.5 | long-pass filter from 630 nm, red, filter thread M20.5x0.5 |
| 2-91-262 | Colour filter red M52x0.75 | long-pass filter from 630 nm, red, filter thread M52x0.75 |
| Colour filter green | ||
| 2-91-303 | Colour filter green M52x0.75 | band-pass filter, range 430 nm - 620 nm, filter thread M52x0.75 |
| Colour filter yellow | ||
| 2-91-277 | Colour filter yellow M52x0.75 | long-pass filter from 530 nm, yellow, filter thread M52x0.75 |
| Deflection mirrow 90° series | ||
| 2-25-115 | Deflection mirror 90-56 | 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm |
| Adapters for attaching lights to lenses | ||
| 1-29-676 | Adapter ring d41 - M52x0.75 | for R-CLR-69x41 and RK2036, for attachment to lenses with filter thread M52x0.75 |
| 1-29-772 | Adapter ring d73 - M52x0.75 | for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M52x0.75 |
| 1-29-870 | Adapter ring d104 - M52x0.75 | for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M52x0.75 |
| Beam splitter STE60x60 | ||
| 1-20-022 | Adapter STE60x60 - TZO56 | Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm |
