Title:
Short description:
Telecentric light, IR, LF diameter: 235 mm, P-LED, smart light, meas.
Order number:
1-33-670
Downloads:
Show details
Characteristics
- flashable telecentric LED lighting - parallel (collimated) beam path
- for flashing during inspection of moving objects
- for optical measurement technology for the targeted highlighting of edges and surface structures in transmitted and incident light;
for the detection of inclusions and defects in transparent materials such as gemstones - ideal as backlight in combination with telecentric lenses
- low divergence, high light output
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: M8 plug on the casing
- diverse attachment options and extensive accessories
Technical data
| Light-emitting surface | Diameter: 235 mm |
| Light design | Telecentric |
| Light colour (typ.) | Infrarot, IR850 |
| Special feature | Flashable with flash controller |
| Housing material | Aluminium, black anodised |
| Optical material | Plastic (Fresnel lens) and glass |
| Weight | 3985 g |
| Degree of protection | IP 50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | 0 °C … 45 °C |
| 1 | at a working distance of 200 mm |
| 2 | at 11 mrad |
| 3 | bei 1.7 mrad |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings

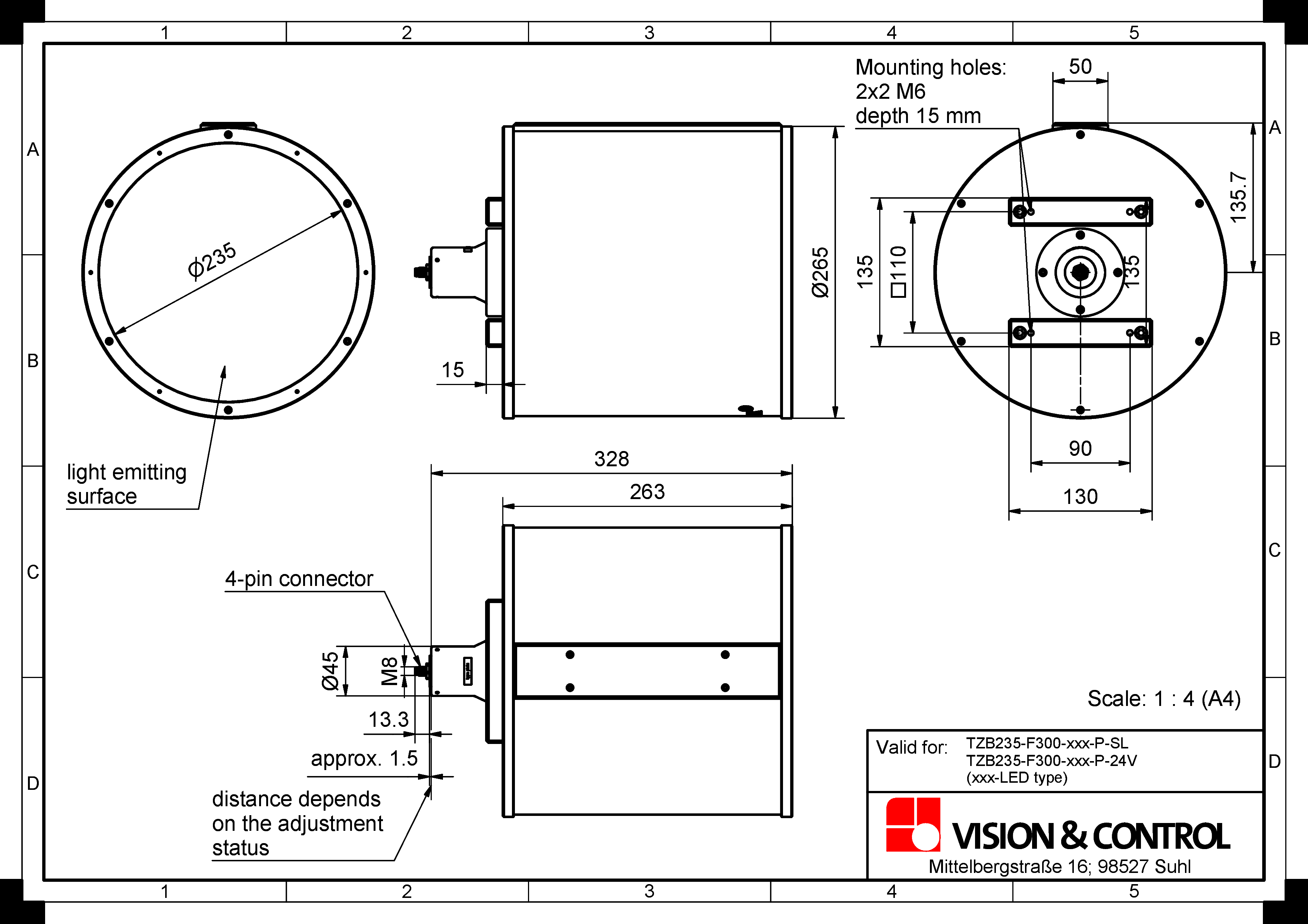

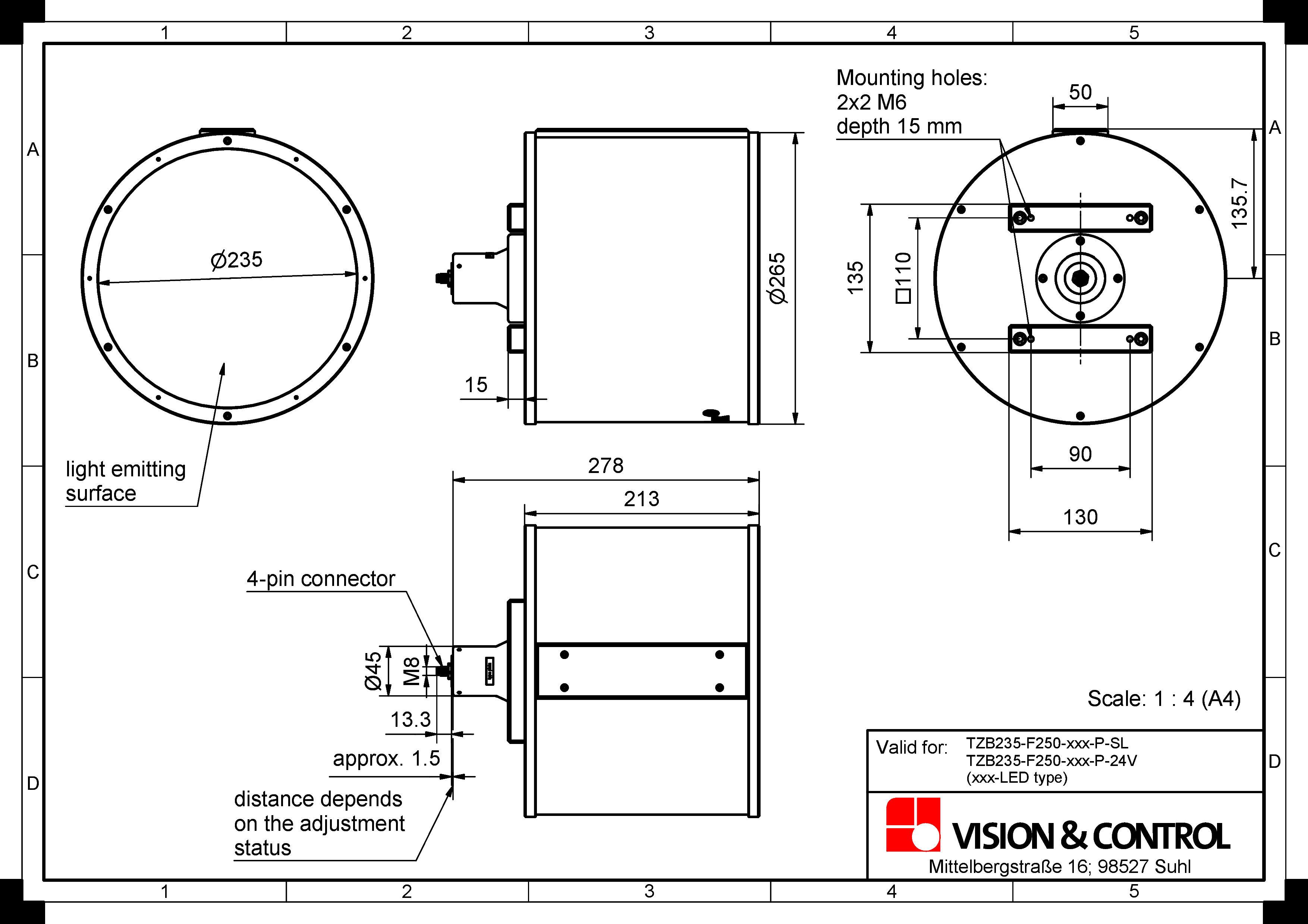

Dimensional drawing in mm
Pin assignment: M8 connector
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TL250 series | ||
| 2-06-220 | TL230/15.6-250-V-B-LW | Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for blue |
| 2-06-221 | TL230/15.6-250-V-R-LW | Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for red |
| 2-06-222 | TL230/15.6-250-V-N-LW | Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for near IR |
| LED Controller DLC3005 | ||
| 1-30-202 | DLC3005 | LED lighting controller, digital, cont./flash current: 4.8A/18A, wall mounting |
| 1-30-209 | DLC3005-R | LED lighting controller, digital, cont./flash current: 4.8A/18A, DIN rail mounting |
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
Telecentric light, IR, LF diameter: 235 mm, P-LED, 24V, measurement
Order number:
1-33-669
Downloads:
Show details
Characteristics
- telecentric LED lighting - parallel (collimated) beam path
- specially developed for optical measurement technology;
also suitable for the targeted highlighting of edges and surface structures in transmitted light - ideal as backlight in combination with telecentric lenses
- very low divergence
- lighting controller integrated in the housing - brightness pre-set
- connection: M8 plug on the casing
- diverse attachment options and extensive accessories
Technical data
| Light-emitting surface | Diameter: 235 mm |
| Light design | Telecentric |
| Light colour (typ.) | Infrarot, IR850 |
| Operating mode | Continuous operation Switching operation |
| Operation voltage | 24 VDC (19V … 29V) |
| Housing material | Aluminium, black anodised |
| Optical material | Plastic (Fresnel lens) and glass |
| Weight | 3985 g |
| Degree of protection | IP 50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | 0 °C … 45 °C |
| 1 | at a working distance of 200 mm |
| 2 | at 11 mrad |
Drawings
Dimensional drawing in mm
Pin assignment: M8 connector
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TL250 series | ||
| 2-06-220 | TL230/15.6-250-V-B-LW | Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for blue |
| 2-06-221 | TL230/15.6-250-V-R-LW | Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for red |
| 2-06-222 | TL230/15.6-250-V-N-LW | Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for near IR |
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| Power supply | ||
| 4-40-218 | Power supply 24V-120W-5A | for DIN rail mounting, without connection cable, type: SDR-120-24 |
Title:
Short description:
Telecentric light, green, LF diameter: 235 mm, P-LED, smart light, meas.
Order number:
1-33-666
Downloads:
Show details
Characteristics
- flashable telecentric LED lighting - parallel (collimated) beam path
- for flashing during inspection of moving objects
- for optical measurement technology for the targeted highlighting of edges and surface structures in transmitted and incident light;
for the detection of inclusions and defects in transparent materials such as gemstones - ideal as backlight in combination with telecentric lenses
- low divergence, high light output
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: M8 plug on the casing
- diverse attachment options and extensive accessories
Technical data
| Light-emitting surface | Diameter: 235 mm |
| Light design | Telecentric |
| Light colour (typ.) | Green, G520 |
| Special feature | Flashable with flash controller |
| Housing material | Aluminium, black anodised |
| Optical material | Plastic (Fresnel lens) and glass |
| Weight | 3985 g |
| Degree of protection | IP 50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | 0 °C … 45 °C |
| 1 | at a working distance of 200 mm |
| 2 | at 11 mrad |
| 3 | bei 1.7 mrad |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment: M8 connector
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TL250 series | ||
| 2-06-220 | TL230/15.6-250-V-B-LW | Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for blue |
| 2-06-221 | TL230/15.6-250-V-R-LW | Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for red |
| 2-06-222 | TL230/15.6-250-V-N-LW | Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for near IR |
| LED Controller DLC3005 | ||
| 1-30-202 | DLC3005 | LED lighting controller, digital, cont./flash current: 4.8A/18A, wall mounting |
| 1-30-209 | DLC3005-R | LED lighting controller, digital, cont./flash current: 4.8A/18A, DIN rail mounting |
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
Telecentric light, IR, LF diameter: 235 mm, P-LED, smart light, meas.
Order number:
1-33-662
Downloads:
Show details
Characteristics
- flashable telecentric LED lighting - parallel (collimated) beam path
- for flashing during inspection of moving objects
- for optical measurement technology for the targeted highlighting of edges and surface structures in transmitted and incident light;
for the detection of inclusions and defects in transparent materials such as gemstones - ideal as backlight in combination with telecentric lenses
- low divergence, high light output
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: M8 plug on the casing
- diverse attachment options and extensive accessories
Technical data
| Light-emitting surface | Diameter: 235 mm |
| Light design | Telecentric |
| Light colour (typ.) | Infrarot, IR850 |
| Special feature | Flashable with flash controller |
| Housing material | Aluminium, black anodised |
| Optical material | Plastic (Fresnel lens) and glass |
| Weight | 4289 g |
| Degree of protection | IP 50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | 0 °C … 45 °C |
| 1 | at a working distance of 200 mm |
| 2 | at 11 mrad |
| 3 | bei 1.7 mrad |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment: M8 connector
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TL250 series | ||
| 2-06-220 | TL230/15.6-250-V-B-LW | Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for blue |
| 2-06-221 | TL230/15.6-250-V-R-LW | Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for red |
| 2-06-222 | TL230/15.6-250-V-N-LW | Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for near IR |
| LED Controller DLC3005 | ||
| 1-30-202 | DLC3005 | LED lighting controller, digital, cont./flash current: 4.8A/18A, wall mounting |
| 1-30-209 | DLC3005-R | LED lighting controller, digital, cont./flash current: 4.8A/18A, DIN rail mounting |
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
Telecentric light, red, LF diameter: 235 mm, P-LED, 24V, measurement
Order number:
1-33-659
Downloads:
Show details
Characteristics
- telecentric LED lighting - parallel (collimated) beam path
- specially developed for optical measurement technology;
also suitable for the targeted highlighting of edges and surface structures in transmitted light - ideal as backlight in combination with telecentric lenses
- very low divergence
- lighting controller integrated in the housing - brightness pre-set
- connection: M8 plug on the casing
- diverse attachment options and extensive accessories
Technical data
| Light-emitting surface | Diameter: 235 mm |
| Light design | Telecentric |
| Light colour (typ.) | Red, R630 |
| Operating mode | Continuous operation Switching operation |
| Operation voltage | 24 VDC (19V … 29V) |
| Housing material | Aluminium, black anodised |
| Optical material | Plastic (Fresnel lens) and glass |
| Weight | 4289 g |
| Degree of protection | IP 50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | 0 °C … 45 °C |
| 1 | at a working distance of 200 mm |
| 2 | at 11 mrad |
Drawings
Dimensional drawing in mm
Pin assignment: M8 connector
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TL250 series | ||
| 2-06-220 | TL230/15.6-250-V-B-LW | Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for blue |
| 2-06-221 | TL230/15.6-250-V-R-LW | Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for red |
| 2-06-222 | TL230/15.6-250-V-N-LW | Telecentr. large field lens, C-mount, sensor opt. 1", variable aperture, for near IR |
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| Power supply | ||
| 4-40-218 | Power supply 24V-120W-5A | for DIN rail mounting, without connection cable, type: SDR-120-24 |
Title:
Short description:
Telecentric light, IR, LF diameter: 130 mm, P-LED, smart light, insp.
Order number:
1-33-647
Downloads:
Show details
Characteristics
- flashable telecentric LED lighting - parallel (collimated) beam path
- for flashing during inspection of moving objects
- for optical measurement technology for the targeted highlighting of edges and surface structures in transmitted and incident light;
for the detection of inclusions and defects in transparent materials such as gemstones - ideal as backlight in combination with telecentric lenses
- low divergence, high light output
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: M8 plug on the casing
- diverse attachment options and extensive accessories
Technical data
| Light-emitting surface | Diameter: 130 mm |
| Light design | Telecentric |
| Light colour (typ.) | Infrarot, IR850 |
| Special feature | Flashable with flash controller |
| Housing material | Aluminium, black anodised |
| Optical material | glass |
| Filter thread | M100 x 1 |
| Weight | 2990 g |
| Degree of protection | IP 50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | 0 °C … 45 °C |
| 1 | at a working distance of 200 mm |
| 2 | at 11 mrad |
| 3 | bei 1.7 mrad |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings

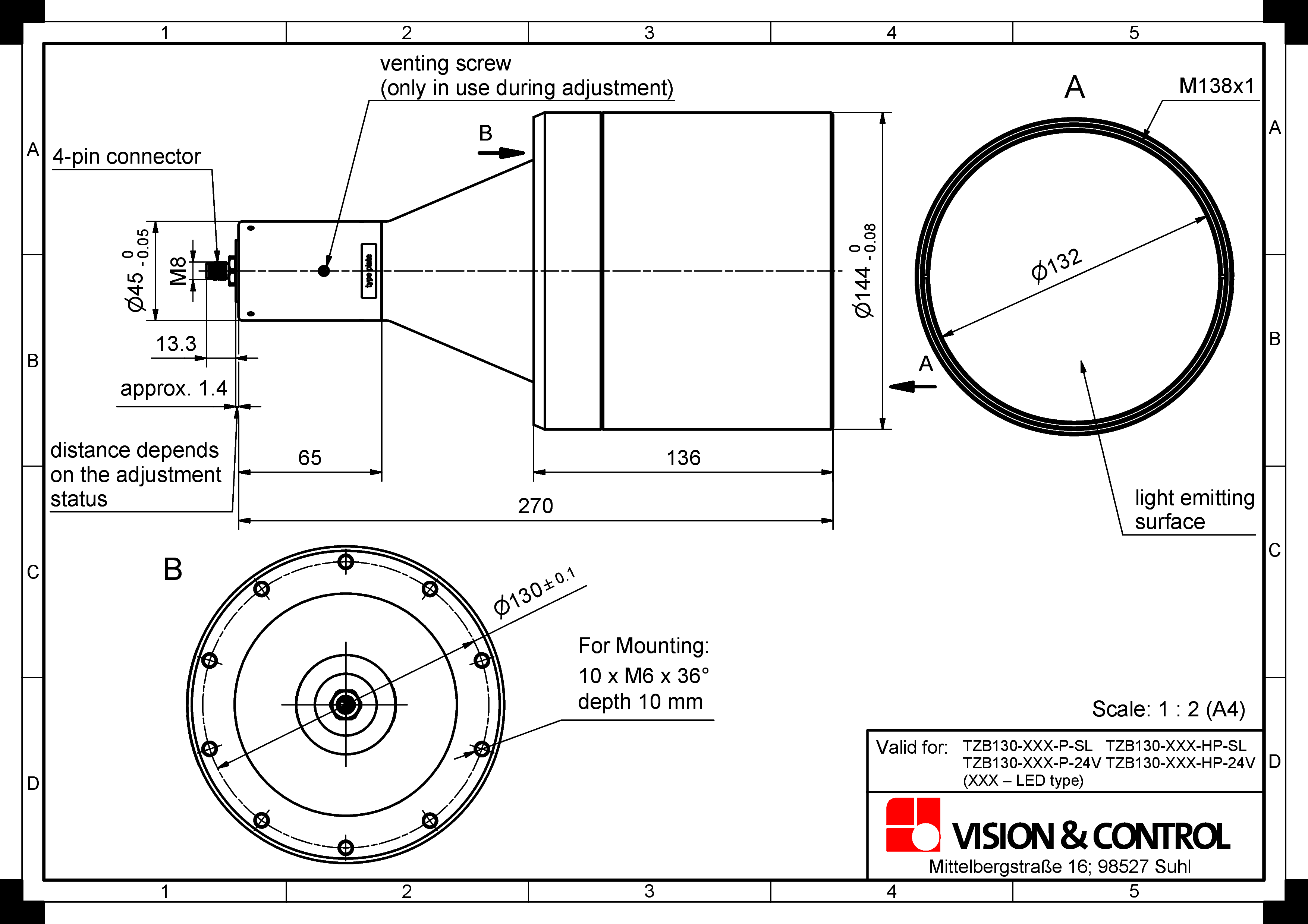

Dimensional drawing in mm
Pin assignment: M8 connector
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TO125-Serie | ||
| 2-05-850 | TO125/6.0-310-V-BW | Telecentric Lens, C-Mount, Sensor opt. 1/3", aperture F6 - F22, blue |
| 2-05-851 | TO125/9.0-220-V-BW | Telecentric Lens, C-Mount, Sensor opt. 1/1,8", aperture F6 - F22, blue |
| 2-05-852 | TO125/11.0-200-V-BW | Telecentric Lens, C-Mount, Sensor opt. 2/3", aperture F6 - F22, blue |
| 2-05-853 | TO125/16.0-190-V-BW | Telecentric Lens, C-Mount, Sensor opt. 1", aperture F6 - F22, blue |
| 2-05-854 | TO125/21.4-190-V-BW | Telecentric Lens, C-Mount, Sensor opt. Typ 4/3, aperture F8 - F22, blue |
| 2-05-855 | TO125/28.5-190-V-BW | Telecentric Lens, M42, Sensor opt. DX, aperture F10 - F22, blue |
| LED Controller DLC3005 | ||
| 1-30-202 | DLC3005 | LED lighting controller, digital, cont./flash current: 4.8A/18A, wall mounting |
| 1-30-209 | DLC3005-R | LED lighting controller, digital, cont./flash current: 4.8A/18A, DIN rail mounting |
Accessories
| Order number | Title | Description |
|---|---|---|
| Lens mount | ||
| 2-91-331 | Mounting angle | Holder for telecentric lenses and lightings with with threaded hole M5 |
| 2-91-332 | Mounting angle SH | Holder for telecentric lenses and lightings with with slotted hole for M4-M6 |
| 2-91-333 | Mounting plate SH | Holder for telecentric lenses and lightings with with slotted hole for M4-M6 |
| 2-91-330 | Lens Holder d45 wide | Holder for telecentric lenses and lightings with d = 45 mm, width = 32 mm |
| 2-91-336 | Mounting Bracket TO125 | Holder for telecentric lenses of the series TO125 with threaded hole M5 |
| 2-91-337 | Mounting Bracket TO125 SH | Holder for telecentric lenses of the series TO125 with slotted hole for M4-M6 |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
Telecentric light, green, LF diameter: 72 mm, P-LED, smart light, meas.
Order number:
1-33-587
Downloads:
Show details
Characteristics
- flashable telecentric LED lighting - parallel (collimated) beam path
- for flashing during inspection of moving objects
- for optical measurement technology for the targeted highlighting of edges and surface structures in transmitted and incident light;
for the detection of inclusions and defects in transparent materials such as gemstones - ideal as backlight in combination with telecentric lenses
- low divergence, high light output
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: M8 plug on the casing
- diverse attachment options and extensive accessories
Technical data
| Light-emitting surface | Diameter: 72 mm |
| Light design | Telecentric |
| Light colour (typ.) | Green, G520 |
| Special feature | Flashable with flash controller |
| Housing material | Aluminium, black anodised |
| Optical material | glass |
| Filter thread | M77 x 0.75 |
| Weight | 870 g |
| Degree of protection | IP 50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | 0 °C … 45 °C |
| 1 | at a working distance of 200 mm |
| 2 | at 11 mrad |
| 3 | bei 1.7 mrad |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings

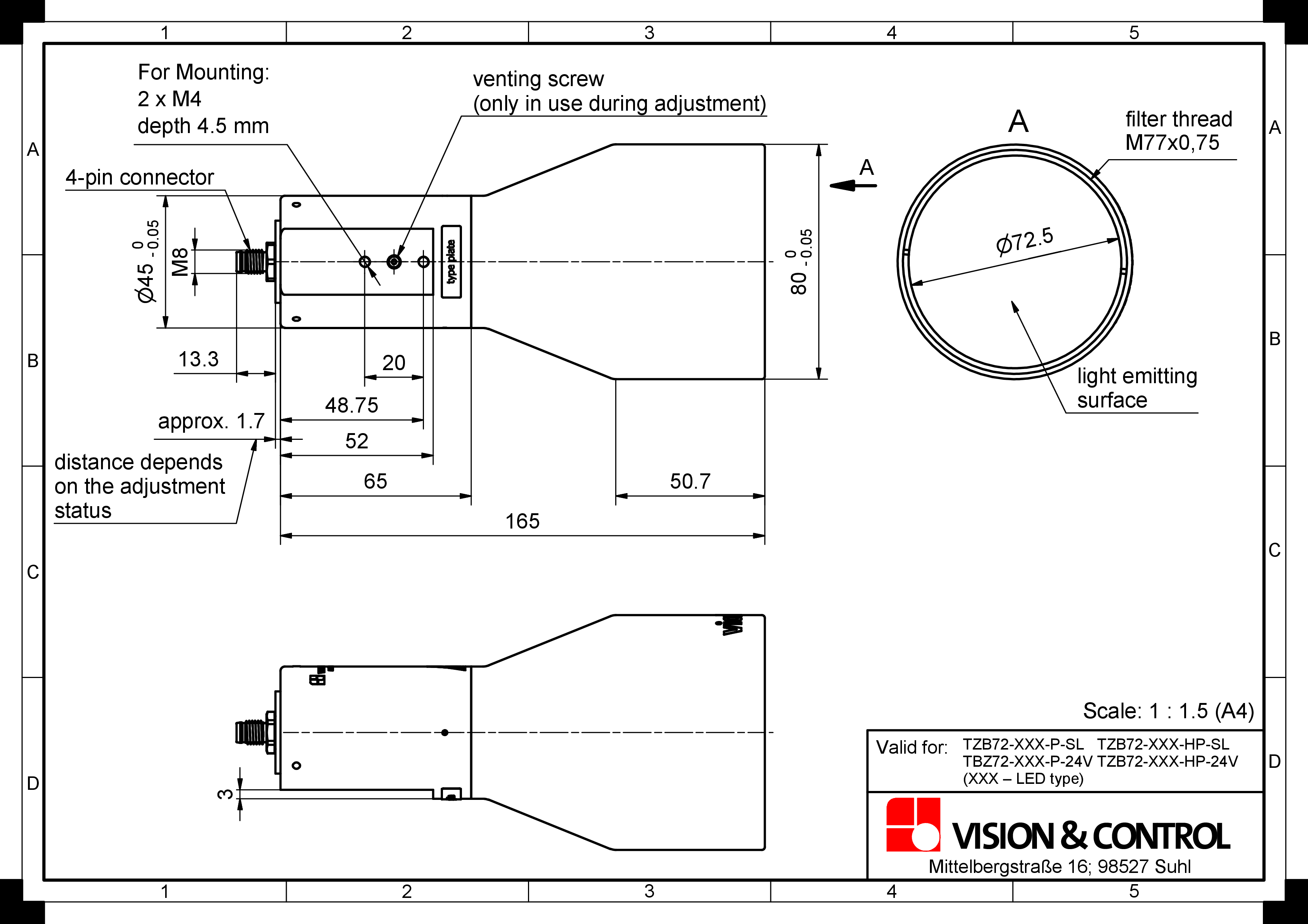

Dimensional drawing in mm
Pin assignment: M8 connector
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TO66 series | ||
| 2-05-682 | TO66/6.0-240-V-BW | Telecentric Lens, C-Mount, Sensor opt. 1/3", aperture F6 - F22, blue |
| 2-05-683 | TO66/9.0-210-V-BW | Telecentric Lens, C-Mount, Sensor opt. 1/1,8", aperture F6 - F22, blue |
| 2-05-684 | TO66/11.0-200-V-BW | Telecentric Lens, C-Mount, Sensor opt. 2/3", aperture F6 - F22, blue |
| 2-05-685 | TO66/16.0-160-V-BW | Telecentric Lens, C-Mount, Sensor opt. 1", aperture F6 - F22, blue |
| 2-05-686 | TO66/21.3-130-V-BW | Telecentric Lens, C-Mount, Sensor opt. Typ 4/3, aperture F8 - F22, blue |
| 2-05-687 | TO66/28.5-120-V-BW | Telecentric Lens, M42, Sensor opt. DX, aperture F10 - F22, blue |
| LED Controller DLC3005 | ||
| 1-30-202 | DLC3005 | LED lighting controller, digital, cont./flash current: 4.8A/18A, wall mounting |
| 1-30-209 | DLC3005-R | LED lighting controller, digital, cont./flash current: 4.8A/18A, DIN rail mounting |
Accessories
| Order number | Title | Description |
|---|---|---|
| Lens mount | ||
| 2-91-333 | Mounting plate SH | Holder for telecentric lenses and lightings with with slotted hole for M4-M6 |
| 2-90-139 | Lens Holder d45 | Holder for telecentric lenses and lightings with d = 45 mm |
| 2-91-330 | Lens Holder d45 wide | Holder for telecentric lenses and lightings with d = 45 mm, width = 32 mm |
| Polarising filters | ||
| 2-91-144 | Pole filter M52x0.75 | linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75 |
| Deflection mirrow 90° series | ||
| 2-25-129 | Deflection mirror 90-80 | 90° deflection, attachment for telecentric lenses and lightings with d = 80 mm |
| Beam splitter STE60x60 | ||
| 1-20-050 | STE60x60-VIS | Beam splitter unit for coaxial light system, optimized for 450-700 nm |
| 1-20-024 | Adapter STE60x60 - TZO80 | Attachment of the STE60x60 to telecentric lenses and lightings with d= 80 mm |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
Telecentric light, red, LF diameter: 48 mm, P-LED, smart light, meas.
Order number:
1-33-569
Downloads:
Show details
Characteristics
- flashable telecentric LED lighting - parallel (collimated) beam path
- for flashing during inspection of moving objects
- for optical measurement technology for the targeted highlighting of edges and surface structures in transmitted and incident light;
for the detection of inclusions and defects in transparent materials such as gemstones - ideal as backlight in combination with telecentric lenses
- low divergence, high light output
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: M8 plug on the casing
- diverse attachment options and extensive accessories
Technical data
| Light-emitting surface | Diameter: 48 mm |
| Light design | Telecentric |
| Light colour (typ.) | Red, 630 nm |
| Special feature | Flashable with flash controller |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Filter thread | M42 x 0.75 |
| Weight | 395 g |
| Degree of protection | IP 50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | 0 °C … 45 °C |
| 1 | at a working distance of 200 mm |
| 2 | at 11 mrad |
| 3 | bei 1.7 mrad |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.

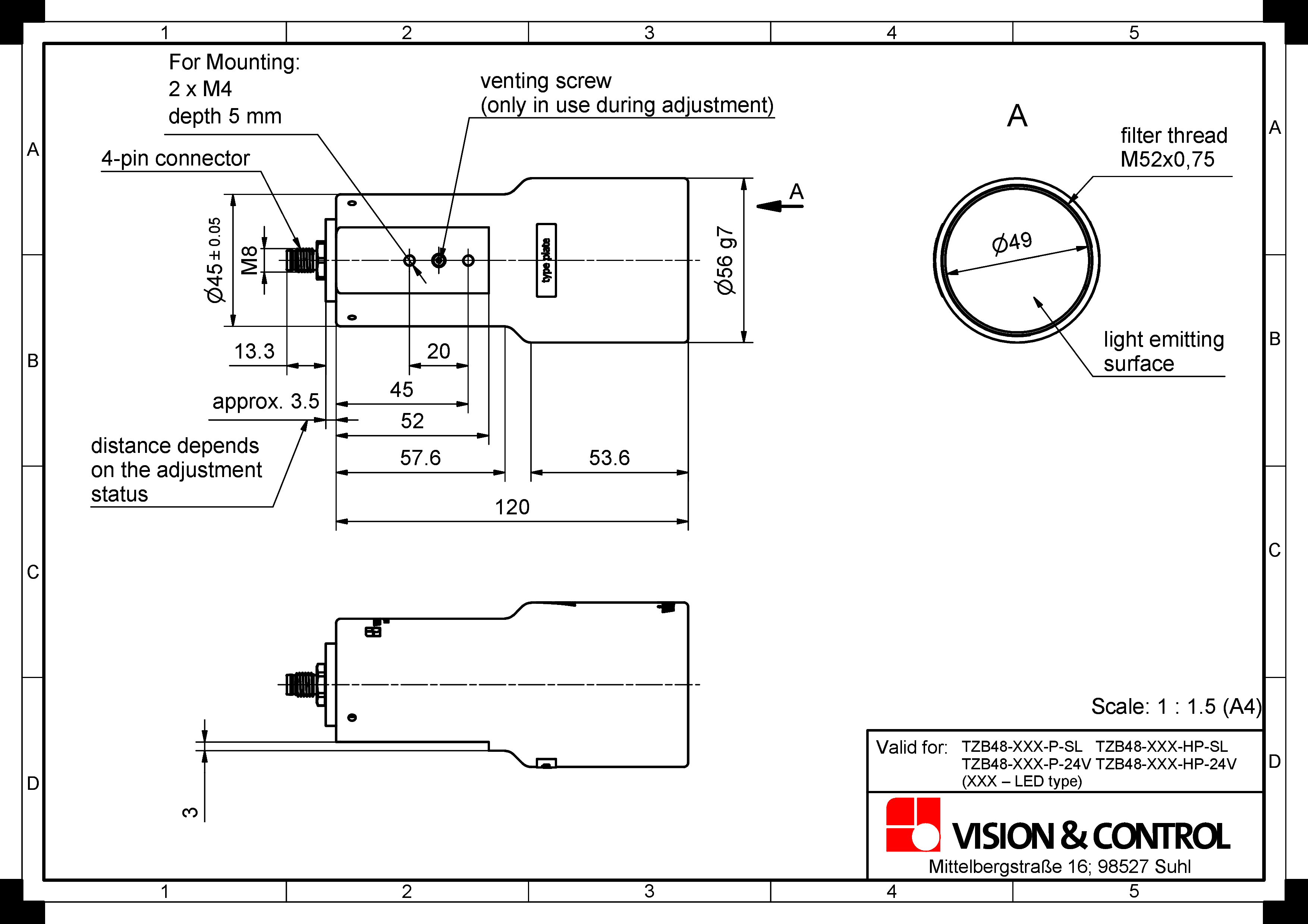

Drawings
Dimensional drawing in mm
Pin assignment: M8 connector
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TO42 series | ||
| 2-05-624 | TO42/16.0-120-V-BW | Telecentric Lens, C-mount, Sensor opt. 1", aperture F8 - F22, blue |
| 2-05-648 | TO42/16.4-232-V-LD | Telecentric Lens, C-Mount, Sensor opt. 1", aperture F6 - F22, long distan |
| 2-05-626 | TO42/21.4-120-V-BW | Telecentric Lens, C-Mount, Sensor opt. Typ 4/3, aperture F8 - F22, blue |
| 2-05-627 | TO42/28.3-100-V-BW | Telecentric Lens, M42, Sensor opt. "Type DX", aperture F10 - F22, blue |
| TO44 series | ||
| 2-05-621 | TO44/6.2-150-V-BW | Telecentric Lens, C-mount, Sensor opt. 1/3", aperture F6 - F22, blue |
| 2-05-622 | TO44/8.8-110-V-BW | Telecentric Lens, C-mount, Sensor opt. 1/1,8", aperture F6 - F22, blue |
| 2-05-623 | TO44/11.0-110-V-BW | Telecentric Lens, C-mount, Sensor opt. 2/3", aperture F8 - F22, blue |
| TOB42 series | ||
| 2-05-602 | TOB42/11.0-145-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-605 | TOB42/11.0-145-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-608 | TOB42/11.0-145-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| 2-05-601 | TOB42/11.0-165-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-604 | TOB42/11.0-165-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-607 | TOB42/11.0-165-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| 2-05-600 | TOB42/11.0-185-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-603 | TOB42/11.0-185-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-606 | TOB42/11.0-185-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| TO44-LD series | ||
| 2-05-425 | TO44/8.1-302-V-WN-LD | Telecentric measuring lens, c-mount, sensor opt. 1/2", variable aperture, VIS/NIR, LD |
| 2-05-391 | TO44/7.5-287-V-LD | Telecentric lens, c-mount, sensor opt. 1/2", variable aperture, VIS/NIR, LD |
| LED Controller DLC3005 | ||
| 1-30-202 | DLC3005 | LED lighting controller, digital, cont./flash current: 4.8A/18A, wall mounting |
| 1-30-209 | DLC3005-R | LED lighting controller, digital, cont./flash current: 4.8A/18A, DIN rail mounting |
Accessories
| Order number | Title | Description |
|---|---|---|
| Lens mount | ||
| 2-91-333 | Mounting plate SH | Holder for telecentric lenses and lightings with with slotted hole for M4-M6 |
| 2-90-139 | Lens Holder d45 | Holder for telecentric lenses and lightings with d = 45 mm |
| 2-91-330 | Lens Holder d45 wide | Holder for telecentric lenses and lightings with d = 45 mm, width = 32 mm |
| Polarising filters | ||
| 2-91-144 | Pole filter M52x0.75 | linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75 |
| Deflection mirrow 90° series | ||
| 2-25-115 | Deflection mirror 90-56 | 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm |
| Beam splitter STE60x60 | ||
| 1-20-050 | STE60x60-VIS | Beam splitter unit for coaxial light system, optimized for 450-700 nm |
| 1-20-022 | Adapter STE60x60 - TZO56 | Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
Telecentric light, green, LF diameter: 48 mm, P-LED, 24V, measurement
Order number:
1-33-564
Downloads:
Show details
Characteristics
- telecentric LED lighting - parallel (collimated) beam path
- for the detection of inclusions and defects in transparent materials such as gemstones
also suitable for the targeted highlighting of edges and surface structures in incident light - ideal as backlight in combination with telecentric lenses
- low divergence, high light output
- lighting controller integrated in the housing - brightness pre-set
- connection: M8 plug on the casing
- diverse attachment options and extensive accessories
Technical data
| Light-emitting surface | Diameter: 48 mm |
| Light design | Telecentric |
| Light colour (typ.) | Green, 520 nm |
| Operating mode | Continuous operation Switching operation |
| Operation voltage | 24 VDC (19V … 29V) |
| Housing material | Aluminium, black anodised |
| Optical material | glass |
| Filter thread | M42 x 0.75 |
| Weight | 395 g |
| Degree of protection | IP 50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | 0 °C … 45 °C |
| 1 | at a working distance of 200 mm |
| 2 | at 11 mrad |
Drawings
Dimensional drawing in mm
Pin assignment: M8 connector
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TO42 series | ||
| 2-05-624 | TO42/16.0-120-V-BW | Telecentric Lens, C-mount, Sensor opt. 1", aperture F8 - F22, blue |
| 2-05-648 | TO42/16.4-232-V-LD | Telecentric Lens, C-Mount, Sensor opt. 1", aperture F6 - F22, long distan |
| 2-05-626 | TO42/21.4-120-V-BW | Telecentric Lens, C-Mount, Sensor opt. Typ 4/3, aperture F8 - F22, blue |
| 2-05-627 | TO42/28.3-100-V-BW | Telecentric Lens, M42, Sensor opt. "Type DX", aperture F10 - F22, blue |
| TO44 series | ||
| 2-05-621 | TO44/6.2-150-V-BW | Telecentric Lens, C-mount, Sensor opt. 1/3", aperture F6 - F22, blue |
| 2-05-622 | TO44/8.8-110-V-BW | Telecentric Lens, C-mount, Sensor opt. 1/1,8", aperture F6 - F22, blue |
| 2-05-623 | TO44/11.0-110-V-BW | Telecentric Lens, C-mount, Sensor opt. 2/3", aperture F8 - F22, blue |
| TOB42 series | ||
| 2-05-602 | TOB42/11.0-145-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-605 | TOB42/11.0-145-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-608 | TOB42/11.0-145-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| 2-05-601 | TOB42/11.0-165-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-604 | TOB42/11.0-165-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-607 | TOB42/11.0-165-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| 2-05-600 | TOB42/11.0-185-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-603 | TOB42/11.0-185-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-606 | TOB42/11.0-185-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| TO44-LD series | ||
| 2-05-391 | TO44/7.5-287-V-LD | Telecentric lens, c-mount, sensor opt. 1/2", variable aperture, VIS/NIR, LD |
| 2-05-425 | TO44/8.1-302-V-WN-LD | Telecentric measuring lens, c-mount, sensor opt. 1/2", variable aperture, VIS/NIR, LD |
Accessories
| Order number | Title | Description |
|---|---|---|
| Lens mount | ||
| 2-91-333 | Mounting plate SH | Holder for telecentric lenses and lightings with with slotted hole for M4-M6 |
| 2-90-139 | Lens Holder d45 | Holder for telecentric lenses and lightings with d = 45 mm |
| 2-91-330 | Lens Holder d45 wide | Holder for telecentric lenses and lightings with d = 45 mm, width = 32 mm |
| Polarising filters | ||
| 2-91-144 | Pole filter M52x0.75 | linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75 |
| Deflection mirrow 90° series | ||
| 2-25-115 | Deflection mirror 90-56 | 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm |
| Beam splitter STE60x60 | ||
| 1-20-050 | STE60x60-VIS | Beam splitter unit for coaxial light system, optimized for 450-700 nm |
| 1-20-022 | Adapter STE60x60 - TZO56 | Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| Power supply | ||
| 4-40-218 | Power supply 24V-120W-5A | for DIN rail mounting, without connection cable, type: SDR-120-24 |
Title:
Short description:
Telecentric light, green, LF diameter: 48 mm, P-LED, smart light, insp.
Order number:
1-33-563
Downloads:
Show details
Characteristics
- flashable telecentric LED lighting - parallel (collimated) beam path
- for flashing during inspection of moving objects
- for optical measurement technology for the targeted highlighting of edges and surface structures in transmitted and incident light;
for the detection of inclusions and defects in transparent materials such as gemstones - ideal as backlight in combination with telecentric lenses
- low divergence, high light output
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: M8 plug on the casing
- diverse attachment options and extensive accessories
Technical data
| Light-emitting surface | Diameter: 48 mm |
| Light design | Telecentric |
| Light colour (typ.) | Gree, 520 nm |
| Special feature | Flashable with flash controller |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Filter thread | M42 x 0.75 |
| Weight | 395 g |
| Degree of protection | IP 50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | 0 °C … 45 °C |
| 1 | at a working distance of 200 mm |
| 2 | at 11 mrad |
| 3 | bei 1.7 mrad |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment: M8 connector
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TO42 series | ||
| 2-05-624 | TO42/16.0-120-V-BW | Telecentric Lens, C-mount, Sensor opt. 1", aperture F8 - F22, blue |
| 2-05-648 | TO42/16.4-232-V-LD | Telecentric Lens, C-Mount, Sensor opt. 1", aperture F6 - F22, long distan |
| 2-05-626 | TO42/21.4-120-V-BW | Telecentric Lens, C-Mount, Sensor opt. Typ 4/3, aperture F8 - F22, blue |
| 2-05-627 | TO42/28.3-100-V-BW | Telecentric Lens, M42, Sensor opt. "Type DX", aperture F10 - F22, blue |
| TO44 series | ||
| 2-05-621 | TO44/6.2-150-V-BW | Telecentric Lens, C-mount, Sensor opt. 1/3", aperture F6 - F22, blue |
| 2-05-622 | TO44/8.8-110-V-BW | Telecentric Lens, C-mount, Sensor opt. 1/1,8", aperture F6 - F22, blue |
| 2-05-623 | TO44/11.0-110-V-BW | Telecentric Lens, C-mount, Sensor opt. 2/3", aperture F8 - F22, blue |
| TOB42 series | ||
| 2-05-602 | TOB42/11.0-145-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-605 | TOB42/11.0-145-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-608 | TOB42/11.0-145-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| 2-05-601 | TOB42/11.0-165-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-604 | TOB42/11.0-165-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-607 | TOB42/11.0-165-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| 2-05-600 | TOB42/11.0-185-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-603 | TOB42/11.0-185-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-606 | TOB42/11.0-185-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| TO44-LD series | ||
| 2-05-425 | TO44/8.1-302-V-WN-LD | Telecentric measuring lens, c-mount, sensor opt. 1/2", variable aperture, VIS/NIR, LD |
| 2-05-391 | TO44/7.5-287-V-LD | Telecentric lens, c-mount, sensor opt. 1/2", variable aperture, VIS/NIR, LD |
| LED Controller DLC3005 | ||
| 1-30-202 | DLC3005 | LED lighting controller, digital, cont./flash current: 4.8A/18A, wall mounting |
| 1-30-209 | DLC3005-R | LED lighting controller, digital, cont./flash current: 4.8A/18A, DIN rail mounting |
Accessories
| Order number | Title | Description |
|---|---|---|
| Lens mount | ||
| 2-91-333 | Mounting plate SH | Holder for telecentric lenses and lightings with with slotted hole for M4-M6 |
| 2-90-139 | Lens Holder d45 | Holder for telecentric lenses and lightings with d = 45 mm |
| 2-91-330 | Lens Holder d45 wide | Holder for telecentric lenses and lightings with d = 45 mm, width = 32 mm |
| Polarising filters | ||
| 2-91-144 | Pole filter M52x0.75 | linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75 |
| Deflection mirrow 90° series | ||
| 2-25-115 | Deflection mirror 90-56 | 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm |
| Beam splitter STE60x60 | ||
| 1-20-050 | STE60x60-VIS | Beam splitter unit for coaxial light system, optimized for 450-700 nm |
| 1-20-022 | Adapter STE60x60 - TZO56 | Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
Telecentric light, blue, LF diameter: 48 mm, P-LED, smart light, meas.
Order number:
1-33-561
Downloads:
Show details
Characteristics
- flashable telecentric LED lighting - parallel (collimated) beam path
- for flashing during inspection of moving objects
- for optical measurement technology for the targeted highlighting of edges and surface structures in transmitted and incident light;
for the detection of inclusions and defects in transparent materials such as gemstones - ideal as backlight in combination with telecentric lenses
- low divergence, high light output
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: M8 plug on the casing
- diverse attachment options and extensive accessories
Technical data
| Light-emitting surface | Diameter: 48 mm |
| Light design | Telecentric |
| Light colour (typ.) | Blau, 455 nm |
| Special feature | Flashable with flash controller |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Filter thread | M42 x 0.75 |
| Weight | 395 g |
| Degree of protection | IP 50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | 0 °C … 45 °C |
| 1 | at a working distance of 200 mm |
| 2 | at 11 mrad |
| 3 | bei 1.7 mrad |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment: M8 connector
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TO42 series | ||
| 2-05-624 | TO42/16.0-120-V-BW | Telecentric Lens, C-mount, Sensor opt. 1", aperture F8 - F22, blue |
| 2-05-648 | TO42/16.4-232-V-LD | Telecentric Lens, C-Mount, Sensor opt. 1", aperture F6 - F22, long distan |
| 2-05-626 | TO42/21.4-120-V-BW | Telecentric Lens, C-Mount, Sensor opt. Typ 4/3, aperture F8 - F22, blue |
| 2-05-627 | TO42/28.3-100-V-BW | Telecentric Lens, M42, Sensor opt. "Type DX", aperture F10 - F22, blue |
| TO44 series | ||
| 2-05-621 | TO44/6.2-150-V-BW | Telecentric Lens, C-mount, Sensor opt. 1/3", aperture F6 - F22, blue |
| 2-05-622 | TO44/8.8-110-V-BW | Telecentric Lens, C-mount, Sensor opt. 1/1,8", aperture F6 - F22, blue |
| 2-05-623 | TO44/11.0-110-V-BW | Telecentric Lens, C-mount, Sensor opt. 2/3", aperture F8 - F22, blue |
| TOB42 series | ||
| 2-05-602 | TOB42/11.0-145-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-605 | TOB42/11.0-145-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-608 | TOB42/11.0-145-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| 2-05-601 | TOB42/11.0-165-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-604 | TOB42/11.0-165-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-607 | TOB42/11.0-165-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| 2-05-600 | TOB42/11.0-185-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-603 | TOB42/11.0-185-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-606 | TOB42/11.0-185-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| TO44-LD series | ||
| 2-05-425 | TO44/8.1-302-V-WN-LD | Telecentric measuring lens, c-mount, sensor opt. 1/2", variable aperture, VIS/NIR, LD |
| 2-05-391 | TO44/7.5-287-V-LD | Telecentric lens, c-mount, sensor opt. 1/2", variable aperture, VIS/NIR, LD |
| LED Controller DLC3005 | ||
| 1-30-202 | DLC3005 | LED lighting controller, digital, cont./flash current: 4.8A/18A, wall mounting |
| 1-30-209 | DLC3005-R | LED lighting controller, digital, cont./flash current: 4.8A/18A, DIN rail mounting |
Accessories
| Order number | Title | Description |
|---|---|---|
| Lens mount | ||
| 2-91-333 | Mounting plate SH | Holder for telecentric lenses and lightings with with slotted hole for M4-M6 |
| 2-90-139 | Lens Holder d45 | Holder for telecentric lenses and lightings with d = 45 mm |
| 2-91-330 | Lens Holder d45 wide | Holder for telecentric lenses and lightings with d = 45 mm, width = 32 mm |
| Polarising filters | ||
| 2-91-144 | Pole filter M52x0.75 | linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75 |
| Deflection mirrow 90° series | ||
| 2-25-115 | Deflection mirror 90-56 | 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm |
| Beam splitter STE60x60 | ||
| 1-20-050 | STE60x60-VIS | Beam splitter unit for coaxial light system, optimized for 450-700 nm |
| 1-20-022 | Adapter STE60x60 - TZO56 | Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
Telecentric light, IR, LF diameter: 48 mm, P-LED, smart light, insp.
Order number:
1-33-295
Downloads:
Characteristics
- flashable telecentric LED lighting - parallel (collimated) beam path
- for flashing during inspection of moving objects
- for optical measurement technology for the targeted highlighting of edges and surface structures in transmitted and incident light;
for the detection of inclusions and defects in transparent materials such as gemstones - ideal as backlight in combination with telecentric lenses
- low divergence, high light output
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: M8 plug on the casing
- diverse attachment options and extensive accessories
Technical data
| Light-emitting surface | Diameter: 48 mm |
| Light design | Telecentric |
| Light colour (typ.) | Infrared, 850 nm |
| Special feature | Flashable with flash controller |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Filter thread | M42 x 0.75 |
| Weight | 395 g |
| Degree of protection | IP 50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | 0 °C … 45 °C |
| 1 | at a working distance of 200 mm |
| 2 | at 11 mrad |
| 3 | bei 1.7 mrad |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment: M8 connector
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TO42 series | ||
| 2-05-624 | TO42/16.0-120-V-BW | Telecentric Lens, C-mount, Sensor opt. 1", aperture F8 - F22, blue |
| 2-05-648 | TO42/16.4-232-V-LD | Telecentric Lens, C-Mount, Sensor opt. 1", aperture F6 - F22, long distan |
| 2-05-626 | TO42/21.4-120-V-BW | Telecentric Lens, C-Mount, Sensor opt. Typ 4/3, aperture F8 - F22, blue |
| 2-05-627 | TO42/28.3-100-V-BW | Telecentric Lens, M42, Sensor opt. "Type DX", aperture F10 - F22, blue |
| TO44 series | ||
| 2-05-621 | TO44/6.2-150-V-BW | Telecentric Lens, C-mount, Sensor opt. 1/3", aperture F6 - F22, blue |
| 2-05-622 | TO44/8.8-110-V-BW | Telecentric Lens, C-mount, Sensor opt. 1/1,8", aperture F6 - F22, blue |
| 2-05-623 | TO44/11.0-110-V-BW | Telecentric Lens, C-mount, Sensor opt. 2/3", aperture F8 - F22, blue |
| TOB42 series | ||
| 2-05-602 | TOB42/11.0-145-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-605 | TOB42/11.0-145-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-608 | TOB42/11.0-145-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| 2-05-601 | TOB42/11.0-165-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-604 | TOB42/11.0-165-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-607 | TOB42/11.0-165-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| 2-05-600 | TOB42/11.0-185-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-603 | TOB42/11.0-185-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-606 | TOB42/11.0-185-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| TO44-LD series | ||
| 2-05-425 | TO44/8.1-302-V-WN-LD | Telecentric measuring lens, c-mount, sensor opt. 1/2", variable aperture, VIS/NIR, LD |
| 2-05-391 | TO44/7.5-287-V-LD | Telecentric lens, c-mount, sensor opt. 1/2", variable aperture, VIS/NIR, LD |
| LED Controller DLC3005 | ||
| 1-30-202 | DLC3005 | LED lighting controller, digital, cont./flash current: 4.8A/18A, wall mounting |
| 1-30-209 | DLC3005-R | LED lighting controller, digital, cont./flash current: 4.8A/18A, DIN rail mounting |
Accessories
| Order number | Title | Description |
|---|---|---|
| Lens mount | ||
| 2-91-333 | Mounting plate SH | Holder for telecentric lenses and lightings with with slotted hole for M4-M6 |
| 2-90-139 | Lens Holder d45 | Holder for telecentric lenses and lightings with d = 45 mm |
| 2-91-330 | Lens Holder d45 wide | Holder for telecentric lenses and lightings with d = 45 mm, width = 32 mm |
| Polarising filters | ||
| 2-91-144 | Pole filter M52x0.75 | linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75 |
| Deflection mirrow 90° series | ||
| 2-25-115 | Deflection mirror 90-56 | 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm |
| Beam splitter STE60x60 | ||
| 1-20-050 | STE60x60-VIS | Beam splitter unit for coaxial light system, optimized for 450-700 nm |
| 1-20-022 | Adapter STE60x60 - TZO56 | Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
Telecentric light, IR, LF diameter: 48 mm, P-LED, 24V, inspection
Order number:
1-33-294
Downloads:
Characteristics
- telecentric LED lighting - parallel (collimated) beam path
- for the detection of inclusions and defects in transparent materials such as gemstones
also suitable for the targeted highlighting of edges and surface structures in incident light - ideal as backlight in combination with telecentric lenses
- low divergence, high light output
- lighting controller integrated in the housing - brightness pre-set
- connection: M8 plug on the casing
- diverse attachment options and extensive accessories
Technical data
| Light-emitting surface | Diameter: 48 mm |
| Light design | Telecentric |
| Light colour (typ.) | Infrared, 850 nm |
| Operating mode | Continuous operation Switching operation |
| Operation voltage | 24 VDC (19V … 29V) |
| Housing material | Aluminium, black anodised |
| Optical material | glass |
| Filter thread | M42 x 0.75 |
| Weight | 395 g |
| Degree of protection | IP 50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | 0 °C … 45 °C |
| 1 | at a working distance of 200 mm |
| 2 | at 11 mrad |
Drawings
Dimensional drawing in mm
Pin assignment: M8 connector
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TO42 series | ||
| 2-05-624 | TO42/16.0-120-V-BW | Telecentric Lens, C-mount, Sensor opt. 1", aperture F8 - F22, blue |
| 2-05-648 | TO42/16.4-232-V-LD | Telecentric Lens, C-Mount, Sensor opt. 1", aperture F6 - F22, long distan |
| 2-05-626 | TO42/21.4-120-V-BW | Telecentric Lens, C-Mount, Sensor opt. Typ 4/3, aperture F8 - F22, blue |
| 2-05-627 | TO42/28.3-100-V-BW | Telecentric Lens, M42, Sensor opt. "Type DX", aperture F10 - F22, blue |
| TO44 series | ||
| 2-05-621 | TO44/6.2-150-V-BW | Telecentric Lens, C-mount, Sensor opt. 1/3", aperture F6 - F22, blue |
| 2-05-622 | TO44/8.8-110-V-BW | Telecentric Lens, C-mount, Sensor opt. 1/1,8", aperture F6 - F22, blue |
| 2-05-623 | TO44/11.0-110-V-BW | Telecentric Lens, C-mount, Sensor opt. 2/3", aperture F8 - F22, blue |
| TOB42 series | ||
| 2-05-602 | TOB42/11.0-145-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-605 | TOB42/11.0-145-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-608 | TOB42/11.0-145-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| 2-05-601 | TOB42/11.0-165-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-604 | TOB42/11.0-165-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-607 | TOB42/11.0-165-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| 2-05-600 | TOB42/11.0-185-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-603 | TOB42/11.0-185-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-606 | TOB42/11.0-185-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| TO44-LD series | ||
| 2-05-391 | TO44/7.5-287-V-LD | Telecentric lens, c-mount, sensor opt. 1/2", variable aperture, VIS/NIR, LD |
| 2-05-425 | TO44/8.1-302-V-WN-LD | Telecentric measuring lens, c-mount, sensor opt. 1/2", variable aperture, VIS/NIR, LD |
Accessories
| Order number | Title | Description |
|---|---|---|
| Lens mount | ||
| 2-91-333 | Mounting plate SH | Holder for telecentric lenses and lightings with with slotted hole for M4-M6 |
| 2-90-139 | Lens Holder d45 | Holder for telecentric lenses and lightings with d = 45 mm |
| 2-91-330 | Lens Holder d45 wide | Holder for telecentric lenses and lightings with d = 45 mm, width = 32 mm |
| Polarising filters | ||
| 2-91-144 | Pole filter M52x0.75 | linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75 |
| Deflection mirrow 90° series | ||
| 2-25-115 | Deflection mirror 90-56 | 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm |
| Beam splitter STE60x60 | ||
| 1-20-050 | STE60x60-VIS | Beam splitter unit for coaxial light system, optimized for 450-700 nm |
| 1-20-022 | Adapter STE60x60 - TZO56 | Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| Power supply | ||
| 4-40-218 | Power supply 24V-120W-5A | for DIN rail mounting, without connection cable, type: SDR-120-24 |
Title:
Short description:
Telecentric light, blue, LF diameter: 48 mm, P-LED, 24V, inspection
Order number:
1-33-291
Downloads:
Characteristics
- telecentric LED lighting - parallel (collimated) beam path
- for the detection of inclusions and defects in transparent materials such as gemstones
also suitable for the targeted highlighting of edges and surface structures in incident light - ideal as backlight in combination with telecentric lenses
- low divergence, high light output
- lighting controller integrated in the housing - brightness pre-set
- connection: M8 plug on the casing
- diverse attachment options and extensive accessories
Technical data
| Light-emitting surface | Diameter: 48 mm |
| Light design | Telecentric |
| Light colour (typ.) | Blue, 450 nm |
| Operating mode | Continuous operation Switching operation |
| Operation voltage | 24 VDC (19V … 29V) |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Filter thread | M42 x 0.75 |
| Weight | 395 g |
| Degree of protection | IP 50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | 0 °C … 45 °C |
| 1 | at a working distance of 200 mm |
| 2 | at 11 mrad |
Drawings
Dimensional drawing in mm
Pin assignment: M8 connector
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TO42 series | ||
| 2-05-624 | TO42/16.0-120-V-BW | Telecentric Lens, C-mount, Sensor opt. 1", aperture F8 - F22, blue |
| 2-05-648 | TO42/16.4-232-V-LD | Telecentric Lens, C-Mount, Sensor opt. 1", aperture F6 - F22, long distan |
| 2-05-626 | TO42/21.4-120-V-BW | Telecentric Lens, C-Mount, Sensor opt. Typ 4/3, aperture F8 - F22, blue |
| 2-05-627 | TO42/28.3-100-V-BW | Telecentric Lens, M42, Sensor opt. "Type DX", aperture F10 - F22, blue |
| TO44 series | ||
| 2-05-621 | TO44/6.2-150-V-BW | Telecentric Lens, C-mount, Sensor opt. 1/3", aperture F6 - F22, blue |
| 2-05-622 | TO44/8.8-110-V-BW | Telecentric Lens, C-mount, Sensor opt. 1/1,8", aperture F6 - F22, blue |
| 2-05-623 | TO44/11.0-110-V-BW | Telecentric Lens, C-mount, Sensor opt. 2/3", aperture F8 - F22, blue |
| TOB42 series | ||
| 2-05-602 | TOB42/11.0-145-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-605 | TOB42/11.0-145-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-608 | TOB42/11.0-145-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| 2-05-601 | TOB42/11.0-165-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-604 | TOB42/11.0-165-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-607 | TOB42/11.0-165-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| 2-05-600 | TOB42/11.0-185-V-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F6 - F22, W/NIR |
| 2-05-603 | TOB42/11.0-185-F16-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F16, W/NIR |
| 2-05-606 | TOB42/11.0-185-F10-WN | Bi-Telecentric Lens, C-mount, sensor opt. 2/3", aperture F10, W/NIR |
| TO44-LD series | ||
| 2-05-391 | TO44/7.5-287-V-LD | Telecentric lens, c-mount, sensor opt. 1/2", variable aperture, VIS/NIR, LD |
| 2-05-425 | TO44/8.1-302-V-WN-LD | Telecentric measuring lens, c-mount, sensor opt. 1/2", variable aperture, VIS/NIR, LD |
Accessories
| Order number | Title | Description |
|---|---|---|
| Lens mount | ||
| 2-91-333 | Mounting plate SH | Holder for telecentric lenses and lightings with with slotted hole for M4-M6 |
| 2-90-139 | Lens Holder d45 | Holder for telecentric lenses and lightings with d = 45 mm |
| 2-91-330 | Lens Holder d45 wide | Holder for telecentric lenses and lightings with d = 45 mm, width = 32 mm |
| Polarising filters | ||
| 2-91-144 | Pole filter M52x0.75 | linear polarizing filter, range 420 nm - 780 nm, filter thread M52x0.75 |
| Deflection mirrow 90° series | ||
| 2-25-115 | Deflection mirror 90-56 | 90° deflection, attachment for telecentric lenses and lightings with d = 56 mm |
| Beam splitter STE60x60 | ||
| 1-20-050 | STE60x60-VIS | Beam splitter unit for coaxial light system, optimized for 450-700 nm |
| 1-20-022 | Adapter STE60x60 - TZO56 | Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| Power supply | ||
| 4-40-218 | Power supply 24V-120W-5A | for DIN rail mounting, without connection cable, type: SDR-120-24 |
Load more products..
