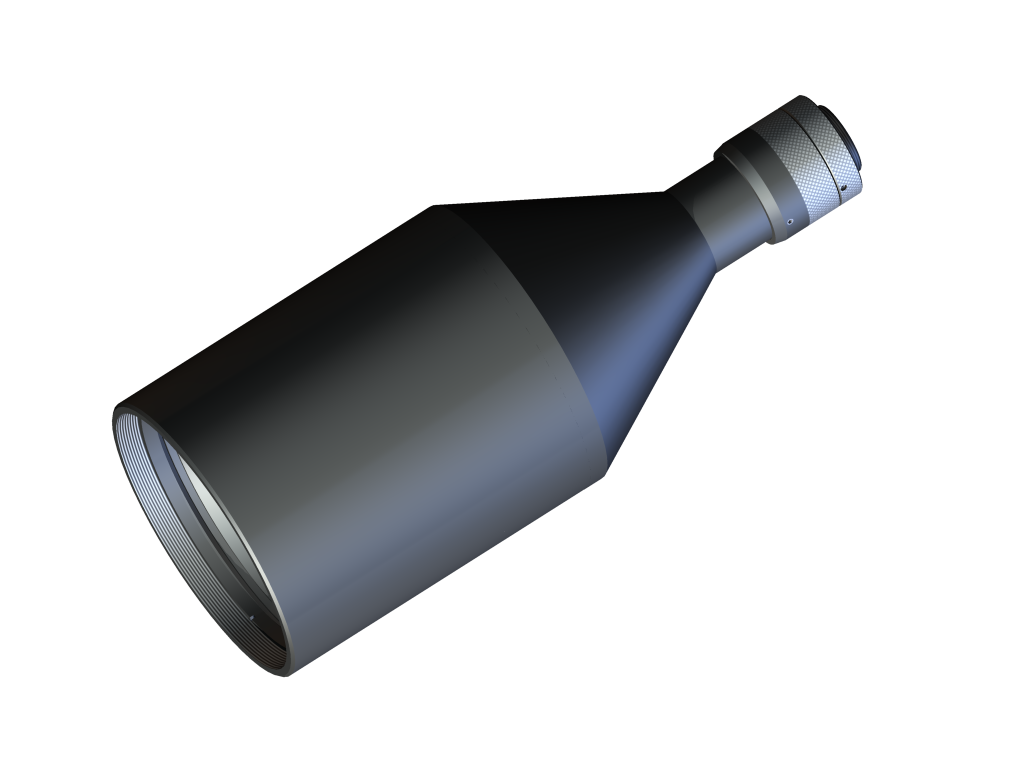

vicotar® Telecentric Lens - TO92/12.0-212-V-WN-LD
Characteristics
- telecentric measurement objective with object-sided telecentric beam path
- long working distance
- usable for the visible spectral range and near infrared
- Optimum results with monochromatic applications
- adjustable aperture, arrestable
- robust industrial design
Technical data
| Image scale | 0.192 |
| Spectral range | 380 nm - 900 nm |
| Working distance | 287 mm |
| Camera distance (object-camera flange) | 534.9 mm |
| Object field diagonal (max) | 46.8 mm |
| Sensor format (max) | 2/3" |
| Image field diagonal (max) | 11.5 mm |
| Suitable for camera resolution | 4.9 MPixel |
| Recommended pixel size | 3.45 µm |
| Aperture | variable |
| Depth of focus | 57 mm (F10, 470 nm, MTF = 20 % @ 20 LP/mm) |
| Lens mount | C-Mount |
| Filter thread, object-side | M67 x 0.75 |
| Filter thread, camera-side | M20.5 x 0.5 |
| Weight | 1040 g |
| Usable object field with: | |
| • 1" sensor (12.8 x 9.6 mm²) | 73.3 mm x 55.0 mm |
| • 2/3" sensor (8.8 x 6.6 mm²) | 67.2 mm x 50.4 mm |
| • 1/1.8" sensor (7.1 x 5.4 mm²) | 54.2 mm x 41.2 mm |
| • 1/2" sensor (6.4 x 4.8 mm²) | 48.9 mm x 36.6 mm |
Notices
The illumination combinations shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TZB95-UDC-a Serie | ||
| 1-10-951 | TZB95-B470/UDC/-a | telecentric light, blue, lf diameter: 95 mm, flashable by flash controller |
| 1-10-952 | TZB95-W5K7/UDC/-a | telecentric light, white, lf diameter: 95 mm, flashable by flash controller |
| 1-10-953 | TZB95-IR880/UDC/-a | telecentric light, IR850, lf diameter: 95 mm, flashable by flash controller |
| 1-10-950 | TZB95-R625/UDC/-a | telecentric light, red, lf diameter: 95 mm, flashable by flash controller |
| 1-10-954 | TZB95-G525/UDC/-a | telecentric light, green, lf diameter: 95 mm, flashable by flash controller |
| TZB95 series | ||
| 1-10-383 | TZB95-B470-24V | telecentric light, blue, lf diameter: 95 mm, static, cable open-ended |
| 1-10-382 | TZB95-W5K7-24V | telecentric light, white, lf diameter: 95 mm, static, cable open-ended |
| 1-10-381 | TZB95-IR880-24V | telecentric light, IR850, lf diameter: 95 mm, static, cable open-ended |
| 1-10-380 | TZB95-R625-24V | telecentric light, red, lf diameter: 95 mm, static, cable open-ended |
| 1-10-384 | TZB95-G525-24V | telecentric light, green, lf diameter: 95 mm, static, cable open-ended |
| Beam splitter STE60x60 | ||
| 1-20-050 | STE60x60-VIS | Beam splitter unit for coaxial light system, optimized for 450-700 nm |
| 1-20-023 | Adapter STE60x60 - TZO106 | Attachment of the STE60x60 to telecentric lenses and lightings with d = 106mm |
Accessories for Lighting - TO92/12.0-212-V-WN-LD
| Order number | Title | Description |
|---|---|---|
| Lens mount | ||
| 2-90-129 | Lens Holder d32-60 | Holder for telecentric lenses and lightings with d = 32 mm, with 60 mm extn. |
| Extension tubes | ||
| 2-90-415 | Extension ring 0.5 mm | 26 x 31 x 0.5 reduces the minimum object distance (MOD) |
| 2-90-416 | Extension ring 1.0 mm | 26 x 31 x 1.0 reduces the minimum object distance (MOD) |
| Lens adapter c-mount | ||
| 2-90-414 | CS to C-mount adapter 5.0 mm | for connecting C-mount lenses with CS-mount cameras, length: 5 mm |
| Daylight blocking filter | ||
| 2-91-131 | IR filter M20.5x0.5 | long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5 |
| 2-91-136 | IR filter M100x1 | long-pass filter from 830 nm, daylight absorbing filter, filter thread M100x1 |
| Colour filter blue | ||
| 2-91-292 | Colour filter blue M100x1 | band-pass filter, range 350 nm - 600 nm, filter thread M100x1 |
| UV Cut-Off Filter | ||
| 2-91-209 | UV blocking filter M100x1 | long-pass filter from 350 nm, usable as protective glass, filter thread M100x1 |
| Colour filter red | ||
| 2-91-259 | Colour filter red M20.5x0.5 | long-pass filter from 630 nm, red, filter thread M20.5x0.5 |
| 2-91-264 | Colour filter red M100x1 | long-pass filter from 630 nm, red, filter thread M100x1 |
| Colour filter green | ||
| 2-91-305 | Colour filter green M100x1 | band-pass filter, range 430 nm - 620 nm, filter thread M100x1 |
| Adapters for attaching lights to lenses | ||
| 1-29-774 | Adapter ring d73 - M100x1 | for R-CLR-100x73 und RK3652, for attachment to lenses with filter thread M100x1 |
| 1-29-872 | Adapter ring d104 - M100x1 | for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M100x1 |
| Beam splitter STE60x60 | ||
| 1-20-023 | Adapter STE60x60 - TZO106 | Attachment of the STE60x60 to telecentric lenses and lightings with d = 106mm |
