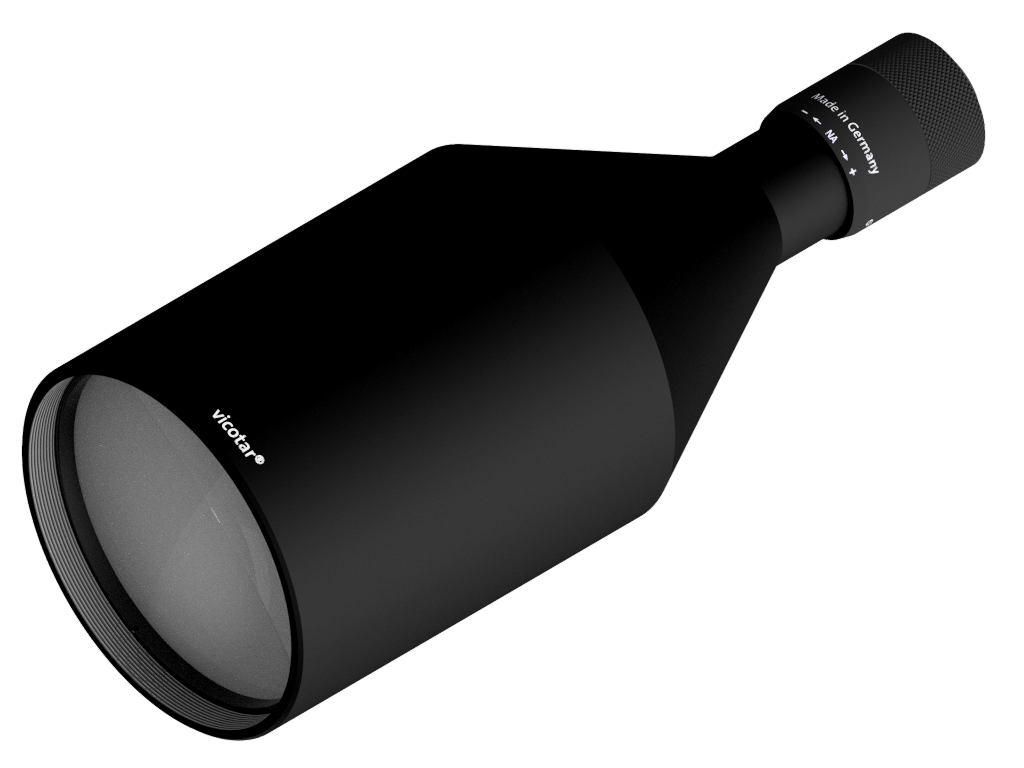

vicotar® Telecentric Lens - TO78/16.0-600-V-eLD
Characteristics
- telecentric measurement objective with object-sided telecentric beam path
- extremely long working distance
- Designed for monochromatic applications
- very well suited for blue LEDs including "Deep Blue" LEDs
- high resolution, low telecentric error
- adjustable aperture with identification of the aperture numbers, arrestable
- robust industrial design
Technical data
| Image scale | 0.202 |
| Spectral range | 400 nm - 950 nm |
| Working distance | 600 mm |
| Camera distance (object-camera flange) | 863 mm |
| Object field diagonal (max) | 78 mm |
| Sensor format (max) | 1" |
| Image field diagonal (max) | 16 mm |
| Suitable for camera resolution | 13.7 MPixel |
| Recommended pixel size | 3 µm |
| Aperture | verstellbar (F8 – F22) |
| Depth of focus | 30 mm (F11, 525 nm, MTF = 20 % @ 20 LP/mm) |
| Lens mount | C-Mount |
| Filter thread, object-side | M100 x 1-5 |
| Filter thread, camera-side | M20.5 x 0.5 |
| Weight | 1600 g |
| Usable object field with: | |
| • 1" sensor (12.8 x 9.6 mm²) | 63.4 mm x 47.5 mm |
| • 2/3" sensor (8.8 x 6.6 mm²) | 43.6 mm x 32.7 mm |
| • 1/1.8" sensor (7.1 x 5.4 mm²) | 35.1 mm x 26.7 mm |
| • 1/2" sensor (6.4 x 4.8 mm²) | 31.7 mm x 23.8 mm |
Notices
The illumination combinations shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
