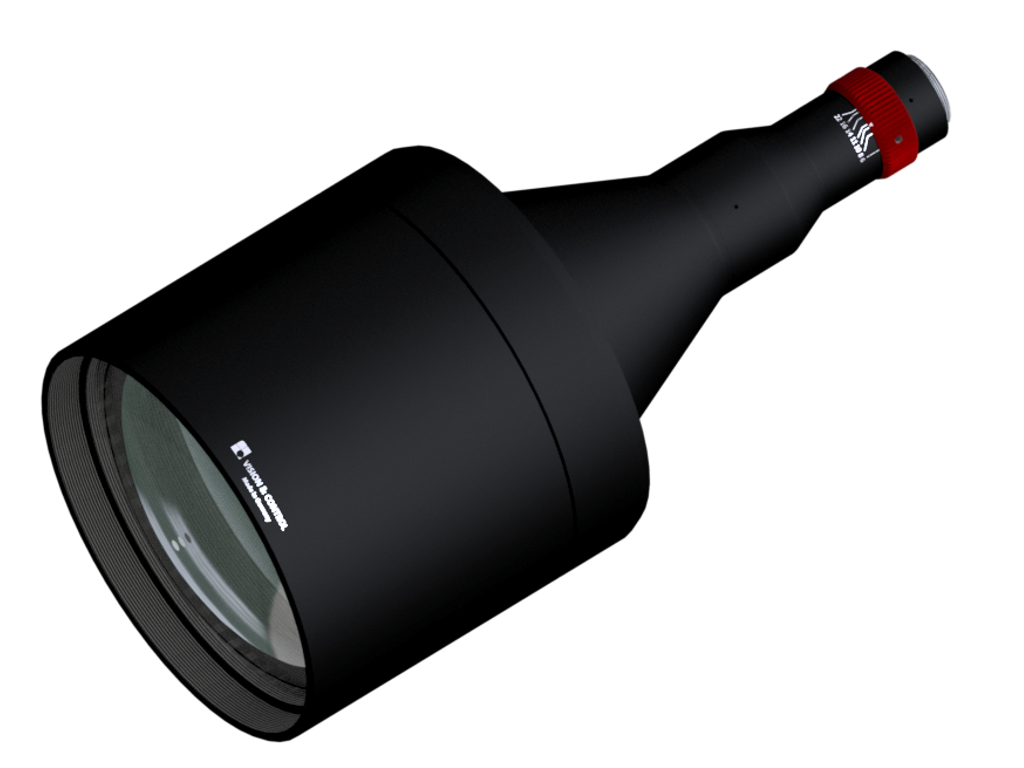

vicotar® Telecentric Lens - TO125/9.0-220-V-BW
Characteristics
- telecentric measurement objective with object-sided telecentric beam path
- color corrected for the visible spectral range and near infrared
- color correction extended deep into the blue spectral range
- very well suited for blue LEDs including "Deep Blue" LEDs
- thus especially suitable for white LEDs, as these have a strong blue light component
- high resolution, low lateral chromatic aberration, low distortion, low telecentric error
- adjustable aperture with identification of the aperture numbers, arrestable
- robust industrial design
Technical data
| Image scale | 0.072 |
| Spectral range | 400 nm - 900 nm |
| Working distance | 220 mm |
| Camera distance (object-camera flange) | 515 mm |
| Object field diagonal (max) | 125 mm |
| Sensor format (max) | 1/1.8" |
| Image field diagonal (max) | 9 mm |
| Suitable for camera resolution | 12.2 MPixel |
| Recommended pixel size | 1.77 µm |
| Aperture | variable (F6 - F22) |
| Lens mount | C-Mount |
| Weight | 2980 g |
| Usable object field with: | |
| • 1/1.8" sensor (7.1 x 5.4 mm²) | 98.6 mm x 75 mm |
| • 1/2" sensor (6.4 x 4.8 mm²) | 88.9 mm x 66.7 mm |
| • 1/3" sensor (4.8 x 3.6 mm²) | 66.7 mm x 50 mm |
Notices
The lightings combination products shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TZB130 series | ||
| 1-10-187 | TZB130-B470-24V | telecentric light, blue, lf diameter: 130 mm, static, cable open-ended |
| 1-10-195 | TZB130-W5K7-24V | telecentric light, white, lf diameter: 130 mm, static, cable open-ended |
| 1-10-189 | TZB130-IR880-24V | telecentric light, IR850, lf diameter: 130 mm, static, cable open-ended |
| 1-10-185 | TZB130-R625-24V | telecentric light, red, lf diameter: 130 mm, static, cable open-ended |
| 1-10-077 | TZB130-G525-24V | telecentric light, green, lf diameter: 130 mm, static, cable open-ended |
| TZB130-UDC-a Serie | ||
| 1-10-956 | TZB130-B470/UDC/-a | telecentric light, blue, lf diameter: 130 mm, flashable by flash controller |
| 1-10-957 | TZB130-W5K7/UDC/-a | telecentric light, white, lf diameter: 130 mm, flashable by flash controller |
| 1-10-958 | TZB130-IR880/UDC/-a | telecentric light, IR850, lf diameter: 130 mm, flashable by flash controller |
| 1-10-955 | TZB130-R625/UDC/-a | telecentric light, red, lf diameter: 130 mm, flashable by flash controller |
| 1-10-959 | TZB130-G525/UDC/-a | telecentric light, green, lf diameter: 130 mm, flashable by flash controller |
| R-CLR-132-SL series | ||
| 1-33-017 | R-CLR-132x104-B470-SL | ring light, blue, coaxial, lf diameter: 104/132 mm, smart light technology |
| RK5268-24V series | ||
| 1-29-802 | RK5268-B470-24V/C | ring light, blue, coaxial, lf diameter: 104/132 mm, controlled, pot.: 0-10V, |
Accessories for Lighting - TO125/9.0-220-V-BW
| Order number | Title | Description |
|---|---|---|
| Lens mount | ||
| 2-91-331 | Mounting angle | Holder for telecentric lenses and lightings with with threaded hole M5 |
| 2-91-332 | Mounting angle SH | Holder for telecentric lenses and lightings with with slotted hole for M4-M6 |
| 2-91-330 | Lens Holder d45 wide | Holder for telecentric lenses and lightings with d = 45 mm, width = 32 mm |
| 2-91-335 | Mounting Bracket TO88 SH | Holder for telecentric lenses of the series TO88 with slotted hole for M4-M6 |
| 2-91-336 | Mounting Bracket TO125 | Holder for telecentric lenses of the series TO125 with threaded hole M5 |
| Extension tubes | ||
| 2-90-415 | Extension ring 0.5 mm | 26 x 31 x 0.5 reduces the minimum object distance (MOD) |
| 2-90-416 | Extension ring 1.0 mm | 26 x 31 x 1.0 reduces the minimum object distance (MOD) |
| 2-90-419 | Extension ring 0.1 mm | 25.5 x 29 x 0.1 reduces the minimum object distance (MOD) |
| 2-90-420 | Extension ring 0.2 mm | 25.5 x 29 x 0.2 reduces the minimum object distance (MOD) |
| Lens adapter c-mount | ||
| 2-90-414 | CS to C-mount adapter 5.0 mm | for connecting C-mount lenses with CS-mount cameras, length: 5 mm |
| Daylight blocking filter | ||
| 2-91-131 | IR filter M20.5x0.5 | long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5 |
| 2-91-324 | IR filter M138x1 | long-pass filter from 830 nm, daylight absorbing filter, filter thread M138x1 |
| Colour filter blue | ||
| 2-91-294 | Colour filter blue M138x1 | band-pass filter, range 350 nm - 600 nm, filter thread M138x1 |
| UV Cut-Off Filter | ||
| 2-91-326 | UV blocking filter M138x1 | long-pass filter from 350 nm, usable as protective glass, filter thread M138x1 |
| Colour filter red | ||
| 2-91-323 | Colour filter red M138x1 | long-pass filter from 630 nm, red, filter thread M138x1 |
| 2-91-259 | Colour filter red M20.5x0.5 | long-pass filter from 630 nm, red, filter thread M20.5x0.5 |
| Colour filter green | ||
| 2-91-307 | Colour filter green M138x1 | band-pass filter, range 430 nm - 620 nm, filter thread M138x1 |
| Colour filter yellow | ||
| 2-91-280 | Colour filter yellow M138x1 | long-pass filter from 530 nm, yellow, filter thread M138x1 |
| Adapters for attaching lights to lenses | ||
| 1-29-876 | Adapter ring d104 - M138x1 | for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M138x1 |
