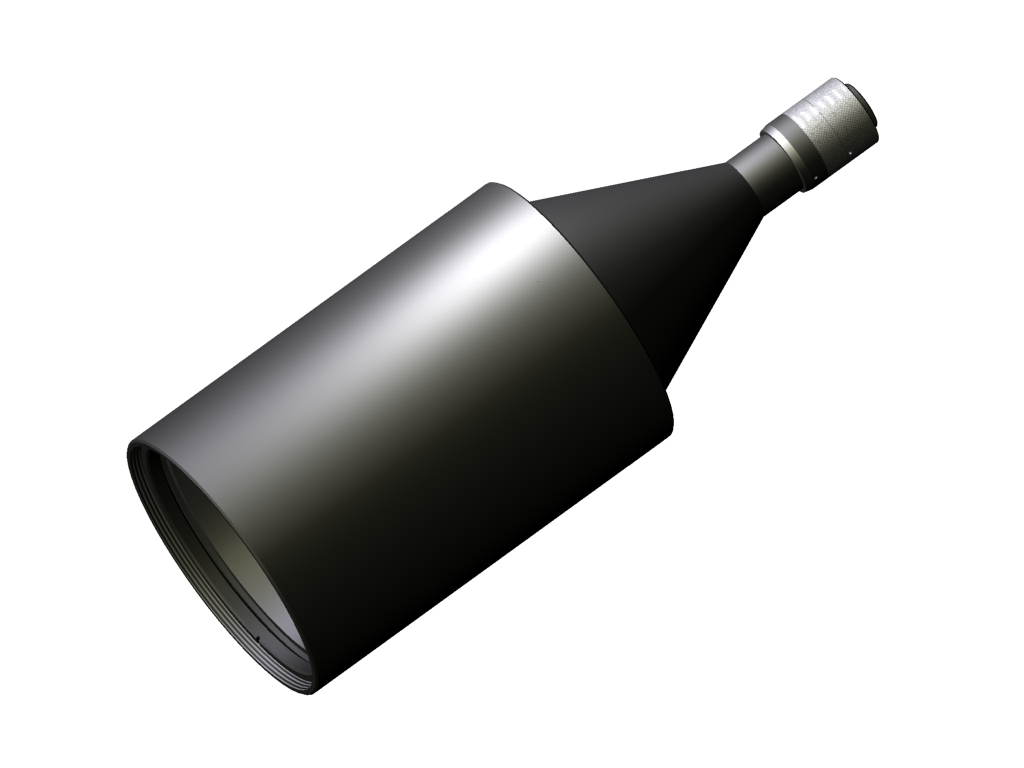

vicotar® Telecentric Lens - TO112/21.3-500-V-eLD
Characteristics
- telecentric measurement objective with object-sided telecentric beam path
- extremely long working distance
- Designed for monochromatic applications
- very well suited for blue LEDs including "Deep Blue" LEDs
- high resolution, low telecentric error
- adjustable aperture with identification of the aperture numbers, arrestable
- robust industrial design
Technical data
| Image scale | 0.188 |
| Spectral range | 400 nm - 950 nm |
| Working distance | 500 mm |
| Camera distance (object-camera flange) | 901.5 mm |
| Object field diagonal (max) | 112 mm |
| Sensor format (max) | Type 4/3 |
| Image field diagonal (max) | 21.3 mm |
| Suitable for camera resolution | 25 MPixel |
| Recommended pixel size | 3 µm |
| Aperture | verstellbar (F8 – F22) |
| Depth of focus | 31 mm (F11, 525 nm, MTF = 20 % @ 20 LP/mm) |
| Lens mount | C-Mount |
| Filter thread, object-side | M144 x 0.75 |
| Filter thread, camera-side | M20.5 x 0.5 |
| Weight | 4500 g |
| Usable object field with: | |
| • Sensor type 4/3 (17.3 x 13.0 mm²) | 90.7 mm x 68.1 mm |
| • 1" sensor (12.8 x 9.6 mm²) | 68.1 mm x 51.1 mm |
| • 2/3" sensor (8.8 x 6.6 mm²) | 46.8 mm x 35.1 mm |
Notices
The illumination combinations shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TZB130 series | ||
| 1-10-187 | TZB130-B470-24V | telecentric light, blue, lf diameter: 130 mm, static, cable open-ended |
| 1-10-195 | TZB130-W5K7-24V | telecentric light, white, lf diameter: 130 mm, static, cable open-ended |
| 1-10-189 | TZB130-IR880-24V | telecentric light, IR850, lf diameter: 130 mm, static, cable open-ended |
| 1-10-185 | TZB130-R625-24V | telecentric light, red, lf diameter: 130 mm, static, cable open-ended |
| 1-10-077 | TZB130-G525-24V | telecentric light, green, lf diameter: 130 mm, static, cable open-ended |
| TZB130-UDC-a Serie | ||
| 1-10-956 | TZB130-B470/UDC/-a | telecentric light, blue, lf diameter: 130 mm, flashable by flash controller |
| 1-10-957 | TZB130-W5K7/UDC/-a | telecentric light, white, lf diameter: 130 mm, flashable by flash controller |
| 1-10-958 | TZB130-IR880/UDC/-a | telecentric light, IR850, lf diameter: 130 mm, flashable by flash controller |
| 1-10-955 | TZB130-R625/UDC/-a | telecentric light, red, lf diameter: 130 mm, flashable by flash controller |
| 1-10-959 | TZB130-G525/UDC/-a | telecentric light, green, lf diameter: 130 mm, flashable by flash controller |
Accessories for Lighting - TO112/21.3-500-V-eLD
| Order number | Title | Description |
|---|---|---|
| Extension tubes | ||
| 2-90-415 | Extension ring 0.5 mm | 26 x 31 x 0.5 reduces the minimum object distance (MOD) |
| 2-90-416 | Extension ring 1.0 mm | 26 x 31 x 1.0 reduces the minimum object distance (MOD) |
| Lens adapter c-mount | ||
| 2-90-414 | CS to C-mount adapter 5.0 mm | for connecting C-mount lenses with CS-mount cameras, length: 5 mm |
| Daylight blocking filter | ||
| 2-91-131 | IR filter M20.5x0.5 | long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5 |
| Colour filter red | ||
| 2-91-259 | Colour filter red M20.5x0.5 | long-pass filter from 630 nm, red, filter thread M20.5x0.5 |
| Adapters for attaching lights to lenses | ||
| 1-29-873 | Adapter ring d104 - M144x0.75 | for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M144x0.75 |
