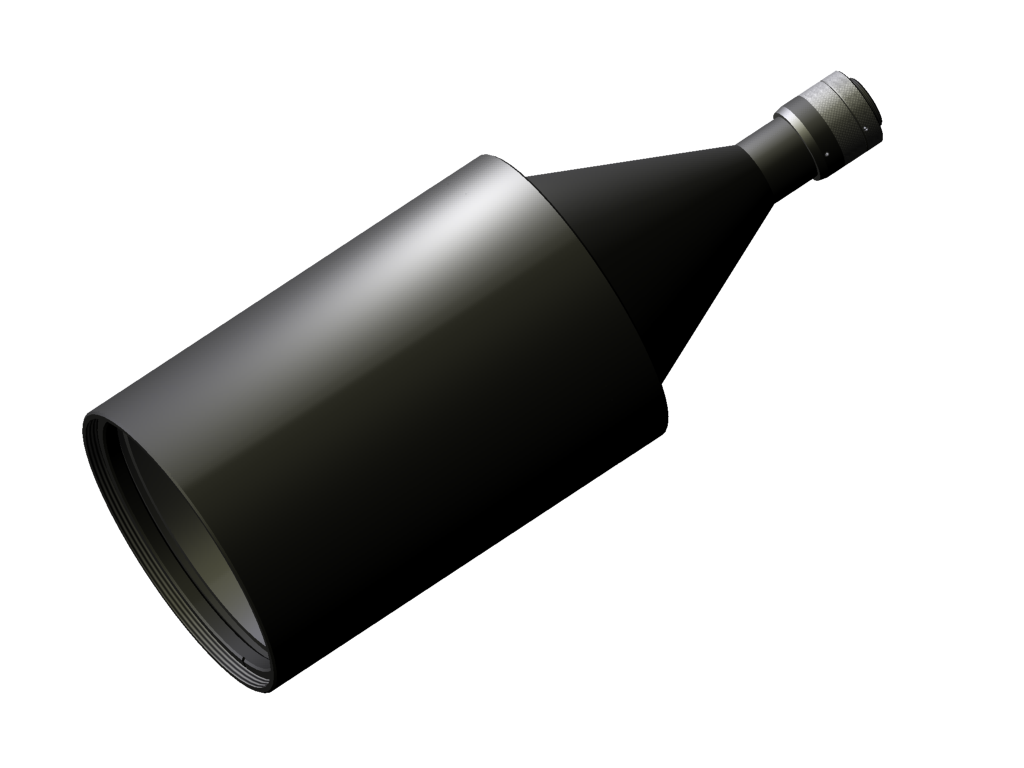

vicotar® Telecentric Lens - T360/0.09a
Short description:
Telecentric Lens, C-mount, Sensor max. 2/3", variable aperture, W/NIR
Order number:
2-05-245
This product is being replaced!
EAN:
4251692620106
Actual Notice:
Termination to 30.06.2023.
Please check the use of: TO125/11.0-200-V-BW (2-05-852)
and TO125/11.1-267-V-WN-LD (2-05-398)
Please check the use of: TO125/11.0-200-V-BW (2-05-852)
and TO125/11.1-267-V-WN-LD (2-05-398)
Downloads:
Characteristics
- telecentric measurement objective with object-sided telecentric beam path
- low telecentric error
- color-optimized and bright
- adjustable aperture, arrestable
- robust industrial design
Technical data
| Image scale | 0.089 |
| Spectral range | 380 nm - 900 nm |
| Working distance | 265.0 mm |
| Camera distance (object-camera flange) | 641 mm |
| Object field diagonal (max) | 123.6 mm |
| Sensor format (max) | 2/3" |
| Image field diagonal (max) | 11 mm |
| Suitable for camera resolution | 15.8 MPixel |
| Recommended pixel size | 1.92 µm |
| Aperture | variable |
| Filter thread, camera-side | M20.5 x 0.5 |
| Weight | 4300 g |
| Usable object field with: | |
| • 2/3" sensor (8.8 x 6.6 mm²) | 98.9 mm x 74.2 mm |
| • 1/1.8" sensor (7.1 x 5.4 mm²) | 79.8 mm x 60.7 mm |
| • 1/2" sensor (6.4 x 4.8 mm²) | 71.9 mm x 53.9 mm |
| • 1/3" sensor (4.8 x 3.6 mm²) | 53.9 mm x 40.4 mm |
Notices
The lightings combination products shown are a selection. Depending on the application, other colors and light source types can also be used.
Drawings
Dimensional drawing in mm
Can be combined with
| Order number | Title | Description |
|---|---|---|
| TZB130 series | ||
| 1-10-187 | TZB130-B470-24V | telecentric light, blue, lf diameter: 130 mm, static, cable open-ended |
| 1-10-195 | TZB130-W5K7-24V | telecentric light, white, lf diameter: 130 mm, static, cable open-ended |
| 1-10-189 | TZB130-IR880-24V | telecentric light, IR850, lf diameter: 130 mm, static, cable open-ended |
| 1-10-185 | TZB130-R625-24V | telecentric light, red, lf diameter: 130 mm, static, cable open-ended |
| 1-10-077 | TZB130-G525-24V | telecentric light, green, lf diameter: 130 mm, static, cable open-ended |
| TZB130-UDC-a Serie | ||
| 1-10-956 | TZB130-B470/UDC/-a | telecentric light, blue, lf diameter: 130 mm, flashable by flash controller |
| 1-10-957 | TZB130-W5K7/UDC/-a | telecentric light, white, lf diameter: 130 mm, flashable by flash controller |
| 1-10-958 | TZB130-IR880/UDC/-a | telecentric light, IR850, lf diameter: 130 mm, flashable by flash controller |
| 1-10-955 | TZB130-R625/UDC/-a | telecentric light, red, lf diameter: 130 mm, flashable by flash controller |
| 1-10-959 | TZB130-G525/UDC/-a | telecentric light, green, lf diameter: 130 mm, flashable by flash controller |
Accessories for Lighting - T360/0.09a
| Order number | Title | Description |
|---|---|---|
| Extension tubes | ||
| 2-90-415 | Extension ring 0.5 mm | 26 x 31 x 0.5 reduces the minimum object distance (MOD) |
| 2-90-416 | Extension ring 1.0 mm | 26 x 31 x 1.0 reduces the minimum object distance (MOD) |
| Lens adapter c-mount | ||
| 2-90-414 | CS to C-mount adapter 5.0 mm | for connecting C-mount lenses with CS-mount cameras, length: 5 mm |
| Daylight blocking filter | ||
| 2-91-131 | IR filter M20.5x0.5 | long-pass filter from 830 nm, daylight absorbing filter, filter thread M20.5x0.5 |
| Colour filter red | ||
| 2-91-259 | Colour filter red M20.5x0.5 | long-pass filter from 630 nm, red, filter thread M20.5x0.5 |
| Adapters for attaching lights to lenses | ||
| 1-29-873 | Adapter ring d104 - M144x0.75 | for R-CLR-132x104 and RK5268, for attachment to lenses with filter thread M144x0.75 |
