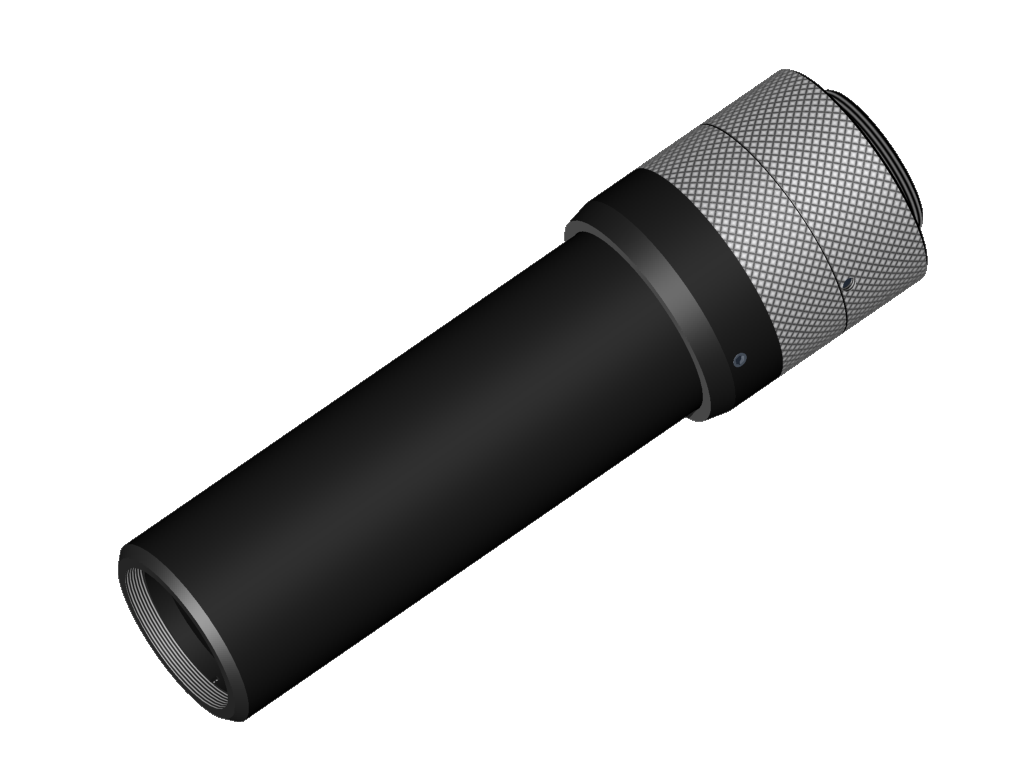

vicotar® Telecentric Lens - T100/0.39
Characteristics
- telecentric measurement objective with object-sided telecentric beam path
- high-quality imaging
- color-optimized and bright
- adjustable aperture, arrestable
- robust industrial design
Technical data
| Image scale | 0.391 |
| Spectral range | 380 nm - 900 nm |
| Working distance | 32.5 mm |
| Object field diagonal (max) | 23 mm |
| Sensor format (max) | 1/1.8" |
| Suitable for camera resolution | 5 MPixel |
| Aperture | Variable aperture |
| Lens mount | C-Mount |
| Filter thread, object-side | M26 x 0.5 (depth 2.7 mm) |
| Weight | 230 g |
| Usable object field with: | |
| • 1/1.8" sensor (7.1 x 5.4 mm²) | 18.4 mm x 13.8 mm |
| • 1/2" sensor (6.4 x 4.8 mm²) | 16.3 mm x 12.2 mm |
| • 1/3" sensor (4.8 x 3.6 mm²) | 12.2 mm x 9.2 mm |
| • 1/4" sensor (3.4 x 2.2 mm²) | 8.6 mm x 5.6 mm |
Drawings
Dimensional drawing in mm
