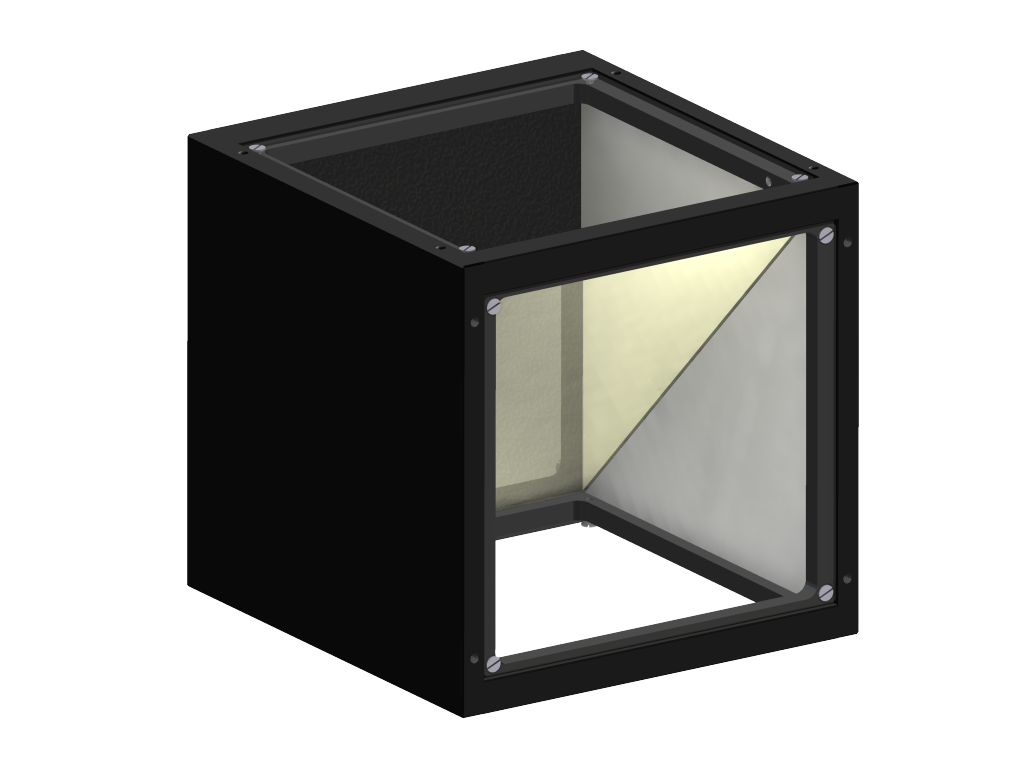

Beam Splitter Unit - STE60x60-VIS
Characteristics
- Beam splitter unit for setting up a coaxial light
- modular design - type and position of lens and lighting are freely selectable
- in combination with the DL60x60 lighting results in a very homogeneous light source
- various adapters for lighting and lenses allow individual scenarios
- suitable for industry thanks to robust, anodized aluminium housing with high dimensional stability
Technical data
| Housing material | Aluminium, black anodised |
| Optical material | Splitter: glass Cover plates: PMMA |
| Spectral range | 450 nm - 700 nm |
| Reflection/Transmission Ratio | 50% R / 50% T ± 5% |
| Displacement of the optical axis | 0.334 |
| Free field of view | 60 mm x 60 mm |
| Dimensions | 77 mm x 74 mm x 74 mm |
| Weight | 290 g |
| Degree of protection | IP50 |
Drawings

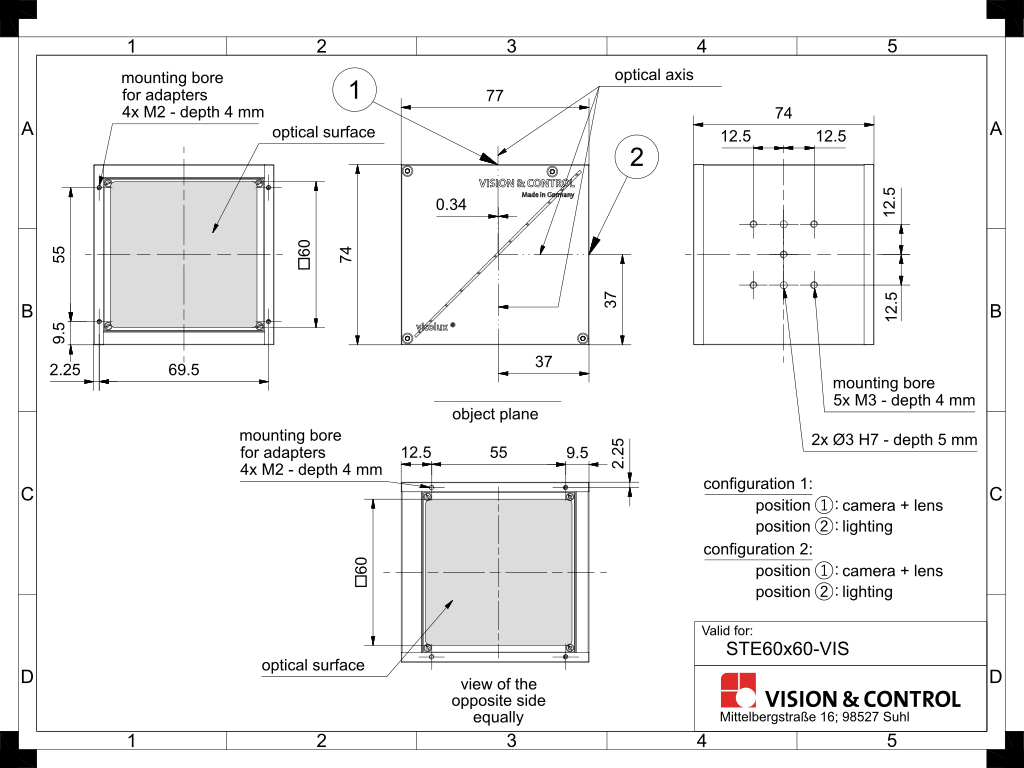

Dimensional drawing in mm
Accessories for Lighting - STE60x60-VIS
| Order number | Title | Description |
|---|---|---|
| Beam splitter STE60x60 | ||
| 1-32-350 | Adapter STE60x60 - SFD, D-CRL | Attachment of the STE60x60 to SFD42/12 and to D-CRL-84x24 |
| 1-20-031 | Adapter STE60x60 - DL60x60 | Attachment of the STE60x60 to the DL60x60 |
| 1-20-022 | Adapter STE60x60 - TZO56 | Attachment of the STE60x60 to telecentric lenses and lightings with d = 56mm |
| 1-20-021 | Adapter STE60x60 - TZO71 | Attachment of the STE60x60 to telecentric lenses and lightings with d= 71mm |
| 1-20-023 | Adapter STE60x60 - TZO106 | Attachment of the STE60x60 to telecentric lenses and lightings with d = 106mm |
