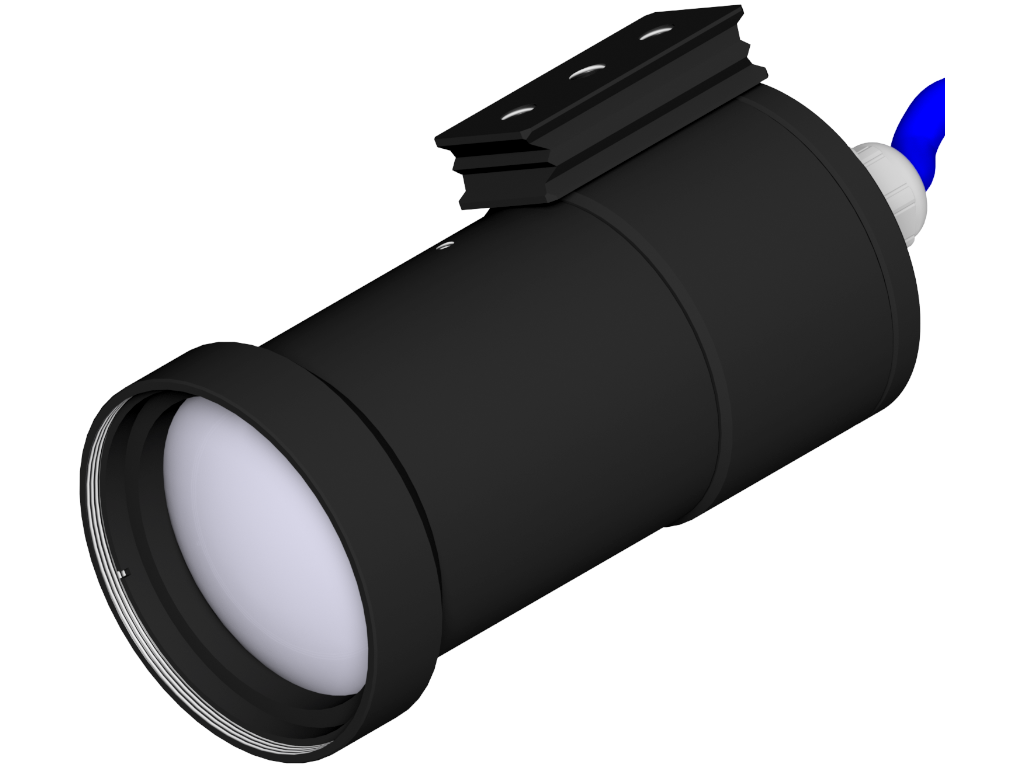

vicolux® Spot Light - SPOT50-IR850/C

SPOT50-IR850/C
Short description:

focusable spot light, IR850, lf diameter: 40-200 mm, WD: 400-2000 mm, controlled

Order number:
1-10-710
EAN:
4251692648032
Downloads:
STP-File download
Characteristics

  • LED spot light with direct illumination
  • Integrated focusing optics for adjusting the luminous field and the working distance
  • homogeneous illumination
  • lighting controller integrated in casing
  • continuous or pulsed operation
  • pulse-length and brightness adjustable
  • connection: cable with open ends

Technical data
Light colourInfrared, 850 nm
Operation voltage24 VDC (10 - 30 V)
Irradiance 1310 W/m2
Housing materialAluminium, black anodised
Weight370 g
Degree of protectionIP50
Safety classClass III, safety extra low voltage (SELV)
Risk group (DIN EN 62471)Risk group 0 (exempt group)
Ambient temperature0 °C ... 40 °C
1 at 500 mm working distance
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Pin assignment: cable open, 6-core
Pin assignment: cable open, 6-core
