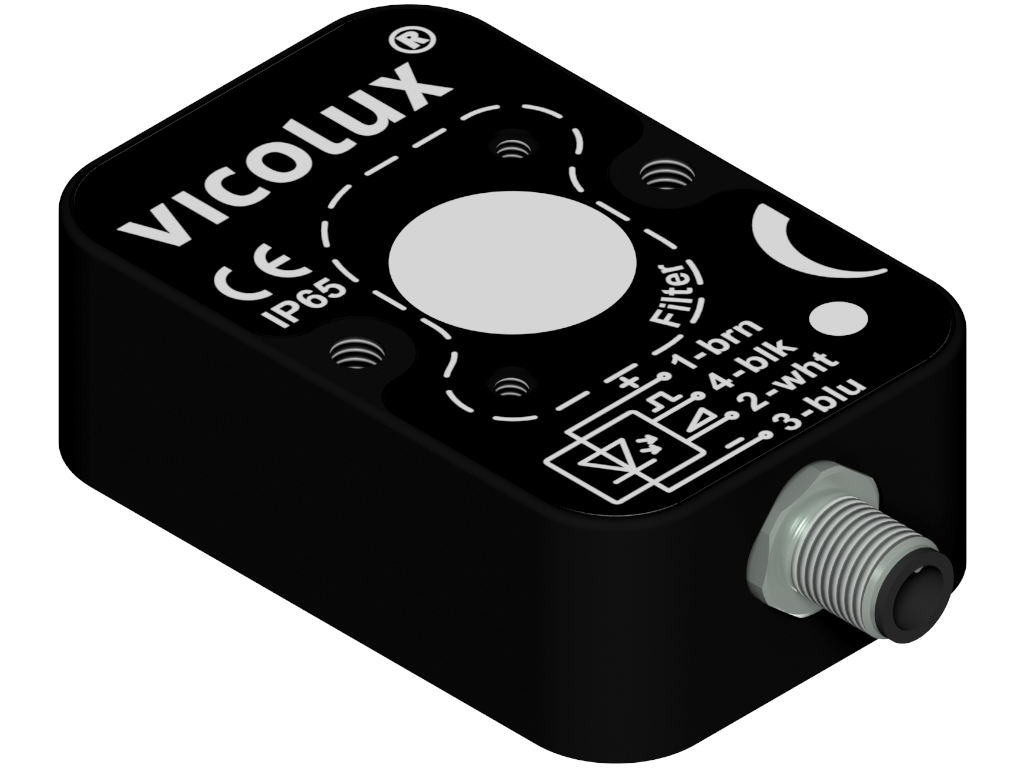

vicolux® Spot Light - RAL10-7-B470/C
Characteristics
- LED spot light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: M5 plug on the casing
Technical data
Light colour | Blue, 470 nm |
Beam angle | 7° |
Operation voltage | 24 VDC (10 - 30 V) |
Housing material | Aluminium, black anodised |
Weight | 22 g |
Degree of protection | IP65 |
Safety class | Class III, safety extra low voltage (SELV) |
Risk group (DIN EN 62471) | Freie Gruppe |
Ambient temperature | 0 °C ... 40 °C |
Accessories for Lighting - RAL10-7-B470/C
Order number | Title | Description |
---|---|---|
Accessories for RAL10 series | ||
1-11-751 | Diffuser 15% RAL10 | for RAL10, diffuser plate made of PMMA, incl. screws |
1-11-752 | Diffuser 40% RAL10 | for RAL10, diffuser plate made of PMMA, incl. screws |
1-11-750 | Polarizer linear RAL10 | for RAL10, neutral gray polarization filter, incl. screws |
Connection cable M5-4pin | ||
1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
