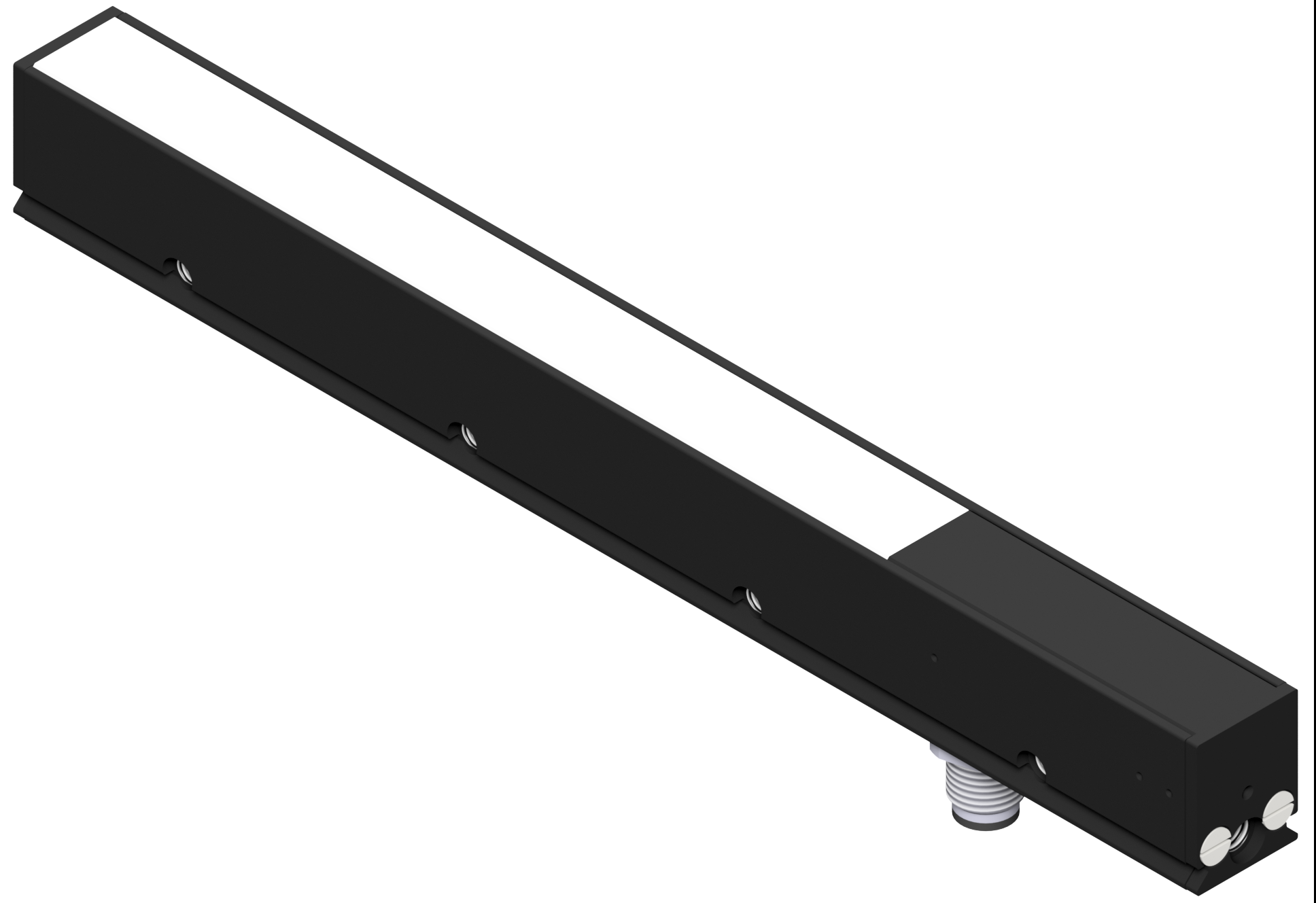

vicolux® Bar Light - LAL7x100-G525/24V - Luminous Field Size 7 mm x 100 mm
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug on the casing
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 7 mm x 100 mm |
| Light colour | Green, 525 nm |
| Light design | Directed |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 30 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Schutzkleinspannung (SELV) |
Drawings
Dimensional drawing in mm: length = 100 mm; width = 7 mm
Pin assignments, M5 connector
Accessories for Lighting - LAL7x100-G525/24V
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-826 | Tension clamp LxL7 series | for variable attachment and extension of the LxL7 series, l=25mm, w=17mm |
| Polarisers for 7 mm Bar Lights | ||
| 1-16-904 | Polarizer 7x100, linear | for LxL7x100, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
