vicolux® Area Light - FDL06-R633/UDC/-a

FDL06-R633/UDC/-a
Short description:

area light, red, diffuse, lf-size: 120x90 mm, flashable by flash controller

Order number:
1-15-670
EAN:
4251692654637
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
STP-File download
Characteristics

  • flat LED area light with diffuse illumination
  • homogeneous illumination
  • safe operation due to vicolux® smart light Controller (e.g. DLC3005)
  • connection: cable with M8 connector
  • metal casing, optical material: glass
  • multiple mounting options

Technical data
Light-emitting surface120 mm x 90 mm
Light designDiffus
Light colour (typ.)Red, 633 nm
Special featureBlitzbar mit Blitzcontroller
Radiance
• Continuous operation30 W/(m²sr)
Housing materialAluminium, black anodised
Optical materialGlass
Weight680 g
Degree of protectionIP50
Safety classClass III, safety extra low voltage (SELV)
Ambient temperature- 10 °C ... + 45 °C
Cable
Cable length150 mm (without M8 connector)
Cable diameter5 mm
Cable structure4 x 0.25 mm²
Notices
Die Beleuchtung kann nur in Verbindung mit einem Beleuchtungscontroller oder einer geeigneten Stromquelle betrieben werden.
vicolux® smart light Beleuchtungscontroller begrenzen automatisch die elektrischen Parameter und überwachen die Gerätetemperatur.
Drawings

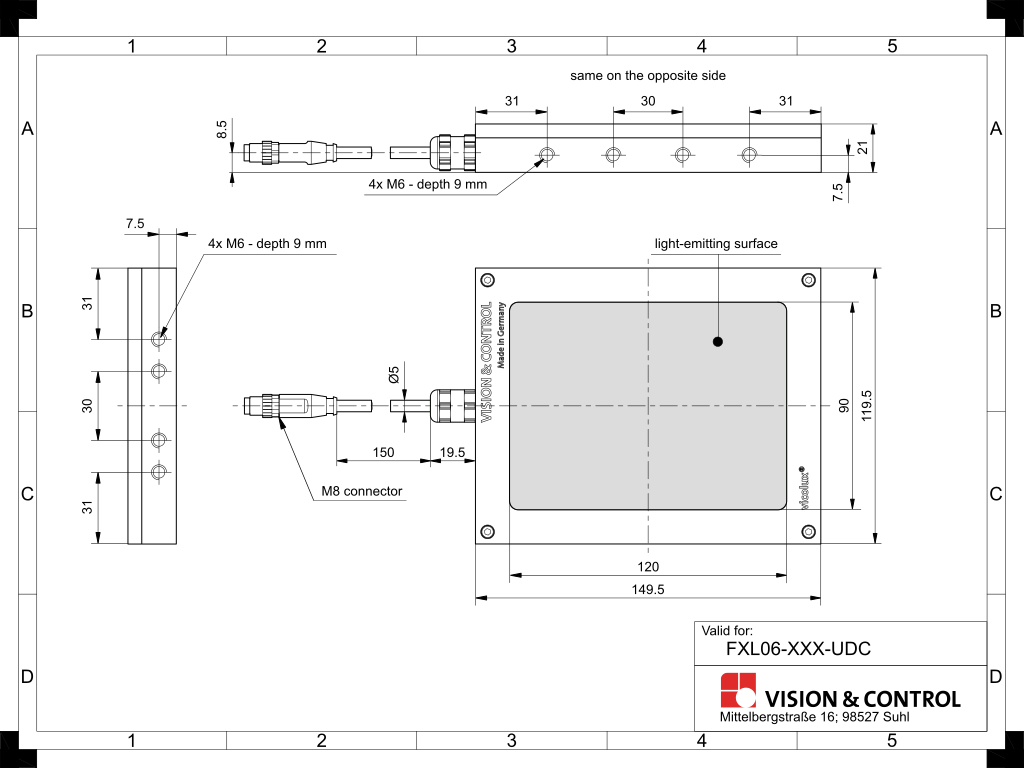

Dimensional drawing in mm
Dimensional drawing in mm
Pin assignment M8 connector
Pin assignment M8 connector
