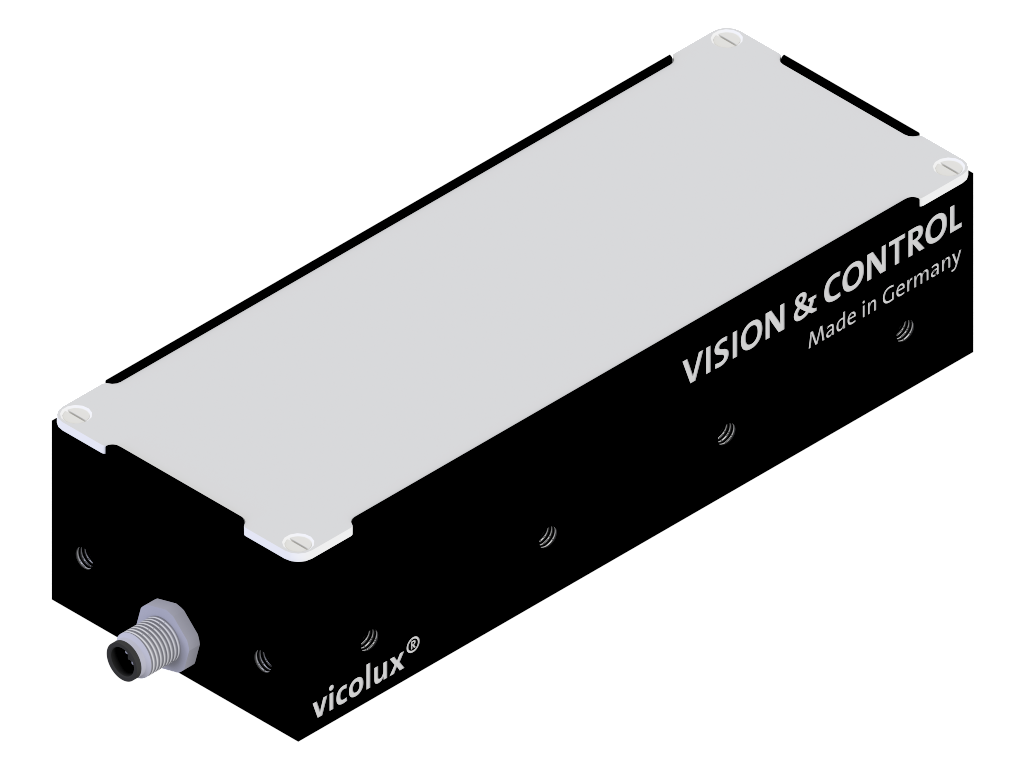

vicolux® Area Light - DL30x90-B470/24V

DL30x90-B470/24V
Short description:

area light, blue, diffuse, lf-size: 30x90 mm, M5-4pin, static / switchable

Order number:
1-21-702
EAN:
4251692658765
Downloads:
Characteristics

  • LED area light with diffuse illumination
  • homogeneous illumination
  • lighting controller integrated in casing
  • continuous or pulsed operation
  • brightness pre-set, flash duration corresponds to pulse-length
  • connection: M5 plug on the casing
  • metal casing, optical material: PMMA

Technical data
Light-emitting surface30 mm x 90 mm
Light colourBlue, 470 nm
Light designDiffus
Operating voltage24 V
Power consumption3.4 W
Radiance
• Continuous operation35 W/(m²sr)
Housing materialAluminium, black anodised
Optical materialPMMA
Weight105 g
Degree of protectionIP50
Safety classClass III, safety extra low voltage (SELV)
Risk group (DIN EN 62471)Risk group 0 (exempt group)
Ambient temperature0 °C to 45 °C
Drawings
The dimensions given are in millimetres.
Pin assignment of the M5 connector

Accessories for Lighting - DL30x90-B470/24V

Order number Title Description
diffusers
1-21-560 Diffusor 40% 30x90x1 for AL30x90 diffuser plate made of PMMA, screwable
Polarisers for Area Lights
1-21-562 Polarizer linear 30x90x0.18 for AL30x90 and DL30x90, polarizing filter, neutral gray, self-adhesive
1-21-563 Polarizer linear 30x90x2 for AL30x90, polarizing filter, neutral gray, screwable
protective covers
1-21-561 Clear cover 30x90x1 for AL30x90, protective cover made of PMMA, screwable
Connection cable M5-4pin
1-11-117 Cable-M5-4p-1A-straight-2m 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end
1-11-116 Cable-M5-4p-1A-straight-5m 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end
1-11-105 Cable-M5-4p-1A-angled-2m 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end
1-11-104 Cable-M5-4p-1A-angled-5m 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end
