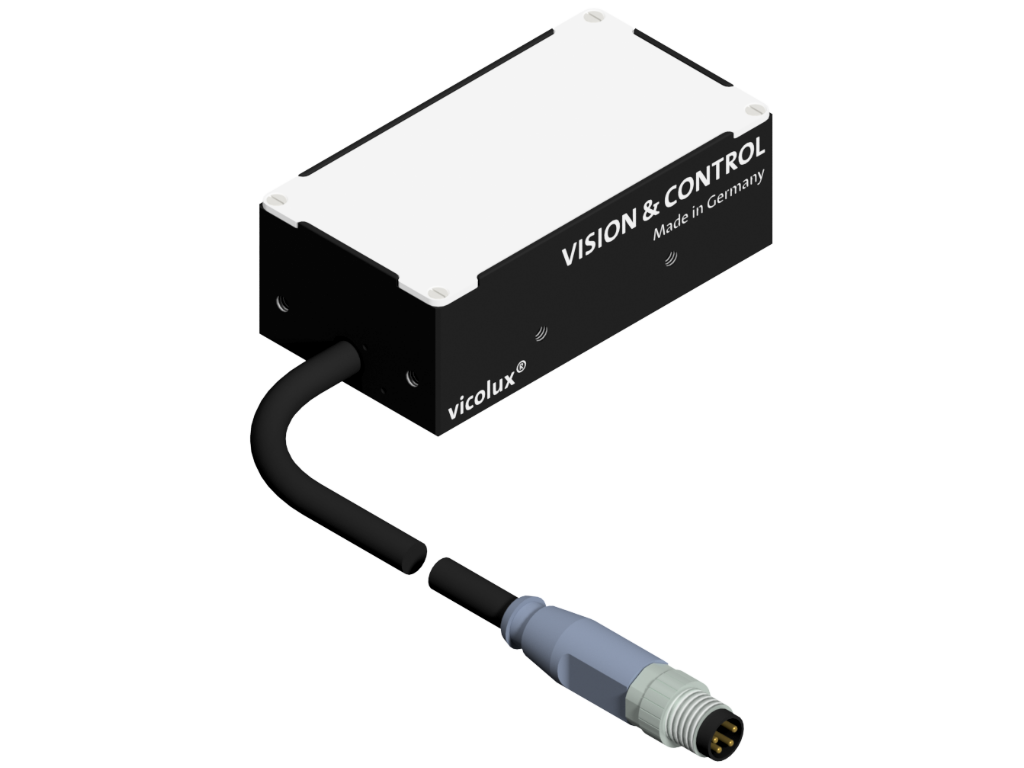

vicolux® Area Light - DL30x60-R633/UDC/-a
Characteristics
- LED area light with diffuse illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Light-emitting surface | 30 mm x 60 mm |
| Light colour | Red, 633 nm |
| Light design | Diffuse |
| Special feature | Flashable with flash controller |
| Power consumption | 2.4 W |
| Radiance | |
| • Continuous operation | 80 W/(m²sr) |
| • Flash mode | 205 W/(m²sr) |
| Housing material | Aluminium, black anodised |
| Optical material | PMMA |
| Weight | 92 g |
| Degree of protection | IP 50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | 0 °C to 45 °C |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment of the M8 connector
Can be combined with
Accessories for Lighting - DL30x60-R633/UDC/-a
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-21-060 | Diffusor 40% 30x60x1 | for AL30x60 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-21-062 | Polarizer linear 30x60x0.18 | for AL30x60 and DL30x60, polarizing filter, neutral gray, self-adhesive |
| 1-21-063 | Polarizer linear 30x60x2 | for AL30x60, polarizing filter, neutral gray, screwable |
| protective covers | ||
| 1-21-061 | Clear cover 30x60x1 | for AL30x60, protective cover made of PMMA, screwable |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
