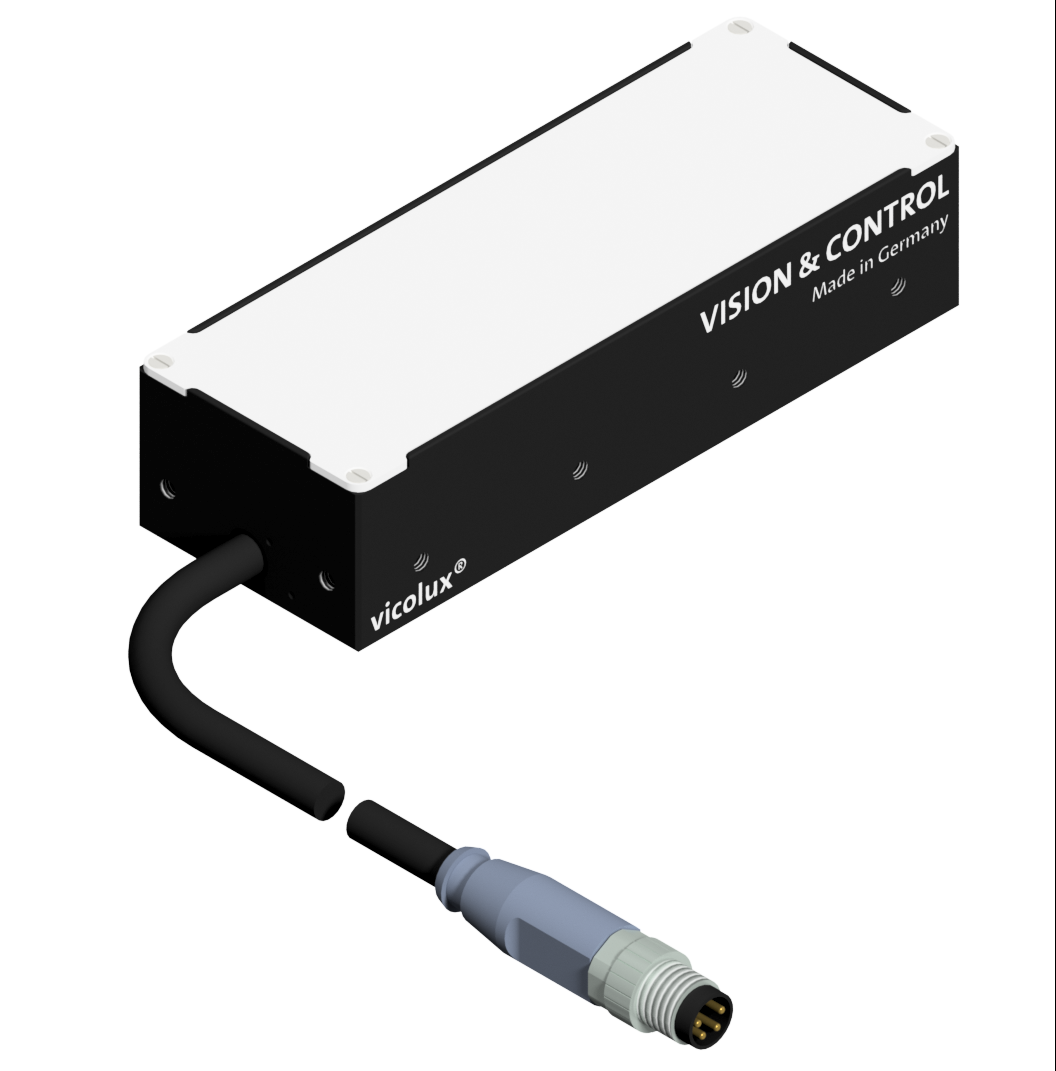

vicolux® Area Light - AL30x90-IR850/UDC/-a
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- multiple mounting options
- metal casing, optical material: PMMA
Technical data
| Light-emitting surface | 30 mm x 90 mm |
| Light colour | Infrared, 850 nm |
| Light design | Directed |
| Special feature | Flashable with flash controller |
| Operating voltage | For current source only! |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 130 g |
| Irradiance ¹) | |
| • Continuous operation | 269 W/m² |
| ¹) working distance = 50 mm |
Drawings
Dimensional drawing in mm: length = 90 mm; width = 30 mm
Pin assignments, M8 connector
Can be combined with
Accessories for Lighting - AL30x90-IR850/UDC/-a
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-21-560 | Diffusor 40% 30x90x1 | for AL30x90 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-21-562 | Polarizer linear 30x90x0.18 | for AL30x90 and DL30x90, polarizing filter, neutral gray, self-adhesive |
| 1-21-563 | Polarizer linear 30x90x2 | for AL30x90, polarizing filter, neutral gray, screwable |
| protective covers | ||
| 1-21-561 | Clear cover 30x90x1 | for AL30x90, protective cover made of PMMA, screwable |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
