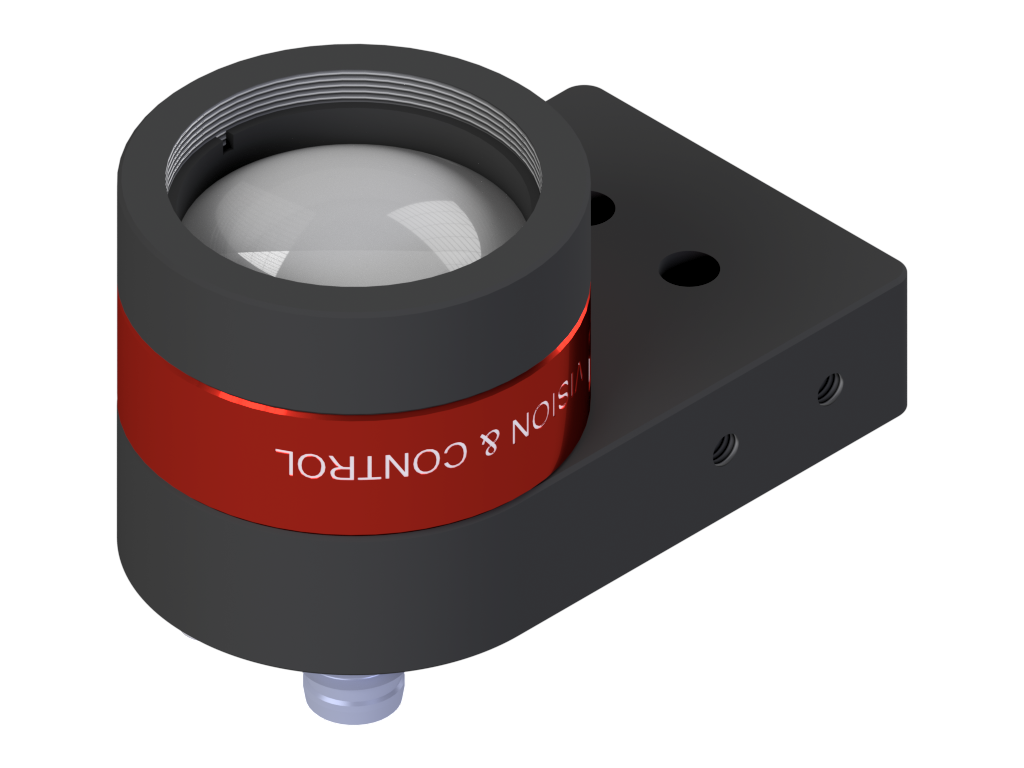

vicolux® Spot Light - SLE-150-W5K7-P-SL

SLE-150-W5K7-P-SL
Short description:

compact spot light, white, P-LED, variable work distance, condenser lens, smart light

Order number:
1-33-301
EAN:
4251692648124
Downloads:
Instructions
STP-File download
Characteristics

  • flashable high-power LED spot illumination with condenser optics
  • compact, thermally optimized design
  • high light output focused on small beam angle
  • high uniformity in light distribution
  • the pronounced mounting surface enables optimum heat dissipation
  • robust, without movable adjustment elements
  • the high light intensity as well as the optical design allow the use also at variable working distance
  • eurrent embossing: Continuous operation and high-speed flash operation with 1µs pulse duration
  • safe operation with vicolux® digital lighting controller (e.g. DLC3005)
  • developed for the requirements of industrial image processing

Technical data
Beam angle40°
Luminous field diameter 1150 mm
Light colour (typ.)Weiss, 5700 K
Special featureFlashable with flash controller
Continuous operation
• Power consumption2.9 W
• Irradiance 121.8 W/m2
• Illuminance 16.6 klx
• Radiance 2132.0 kW/m2sr
• Luminance 239.2 Mcd/m2
Flash mode
• Power consumption17.5 W
• Irradiance 180.4 W/m2
• Illuminance 123.1 klx
• Radiance 3468.2 kW/m2sr
• Luminance 3134.0 Mcd/m2
Housing materialAluminium, black anodised
Optical materialGlass
Filter threadM28 x 0.5
Weight68.5 g
Degree of protectionIP 50
Safety classClass III, safety extra low voltage (SELV)
Risk group (DIN EN 62471)Continuous operation: Risk group 2
Flash mode: Risk group 2
Ambient temperature-10 °C bis +45 °C
1 at 200 mm working distance
2 at 11 mrad
2 at 1.7 mrad
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
Pin assignment: M8 connector
Pin assignment: M8 connector

Can be combined with

Order number Title Description
LED Controller DLC3005
1-30-202 DLC3005 LED lighting controller, digital, cont./flash current: 4.8A/18A, wall mounting
1-30-209 DLC3005-R LED lighting controller, digital, cont./flash current: 4.8A/18A, DIN rail mounting

Accessories for Lighting - SLE-150-W5K7-P-SL

Order number Title Description
Connection cable M8-4pin
1-11-611 Cable-M8-4p-5A-straight-1m 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end
1-11-612 Cable-M8-4p-5A-straight-2m 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end
1-11-613 Cable-M8-4p-5A-straight-3m 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end
1-11-614 Cable-M8-4p-5A-straight-5m 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end
1-11-609 Cable-M8-4p-4A-straight-5m 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end
1-11-605 Cable-M8-4p-4A-angled-2m 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end
1-11-604 Cable-M8-4p-4A-angled-5m 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end
Extension cable M8-4pin
1-11-093 Extension cable-M8-4p-5A-0.6m 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug
1-11-094 Extension cable-M8-4p-5A-1.5m 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug
1-11-095 Extension cable-M8-4p-5A-3.0m 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug
