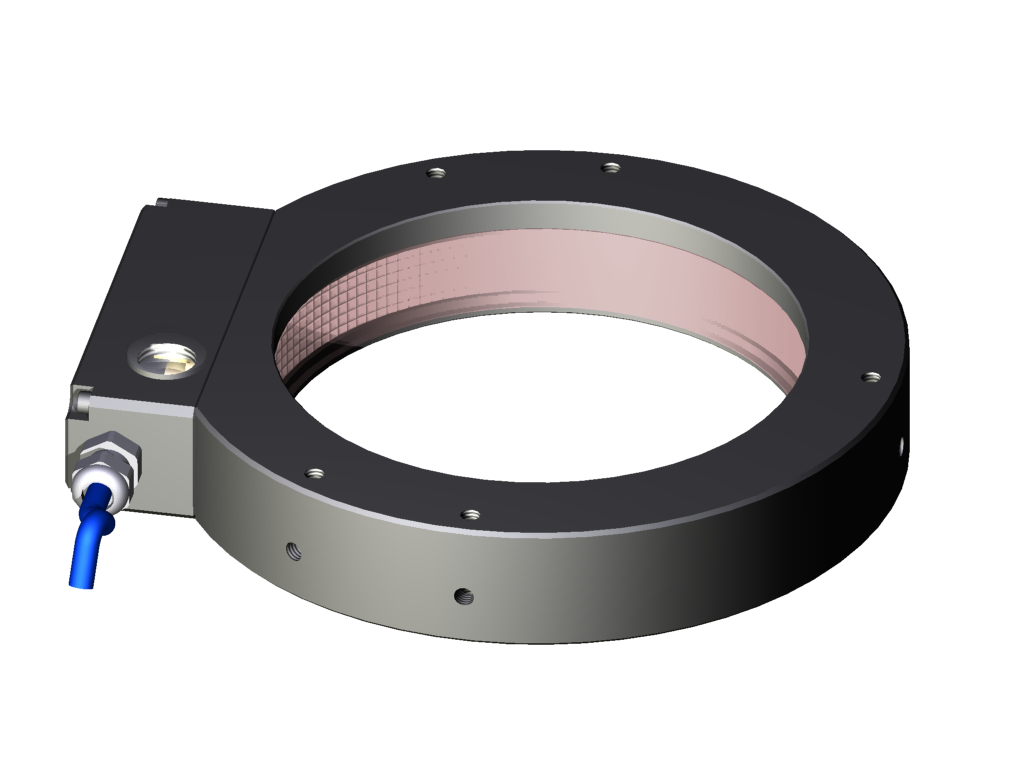

vicolux® Dark Field Light - RR64/22-IR850/VC
Characteristics
- LED dark-field light, radial illumination
- Homogeneous illumination
- Build-in Controller
- Continuous or pulsed operation
- Pulse-length adjustable, brightness pre-set
- Connection: cable with open ends
- Polyamide casing
- Multiple mounting options
Technical data
| Diameter of luminous field | 128 mm |
| Light colour | Infrared, 850 nm |
| Operation voltage | 24 VDC (10 - 30 V) |
| Ambient temperature | 0 °C bis +40 °C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 950 g |
| Risk group (DIN EN 62471) | Exempt |
| Safety class | III, operation on protective low voltage |
Drawings
Dimensional drawing in mm
