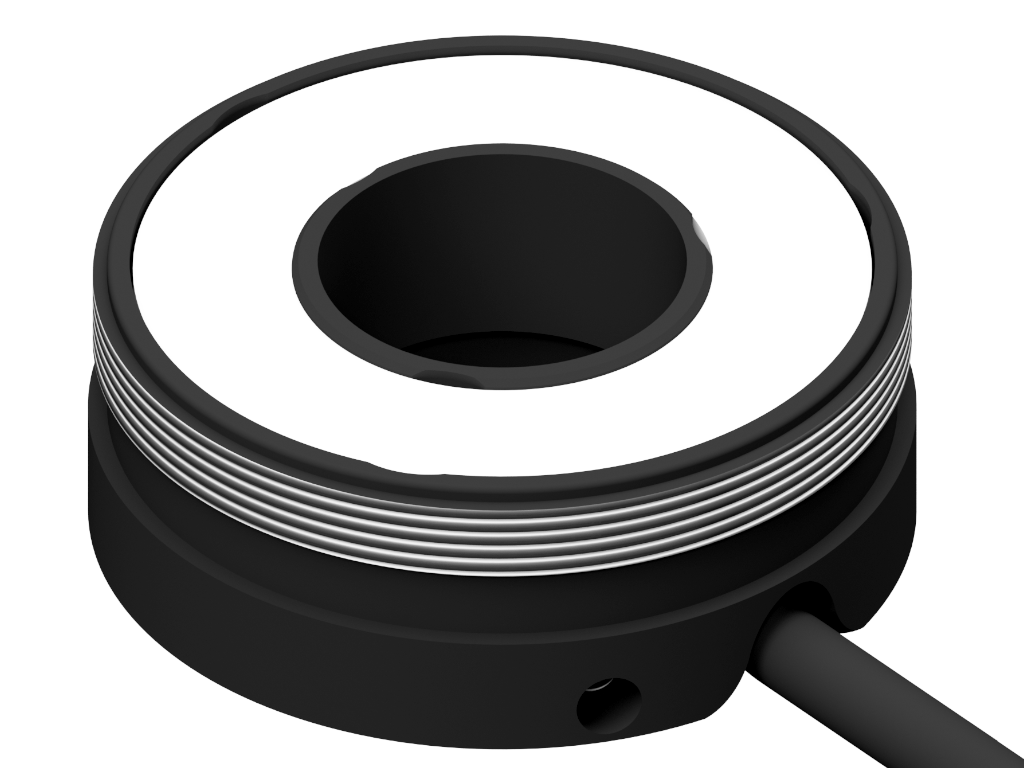

vicolux® Ring Light - RK613-W5K7-24V/C - Diameter of luminous field 13/23 mm
Characteristics
- LED ring light with direct illumination for direct mounting on M12 lenses
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- robust metal casing, protection class IP67
- extensive optics and mounting accessories available
Technical data
| Light-emitting surface | Inner diameter: 13 mmOuter diameter: 23 mm |
| Light colour | White, 5700 K |
| Power supply | 24 VDC (18 -30 V) |
| Continuous operation | |
| • Irradiance | 24.3 W/m² |
| Housing material | Aluminium, black anodised |
| Optical material | LED, moulded |
| Weight | 15 g |
| Degree of protection | IP67 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | 0 °C ... +45 °C |
Drawings
Dimensional drawing in mm
Pin assignments: free cable end, 4-wire
Accessories for Lighting - RK613-W5K7-24V/C
| Order number | Title | Description |
|---|---|---|
| Attachment ring | ||
| 1-29-150 | Attachment ring M25.5x0.5 | for RK613, for attachment of beam shaping optics |
| Diffusers | ||
| 1-29-172 | Diffuser 40% d23 | for RK613, usable with attachment ring M25.5x0.5 (Best.Nr.: 1-29-150) |
| 1-29-171 | Diffuser 15% d23 | for RK613, usable with attachment ring M25.5x0.5 (Best.Nr.: 1-29-150) |
| Polarisers for Ring Lights | ||
| 1-29-170 | Polariser linear d24/12 | Polarisation filter for ring lights, Di = 12, Da = 24 |
| Focusing and Fresnel lens | ||
| 1-29-174 | Fresnel lens F50 d23 | for RK613, usable with attachment ring M25.5x0.5 (Best.Nr.: 1-29-150) |
| 1-29-175 | Fresnel lens F100 d23 | for RK613, usable with attachment ring M25.5x0.5 (Best.Nr.: 1-29-150) |
| 1-29-176 | Fresnel lens F150 d23 | for RK613, usable with attachment ring M25.5x0.5 (Best.Nr.: 1-29-150) |
| Adapters for attaching lights to lenses | ||
| 1-29-153 | Adapter ring d14 - M25.5x0.5 | for RK613, for attachment to lenses with filter thread M25.5x0.5 |
| 1-29-152 | Adapter ring d14 - M26x0.5 | for RK613, for attachment to lenses with filter thread M26x0.5 |
| 1-29-151 | Adapter ring d14 - M27x0.5 | for RK613, for attachment to lenses with filter thread M27x0.5 |
| 1-29-155 | Adapter ring d14 - d27 | for RK613, for attachment to lenses with clamping diameter 27 mm |
| 1-29-156 | Adapter ring d14 - d35.5 | for RK613, for attachment to lenses with clamping diameter 35.5 mm |
| 1-29-158 | Adapter ring d35.5 - d34 | for RK613, for attachment to lenses with clamping diameter 34 mm |
