Application Examples with the current webHMI

The webHMI is a complete browser-based HMI.

Examples in the Browser

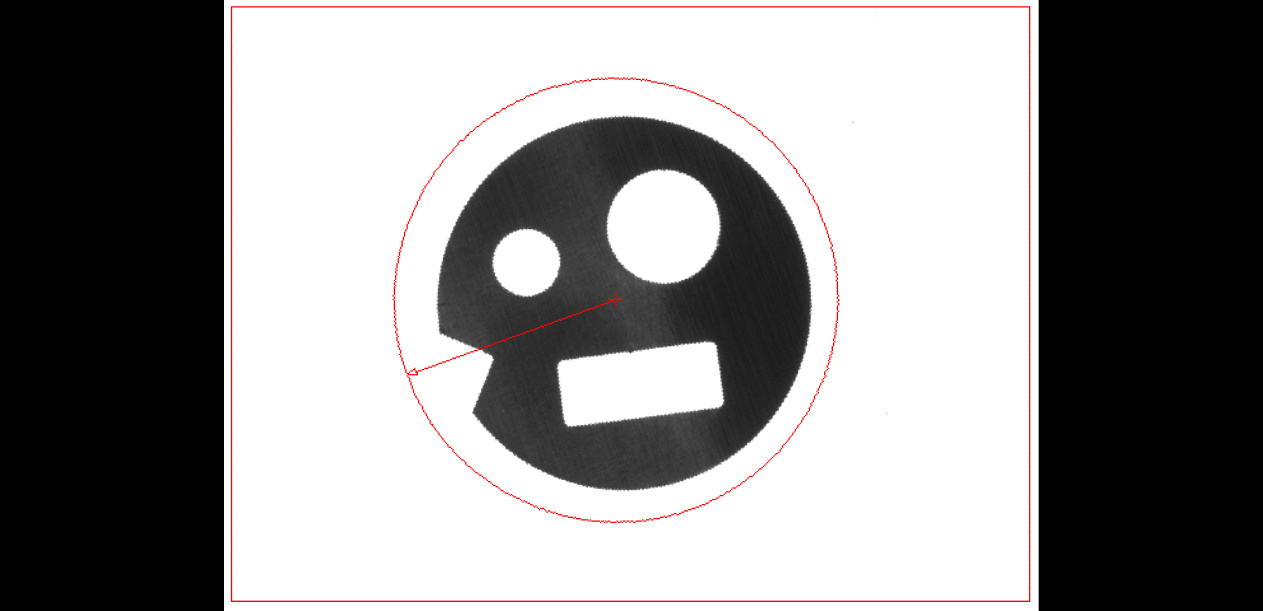

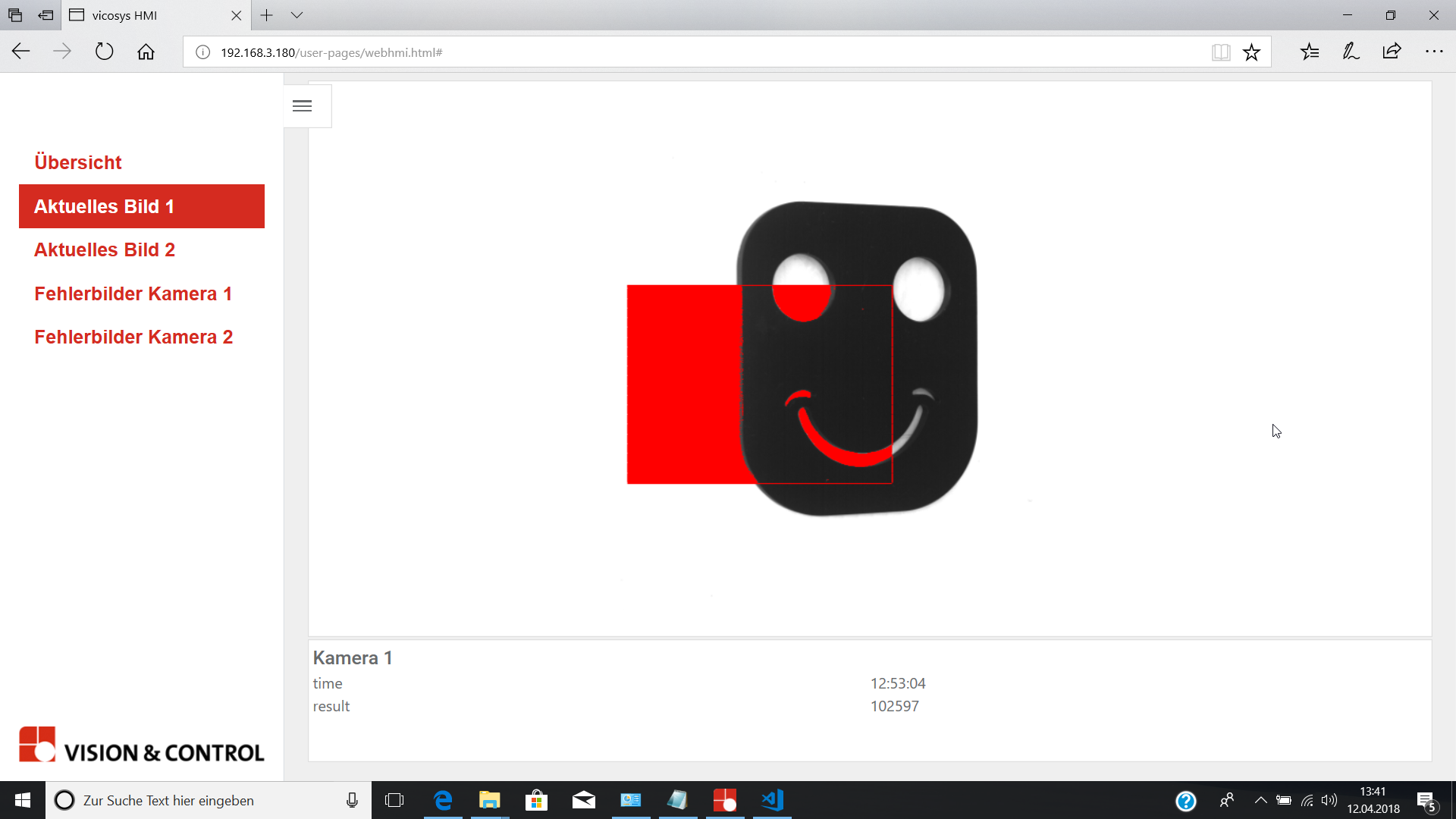

visualization of images in a modern browser

Demo

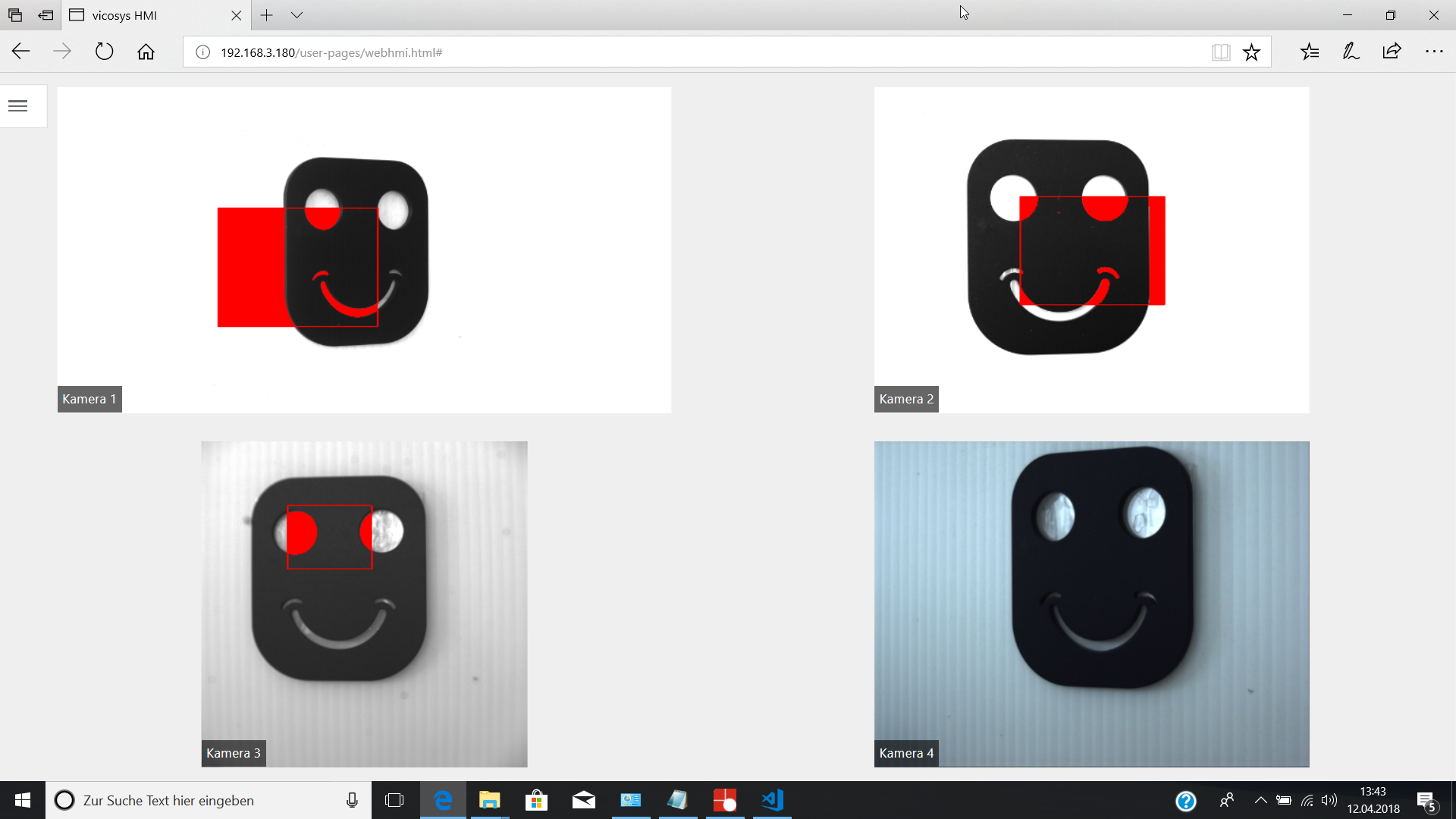

visualization of multiple stations in one website

visualization of multiple stations in a in one website or multiple images of one system at same time

Application example for the output of several image memory pages with page selection and measured values.

Error image display - representation in the ring buffer

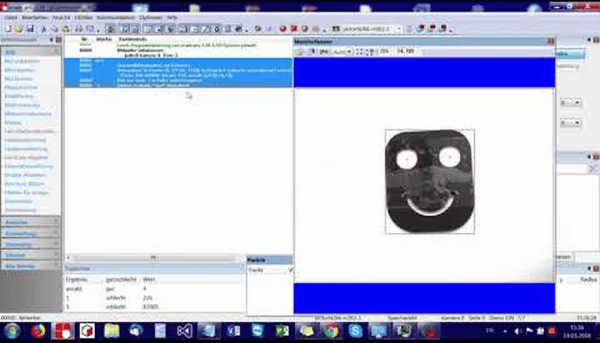

With the Buffer Monitor, you can control the image display in the browser and send targeted images, if you want it.

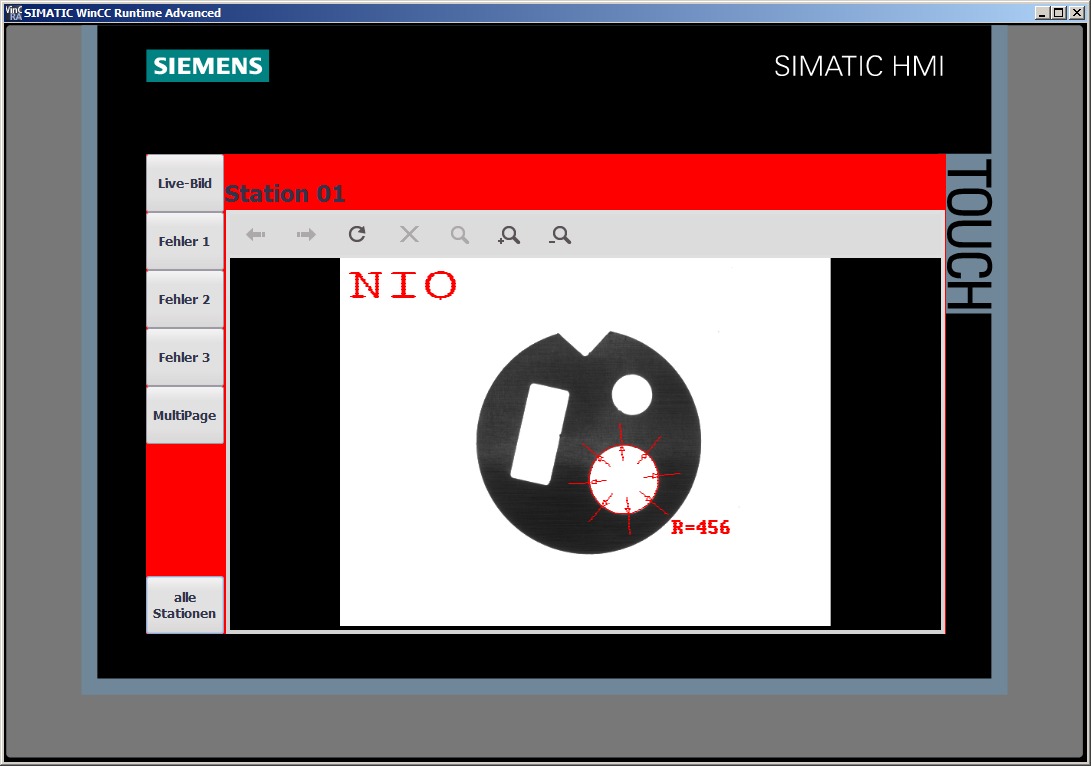

Application examples webHMI with SIEMENS Comfort Panel

The widely used SIEMENS Comfort Panels also allow the test image to be displayed without problems.

display the image in a browser plugin

defect images are organized in images pages, the displayed page can be selected individually

multiple image pages of the same system can be shown in one browser control simultaneously

multiple image pages can be integrated in the browser control at same time
