Accessory 90° Deflection - Deflection mirror 90-23

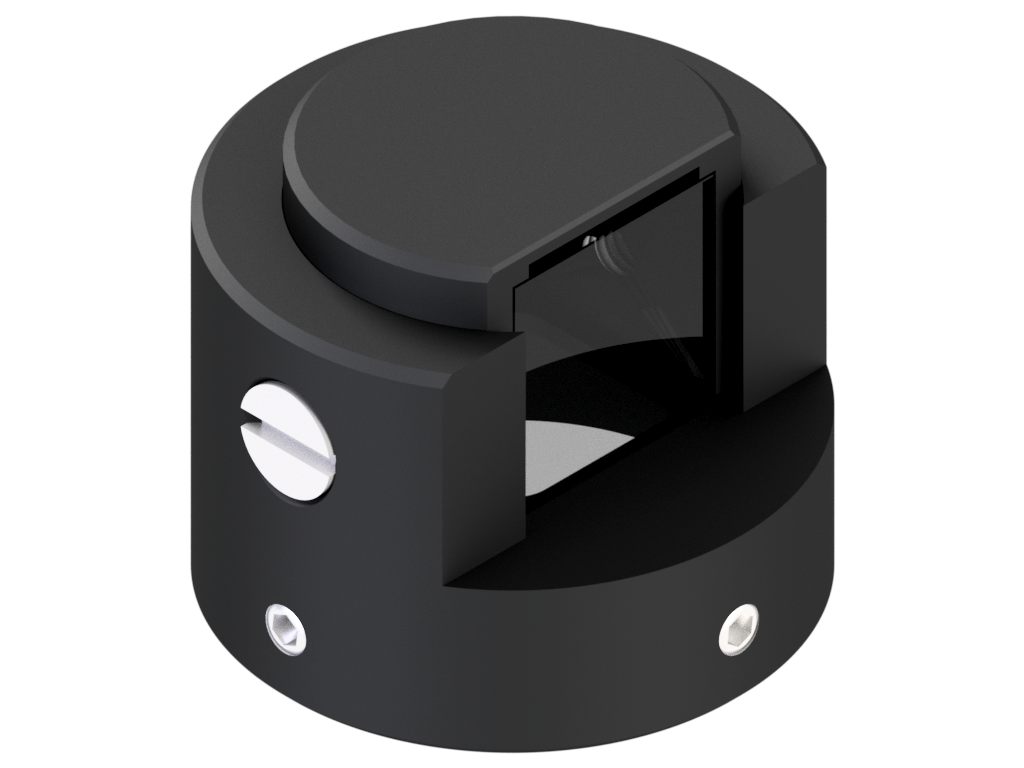

Deflection mirror 90-23
Short description:

90° deflection, attachment for telecentric lenses and lightings with d = 23 mm

Order number:
2-25-111
Downloads:
Characteristics

  • deflection of the beam path by 90 degrees
  • for easy installation in narrow installation conditions
  • attachable with locking
  • rotary and fixable version
  • robust housing, dustproof, ideal for industrial applications

Technical data
Deflecting elementHalf-cube prism
Put on diameter23 mm
Free visual field11 mm x 11 mm
Shortening of the working distance10.2 mm
Housing materialAluminium, black anodised
Optical materialGlass
DimensionsLength: 23 mm
Diameter: 28 mm
Attachment to the lens4 Grub screws arranged at 90° angles
Weight23 g
Degree of protectionIP 50
Ambient temperature- 10°C ... 55°C
Can be combined with:
Telecentric lightTZB10 series
Drawings

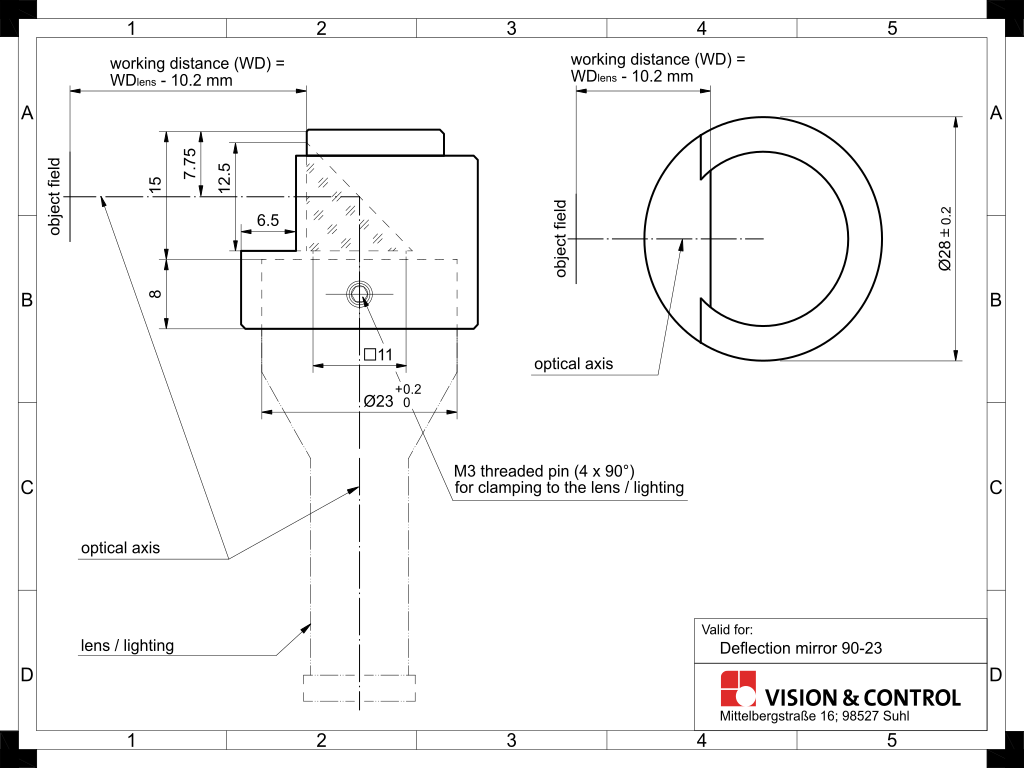

Dimensional drawing in mm
