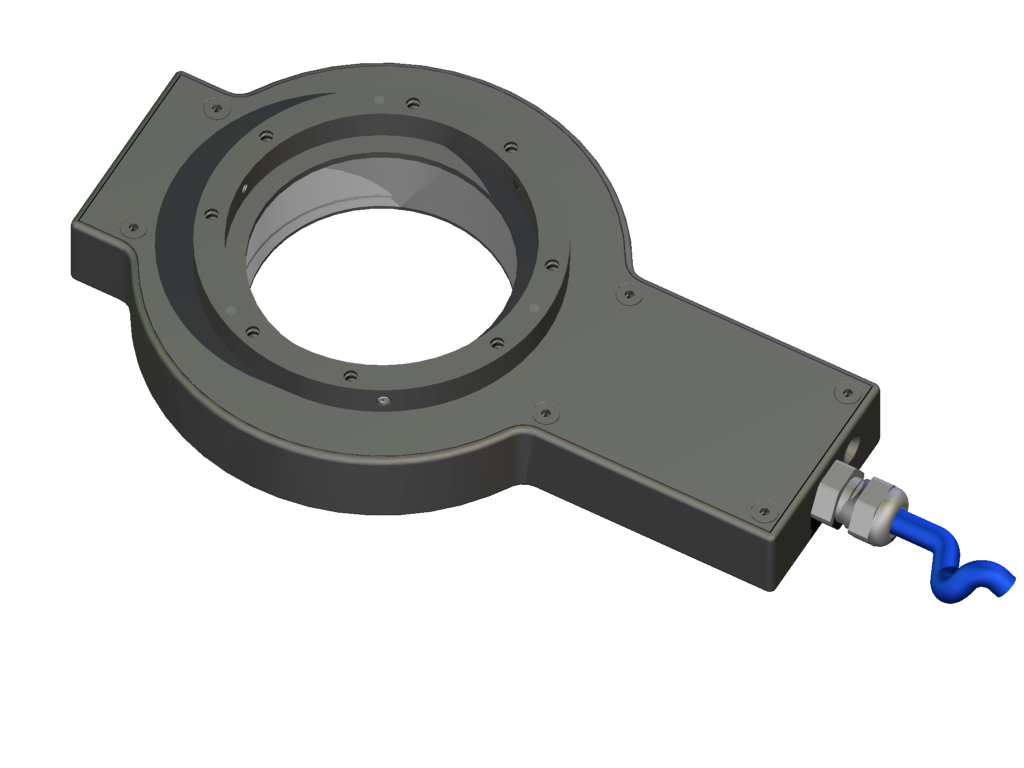

vicolux® Dark Field Light - RR30/23-W5K7/C
Characteristics
- LED dark-field light, radial illumination
- Homogeneous illumination
- Build-in Controller
- Continuous or pulsed operation
- Pulse-length and brightness adjustable
- Connection: cable with open ends
- Polyamide casing
- Multiple mounting options
Technical data
| Diameter of luminous field | 60 mm |
| Light colour | White, 5700 K |
| Irradiance at working distance 0 mm | 9.6 W/m² |
| Illumination at working distance 0 mm | 3200 lx |
| Operation voltage | 24 VDC (10 - 30 V) |
| Ambient temperature | 0 °C bis +40 °C |
| Degree of protection | IP60 |
| Housing material | Aluminium black anodised |
| Weight | 400 g |
| Risk group (DIN EN 62471) | Exempt |
| Safety class | III, operation on protective low voltage |
Drawings
Dimensional drawing in mm
