Lens Holder - Lens Holder d28

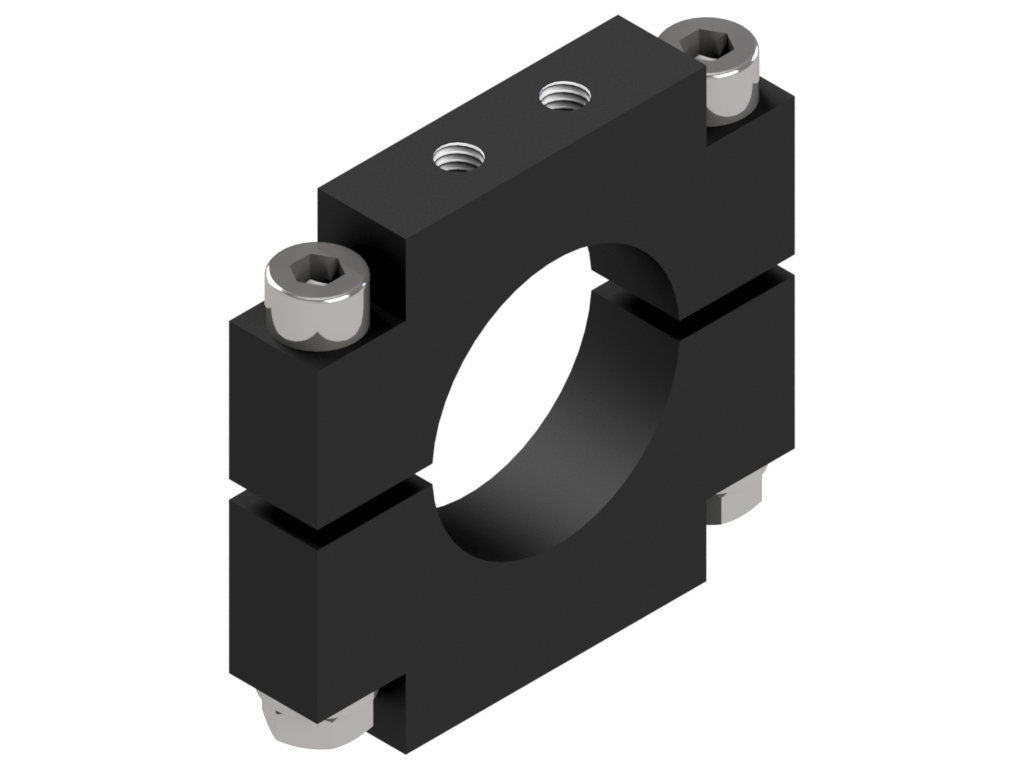

Lens Holder d28
Short description:

Holder for telecentric lenses and lightings with d = 28 mm

Order number:
2-90-138
Downloads:
Characteristics

  • Holder for lenses and telecentric lights
  • Robust mount for high mechanical loads
  • Support long lenses for vibration-free attachment
  • Fixation of the optical adjustment under extreme mechanical loads
  • Adaptable to various attachment situations such as direct attachment to the machine frame, attachment to a separate rail with attachment features or combination of rail and machine

Technical data
MaterialAluminium, black anodised
Weight50 g
Clamping diameter28 mm
Clamping length 10 mm
Can be combined with:
Telecentric lightTZB30 series
Telecentric opticTO30 series
TO18 series
Drawings
Dimensional drawing in mm
