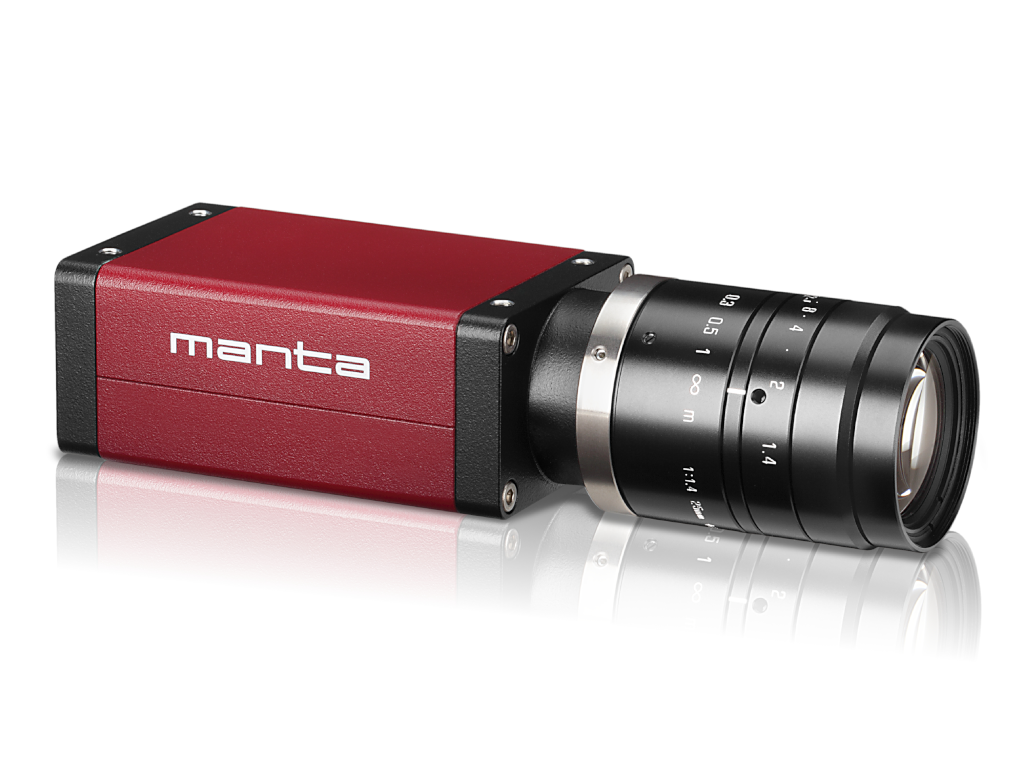

Camera for Multi-Camera Systems - Manta G-146C
Characteristics
- GigE area scan camera for industrial applications
- 1/2" CCD colour sensor with 1.4 megapixel resolution
- industrial GigE Vision interface
- RJ45 Ethernet connection with screw connector for safe operation
- C-mount lens connection
- easy attachment with standard M3 thread at the top and bottom of the housing
Technical data
| Sensor Specification | |
| Sensor name | Sony ICX267AK |
| Spectrum | Farbe |
| Shutter technology | Interline CCD, Progressive Scan |
| Sensor format | Global Shutter |
| Sensor diagonal [mm] | 1/2" |
| Total resolution[Pixel] | 8.0 mm |
| Total pixel [MP] | 1388 x 1038 |
| Pixel size [µm] | 1.4 MPixel |
| Sensor technology | 4.65 µm x 4.65 µm |
| Sensor alternatives (same technology) | 17 fps |
| Camera Specification | 0 dB ... 33 dB |
| Type | |
| IR blocking filter | Allied Vision - Manta |
| LAN speed [MBit/s] | GigE Vision area scan camera |
| Protection class | GigE Vision without PoE opto-decoupled I/Os 2x IN, 2x OUT |
| General Information | 8 V - 30 VDC AUX (12-pin Hirose) |
| POE | < 3.6 W (at 12 V DC) |
| Lens Mount | C-Mount |
| Weight [g] | 86.4 mm x 44 mm x 29 mm (including connections) |
| Housing dimensions | 200 g |
Drawings
Dimensional drawing in mm
Quantum Efficiency
