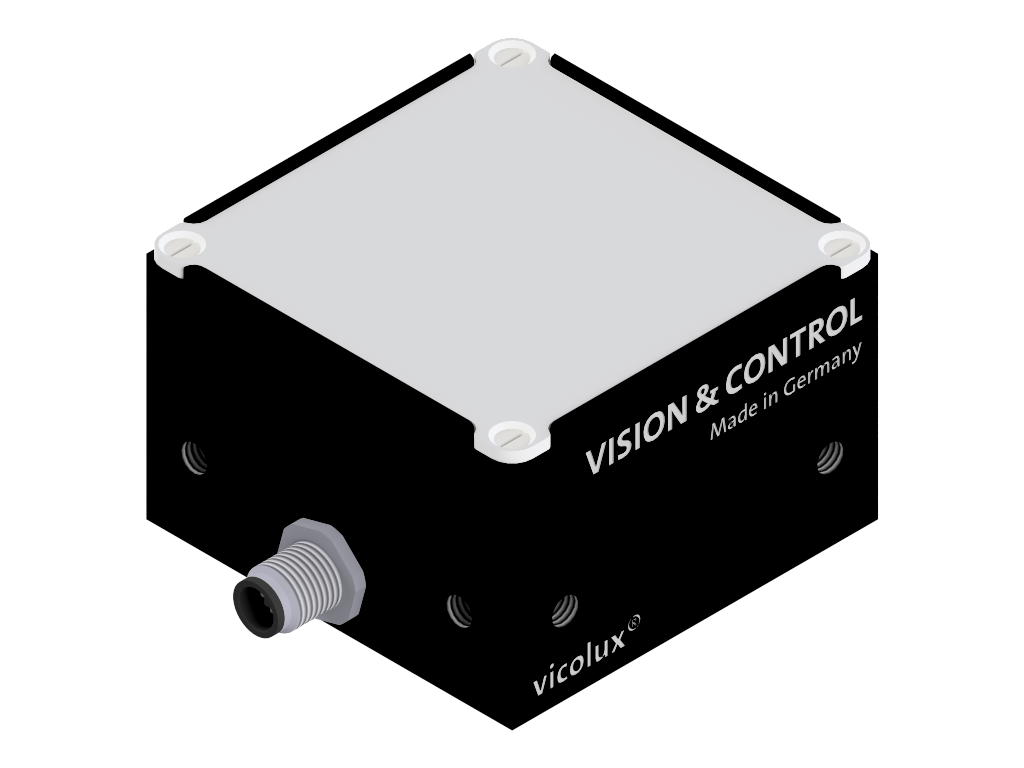

vicolux® Area Light - DL30x30-W5K7/24V
Characteristics
- LED area light with diffuse illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug on the casing
- metal casing, optical material: PMMA
Technical data
| Light-emitting surface | 30 mm x 30 mm |
| Light colour | White, 5700 K |
| Light design | Diffuse |
| Operating voltage | 24 V |
| Power consumption | 1.5 W |
| Radiance | |
| • Continuous operation | 80 W/(m²sr) |
| Housing material | Aluminium, black anodised |
| Optical material | PMMA |
| Weight | 35 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | 0 °C to 45 °C |
Drawings
Dimensional drawing in mm
Pin assignment of the M5 connector
Accessories for Lighting - DL30x30-W5K7/24V
| Order number | Title | Description |
|---|---|---|
| Beam splitter STE30x30 | ||
| 1-18-031 | Adapter STE30x30 - DL30x30 | Attachment of the STE30x30 to the DL30x30 |
| Mounting systems | ||
| 1-18-070 | Adjustable holder xL30 | for xL30x30/60/90, stepless rotatable and swiveling mounting, incl. screws |
| diffusers | ||
| 1-18-060 | Diffusor 40% 30x30x1 | for AL30x30 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-18-062 | Polarizer linear 30x30x0.18 | for AL30x30 and DL30x30, polarizing filter, neutral gray, self-adhesive |
| protective covers | ||
| 1-18-061 | Clear cover 30x30x1 | for AL30x30, protective cover made of PMMA, screwable |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
