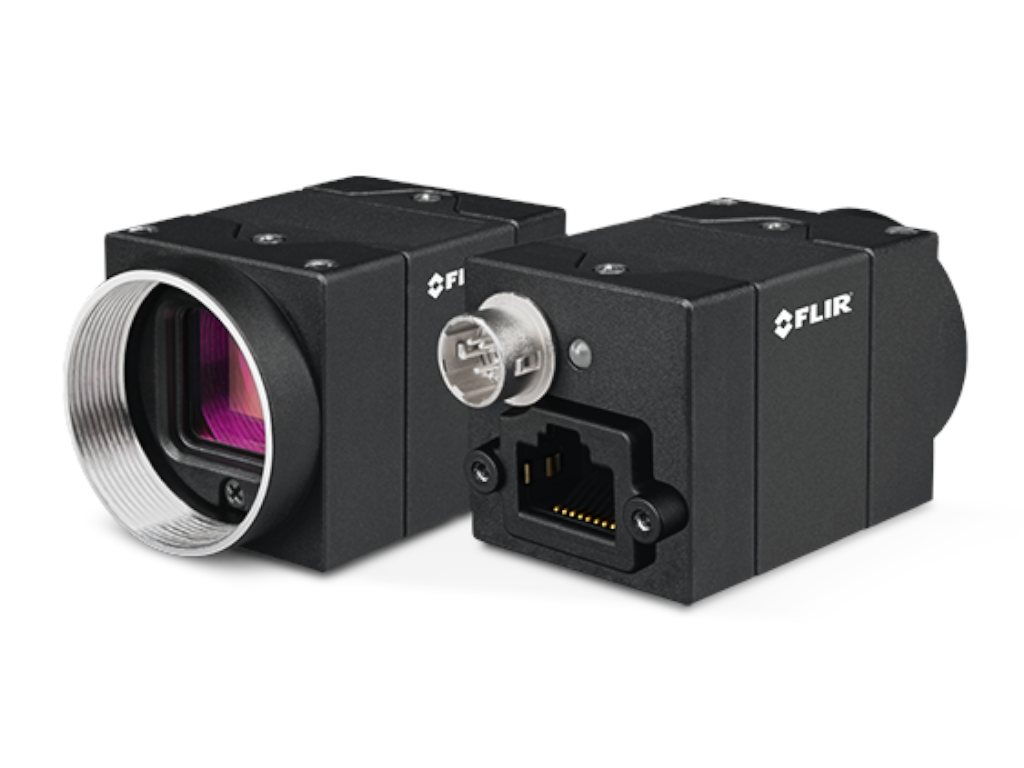

Camera for Multi-Camera Systems - BFS-PGE-161S7M-C PoE
Characteristics
- ultra-compact GigE area scan camera for industrial applications
- 1.1" CMOS monochrom sensor with 16 megapixel resolution
- industrial GigE Vision interface with Power over Ethernet
- RJ45 Ethernet connection with screw connector for safe operation
- C-mount lens connection
Technical data
| Sensor Data | |
| Sensor name | Sony IMX542 |
| Chroma | Monochrome |
| Sensor technology | CMOS |
| Readout method | Global Shutter |
| Sensorformat | 1.1" |
| Sensor diagonal | 16.8 mm |
| Resolution total | 5320 x 3032 |
| Number of pixel | 16.1 MPixel |
| Pixel size | 2.74 µm x 2.74 µm |
| Frame rate | 7 fps |
| Shutter (exposure time) | 26 µs ... 30 s |
| Gain control | 0 dB ... 47 dB |
| Dynamic range | 70.55 dB |
| Camera Data | |
| Family | Flir - Blackfly®S |
| Type | GigE Vision area scan camera |
| Interfaces | GigE Vision with PoE opto-decoupled I/Os 1x IN, 1x OUT |
| General Data | |
| Power requirements | Power over Ethernet (PoE) 8 V - 24 VDC AUX (6-pin Hirose) |
| Power consumption | 4.2 W (PoE); 3.6 W (at 12 VDC) |
| Lens mount | C-Mount |
| Dimensions | 29 mm x 29 mm x 39 mm |
| Weight | 53 g |
| Operating temperature | 0 °C ... 50 °C |
Drawings
Dimensional drawing in mm
Accessories for Lighting - BFS-PGE-161S7M-C PoE
| Order number | Title | Description |
|---|---|---|
| Ethernet Cables | ||
| 4-44-182 | GigE cable, CAT.6, DC, 3m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-192 | GigE cable, CAT.6, T, 3m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-186 | GigE cable, CAT.6, 3m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-189 | GigE cable, CAT.6, 3m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-183 | GigE cable, CAT.6, DC, 5m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-193 | GigE cable, CAT.6, T, 5m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-187 | GigE cable, CAT.6, 5m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-190 | GigE cable, CAT.6, 5m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-184 | GigE cable, CAT.6, DC, 10m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-194 | GigE cable, CAT.6, T, 10m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-188 | GigE cable, CAT.6, 10m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-191 | GigE cable, CAT.6, 10m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-185 | GigE cable, CAT.6, DC, 25m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-40-120 | GigE cabel, CAT.6a, 3m | RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras |
| PLC-Power Cables | ||
| 4-44-199 | PLC-power cable, 6p, DC, 5m | HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable |
| 4-44-200 | PLC-power cable, 6p, DC, 10m | HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable |
