Dark field lights



Select your requirements here and see all the relevant results below.



Free inner diameter
Color
El. Connection / Control
Controller
10/10
Results
Product­view
Product information
to the wishlist (0)
RR19/8-B470
Title:
RR19/8-B470
Short description:
radial ring light, blue, lf diam.: 32 mm, height: 8 mm, static
Order number:
1-11-004
EAN:
4251692651117
Downloads:
DWF-File download
STP-File download
Characteristics
  • LED dark-field light, flat, radial illumination
  • Homogeneous illumination
  • Build-in Controller
  • Continuous operation
  • Brightness pre-set
  • Connection: cable with open ends
  • Polyamide casing
  • Multiple mounting options
Technical data
Diameter of luminous field30 mm
Light colourBlue, 470 nm
Irradiance at working distance 0 mm20.9 W/m²
Illumination at working distance 0 mm1100 lx
Operation voltage24 VDC (10 - 30 V)
Ambient temperature0 °C bis +40 °C
Degree of protectionIP60
Housing materialAluminium black anodised
Weight170 g
Risk group (DIN EN 62471)Exempt
Safety classIII, operation on protective low voltage
Drawings

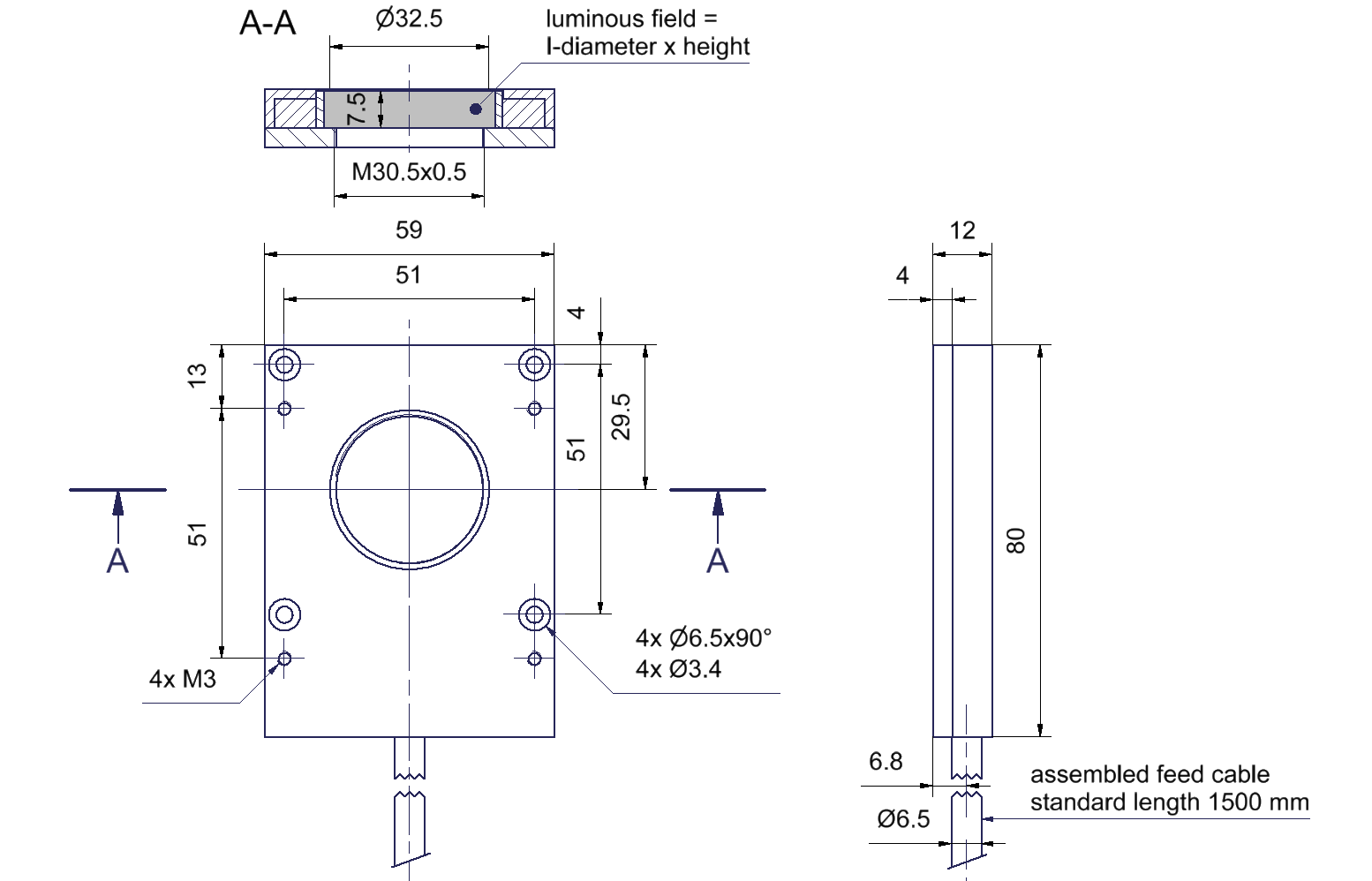

Dimensional drawing in mm
Dimensional drawing in mm
RR19/8-W5K7
Title:
RR19/8-W5K7
Short description:
radial ring light, white, lf diam.: 32 mm, height: 8 mm, static
Order number:
1-11-003
EAN:
4251692651100
Downloads:
DWF-File download
STP-File download
Characteristics
  • LED dark-field light, flat, radial illumination
  • Homogeneous illumination
  • Build-in Controller
  • Continuous operation
  • Brightness pre-set
  • Connection: cable with open ends
  • Polyamide casing
  • Multiple mounting options
Technical data
Diameter of luminous field30 mm
Light colourWhite, 5700 K
Irradiance at working distance 0 mm17.9 W/m²
Illumination at working distance 0 mm5970 lx
Operation voltage24 VDC (10 - 30 V)
Ambient temperature0 °C bis +40 °C
Degree of protectionIP60
Housing materialAluminium black anodised
Weight170 g
Risk group (DIN EN 62471)Exempt
Safety classIII, operation on protective low voltage
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
RR19/8-R633
Title:
RR19/8-R633
Short description:
radial ring light, red, lf diam.: 32 mm, height: 8 mm, static
Order number:
1-11-001
EAN:
4251692651094
Downloads:
DWF-File download
STP-File download
Characteristics
  • LED dark-field light, flat, radial illumination
  • Homogeneous illumination
  • Build-in Controller
  • Continuous operation
  • Brightness pre-set
  • Connection: cable with open ends
  • Polyamide casing
  • Multiple mounting options
Technical data
Diameter of luminous field30 mm
Light colourRed, 633 nm
Irradiance at working distance 0 mm35.2 W/m²
Illumination at working distance 0 mm4400 lx
Operation voltage24 VDC (10 - 30 V)
Ambient temperature0 °C bis +40 °C
Degree of protectionIP60
Housing materialAluminium black anodised
Weight170 g
Risk group (DIN EN 62471)Exempt
Safety classIII, operation on protective low voltage
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
RR30/23-B470/C
Title:
RR30/23-B470/C
Short description:
radial ring light, blue, lf diam.: 60mm, height: 17mm, controlled
Order number:
1-11-034
EAN:
4251692651148
Downloads:
DWF-File download
STP-File download
Characteristics
  • LED dark-field light, radial illumination
  • Homogeneous illumination
  • Build-in Controller
  • Continuous or pulsed operation
  • Pulse-length and brightness adjustable
  • Connection: cable with open ends
  • Polyamide casing
  • Multiple mounting options
Technical data
Diameter of luminous field60 mm
Light colourBlue, 470 nm
Irradiance at working distance 0 mm11.2 W/m²
Illumination at working distance 0 mm590 lx
Operation voltage24 VDC (10 - 30 V)
Ambient temperature0 °C bis +40 °C
Degree of protectionIP60
Housing materialAluminium black anodised
Weight400 g
Risk group (DIN EN 62471)Exempt
Safety classIII, operation on protective low voltage
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
RR30/23-W5K7/C
Title:
RR30/23-W5K7/C
Short description:
radial ring light, white, lf diam.: 60mm, height: 17mm, controlled
Order number:
1-11-033
EAN:
4251692651131
Downloads:
DWF-File download
STP-File download
Characteristics
  • LED dark-field light, radial illumination
  • Homogeneous illumination
  • Build-in Controller
  • Continuous or pulsed operation
  • Pulse-length and brightness adjustable
  • Connection: cable with open ends
  • Polyamide casing
  • Multiple mounting options
Technical data
Diameter of luminous field60 mm
Light colourWhite, 5700 K
Irradiance at working distance 0 mm9.6 W/m²
Illumination at working distance 0 mm3200 lx
Operation voltage24 VDC (10 - 30 V)
Ambient temperature0 °C bis +40 °C
Degree of protectionIP60
Housing materialAluminium black anodised
Weight400 g
Risk group (DIN EN 62471)Exempt
Safety classIII, operation on protective low voltage
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
RR30/23-R633/C
Title:
RR30/23-R633/C
Short description:
radial ring light, red, lf diam.: 60mm, height: 17mm, controlled
Order number:
1-11-031
EAN:
4251692651124
Downloads:
DWF-File download
STP-File download
Characteristics
  • LED dark-field light, radial illumination
  • Homogeneous illumination
  • Build-in Controller
  • Continuous or pulsed operation
  • Pulse-length and brightness adjustable
  • Connection: cable with open ends
  • Polyamide casing
  • Multiple mounting options
Technical data
Diameter of luminous field60 mm
Light colourRed, 633 nm
Irradiance at working distance 0 mm18.9 W/m²
Illumination at working distance 0 mm2360 lx
Operation voltage24 VDC (10 - 30 V)
Ambient temperature0 °C bis +40 °C
Degree of protectionIP60
Housing materialAluminium black anodised
Weight400 g
Risk group (DIN EN 62471)Exempt
Safety classIII, operation on protective low voltage
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
RR64/22-B470/VC
Title:
RR64/22-B470/VC
Short description:
radial ring light, blue, lf diam.: 128mm, height: 22mm, controlled, 0-10V and manual
Order number:
1-10-677
EAN:
4251692651070
Downloads:
DWF-File download
STP-File download
Characteristics
  • LED dark-field light, radial illumination
  • Homogeneous illumination
  • Build-in Controller
  • Continuous or pulsed operation
  • Pulse-length adjustable, brightness pre-set
  • Connection: cable with open ends
  • Polyamide casing
  • Multiple mounting options
Technical data
Diameter of luminous field128 mm
Light colourBlue, 470 nm
Operation voltage24 VDC (10 - 30 V)
Ambient temperature0 °C bis +40 °C
Degree of protectionIP50
Housing materialAluminium black anodised
Weight950 g
Risk group (DIN EN 62471)Exempt
Safety classIII, operation on protective low voltage
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
RR64/22-W5K7/VC
Title:
RR64/22-W5K7/VC
Short description:
radial ring light, white, lf diam.: 128mm, height: 22mm, controlled, 0-10V and manual
Order number:
1-10-678
EAN:
4251692651087
Downloads:
DWF-File download
STP-File download
Characteristics
  • LED dark-field light, radial illumination
  • Homogeneous illumination
  • Build-in Controller
  • Continuous or pulsed operation
  • Pulse-length adjustable, brightness pre-set
  • Connection: cable with open ends
  • Polyamide casing
  • Multiple mounting options
Technical data
Diameter of luminous field128 mm
Light colourWhite, 5700 K
Operation voltage24 VDC (10 - 30 V)
Ambient temperature0 °C bis +40 °C
Degree of protectionIP50
Housing materialAluminium black anodised
Weight950 g
Risk group (DIN EN 62471)Exempt
Safety classIII, operation on protective low voltage
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
RR64/22-IR850/VC
Title:
RR64/22-IR850/VC
Short description:
radial ring light, IR850, lf diam.: 128mm, height: 22mm, controlled, 0-10V and manual
Order number:
1-10-673
EAN:
4251692651063
Downloads:
DWF-File download
STP-File download
Characteristics
  • LED dark-field light, radial illumination
  • Homogeneous illumination
  • Build-in Controller
  • Continuous or pulsed operation
  • Pulse-length adjustable, brightness pre-set
  • Connection: cable with open ends
  • Polyamide casing
  • Multiple mounting options
Technical data
Diameter of luminous field128 mm
Light colourInfrared, 850 nm
Operation voltage24 VDC (10 - 30 V)
Ambient temperature0 °C bis +40 °C
Degree of protectionIP50
Housing materialAluminium black anodised
Weight950 g
Risk group (DIN EN 62471)Exempt
Safety classIII, operation on protective low voltage
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
RR64/22-R633/VC
Title:
RR64/22-R633/VC
Short description:
radial ring light, red, lf diam.: 128mm, height: 22mm, controlled, 0-10V and manual
Order number:
1-10-671
EAN:
4251692651056
Downloads:
DWF-File download
STP-File download
Characteristics
  • LED dark-field light, radial illumination
  • Homogeneous illumination
  • Build-in Controller
  • Continuous or pulsed operation
  • Pulse-length adjustable, brightness pre-set
  • Connection: cable with open ends
  • Polyamide casing
  • Multiple mounting options
Technical data
Diameter of luminous field128 mm
Light colourRed, 633 nm
Irradiance at working distance 0 mm12 W/m²
Illumination at working distance 0 mm1500 lx
Operation voltage24 VDC (10 - 30 V)
Ambient temperature0 °C bis +40 °C
Degree of protectionIP50
Housing materialAluminium black anodised
Weight950 g
Risk group (DIN EN 62471)Exempt
Safety classIII, operation on protective low voltage
Drawings
Dimensional drawing in mm
Dimensional drawing in mm
