Title:
Short description:
PoE - Gigabit Ethernet Camera 1.1" CMOS, 4096x3000, 10fps, mono, global shutter
Order number:
3-12-537
This product is being replaced!
Downloads:
Characteristics
- ultra-compact GigE area scan camera for industrial applications
- 1.1" CMOS monochrom sensor with 12 megapixel resolution
- industrial GigE Vision interface with Power over Ethernet
- RJ45 Ethernet connection with screw connector for safe operation
- C-mount lens connection
Technical data
| Sensor Data | |
| Sensor name | Sony IMX304LLR Exmor |
| Chroma | Monochrome |
| Sensor technology | CMOS |
| Readout method | Global Shutter |
| Sensorformat | 1.1" |
| Sensor diagonal | 17.6 mm |
| Resolution total | 4096 x 3000 |
| Number of pixel | 12.2 MPixel |
| Pixel size | 3.45 µm x 3.45 µm |
| Frame rate | 10 fps |
| Shutter (exposure time) | 22 µs ... 30 s |
| Gain control | 0 dB ... 47 dB |
| Dynamic range | 71.45 dB |
| Camera Data | |
| Family | Flir - Blackfly®S |
| Type | GigE Vision area scan camera |
| Interfaces | GigE Vision with PoE opto-decoupled I/Os 1x IN, 1x OUT |
| General Data | |
| Power requirements | Power over Ethernet (PoE) 8 V - 24 VDC AUX (6-pin Hirose) |
| Power consumption | 3.0 W (PoE); 2.8 W (at 12 VDC) |
| Lens mount | C-Mount |
| Dimensions | 29 mm x 29 mm x 30 mm |
| Weight | 36 g |
| Operating temperature | 0 °C ... 50 °C |
Drawings
Dimensional drawing in mm
Accessories
| Order number | Title | Description |
|---|---|---|
| Ethernet Cables | ||
| 4-44-182 | GigE cable, CAT.6, DC, 3m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-192 | GigE cable, CAT.6, T, 3m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-186 | GigE cable, CAT.6, 3m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-189 | GigE cable, CAT.6, 3m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-183 | GigE cable, CAT.6, DC, 5m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-193 | GigE cable, CAT.6, T, 5m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-187 | GigE cable, CAT.6, 5m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-190 | GigE cable, CAT.6, 5m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-184 | GigE cable, CAT.6, DC, 10m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-194 | GigE cable, CAT.6, T, 10m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-188 | GigE cable, CAT.6, 10m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-191 | GigE cable, CAT.6, 10m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-185 | GigE cable, CAT.6, DC, 25m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-40-120 | GigE cabel, CAT.6a, 3m | RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras |
| PLC-Power Cables | ||
| 4-44-199 | PLC-power cable, 6p, DC, 5m | HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable |
| 4-44-200 | PLC-power cable, 6p, DC, 10m | HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable |
Title:
Short description:
PoE - Gigabit Ethernet Camera 1.1" CMOS, 4096x3000, 10fps, colour, global shutter
Order number:
3-12-538
This product is being replaced!
Downloads:
Characteristics
- ultra-compact GigE area scan camera for industrial applications
- 1.1" CMOS colour sensor with 12 megapixel resolution
- industrial GigE Vision interface with Power over Ethernet
- RJ45 Ethernet connection with screw connector for safe operation
- C-mount lens connection
Technical data
| Sensor Data | |
| Sensor name | Sony IMX304LQR Exmor |
| Chroma | Farbe |
| Sensor technology | CMOS |
| Readout method | Global Shutter |
| Sensorformat | 1.1" |
| Sensor diagonal | 17.6 mm |
| Resolution total | 4096 x 3000 |
| Number of pixel | 12.2 MPixel |
| Pixel size | 3.45 µm x 3.45 µm |
| Frame rate | 10 fps |
| Shutter (exposure time) | 22 µs ... 30 s |
| Gain control | 0 dB ... 47 dB |
| Dynamic range | 71.33 dB |
| Camera Data | |
| Family | Flir - Blackfly®S |
| Type | GigE Vision area scan camera |
| Interfaces | GigE Vision with PoE opto-decoupled I/Os 1x IN, 1x OUT |
| General Data | |
| Power requirements | Power over Ethernet (PoE) 8 V - 24 VDC AUX (6-pin Hirose) |
| Power consumption | 3.0 W (PoE); 2.8 W (at 12 VDC) |
| Lens mount | C-Mount |
| Dimensions | 29 mm x 29 mm x 30 mm |
| Weight | 36 g |
| Operating temperature | 0 °C ... 50 °C |
Drawings
Dimensional drawing in mm
Accessories
| Order number | Title | Description |
|---|---|---|
| Ethernet Cables | ||
| 4-44-182 | GigE cable, CAT.6, DC, 3m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-192 | GigE cable, CAT.6, T, 3m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-186 | GigE cable, CAT.6, 3m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-189 | GigE cable, CAT.6, 3m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-183 | GigE cable, CAT.6, DC, 5m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-193 | GigE cable, CAT.6, T, 5m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-187 | GigE cable, CAT.6, 5m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-190 | GigE cable, CAT.6, 5m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-184 | GigE cable, CAT.6, DC, 10m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-194 | GigE cable, CAT.6, T, 10m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-188 | GigE cable, CAT.6, 10m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-191 | GigE cable, CAT.6, 10m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-185 | GigE cable, CAT.6, DC, 25m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-40-120 | GigE cabel, CAT.6a, 3m | RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras |
| PLC-Power Cables | ||
| 4-44-199 | PLC-power cable, 6p, DC, 5m | HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable |
| 4-44-200 | PLC-power cable, 6p, DC, 10m | HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable |
Title:
Short description:
PoE - Gigabit Ethernet Camera 1/3" CCD, 1292x964, 30fps, mono, global shutter
Order number:
3-12-548
Downloads:
Characteristics
- ultra-compact GigE area scan camera for industrial applications
- 1/3" CCD monochrom sensor with 1.2 megapixel resolution
- industrial GigE Vision interface with Power over Ethernet
- RJ45 Ethernet connection with screw connector for safe operation
- C-mount lens connection
- easy attachment with standard M3 thread at the top and bottom of the housing
Technical data
| Sensor Data | |
| Sensor name | Sony ICX445ALA |
| Chroma | Monochrome |
| Sensor technology | Interline CCD, Progressive Scan |
| Readout method | Global Shutter |
| Sensorformat | 1/3" |
| Sensor diagonal | 6.0 mm |
| Resolution total | 1292 x 964 |
| Number of pixel | 1.2 MPixel |
| Pixel size | 3.75 µm x 3.75 µm |
| Frame rate | 30.3 fps |
| Shutter (exposure time) | 12 µs ... 84 s |
| Gain control | 0 dB ... 30 dB |
| Camera Data | |
| Family | Allied Vision - Mako |
| Type | GigE Vision area scan camera |
| Interfaces | GigE Vision with PoE opto-decoupled I/Os 1x IN, 3x OUT |
| General Data | |
| Power requirements | Power over Ethernet (PoE) 12 - 24 VDC AUX (8-pin Hirose) |
| Power consumption | 2.7 W (PoE); 2.3 W (at 12 VDC) |
| Lens mount | C-Mount |
| Dimensions | 60.5 mm × 29.2 mm × 29.2 mm (including connectors) |
| Weight | 80 g |
| Degree of protection (IP) | IP 30 |
| Operating temperature | 5 °C ... 45 °C |
Drawings
Dimensional drawing in mm

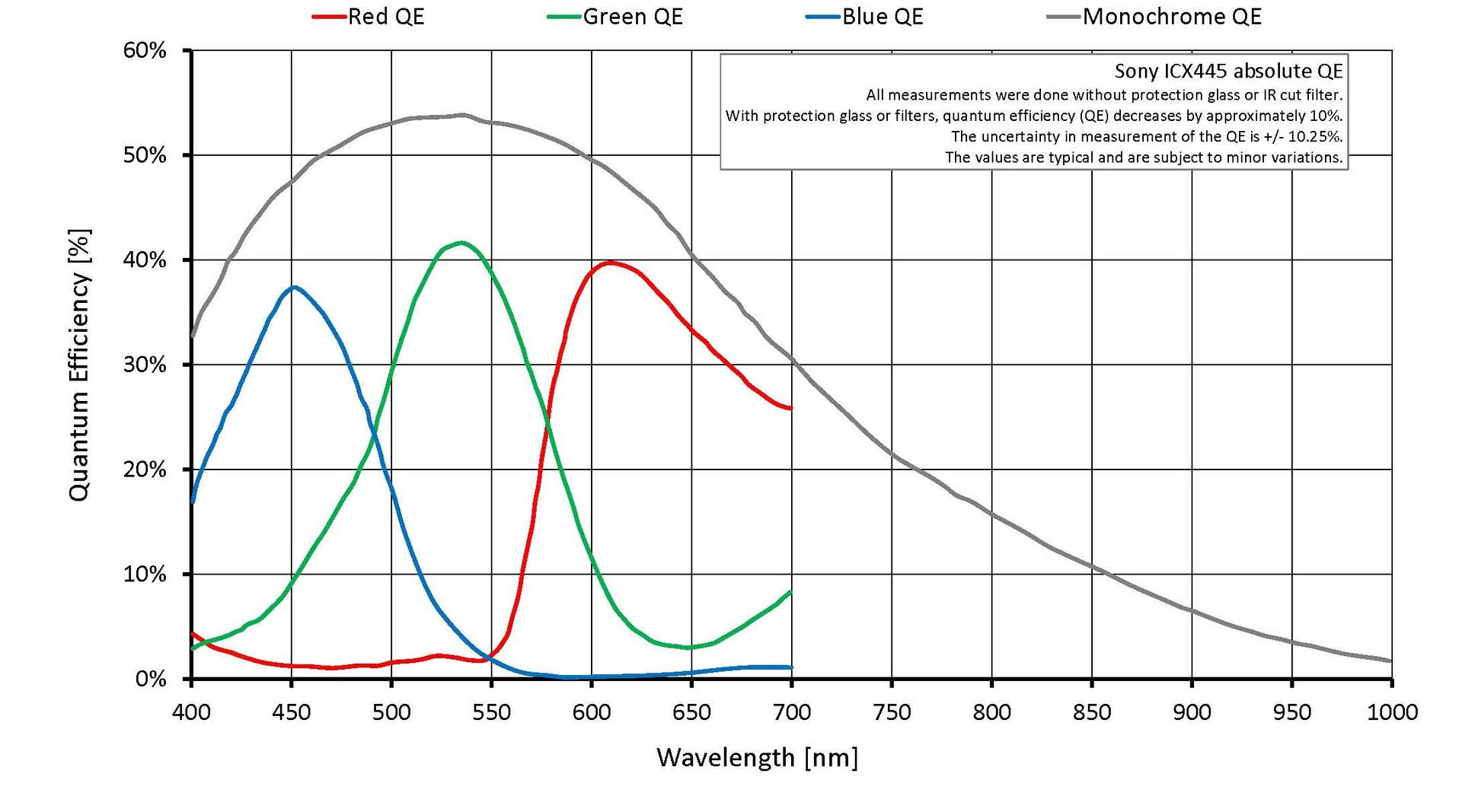

Quantum Efficiency
Accessories
| Order number | Title | Description |
|---|---|---|
| Ethernet Cables | ||
| 4-44-182 | GigE cable, CAT.6, DC, 3m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-192 | GigE cable, CAT.6, T, 3m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-186 | GigE cable, CAT.6, 3m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-189 | GigE cable, CAT.6, 3m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-183 | GigE cable, CAT.6, DC, 5m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-193 | GigE cable, CAT.6, T, 5m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-187 | GigE cable, CAT.6, 5m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-190 | GigE cable, CAT.6, 5m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-184 | GigE cable, CAT.6, DC, 10m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-194 | GigE cable, CAT.6, T, 10m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-188 | GigE cable, CAT.6, 10m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-191 | GigE cable, CAT.6, 10m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-185 | GigE cable, CAT.6, DC, 25m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-40-120 | GigE cabel, CAT.6a, 3m | RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras |
| PLC-Power Cables | ||
| 4-44-195 | PLC-power cable, 8p, DC, 5m | HR25-7TP-8S, plug with socket contacts to open cable end, drag chain capable |
| 4-44-196 | PLC-power cable, 8p, DC, 10m | HR25-7TP-8S, plug with socket contacts to open cable end, drag chain capable |
Title:
Short description:
PoE - Gigabit Ethernet Camera 1/3" CCD, 1292x964, 30fps, colour, global shutter
Order number:
3-12-549
Downloads:
Characteristics
- ultra-compact GigE area scan camera for industrial applications
- 1/3" CCD colour sensor with 1.2 megapixel resolution
- industrial GigE Vision interface with Power over Ethernet
- RJ45 Ethernet connection with screw connector for safe operation
- C-mount lens connection
- easy attachment with standard M3 thread at the top and bottom of the housing
Technical data
| Sensor Data | |
| Sensor name | Sony ICX445AQA |
| Chroma | Farbe |
| Sensor technology | Interline CCD, Progressive Scan |
| Readout method | Global Shutter |
| Sensorformat | 1/3" |
| Sensor diagonal | 6.0 mm |
| Resolution total | 1292 x 964 |
| Number of pixel | 1.2 MPixel |
| Pixel size | 3.75 µm x 3.75 µm |
| Frame rate | 30.3 fps |
| Shutter (exposure time) | 12 µs ... 84 s |
| Gain control | 0 dB ... 30 dB |
| Camera Data | |
| Family | Allied Vision - Mako |
| Type | GigE Vision area scan camera |
| Interfaces | GigE Vision with PoE opto-decoupled I/Os 1x IN, 3x OUT |
| General Data | |
| Power requirements | Power over Ethernet (PoE) 12 - 24 VDC AUX (8-pin Hirose) |
| Power consumption | 2.7 W (PoE); 2.3 W (at 12 VDC) |
| Lens mount | C-Mount |
| Dimensions | 60.5 mm × 29.2 mm × 29.2 mm (including connectors) |
| Weight | 80 g |
| Degree of protection (IP) | IP 30 |
| Operating temperature | 5 °C ... 45 °C |
Drawings
Dimensional drawing in mm
Quantum Efficiency
Accessories
| Order number | Title | Description |
|---|---|---|
| Ethernet Cables | ||
| 4-44-182 | GigE cable, CAT.6, DC, 3m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-192 | GigE cable, CAT.6, T, 3m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-186 | GigE cable, CAT.6, 3m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-189 | GigE cable, CAT.6, 3m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-183 | GigE cable, CAT.6, DC, 5m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-193 | GigE cable, CAT.6, T, 5m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-187 | GigE cable, CAT.6, 5m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-190 | GigE cable, CAT.6, 5m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-184 | GigE cable, CAT.6, DC, 10m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-194 | GigE cable, CAT.6, T, 10m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-188 | GigE cable, CAT.6, 10m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-191 | GigE cable, CAT.6, 10m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-185 | GigE cable, CAT.6, DC, 25m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-40-120 | GigE cabel, CAT.6a, 3m | RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras |
| PLC-Power Cables | ||
| 4-44-195 | PLC-power cable, 8p, DC, 5m | HR25-7TP-8S, plug with socket contacts to open cable end, drag chain capable |
| 4-44-196 | PLC-power cable, 8p, DC, 10m | HR25-7TP-8S, plug with socket contacts to open cable end, drag chain capable |
Title:
Short description:
PoE - Gigabit Ethernet Camera 1/3" CCD, 1280x960, 33fps, mono, global shutter
Order number:
3-12-580
Downloads:
Characteristics
- GigE area scan camera for industrial applications
- 1/3" CCD monochrom sensor with 1.2 megapixel resolution
- extended temperature range for use in harsh industrial environments
- industrial GigE Vision interface with Power over Ethernet
- RJ45 Ethernet connection with screw connector for safe operation
- C-mount lens connection
Technical data
| Sensor Data | |
| Sensor name | Sony ICX445ALA |
| Chroma | Monochrome |
| Sensor technology | Interline CCD, Progressive Scan |
| Readout method | Global Shutter |
| Sensorformat | 1/3" |
| Sensor diagonal | 6.0 mm |
| Resolution total | 1280 x 960 |
| Number of pixel | 1.2 MPixel |
| Pixel size | 3.75 µm x 3.75 µm |
| Frame rate | 33.3 fps |
| Shutter (exposure time) | 12 µs ... 77.3 s |
| Gain control | 0 dB ... 27 dB |
| Dynamic range | 58.3 dB |
| Camera Data | |
| Family | AVT - Prosilica GT |
| Type | GigE Vision area scan camera |
| Interfaces | GigE Vision with PoE opto-decoupled I/Os 1x IN, 2x OUT |
| General Data | |
| Power requirements | Power over Ethernet (PoE) 7 V - 25 VDC AUX (12-pin Hirose) |
| Power consumption | 3.5 W (PoE); 2.9 W (at 12 VDC) |
| Lens mount | C-Mount |
| Dimensions | 86 mm x 53.3 mm x 33 mm (including connectors) |
| Weight | 211 g |
| Operating temperature | -20 °C ... 65 °C |
Drawings
Dimensional drawing in mm
Absolute QE / Spectral response
Accessories
| Order number | Title | Description |
|---|---|---|
| Ethernet Cables | ||
| 4-44-182 | GigE cable, CAT.6, DC, 3m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-192 | GigE cable, CAT.6, T, 3m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-186 | GigE cable, CAT.6, 3m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-189 | GigE cable, CAT.6, 3m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-183 | GigE cable, CAT.6, DC, 5m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-193 | GigE cable, CAT.6, T, 5m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-187 | GigE cable, CAT.6, 5m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-190 | GigE cable, CAT.6, 5m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-184 | GigE cable, CAT.6, DC, 10m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-194 | GigE cable, CAT.6, T, 10m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-188 | GigE cable, CAT.6, 10m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-191 | GigE cable, CAT.6, 10m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-185 | GigE cable, CAT.6, DC, 25m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-40-120 | GigE cabel, CAT.6a, 3m | RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras |
| PLC-Power Cables | ||
| 4-44-197 | PLC-power cable, 12p, DC, 5m | HR10A-10P-12S, plug with socket contacts to open cable end, drag chain capable |
| 4-44-198 | PLC-power cable, 12p, DC, 10m | HR10A-10P-12S, plug with socket contacts to open cable end, drag chain capable |
Title:
Short description:
PoE - Gigabit Ethernet Camera 1/3" CCD, 1280x960, 33fps, colour, global shutter
Order number:
3-12-581
Downloads:
Characteristics
- GigE area scan camera for industrial applications
- 1/3" CCD colour sensor with 1.2 megapixel resolution
- extended temperature range for use in harsh industrial environments
- industrial GigE Vision interface with Power over Ethernet
- RJ45 Ethernet connection with screw connector for safe operation
- C-mount lens connection
Technical data
| Sensor Data | |
| Sensor name | Sony ICX445AQA |
| Chroma | Farbe |
| Sensor technology | Interline CCD, Progressive Scan |
| Readout method | Global Shutter |
| Sensorformat | 1/3" |
| Sensor diagonal | 6.0 mm |
| Resolution total | 1280 x 960 |
| Number of pixel | 1.2 MPixel |
| Pixel size | 3.75 µm x 3.75 µm |
| Frame rate | 33.3 fps |
| Shutter (exposure time) | 12 µs ... 77.3 s |
| Gain control | 0 dB ... 27 dB |
| Dynamic range | 58.3 dB |
| Camera Data | |
| Family | AVT - Prosilica GT |
| Type | GigE Vision area scan camera |
| Interfaces | GigE Vision with PoE opto-decoupled I/Os 1x IN, 2x OUT |
| General Data | |
| Power requirements | Power over Ethernet (PoE) 7 V - 25 VDC AUX (12-pin Hirose) |
| Power consumption | 3.5 W (PoE); 2.9 W (at 12 VDC) |
| Lens mount | C-Mount |
| Dimensions | 86 mm x 53.3 mm x 33 mm (including connectors) |
| Weight | 211 g |
| Operating temperature | -20 °C ... 65 °C |
Drawings
Dimensional drawing in mm
Absolute QE / Spectral response
Accessories
| Order number | Title | Description |
|---|---|---|
| Ethernet Cables | ||
| 4-44-182 | GigE cable, CAT.6, DC, 3m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-192 | GigE cable, CAT.6, T, 3m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-186 | GigE cable, CAT.6, 3m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-189 | GigE cable, CAT.6, 3m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-183 | GigE cable, CAT.6, DC, 5m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-193 | GigE cable, CAT.6, T, 5m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-187 | GigE cable, CAT.6, 5m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-190 | GigE cable, CAT.6, 5m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-184 | GigE cable, CAT.6, DC, 10m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-194 | GigE cable, CAT.6, T, 10m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-188 | GigE cable, CAT.6, 10m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-191 | GigE cable, CAT.6, 10m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-185 | GigE cable, CAT.6, DC, 25m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-40-120 | GigE cabel, CAT.6a, 3m | RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras |
| PLC-Power Cables | ||
| 4-44-197 | PLC-power cable, 12p, DC, 5m | HR10A-10P-12S, plug with socket contacts to open cable end, drag chain capable |
| 4-44-198 | PLC-power cable, 12p, DC, 10m | HR10A-10P-12S, plug with socket contacts to open cable end, drag chain capable |
Title:
Short description:
PoE - Gigabit Ethernet Camera 1.1" CMOS, 5320x3032, 7fps, mono, global shutter
Order number:
3-12-570
This product is being replaced!
Downloads:
Characteristics
- ultra-compact GigE area scan camera for industrial applications
- 1.1" CMOS monochrom sensor with 16 megapixel resolution
- industrial GigE Vision interface with Power over Ethernet
- RJ45 Ethernet connection with screw connector for safe operation
- C-mount lens connection
Technical data
| Sensor Data | |
| Sensor name | Sony IMX542 |
| Chroma | Monochrome |
| Sensor technology | CMOS |
| Readout method | Global Shutter |
| Sensorformat | 1.1" |
| Sensor diagonal | 16.8 mm |
| Resolution total | 5320 x 3032 |
| Number of pixel | 16.1 MPixel |
| Pixel size | 2.74 µm x 2.74 µm |
| Frame rate | 7 fps |
| Shutter (exposure time) | 26 µs ... 30 s |
| Gain control | 0 dB ... 47 dB |
| Dynamic range | 70.55 dB |
| Camera Data | |
| Family | Flir - Blackfly®S |
| Type | GigE Vision area scan camera |
| Interfaces | GigE Vision with PoE opto-decoupled I/Os 1x IN, 1x OUT |
| General Data | |
| Power requirements | Power over Ethernet (PoE) 8 V - 24 VDC AUX (6-pin Hirose) |
| Power consumption | 4.2 W (PoE); 3.6 W (at 12 VDC) |
| Lens mount | C-Mount |
| Dimensions | 29 mm x 29 mm x 39 mm |
| Weight | 53 g |
| Operating temperature | 0 °C ... 50 °C |
Drawings
Dimensional drawing in mm
Accessories
| Order number | Title | Description |
|---|---|---|
| Ethernet Cables | ||
| 4-44-182 | GigE cable, CAT.6, DC, 3m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-192 | GigE cable, CAT.6, T, 3m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-186 | GigE cable, CAT.6, 3m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-189 | GigE cable, CAT.6, 3m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-183 | GigE cable, CAT.6, DC, 5m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-193 | GigE cable, CAT.6, T, 5m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-187 | GigE cable, CAT.6, 5m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-190 | GigE cable, CAT.6, 5m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-184 | GigE cable, CAT.6, DC, 10m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-194 | GigE cable, CAT.6, T, 10m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-188 | GigE cable, CAT.6, 10m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-191 | GigE cable, CAT.6, 10m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-185 | GigE cable, CAT.6, DC, 25m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-40-120 | GigE cabel, CAT.6a, 3m | RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras |
| PLC-Power Cables | ||
| 4-44-199 | PLC-power cable, 6p, DC, 5m | HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable |
| 4-44-200 | PLC-power cable, 6p, DC, 10m | HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable |
Title:
Short description:
PoE - Gigabit Ethernet Camera 1.1" CMOS, 5320x3032, 7fps, colour, global shutter
Order number:
3-12-571
This product is being replaced!
Downloads:
Characteristics
- ultra-compact GigE area scan camera for industrial applications
- 1.1" CMOS colour sensor with 16 MPixel megapixel resolution
- industrial GigE Vision interface with Power over Ethernet
- RJ45 Ethernet connection with screw connector for safe operation
- C-mount lens connection
Technical data
| Sensor Data | |
| Sensor name | Sony IMX542 |
| Chroma | Farbe |
| Sensor technology | CMOS |
| Readout method | Global Shutter |
| Sensorformat | 1.1" |
| Sensor diagonal | 16.8 mm |
| Resolution total | 5320 x 3032 |
| Number of pixel | 16.1 MPixel |
| Pixel size | 2.74 µm x 2.74 µm |
| Frame rate | 7 fps |
| Shutter (exposure time) | 26 µs ... 30 s |
| Gain control | 0 dB ... 47 dB |
| Dynamic range | 70.55 dB |
| Camera Data | |
| Family | Flir - Blackfly®S |
| Type | GigE Vision area scan camera |
| Interfaces | GigE Vision with PoE opto-decoupled I/Os 1x IN, 1x OUT |
| General Data | |
| Power requirements | Power over Ethernet (PoE) 8 V - 24 VDC AUX (6-pin Hirose) |
| Power consumption | 4.2 W (PoE); 3.6 W (at 12 VDC) |
| Lens mount | C-Mount |
| Dimensions | 29 mm x 29 mm x 39 mm |
| Weight | 53 g |
| Operating temperature | 0 °C ... 50 °C |
Drawings
Dimensional drawing in mm
Accessories
| Order number | Title | Description |
|---|---|---|
| Ethernet Cables | ||
| 4-44-182 | GigE cable, CAT.6, DC, 3m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-192 | GigE cable, CAT.6, T, 3m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-186 | GigE cable, CAT.6, 3m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-189 | GigE cable, CAT.6, 3m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-183 | GigE cable, CAT.6, DC, 5m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-193 | GigE cable, CAT.6, T, 5m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-187 | GigE cable, CAT.6, 5m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-190 | GigE cable, CAT.6, 5m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-184 | GigE cable, CAT.6, DC, 10m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-194 | GigE cable, CAT.6, T, 10m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-188 | GigE cable, CAT.6, 10m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-191 | GigE cable, CAT.6, 10m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-185 | GigE cable, CAT.6, DC, 25m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-40-120 | GigE cabel, CAT.6a, 3m | RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras |
| PLC-Power Cables | ||
| 4-44-199 | PLC-power cable, 6p, DC, 5m | HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable |
| 4-44-200 | PLC-power cable, 6p, DC, 10m | HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable |
Title:
Short description:
PoE - Gigabit Ethernet Camera 2/3" CCD, 1936x1456, 40fps, mono, global shutter
Order number:
3-12-586
Downloads:
Characteristics
- GigE area scan camera for industrial applications
- 2/3" CCD monochrom sensor with 2.8 megapixel resolution
- extended temperature range for use in harsh industrial environments
- industrial GigE Vision interface with Power over Ethernet
- RJ45 Ethernet connection with screw connector for safe operation
- C-mount lens connection
Technical data
| Sensor Data | |
| Sensor name | Sony ICX674ALG |
| Chroma | Monochrome |
| Sensor technology | Interline CCD, Progressive Scan |
| Readout method | Global Shutter |
| Sensorformat | 2/3" |
| Sensor diagonal | 11.0 mm |
| Resolution total | 1936 x 1456 |
| Number of pixel | 2.8 MPixel |
| Pixel size | 4.54 µm x 4.54 µm |
| Frame rate | 40.7 fps |
| Shutter (exposure time) | 10 µs ... 26.8 s |
| Gain control | 0 dB ... 33 dB |
| Dynamic range | 64.5 dB |
| Camera Data | |
| Family | AVT - Prosilica GT |
| Type | GigE Vision area scan camera |
| Interfaces | GigE Vision with PoE opto-decoupled I/Os 1x IN, 2x OUT |
| General Data | |
| Power requirements | Power over Ethernet (PoE) 7 V - 25 VDC AUX (12-pin Hirose) |
| Power consumption | 6.0 W (PoE); 4.9 W (at 12 VDC) |
| Lens mount | C-Mount |
| Dimensions | 92 mm x 53.3 mm x 33 mm (including connectors) |
| Weight | 224 g |
| Operating temperature | -20 °C ... 60 °C |
Drawings
Dimensional drawing in mm
Absolute QE / Spectral response
Accessories
| Order number | Title | Description |
|---|---|---|
| Ethernet Cables | ||
| 4-44-182 | GigE cable, CAT.6, DC, 3m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-192 | GigE cable, CAT.6, T, 3m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-186 | GigE cable, CAT.6, 3m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-189 | GigE cable, CAT.6, 3m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-183 | GigE cable, CAT.6, DC, 5m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-193 | GigE cable, CAT.6, T, 5m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-187 | GigE cable, CAT.6, 5m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-190 | GigE cable, CAT.6, 5m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-184 | GigE cable, CAT.6, DC, 10m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-194 | GigE cable, CAT.6, T, 10m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-188 | GigE cable, CAT.6, 10m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-191 | GigE cable, CAT.6, 10m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-185 | GigE cable, CAT.6, DC, 25m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-40-120 | GigE cabel, CAT.6a, 3m | RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras |
| PLC-Power Cables | ||
| 4-44-197 | PLC-power cable, 12p, DC, 5m | HR10A-10P-12S, plug with socket contacts to open cable end, drag chain capable |
| 4-44-198 | PLC-power cable, 12p, DC, 10m | HR10A-10P-12S, plug with socket contacts to open cable end, drag chain capable |
Title:
Short description:
PoE - Gigabit Ethernet Camera 2/3" CCD, 1936x1456, 40fps, colour, global shutter
Order number:
3-12-587
Downloads:
Characteristics
- GigE area scan camera for industrial applications
- 2/3" CCD colour sensor with 2.8 megapixel resolution
- extended temperature range for use in harsh industrial environments
- industrial GigE Vision interface with Power over Ethernet
- RJ45 Ethernet connection with screw connector for safe operation
- C-mount lens connection
Technical data
| Sensor Data | |
| Sensor name | Sony ICX674AQG |
| Chroma | Farbe |
| Sensor technology | Interline CCD, Progressive Scan |
| Readout method | Global Shutter |
| Sensorformat | 2/3" |
| Sensor diagonal | 11.0 mm |
| Resolution total | 1936 x 1456 |
| Number of pixel | 2.8 MPixel |
| Pixel size | 4.54 µm x 4.54 µm |
| Frame rate | 40.7 fps |
| Shutter (exposure time) | 10 µs ... 26.8 s |
| Gain control | 0 dB ... 33 dB |
| Dynamic range | 64.5 dB |
| Camera Data | |
| Family | AVT - Prosilica GT |
| Type | GigE Vision area scan camera |
| Interfaces | GigE Vision with PoE opto-decoupled I/Os 1x IN, 2x OUT |
| General Data | |
| Power requirements | Power over Ethernet (PoE) 7 V - 25 VDC AUX (12-pin Hirose) |
| Power consumption | 6.0 W (PoE); 4.9 W (at 12 VDC) |
| Lens mount | C-Mount |
| Dimensions | 92 mm x 53.3 mm x 33 mm (including connectors) |
| Weight | 224 g |
| Operating temperature | -20 °C ... 60 °C |
Drawings
Dimensional drawing in mm
Absolute QE / Spectral response
Accessories
| Order number | Title | Description |
|---|---|---|
| Ethernet Cables | ||
| 4-44-182 | GigE cable, CAT.6, DC, 3m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-192 | GigE cable, CAT.6, T, 3m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-186 | GigE cable, CAT.6, 3m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-189 | GigE cable, CAT.6, 3m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-183 | GigE cable, CAT.6, DC, 5m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-193 | GigE cable, CAT.6, T, 5m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-187 | GigE cable, CAT.6, 5m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-190 | GigE cable, CAT.6, 5m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-184 | GigE cable, CAT.6, DC, 10m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-194 | GigE cable, CAT.6, T, 10m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-188 | GigE cable, CAT.6, 10m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-191 | GigE cable, CAT.6, 10m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-185 | GigE cable, CAT.6, DC, 25m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-40-120 | GigE cabel, CAT.6a, 3m | RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras |
| PLC-Power Cables | ||
| 4-44-197 | PLC-power cable, 12p, DC, 5m | HR10A-10P-12S, plug with socket contacts to open cable end, drag chain capable |
| 4-44-198 | PLC-power cable, 12p, DC, 10m | HR10A-10P-12S, plug with socket contacts to open cable end, drag chain capable |
Title:
Short description:
PoE - Gigabit Ethernet Camera 1" CMOS, 5472x3648, 6fps, mono, rolling shutter
Order number:
3-12-539
This product is being replaced!
Downloads:
Characteristics
- ultra-compact GigE area scan camera for industrial applications
- 1" CMOS monochrom sensor with 20 megapixel resolution
- industrial GigE Vision interface with Power over Ethernet
- RJ45 Ethernet connection with screw connector for safe operation
- C-mount lens connection
Technical data
| Sensor Data | |
| Sensor name | Sony IMX183CLK |
| Chroma | Monochrome |
| Sensor technology | CMOS |
| Readout method | Global Shutter |
| Sensorformat | 1" |
| Sensor diagonal | 15.8 mm |
| Resolution total | 5472 x 3648 |
| Number of pixel | 19.9 MPixel |
| Pixel size | 2.4 µm x 2.4 µm |
| Frame rate | 6 fps |
| Shutter (exposure time) | 44 µs ... 30 s |
| Gain control | 0 dB ... 27 dB |
| Dynamic range | 71.89 dB |
| Camera Data | |
| Family | Flir - Blackfly®S |
| Type | GigE Vision area scan camera |
| Interfaces | GigE Vision with PoE opto-decoupled I/Os 1x IN, 1x OUT |
| General Data | |
| Power requirements | Power over Ethernet (PoE) 8 V - 24 VDC AUX (6-pin Hirose) |
| Power consumption | 3.0 W (PoE); 2.8 W (at 12 VDC) |
| Lens mount | C-Mount |
| Dimensions | 29 mm x 29 mm x 30 mm |
| Weight | 36 g |
| Operating temperature | 0 °C ... 50 °C |
Drawings
Dimensional drawing in mm
Accessories
| Order number | Title | Description |
|---|---|---|
| Ethernet Cables | ||
| 4-44-182 | GigE cable, CAT.6, DC, 3m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-192 | GigE cable, CAT.6, T, 3m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-186 | GigE cable, CAT.6, 3m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-189 | GigE cable, CAT.6, 3m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-183 | GigE cable, CAT.6, DC, 5m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-193 | GigE cable, CAT.6, T, 5m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-187 | GigE cable, CAT.6, 5m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-190 | GigE cable, CAT.6, 5m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-184 | GigE cable, CAT.6, DC, 10m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-194 | GigE cable, CAT.6, T, 10m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-188 | GigE cable, CAT.6, 10m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-191 | GigE cable, CAT.6, 10m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-185 | GigE cable, CAT.6, DC, 25m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-40-120 | GigE cabel, CAT.6a, 3m | RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras |
| PLC-Power Cables | ||
| 4-44-199 | PLC-power cable, 6p, DC, 5m | HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable |
| 4-44-200 | PLC-power cable, 6p, DC, 10m | HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable |
Title:
Short description:
PoE - Gigabit Ethernet Camera 1" CCD, 2464x2056, 23fps, mono, global shutter
Order number:
3-12-590
Downloads:
Characteristics
- GigE area scan camera for industrial applications
- 1" CCD monochrom sensor with 6 megapixel resolution
- extended temperature range for use in harsh industrial environments
- industrial GigE Vision interface with Power over Ethernet
- RJ45 Ethernet connection with screw connector for safe operation
- C-mount lens connection
Technical data
| Sensor Data | |
| Sensor name | Sony ICX694ALG |
| Chroma | Monochrome |
| Sensor technology | Interline CCD, Progressive Scan |
| Readout method | Global Shutter |
| Sensorformat | 1" |
| Sensor diagonal | 16.0 mm |
| Resolution total | 2750 x 2200 |
| Number of pixel | 6.0 MPixel |
| Pixel size | 4.54 µm x 4.54 µm |
| Frame rate | 19.8 fps |
| Shutter (exposure time) | 10 µs ... 26.8 s |
| Gain control | 0 dB ... 33 dB |
| Dynamic range | 64.4 dB |
| Camera Data | |
| Family | AVT - Prosilica GT |
| Type | GigE Vision area scan camera |
| Interfaces | GigE Vision with PoE opto-decoupled I/Os 1x IN, 2x OUT |
| General Data | |
| Power requirements | Power over Ethernet (PoE) 7 V - 25 VDC AUX (12-pin Hirose) |
| Power consumption | 6.6 W (PoE); 5.4 W (at 12 VDC) |
| Lens mount | C-Mount |
| Dimensions | 92 mm x 53.3 mm x 33 mm (including connectors) |
| Weight | 224 g |
| Operating temperature | -20 °C ... 60 °C |
Drawings
Dimensional drawing in mm
Absolute QE / Spectral response
Accessories
| Order number | Title | Description |
|---|---|---|
| Ethernet Cables | ||
| 4-44-182 | GigE cable, CAT.6, DC, 3m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-192 | GigE cable, CAT.6, T, 3m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-186 | GigE cable, CAT.6, 3m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-189 | GigE cable, CAT.6, 3m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-183 | GigE cable, CAT.6, DC, 5m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-193 | GigE cable, CAT.6, T, 5m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-187 | GigE cable, CAT.6, 5m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-190 | GigE cable, CAT.6, 5m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-184 | GigE cable, CAT.6, DC, 10m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-194 | GigE cable, CAT.6, T, 10m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-188 | GigE cable, CAT.6, 10m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-191 | GigE cable, CAT.6, 10m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-185 | GigE cable, CAT.6, DC, 25m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-40-120 | GigE cabel, CAT.6a, 3m | RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras |
| PLC-Power Cables | ||
| 4-44-197 | PLC-power cable, 12p, DC, 5m | HR10A-10P-12S, plug with socket contacts to open cable end, drag chain capable |
| 4-44-198 | PLC-power cable, 12p, DC, 10m | HR10A-10P-12S, plug with socket contacts to open cable end, drag chain capable |
Title:
Short description:
PoE - Gigabit Ethernet Camera 1" CCD, 2464x2056, 23fps, colour, global shutter
Order number:
3-12-591
Downloads:
Characteristics
- GigE area scan camera for industrial applications
- 1" CCD colour sensor with 6 megapixel resolution
- extended temperature range for use in harsh industrial environments
- industrial GigE Vision interface with Power over Ethernet
- RJ45 Ethernet connection with screw connector for safe operation
- C-mount lens connection
Technical data
| Sensor Data | |
| Sensor name | Sony ICX694AQG |
| Chroma | Farbe |
| Sensor technology | Interline CCD, Progressive Scan |
| Readout method | Global Shutter |
| Sensorformat | 1" |
| Sensor diagonal | 16.0 mm |
| Resolution total | 2750 x 2200 |
| Number of pixel | 6.0 MPixel |
| Pixel size | 4.54 µm x 4.54 µm |
| Frame rate | 19.8 fps |
| Shutter (exposure time) | 10 µs ... 26.8 s |
| Gain control | 0 dB ... 33 dB |
| Dynamic range | 64.4 dB |
| Camera Data | |
| Family | AVT - Prosilica GT |
| Type | GigE Vision area scan camera |
| Interfaces | GigE Vision with PoE opto-decoupled I/Os 1x IN, 2x OUT |
| General Data | |
| Power requirements | Power over Ethernet (PoE) 7 V - 25 VDC AUX (12-pin Hirose) |
| Power consumption | 6.6 W (PoE); 5.4 W (at 12 VDC) |
| Lens mount | C-Mount |
| Dimensions | 92 mm x 53.3 mm x 33 mm (including connectors) |
| Weight | 224 g |
| Operating temperature | -20 °C ... 60 °C |
Drawings
Dimensional drawing in mm
Absolute QE / Spectral response
Accessories
| Order number | Title | Description |
|---|---|---|
| Ethernet Cables | ||
| 4-44-182 | GigE cable, CAT.6, DC, 3m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-192 | GigE cable, CAT.6, T, 3m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-186 | GigE cable, CAT.6, 3m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-189 | GigE cable, CAT.6, 3m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-183 | GigE cable, CAT.6, DC, 5m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-193 | GigE cable, CAT.6, T, 5m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-187 | GigE cable, CAT.6, 5m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-190 | GigE cable, CAT.6, 5m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-184 | GigE cable, CAT.6, DC, 10m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-194 | GigE cable, CAT.6, T, 10m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-188 | GigE cable, CAT.6, 10m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-191 | GigE cable, CAT.6, 10m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-185 | GigE cable, CAT.6, DC, 25m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-40-120 | GigE cabel, CAT.6a, 3m | RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras |
| PLC-Power Cables | ||
| 4-44-197 | PLC-power cable, 12p, DC, 5m | HR10A-10P-12S, plug with socket contacts to open cable end, drag chain capable |
| 4-44-198 | PLC-power cable, 12p, DC, 10m | HR10A-10P-12S, plug with socket contacts to open cable end, drag chain capable |
Title:
Short description:
PoE - Gigabit Ethernet Camera APS-H CMOS, 5120x5120, 4fps, mono, global shutter
Order number:
3-12-602
Downloads:
Characteristics
- GigE area scan camera for industrial applications
- APS-H CMOS monochrom sensor with 26 megapixel resolution
- extended temperature range for use in harsh industrial environments
- industrial GigE Vision interface with Power over Ethernet
- RJ45 Ethernet connection with screw connector for safe operation
- M42 lens mount
Technical data
| Sensor Data | |
| Sensor name | ON Semi PYTHON 25K |
| Chroma | Monochrome |
| Sensor technology | CMOS |
| Readout method | Global Shutter |
| Sensorformat | APS-H |
| Sensor diagonal | 32.6 mm |
| Resolution total | 5120 x 5120 |
| Number of pixel | 26.2 MPixel |
| Pixel size | 4.5 µm x 4.5 µm |
| Frame rate | 4.59 fps |
| Shutter (exposure time) | 1 µs ... 1 s |
| Gain control | 0 dB ... 22 dB |
| Dynamic range | 50.7 dB |
| Camera Data | |
| Family | AVT - Prosilica GT |
| Type | GigE Vision area scan camera |
| Interfaces | GigE Vision with PoE opto-decoupled I/Os 1x IN, 2x OUT |
| General Data | |
| Power requirements | Power over Ethernet (PoE) 7 V - 25 VDC AUX (12-pin Hirose) |
| Power consumption | 6.3 W (PoE); 5.02 W (at 12 VDC) |
| Lens mount | M42-Mount |
| Dimensions | 96 mm x 66 mm x 53.3 mm (including connectors) |
| Weight | 372 g |
| Operating temperature | -20 °C ... 50 °C |
Drawings
Dimensional drawing in mm
Absolute QE / Spectral response
Accessories
| Order number | Title | Description |
|---|---|---|
| Ethernet Cables | ||
| 4-44-182 | GigE cable, CAT.6, DC, 3m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-192 | GigE cable, CAT.6, T, 3m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-186 | GigE cable, CAT.6, 3m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-189 | GigE cable, CAT.6, 3m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-183 | GigE cable, CAT.6, DC, 5m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-193 | GigE cable, CAT.6, T, 5m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-187 | GigE cable, CAT.6, 5m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-190 | GigE cable, CAT.6, 5m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-184 | GigE cable, CAT.6, DC, 10m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-194 | GigE cable, CAT.6, T, 10m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-188 | GigE cable, CAT.6, 10m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-191 | GigE cable, CAT.6, 10m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-185 | GigE cable, CAT.6, DC, 25m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-40-120 | GigE cabel, CAT.6a, 3m | RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras |
| PLC-Power Cables | ||
| 4-44-197 | PLC-power cable, 12p, DC, 5m | HR10A-10P-12S, plug with socket contacts to open cable end, drag chain capable |
| 4-44-198 | PLC-power cable, 12p, DC, 10m | HR10A-10P-12S, plug with socket contacts to open cable end, drag chain capable |
Title:
Short description:
PoE - Gigabit Ethernet Camera APS-H CMOS, 5120x5120, 4fps, NIR, global shutter
Order number:
3-12-603
Downloads:
Characteristics
- GigE area scan camera for industrial applications
- APS-H CMOS NIR monochrom sensor with 26 megapixel resolution
- extended temperature range for use in harsh industrial environments
- industrial GigE Vision interface with Power over Ethernet
- RJ45 Ethernet connection with screw connector for safe operation
- M42 lens mount
Technical data
| Sensor Data | |
| Sensor name | ON Semi PYTHON 25K |
| Chroma | Monochrome - NIR |
| Sensor technology | CMOS |
| Readout method | Global Shutter |
| Sensorformat | APS-H |
| Sensor diagonal | 32.6 mm |
| Resolution total | 5120 x 5120 |
| Number of pixel | 26.2 MPixel |
| Pixel size | 4.5 µm x 4.5 µm |
| Frame rate | 4.59 fps |
| Shutter (exposure time) | 1 µs ... 1 s |
| Gain control | 0 dB ... 22 dB |
| Dynamic range | 50.7 dB |
| Camera Data | |
| Family | AVT - Prosilica GT |
| Type | GigE Vision area scan camera |
| Interfaces | GigE Vision with PoE opto-decoupled I/Os 1x IN, 2x OUT |
| General Data | |
| Power requirements | Power over Ethernet (PoE) 7 V - 25 VDC AUX (12-pin Hirose) |
| Power consumption | 6.3 W (PoE); 5.02 W (at 12 VDC) |
| Lens mount | M42-Mount |
| Dimensions | 96 mm x 66 mm x 53.3 mm (including connectors) |
| Weight | 372 g |
| Operating temperature | -20 °C ... 50 °C |
Drawings
Dimensional drawing in mm
Absolute QE / Spectral response
Accessories
| Order number | Title | Description |
|---|---|---|
| Ethernet Cables | ||
| 4-44-182 | GigE cable, CAT.6, DC, 3m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-192 | GigE cable, CAT.6, T, 3m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-186 | GigE cable, CAT.6, 3m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-189 | GigE cable, CAT.6, 3m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-183 | GigE cable, CAT.6, DC, 5m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-193 | GigE cable, CAT.6, T, 5m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-187 | GigE cable, CAT.6, 5m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-190 | GigE cable, CAT.6, 5m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-184 | GigE cable, CAT.6, DC, 10m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-44-194 | GigE cable, CAT.6, T, 10m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
| 4-44-188 | GigE cable, CAT.6, 10m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
| 4-44-191 | GigE cable, CAT.6, 10m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
| 4-44-185 | GigE cable, CAT.6, DC, 25m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
| 4-40-120 | GigE cabel, CAT.6a, 3m | RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras |
| PLC-Power Cables | ||
| 4-44-197 | PLC-power cable, 12p, DC, 5m | HR10A-10P-12S, plug with socket contacts to open cable end, drag chain capable |
| 4-44-198 | PLC-power cable, 12p, DC, 10m | HR10A-10P-12S, plug with socket contacts to open cable end, drag chain capable |
Load more products..
