Cameras for vicosys^®

Select your requirements here and see all the relevant results below.

Productview

Product information

to the wishlist (0)

Title:

BFS-PGE-13Y3C-C PoE

Short description:

PoE - Gigabit Ethernet Camera 1/2" CMOS, 1280x1024, 84fps, colour, global shutter

Order number:

3-12-528

This product is being replaced!

Downloads:

Show details

Characteristics

ultra-compact GigE area scan camera for industrial applications
1/2" CMOS colour sensor with 1.3 megapixel resolution
industrial GigE Vision interface with Power over Ethernet
RJ45 Ethernet connection with screw connector for safe operation
C-mount lens connection

Technical data

Sensor Data
Sensor name	On Semi P1300
Chroma	Farbe
Sensor technology	CMOS
Readout method	Global Shutter
Sensorformat	1/2"
Sensor diagonal	7.8 mm
Resolution total	1280 x 1024
Number of pixel	1.3 MPixel
Pixel size	4.8 µm x 4.8 µm
Frame rate	84 fps
Shutter (exposure time)	11 µs ... 30 s
Gain control	0 dB ... 18 dB
Dynamic range	56.17 dB
Camera Data
Family	Flir - Blackfly^®S
Type	GigE Vision area scan camera
Interfaces	GigE Vision with PoE opto-decoupled I/Os 1x IN, 1x OUT
General Data
Power requirements	Power over Ethernet (PoE) 8 V - 24 VDC AUX (6-pin Hirose)
Power consumption	3.0 W (PoE); 2.8 W (at 12 VDC)
Lens mount	C-Mount
Dimensions	29 mm x 29 mm x 30 mm
Weight	36 g
Operating temperature	0 °C ... 50 °C

Drawings

Dimensional drawing in mm

Accessories

Order number	Title	Description
Ethernet Cables
4-44-182	GigE cable, CAT.6, DC, 3m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-192	GigE cable, CAT.6, T, 3m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-186	GigE cable, CAT.6, 3m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-189	GigE cable, CAT.6, 3m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-183	GigE cable, CAT.6, DC, 5m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-193	GigE cable, CAT.6, T, 5m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-187	GigE cable, CAT.6, 5m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-190	GigE cable, CAT.6, 5m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-184	GigE cable, CAT.6, DC, 10m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-194	GigE cable, CAT.6, T, 10m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-188	GigE cable, CAT.6, 10m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-191	GigE cable, CAT.6, 10m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-185	GigE cable, CAT.6, DC, 25m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-40-120	GigE cabel, CAT.6a, 3m	RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras
PLC-Power Cables
4-44-199	PLC-power cable, 6p, DC, 5m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable
4-44-200	PLC-power cable, 6p, DC, 10m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable

Title:

BFS-PGE-16S2M-CS PoE

Short description:

PoE - Gigabit Ethernet Camera 1/2.9" CMOS, 1440x1080, 78fps, mono, global shutter

Order number:

3-12-529

This product is being replaced!

Downloads:

Show details

Characteristics

ultra-compact GigE area scan camera for industrial applications
1/2.9" CMOS monochrom sensor with 1.5 megapixel resolution
industrial GigE Vision interface with Power over Ethernet
RJ45 Ethernet connection with screw connector for safe operation
CS-mount lens connection

Technical data

Sensor Data
Sensor name	Sony IMX273LLR Exmor
Chroma	Monochrome
Sensor technology	CMOS
Readout method	Global Shutter
Sensorformat	1/2.9"
Sensor diagonal	6.3 mm
Resolution total	1440 x 1080
Number of pixel	1.5 MPixel
Pixel size	3.45 µm x 3.45 µm
Frame rate	78 fps
Shutter (exposure time)	7 µs ... 30 s
Gain control	0 dB ... 47 dB
Dynamic range	71.50 dB
Camera Data
Family	Flir - Blackfly^®S
Type	GigE Vision area scan camera
Interfaces	GigE Vision with PoE opto-decoupled I/Os 1x IN, 1x OUT
General Data
Power requirements	Power over Ethernet (PoE) 8 V - 24 VDC AUX (6-pin Hirose)
Power consumption	3.0 W (PoE); 2.8 W (at 12 VDC)
Lens mount	CS-Mount
Dimensions	29 mm x 29 mm x 30 mm
Weight	36 g
Operating temperature	0 °C ... 50 °C

Drawings

Dimensional drawing in mm

Accessories

Order number	Title	Description
Ethernet Cables
4-44-182	GigE cable, CAT.6, DC, 3m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-192	GigE cable, CAT.6, T, 3m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-186	GigE cable, CAT.6, 3m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-189	GigE cable, CAT.6, 3m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-183	GigE cable, CAT.6, DC, 5m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-193	GigE cable, CAT.6, T, 5m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-187	GigE cable, CAT.6, 5m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-190	GigE cable, CAT.6, 5m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-184	GigE cable, CAT.6, DC, 10m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-194	GigE cable, CAT.6, T, 10m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-188	GigE cable, CAT.6, 10m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-191	GigE cable, CAT.6, 10m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-185	GigE cable, CAT.6, DC, 25m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-40-120	GigE cabel, CAT.6a, 3m	RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras
PLC-Power Cables
4-44-199	PLC-power cable, 6p, DC, 5m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable
4-44-200	PLC-power cable, 6p, DC, 10m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable

Title:

BFS-PGE-16S2C-CS PoE

Short description:

PoE - Gigabit Ethernet Camera 1/2.9" CMOS, 1440x1080, 78fps, colour, global shutter

Order number:

3-12-530

This product is being replaced!

Downloads:

Show details

Characteristics

ultra-compact GigE area scan camera for industrial applications
1/2.9" CMOS colour sensor with 1.5 megapixel resolution
industrial GigE Vision interface with Power over Ethernet
RJ45 Ethernet connection with screw connector for safe operation
CS-mount lens connection

Technical data

Sensor Data
Sensor name	Sony IMX273LQR Exmor
Chroma	Farbe
Sensor technology	CMOS
Readout method	Global Shutter
Sensorformat	1/2.9"
Sensor diagonal	6.3 mm
Resolution total	1440 x 1080
Number of pixel	1.5 MPixel
Pixel size	3.45 µm x 3.45 µm
Frame rate	78 fps
Shutter (exposure time)	7 µs ... 30 s
Gain control	0 dB ... 47 dB
Dynamic range	71.40 dB
Camera Data
Family	Flir - Blackfly^®S
Type	GigE Vision area scan camera
Interfaces	GigE Vision with PoE opto-decoupled I/Os 1x IN, 1x OUT
General Data
Power requirements	Power over Ethernet (PoE) 8 V - 24 VDC AUX (6-pin Hirose)
Power consumption	3.0 W (PoE); 2.8 W (at 12 VDC)
Lens mount	CS-Mount
Dimensions	29 mm x 29 mm x 30 mm
Weight	36 g
Operating temperature	0 °C ... 50 °C

Drawings

Dimensional drawing in mm

Accessories

Order number	Title	Description
Ethernet Cables
4-44-182	GigE cable, CAT.6, DC, 3m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-192	GigE cable, CAT.6, T, 3m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-186	GigE cable, CAT.6, 3m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-189	GigE cable, CAT.6, 3m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-183	GigE cable, CAT.6, DC, 5m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-193	GigE cable, CAT.6, T, 5m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-187	GigE cable, CAT.6, 5m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-190	GigE cable, CAT.6, 5m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-184	GigE cable, CAT.6, DC, 10m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-194	GigE cable, CAT.6, T, 10m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-188	GigE cable, CAT.6, 10m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-191	GigE cable, CAT.6, 10m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-185	GigE cable, CAT.6, DC, 25m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-40-120	GigE cabel, CAT.6a, 3m	RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras
PLC-Power Cables
4-44-199	PLC-power cable, 6p, DC, 5m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable
4-44-200	PLC-power cable, 6p, DC, 10m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable

Title:

BFS-PGE-19S4M-C PoE

Short description:

PoE - Gigabit Ethernet Camera 1/1.7" CMOS, 1616x1240, 60fps, mono, global shutter

Order number:

3-12-574

This product is being replaced!

Downloads:

Show details

Characteristics

ultra-compact GigE area scan camera for industrial applications
1/1.7" CMOS monochrom sensor with 2 megapixel resolution
industrial GigE Vision interface with Power over Ethernet
RJ45 Ethernet connection with screw connector for safe operation
C-mount lens connection

Technical data

Sensor Data
Sensor name	Sony IMX430
Chroma	Monochrome
Sensor technology	CMOS
Readout method	Global Shutter
Sensorformat	1/1.7"
Sensor diagonal	9.2 mm
Resolution total	1616 x 1240
Number of pixel	2.0 MPixel
Pixel size	4.5 µm x 4.5 µm
Frame rate	60 fps
Shutter (exposure time)	14 µs ... 30 s
Gain control	0 dB ... 47 dB
Dynamic range	70.95 dB
Camera Data
Family	Flir - Blackfly^®S
Type	GigE Vision area scan camera
Interfaces	GigE Vision with PoE opto-decoupled I/Os 1x IN, 1x OUT
General Data
Power requirements	Power over Ethernet (PoE) 8 V - 24 VDC AUX (6-pin Hirose)
Power consumption	4.2 W (PoE); 3.6 W (at 12 VDC)
Lens mount	C-Mount
Dimensions	29 mm x 29 mm x 39 mm
Weight	53 g
Operating temperature	0 °C ... 50 °C

Drawings

Dimensional drawing in mm

Accessories

Order number	Title	Description
Ethernet Cables
4-44-182	GigE cable, CAT.6, DC, 3m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-192	GigE cable, CAT.6, T, 3m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-186	GigE cable, CAT.6, 3m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-189	GigE cable, CAT.6, 3m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-183	GigE cable, CAT.6, DC, 5m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-193	GigE cable, CAT.6, T, 5m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-187	GigE cable, CAT.6, 5m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-190	GigE cable, CAT.6, 5m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-184	GigE cable, CAT.6, DC, 10m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-194	GigE cable, CAT.6, T, 10m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-188	GigE cable, CAT.6, 10m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-191	GigE cable, CAT.6, 10m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-185	GigE cable, CAT.6, DC, 25m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-40-120	GigE cabel, CAT.6a, 3m	RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras
PLC-Power Cables
4-44-199	PLC-power cable, 6p, DC, 5m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable
4-44-200	PLC-power cable, 6p, DC, 10m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable

Title:

BFS-PGE-19S4C-C PoE

Short description:

PoE - Gigabit Ethernet Camera 1/1.7" CMOS, 1616x1240, 60fps, colour, global shutter

Order number:

3-12-575

This product is being replaced!

Downloads:

Show details

Characteristics

ultra-compact GigE area scan camera for industrial applications
1/1.7" CMOS colour sensor with 2 megapixel resolution
industrial GigE Vision interface with Power over Ethernet
RJ45 Ethernet connection with screw connector for safe operation
C-mount lens connection

Technical data

Sensor Data
Sensor name	Sony IMX430
Chroma	Farbe
Sensor technology	CMOS
Readout method	Global Shutter
Sensorformat	1/1.7"
Sensor diagonal	9.2 mm
Resolution total	1616 x 1240
Number of pixel	2.0 MPixel
Pixel size	4.5 µm x 4.5 µm
Frame rate	60 fps
Shutter (exposure time)	14 µs ... 30 s
Gain control	0 dB ... 47 dB
Dynamic range	70.95 dB
Camera Data
Family	Flir - Blackfly^®S
Type	GigE Vision area scan camera
Interfaces	GigE Vision with PoE opto-decoupled I/Os 1x IN, 1x OUT
General Data
Power requirements	Power over Ethernet (PoE) 8 V - 24 VDC AUX (6-pin Hirose)
Power consumption	4.2 W (PoE); 3.6 W (at 12 VDC)
Lens mount	C-Mount
Dimensions	29 mm x 29 mm x 39 mm
Weight	53 g
Operating temperature	0 °C ... 50 °C

Drawings

Dimensional drawing in mm

Accessories

Order number	Title	Description
Ethernet Cables
4-44-182	GigE cable, CAT.6, DC, 3m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-192	GigE cable, CAT.6, T, 3m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-186	GigE cable, CAT.6, 3m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-189	GigE cable, CAT.6, 3m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-183	GigE cable, CAT.6, DC, 5m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-193	GigE cable, CAT.6, T, 5m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-187	GigE cable, CAT.6, 5m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-190	GigE cable, CAT.6, 5m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-184	GigE cable, CAT.6, DC, 10m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-194	GigE cable, CAT.6, T, 10m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-188	GigE cable, CAT.6, 10m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-191	GigE cable, CAT.6, 10m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-185	GigE cable, CAT.6, DC, 25m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-40-120	GigE cabel, CAT.6a, 3m	RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras
PLC-Power Cables
4-44-199	PLC-power cable, 6p, DC, 5m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable
4-44-200	PLC-power cable, 6p, DC, 10m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable

Title:

BFS-PGE-23S3M-C PoE

Short description:

PoE - Gigabit Ethernet Camera 1/2.3" CMOS, 1920×1200, 53fps mono, global shutter

Order number:

3-12-520

This product is being replaced!

Downloads:

Show details

Characteristics

ultra-compact GigE area scan camera for industrial applications
1/2.3" CMOS monochrom sensor with 2.3 megapixel resolution
industrial GigE Vision interface with Power over Ethernet
RJ45 Ethernet connection with screw connector for safe operation
C-mount lens connection

Technical data

Sensor Data
Sensor name	Sony IMX392 LLR
Chroma	Monochrome
Sensor technology	CMOS
Readout method	Global Shutter
Sensorformat	1/2.3"
Sensor diagonal	7.9 mm
Resolution total	1920 × 1200
Number of pixel	2.3 MPixel
Pixel size	3.45 µm x 3.45 µm
Frame rate	53 fps
Shutter (exposure time)	9 µs ... 30 s
Gain control	0 dB ... 47 dB
Dynamic range	71.49 dB
Camera Data
Family	Flir - Blackfly^®S
Type	GigE Vision area scan camera
Interfaces	GigE Vision with PoE opto-decoupled I/Os 1x IN, 1x OUT
General Data
Power requirements	Power over Ethernet (PoE) 8 V - 24 VDC AUX (6-pin Hirose)
Power consumption	3.0 W (PoE); 2.8 W (at 12 VDC)
Lens mount	C-Mount
Dimensions	29 mm x 29 mm x 30 mm
Weight	36 g
Operating temperature	0 °C ... 50 °C

Drawings

Dimensional drawing in mm

Accessories

Order number	Title	Description
Ethernet Cables
4-44-182	GigE cable, CAT.6, DC, 3m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-192	GigE cable, CAT.6, T, 3m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-186	GigE cable, CAT.6, 3m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-189	GigE cable, CAT.6, 3m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-183	GigE cable, CAT.6, DC, 5m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-193	GigE cable, CAT.6, T, 5m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-187	GigE cable, CAT.6, 5m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-190	GigE cable, CAT.6, 5m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-184	GigE cable, CAT.6, DC, 10m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-194	GigE cable, CAT.6, T, 10m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-188	GigE cable, CAT.6, 10m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-191	GigE cable, CAT.6, 10m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-185	GigE cable, CAT.6, DC, 25m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-40-120	GigE cabel, CAT.6a, 3m	RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras
PLC-Power Cables
4-44-199	PLC-power cable, 6p, DC, 5m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable
4-44-200	PLC-power cable, 6p, DC, 10m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable

Title:

BFS-PGE-27S5M-C PoE

Short description:

PoE - Gigabit Ethernet Camera 2/3" CMOS, 1936x1464, 43fps, mono, global shutter

Order number:

3-12-522

This product is being replaced!

Downloads:

Show details

Characteristics

ultra-compact GigE area scan camera for industrial applications
2/3" CMOS monochrom sensor with 2.8 megapixel resolution
industrial GigE Vision interface with Power over Ethernet
RJ45 Ethernet connection with screw connector for safe operation
C-mount lens connection

Technical data

Sensor Data
Sensor name	Sony IMX 429 LLJ
Chroma	Monochrome
Sensor technology	CMOS
Readout method	Global Shutter
Sensorformat	2/3"
Sensor diagonal	11.0 mm
Resolution total	1936 x 1464
Number of pixel	2.8 MPixel
Pixel size	4.5 µm x 4.5 µm
Frame rate	43 fps
Shutter (exposure time)	15 µs ... 30 s
Gain control	0 dB ... 47 dB
Dynamic range	71.81 dB
Camera Data
Family	Flir - Blackfly^®S
Type	GigE Vision area scan camera
Interfaces	GigE Vision with PoE opto-decoupled I/Os 1x IN, 1x OUT
General Data
Power requirements	Power over Ethernet (PoE) 8 V - 24 VDC AUX (6-pin Hirose)
Power consumption	3.0 W (PoE); 2.8 W (at 12 VDC)
Lens mount	C-Mount
Dimensions	29 mm x 29 mm x 39 mm
Weight	53 g
Operating temperature	0 °C ... 50 °C

Drawings

Dimensional drawing in mm

Accessories

Order number	Title	Description
Ethernet Cables
4-44-182	GigE cable, CAT.6, DC, 3m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-192	GigE cable, CAT.6, T, 3m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-186	GigE cable, CAT.6, 3m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-189	GigE cable, CAT.6, 3m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-183	GigE cable, CAT.6, DC, 5m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-193	GigE cable, CAT.6, T, 5m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-187	GigE cable, CAT.6, 5m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-190	GigE cable, CAT.6, 5m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-184	GigE cable, CAT.6, DC, 10m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-194	GigE cable, CAT.6, T, 10m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-188	GigE cable, CAT.6, 10m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-191	GigE cable, CAT.6, 10m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-185	GigE cable, CAT.6, DC, 25m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-40-120	GigE cabel, CAT.6a, 3m	RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras
PLC-Power Cables
4-44-199	PLC-power cable, 6p, DC, 5m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable
4-44-200	PLC-power cable, 6p, DC, 10m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable

Title:

BFS-PGE-27S5C-C PoE

Short description:

PoE - Gigabit Ethernet Camera 2/3" CMOS, 1936x1464, 43fps, colour, global shutter

Order number:

3-12-521

This product is being replaced!

Downloads:

Show details

Characteristics

ultra-compact GigE area scan camera for industrial applications
2/3" CMOS colour sensor with 2.8 megapixel resolution
industrial GigE Vision interface with Power over Ethernet
RJ45 Ethernet connection with screw connector for safe operation
C-mount lens connection

Technical data

Sensor Data
Sensor name	Sony IMX 429 LQJ
Chroma	Farbe
Sensor technology	CMOS
Readout method	Global Shutter
Sensorformat	2/3"
Sensor diagonal	11.0 mm
Resolution total	1936 x 1464
Number of pixel	2.8 MPixel
Pixel size	4.5 µm x 4.5 µm
Frame rate	43 fps
Shutter (exposure time)	15 µs ... 30 s
Gain control	0 dB ... 47 dB
Dynamic range	71.81 dB
Camera Data
Family	Flir - Blackfly^®S
Type	GigE Vision area scan camera
Interfaces	GigE Vision with PoE opto-decoupled I/Os 1x IN, 1x OUT
General Data
Power requirements	Power over Ethernet (PoE) 8 V - 24 VDC AUX (6-pin Hirose)
Power consumption	3.0 W (PoE); 2.8 W (at 12 VDC)
Lens mount	C-Mount
Dimensions	29 mm x 29 mm x 39 mm
Weight	53 g
Operating temperature	0 °C ... 50 °C

Drawings

Dimensional drawing in mm

Accessories

Order number	Title	Description
Ethernet Cables
4-44-182	GigE cable, CAT.6, DC, 3m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-192	GigE cable, CAT.6, T, 3m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-186	GigE cable, CAT.6, 3m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-189	GigE cable, CAT.6, 3m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-183	GigE cable, CAT.6, DC, 5m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-193	GigE cable, CAT.6, T, 5m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-187	GigE cable, CAT.6, 5m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-190	GigE cable, CAT.6, 5m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-184	GigE cable, CAT.6, DC, 10m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-194	GigE cable, CAT.6, T, 10m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-188	GigE cable, CAT.6, 10m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-191	GigE cable, CAT.6, 10m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-185	GigE cable, CAT.6, DC, 25m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-40-120	GigE cabel, CAT.6a, 3m	RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras
PLC-Power Cables
4-44-199	PLC-power cable, 6p, DC, 5m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable
4-44-200	PLC-power cable, 6p, DC, 10m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable

Title:

BFS-PGE-31S4M-C PoE

Short description:

PoE - Gigabit Ethernet Camera 1/1.8" CMOS, 2048x1536, 35fps, mono, global shutter

Order number:

3-12-531

This product is being replaced!

Downloads:

Show details

Characteristics

ultra-compact GigE area scan camera for industrial applications
1/1.8" CMOS monochrom sensor with 3.1 megapixel resolution
industrial GigE Vision interface with Power over Ethernet
RJ45 Ethernet connection with screw connector for safe operation
C-mount lens connection

Technical data

Sensor Data
Sensor name	Sony IMX265LLR Exmor
Chroma	Monochrome
Sensor technology	CMOS
Readout method	Global Shutter
Sensorformat	1/1.8"
Sensor diagonal	8.9 mm
Resolution total	2048 x 1536
Number of pixel	3.1 MPixel
Pixel size	3.45 µm x 3.45 µm
Frame rate	35 fps
Shutter (exposure time)	11 µs ... 30 s
Gain control	0 dB ... 48 dB
Dynamic range	71.14 dB
Camera Data
Family	Flir - Blackfly^®S
Type	GigE Vision area scan camera
Interfaces	GigE Vision with PoE opto-decoupled I/Os 1x IN, 1x OUT
General Data
Power requirements	Power over Ethernet (PoE) 8 V - 24 VDC AUX (6-pin Hirose)
Power consumption	3.0 W (PoE); 2.8 W (at 12 VDC)
Lens mount	C-Mount
Dimensions	29 mm x 29 mm x 30 mm
Weight	36 g
Operating temperature	0 °C ... 50 °C

Drawings

Dimensional drawing in mm

Accessories

Order number	Title	Description
Ethernet Cables
4-44-182	GigE cable, CAT.6, DC, 3m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-192	GigE cable, CAT.6, T, 3m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-186	GigE cable, CAT.6, 3m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-189	GigE cable, CAT.6, 3m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-183	GigE cable, CAT.6, DC, 5m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-193	GigE cable, CAT.6, T, 5m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-187	GigE cable, CAT.6, 5m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-190	GigE cable, CAT.6, 5m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-184	GigE cable, CAT.6, DC, 10m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-194	GigE cable, CAT.6, T, 10m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-188	GigE cable, CAT.6, 10m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-191	GigE cable, CAT.6, 10m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-185	GigE cable, CAT.6, DC, 25m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-40-120	GigE cabel, CAT.6a, 3m	RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras
PLC-Power Cables
4-44-199	PLC-power cable, 6p, DC, 5m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable
4-44-200	PLC-power cable, 6p, DC, 10m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable

Title:

BFS-PGE-31S4C-C PoE

Short description:

PoE - Gigabit Ethernet Camera 1/1.8" CMOS, 2048x1536, 35fps, colour, global shutter

Order number:

3-12-532

This product is being replaced!

Downloads:

Show details

Characteristics

ultra-compact GigE area scan camera for industrial applications
1/1.8" CMOS colour sensor with 3.1 megapixel resolution
industrial GigE Vision interface with Power over Ethernet
RJ45 Ethernet connection with screw connector for safe operation
C-mount lens connection

Technical data

Sensor Data
Sensor name	Sony IMX265LQR Exmor
Chroma	Farbe
Sensor technology	CMOS
Readout method	Global Shutter
Sensorformat	1/1.8"
Sensor diagonal	8.9 mm
Resolution total	2048 x 1536
Number of pixel	3.1 MPixel
Pixel size	3.45 µm x 3.45 µm
Frame rate	35 fps
Shutter (exposure time)	11 µs ... 30 s
Gain control	0 dB ... 48 dB
Dynamic range	71.21 dB
Camera Data
Family	Flir - Blackfly^®S
Type	GigE Vision area scan camera
Interfaces	GigE Vision with PoE opto-decoupled I/Os 1x IN, 1x OUT
General Data
Power requirements	Power over Ethernet (PoE) 8 V - 24 VDC AUX (6-pin Hirose)
Power consumption	3.0 W (PoE); 2.8 W (at 12 VDC)
Lens mount	C-Mount
Dimensions	29 mm x 29 mm x 30 mm
Weight	36 g
Operating temperature	0 °C ... 50 °C

Drawings

Dimensional drawing in mm

Accessories

Order number	Title	Description
Ethernet Cables
4-44-182	GigE cable, CAT.6, DC, 3m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-192	GigE cable, CAT.6, T, 3m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-186	GigE cable, CAT.6, 3m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-189	GigE cable, CAT.6, 3m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-183	GigE cable, CAT.6, DC, 5m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-193	GigE cable, CAT.6, T, 5m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-187	GigE cable, CAT.6, 5m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-190	GigE cable, CAT.6, 5m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-184	GigE cable, CAT.6, DC, 10m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-194	GigE cable, CAT.6, T, 10m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-188	GigE cable, CAT.6, 10m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-191	GigE cable, CAT.6, 10m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-185	GigE cable, CAT.6, DC, 25m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-40-120	GigE cabel, CAT.6a, 3m	RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras
PLC-Power Cables
4-44-199	PLC-power cable, 6p, DC, 5m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable
4-44-200	PLC-power cable, 6p, DC, 10m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable

Title:

Mako G-032B PoE

Short description:

PoE - Gigabit Ethernet Camera 1/3" CCD, 658x492, 102fps, mono, global shutter

Order number:

3-12-544

Downloads:

Show details

Characteristics

ultra-compact GigE area scan camera for industrial applications
1/3" CCD monochrom sensor with VGA resolution
industrial GigE Vision interface with Power over Ethernet
RJ45 Ethernet connection with screw connector for safe operation
C-mount lens connection
easy attachment with standard M3 thread at the top and bottom of the housing

Technical data

Sensor Data
Sensor name	Sony ICX424AL
Chroma	Monochrome
Sensor technology	Interline CCD, Progressive Scan
Readout method	Global Shutter
Sensorformat	1/3"
Sensor diagonal	6.0 mm
Resolution total	656 x 492
Number of pixel	0.3 MPixel
Pixel size	7.4 µm x 7.4 µm
Frame rate	102.3 fps
Shutter (exposure time)	10 µs ... 93 s
Gain control	0 dB ... 30 dB
Camera Data
Family	Allied Vision - Mako
Type	GigE Vision area scan camera
Interfaces	GigE Vision with PoE opto-decoupled I/Os 1x IN, 3x OUT
General Data
Power requirements	Power over Ethernet (PoE) 12 - 24 VDC AUX (8-pin Hirose)
Power consumption	2.8 W (PoE); 2.4 W (at 12 VDC)
Lens mount	C-Mount
Dimensions	60.5 mm × 29.2 mm × 29.2 mm (including connectors)
Weight	80 g
Degree of protection (IP)	IP 30
Operating temperature	5 °C ... 45 °C

Drawings

Dimensional drawing in mm

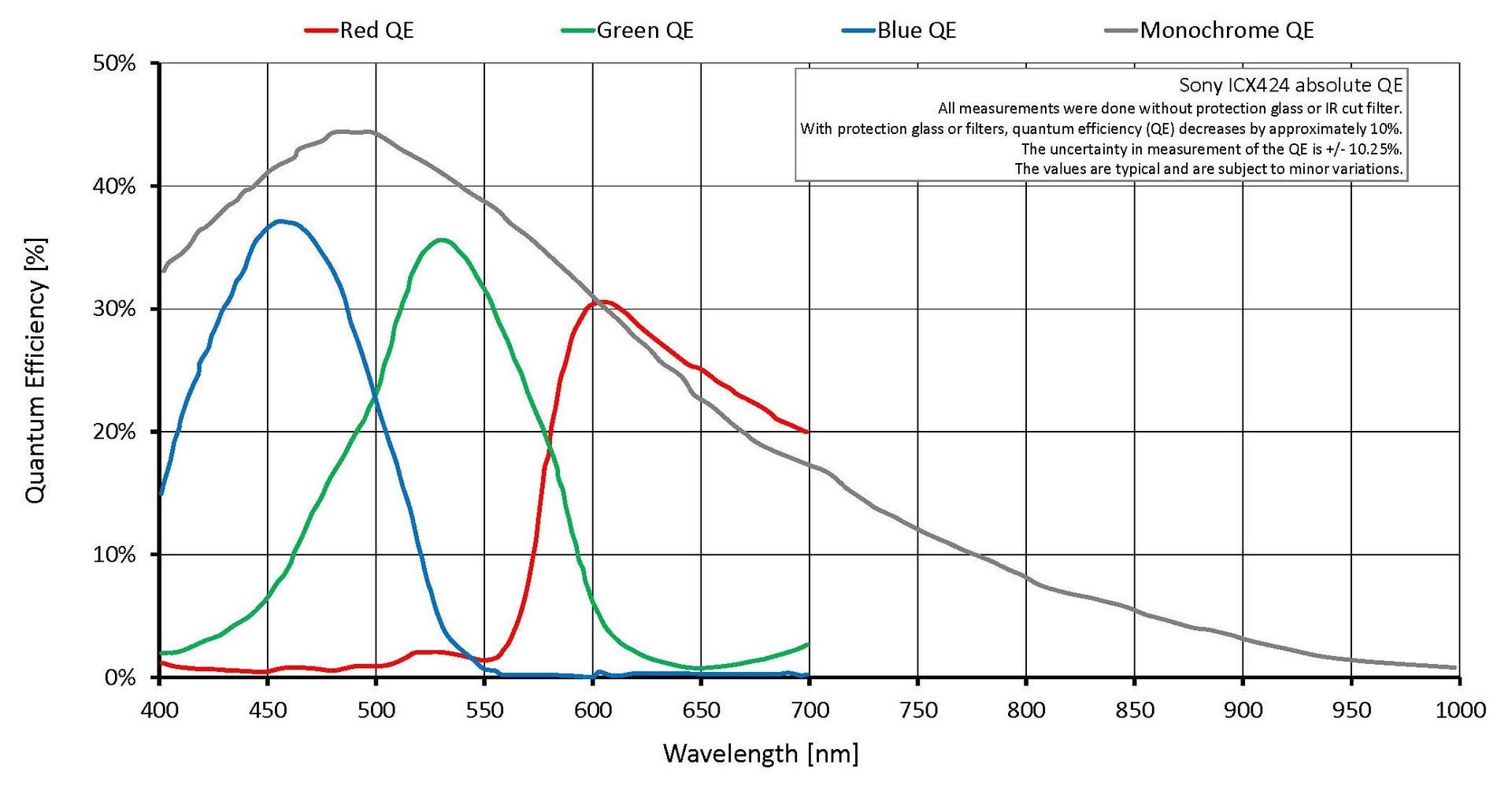

Quantum Efficiency

Accessories

Order number	Title	Description
Ethernet Cables
4-44-182	GigE cable, CAT.6, DC, 3m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-192	GigE cable, CAT.6, T, 3m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-186	GigE cable, CAT.6, 3m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-189	GigE cable, CAT.6, 3m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-183	GigE cable, CAT.6, DC, 5m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-193	GigE cable, CAT.6, T, 5m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-187	GigE cable, CAT.6, 5m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-190	GigE cable, CAT.6, 5m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-184	GigE cable, CAT.6, DC, 10m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-194	GigE cable, CAT.6, T, 10m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-188	GigE cable, CAT.6, 10m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-191	GigE cable, CAT.6, 10m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-185	GigE cable, CAT.6, DC, 25m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-40-120	GigE cabel, CAT.6a, 3m	RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras
PLC-Power Cables
4-44-195	PLC-power cable, 8p, DC, 5m	HR25-7TP-8S, plug with socket contacts to open cable end, drag chain capable
4-44-196	PLC-power cable, 8p, DC, 10m	HR25-7TP-8S, plug with socket contacts to open cable end, drag chain capable

Title:

Mako G-032C PoE

Short description:

PoE - Gigabit Ethernet Camera 1/3" CCD, 658x492, 102fps, colour, global shutter

Order number:

3-12-545

Downloads:

Show details

Characteristics

ultra-compact GigE area scan camera for industrial applications
1/3" CCD colour sensor with VGA resolution
industrial GigE Vision interface with Power over Ethernet
RJ45 Ethernet connection with screw connector for safe operation
C-mount lens connection
easy attachment with standard M3 thread at the top and bottom of the housing

Technical data

Sensor Data
Sensor name	Sony ICX424AQ
Chroma	Farbe
Sensor technology	Interline CCD, Progressive Scan
Readout method	Global Shutter
Sensorformat	1/3"
Sensor diagonal	6.0 mm
Resolution total	656 x 492
Number of pixel	0.3 MPixel
Pixel size	7.4 µm x 7.4 µm
Frame rate	102.3 fps
Shutter (exposure time)	10 µs ... 93 s
Gain control	0 dB ... 30 dB
Camera Data
Family	Allied Vision - Mako
Type	GigE Vision area scan camera
Interfaces	GigE Vision with PoE opto-decoupled I/Os 1x IN, 3x OUT
General Data
Power requirements	Power over Ethernet (PoE) 12 - 24 VDC AUX (8-pin Hirose)
Power consumption	2.8 W (PoE); 2.4 W (at 12 VDC)
Lens mount	C-Mount
Dimensions	60.5 mm × 29.2 mm × 29.2 mm (including connectors)
Weight	80 g
Degree of protection (IP)	IP 30
Operating temperature	5 °C ... 45 °C

Drawings

Dimensional drawing in mm

Quantum Efficiency

Accessories

Order number	Title	Description
Ethernet Cables
4-44-182	GigE cable, CAT.6, DC, 3m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-192	GigE cable, CAT.6, T, 3m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-186	GigE cable, CAT.6, 3m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-189	GigE cable, CAT.6, 3m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-183	GigE cable, CAT.6, DC, 5m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-193	GigE cable, CAT.6, T, 5m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-187	GigE cable, CAT.6, 5m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-190	GigE cable, CAT.6, 5m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-184	GigE cable, CAT.6, DC, 10m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-194	GigE cable, CAT.6, T, 10m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-188	GigE cable, CAT.6, 10m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-191	GigE cable, CAT.6, 10m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-185	GigE cable, CAT.6, DC, 25m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-40-120	GigE cabel, CAT.6a, 3m	RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras
PLC-Power Cables
4-44-195	PLC-power cable, 8p, DC, 5m	HR25-7TP-8S, plug with socket contacts to open cable end, drag chain capable
4-44-196	PLC-power cable, 8p, DC, 10m	HR25-7TP-8S, plug with socket contacts to open cable end, drag chain capable

Title:

BFS-PGE-50S5M-C PoE

Short description:

PoE - Gigabit Ethernet Camera 2/3" CMOS, 2448x2048, 22fps, mono, global shutter

Order number:

3-12-533

This product is being replaced!

Downloads:

Show details

Characteristics

ultra-compact GigE area scan camera for industrial applications
2/3" CMOS monochrom sensor with 5 megapixel resolution
industrial GigE Vision interface with Power over Ethernet
RJ45 Ethernet connection with screw connector for safe operation
C-mount lens connection

Technical data

Sensor Data
Sensor name	Sony IMX264LLR Exmor
Chroma	Monochrome
Sensor technology	CMOS
Readout method	Global Shutter
Sensorformat	2/3"
Sensor diagonal	11.0 mm
Resolution total	2448 x 2048
Number of pixel	5.0 MPixel
Pixel size	3.45 µm x 3.45 µm
Frame rate	22 fps
Shutter (exposure time)	13 µs ... 30 s
Gain control	0 dB ... 48 dB
Dynamic range	71.01 dB
Camera Data
Family	Flir - Blackfly^®S
Type	GigE Vision area scan camera
Interfaces	GigE Vision with PoE opto-decoupled I/Os 1x IN, 1x OUT
General Data
Power requirements	Power over Ethernet (PoE) 8 V - 24 VDC AUX (6-pin Hirose)
Power consumption	3.0 W (PoE); 2.8 W (at 12 VDC)
Lens mount	C-Mount
Dimensions	29 mm x 29 mm x 30 mm
Weight	36 g
Operating temperature	0 °C ... 50 °C

Drawings

Dimensional drawing in mm

Accessories

Order number	Title	Description
Ethernet Cables
4-44-182	GigE cable, CAT.6, DC, 3m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-192	GigE cable, CAT.6, T, 3m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-186	GigE cable, CAT.6, 3m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-189	GigE cable, CAT.6, 3m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-183	GigE cable, CAT.6, DC, 5m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-193	GigE cable, CAT.6, T, 5m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-187	GigE cable, CAT.6, 5m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-190	GigE cable, CAT.6, 5m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-184	GigE cable, CAT.6, DC, 10m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-194	GigE cable, CAT.6, T, 10m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-188	GigE cable, CAT.6, 10m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-191	GigE cable, CAT.6, 10m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-185	GigE cable, CAT.6, DC, 25m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-40-120	GigE cabel, CAT.6a, 3m	RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras
PLC-Power Cables
4-44-199	PLC-power cable, 6p, DC, 5m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable
4-44-200	PLC-power cable, 6p, DC, 10m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable

Title:

BFS-PGE-50S4M-C PoE

Short description:

PoE - Gigabit Ethernet Camera 1/1.8" CMOS, 2448x2048, 30fps, mono, global shutter

Order number:

3-12-572

This product is being replaced!

Downloads:

Show details

Characteristics

ultra-compact GigE area scan camera for industrial applications
1/1.8" CMOS monochrom sensor with 5 megapixel resolution
industrial GigE Vision interface with Power over Ethernet
RJ45 Ethernet connection with screw connector for safe operation
C-mount lens connection

Technical data

Sensor Data
Sensor name	Sony IMX547
Chroma	Monochrome
Sensor technology	CMOS
Readout method	Global Shutter
Sensorformat	1/1.8"
Sensor diagonal	8.8 mm
Resolution total	2448 x 2048
Number of pixel	5.0 MPixel
Pixel size	2.74 µm x 2.74 µm
Frame rate	24 fps
Shutter (exposure time)	16 µs ... 30 s
Gain control	0 dB ... 47 dB
Dynamic range	70.26 dB
Camera Data
Family	Flir - Blackfly^®S
Type	GigE Vision area scan camera
Interfaces	GigE Vision with PoE opto-decoupled I/Os 1x IN, 1x OUT
General Data
Power requirements	Power over Ethernet (PoE) 8 V - 24 VDC AUX (6-pin Hirose)
Power consumption	3.0 W (PoE); 2.8 W (at 12 VDC)
Lens mount	C-Mount
Dimensions	29 mm x 29 mm x 39 mm
Weight	53 g
Operating temperature	0 °C ... 50 °C

Drawings

Dimensional drawing in mm

Accessories

Order number	Title	Description
Ethernet Cables
4-44-182	GigE cable, CAT.6, DC, 3m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-192	GigE cable, CAT.6, T, 3m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-186	GigE cable, CAT.6, 3m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-189	GigE cable, CAT.6, 3m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-183	GigE cable, CAT.6, DC, 5m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-193	GigE cable, CAT.6, T, 5m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-187	GigE cable, CAT.6, 5m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-190	GigE cable, CAT.6, 5m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-184	GigE cable, CAT.6, DC, 10m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-194	GigE cable, CAT.6, T, 10m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-188	GigE cable, CAT.6, 10m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-191	GigE cable, CAT.6, 10m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-185	GigE cable, CAT.6, DC, 25m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-40-120	GigE cabel, CAT.6a, 3m	RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras
PLC-Power Cables
4-44-199	PLC-power cable, 6p, DC, 5m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable
4-44-200	PLC-power cable, 6p, DC, 10m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable

Title:

BFS-PGE-50S5C-C PoE

Short description:

PoE - Gigabit Ethernet Camera 2/3" CMOS, 2448x2048, 22fps, colour, global shutter

Order number:

3-12-534

This product is being replaced!

Downloads:

Show details

Characteristics

ultra-compact GigE area scan camera for industrial applications
2/3" CMOS colour sensor with 5 megapixel resolution
industrial GigE Vision interface with Power over Ethernet
RJ45 Ethernet connection with screw connector for safe operation
C-mount lens connection

Technical data

Sensor Data
Sensor name	Sony IMX264LQR Exmor
Chroma	Farbe
Sensor technology	CMOS
Readout method	Global Shutter
Sensorformat	2/3"
Sensor diagonal	11.0 mm
Resolution total	2448 x 2048
Number of pixel	5.0 MPixel
Pixel size	3.45 µm x 3.45 µm
Frame rate	22 fps
Shutter (exposure time)	13 µs ... 30 s
Gain control	0 dB ... 48 dB
Dynamic range	71.51 dB
Camera Data
Family	Flir - Blackfly^®S
Type	GigE Vision area scan camera
Interfaces	GigE Vision with PoE opto-decoupled I/Os 1x IN, 1x OUT
General Data
Power requirements	Power over Ethernet (PoE) 8 V - 24 VDC AUX (6-pin Hirose)
Power consumption	3.0 W (PoE); 2.8 W (at 12 VDC)
Lens mount	C-Mount
Dimensions	29 mm x 29 mm x 30 mm
Weight	36 g
Operating temperature	0 °C ... 50 °C

Drawings

Dimensional drawing in mm

Accessories

Order number	Title	Description
Ethernet Cables
4-44-182	GigE cable, CAT.6, DC, 3m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-192	GigE cable, CAT.6, T, 3m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-186	GigE cable, CAT.6, 3m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-189	GigE cable, CAT.6, 3m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-183	GigE cable, CAT.6, DC, 5m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-193	GigE cable, CAT.6, T, 5m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-187	GigE cable, CAT.6, 5m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-190	GigE cable, CAT.6, 5m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-184	GigE cable, CAT.6, DC, 10m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-44-194	GigE cable, CAT.6, T, 10m	RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras
4-44-188	GigE cable, CAT.6, 10m, 90°d	RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras
4-44-191	GigE cable, CAT.6, 10m, 90°u	RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras
4-44-185	GigE cable, CAT.6, DC, 25m	RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras
4-40-120	GigE cabel, CAT.6a, 3m	RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras
PLC-Power Cables
4-44-199	PLC-power cable, 6p, DC, 5m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable
4-44-200	PLC-power cable, 6p, DC, 10m	HR10A-7P-6S, plug with socket contacts to open cable end, drag chain capable

Load more products..
